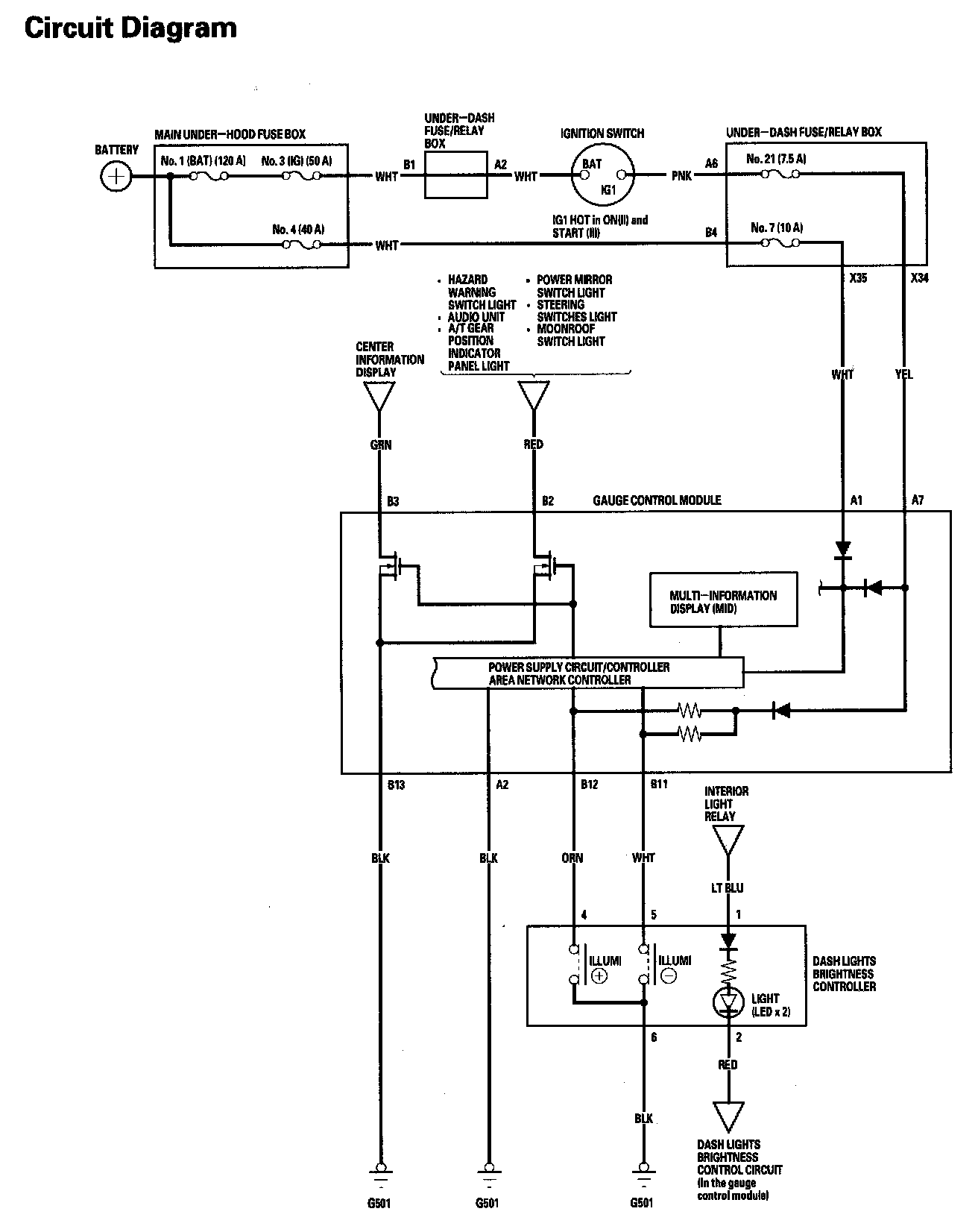

Dash Lights Brightness Controller Circuit Diagram

Dash Lights Brightness Controller Circuit Diagram:
