Gauges Circuit Diagram

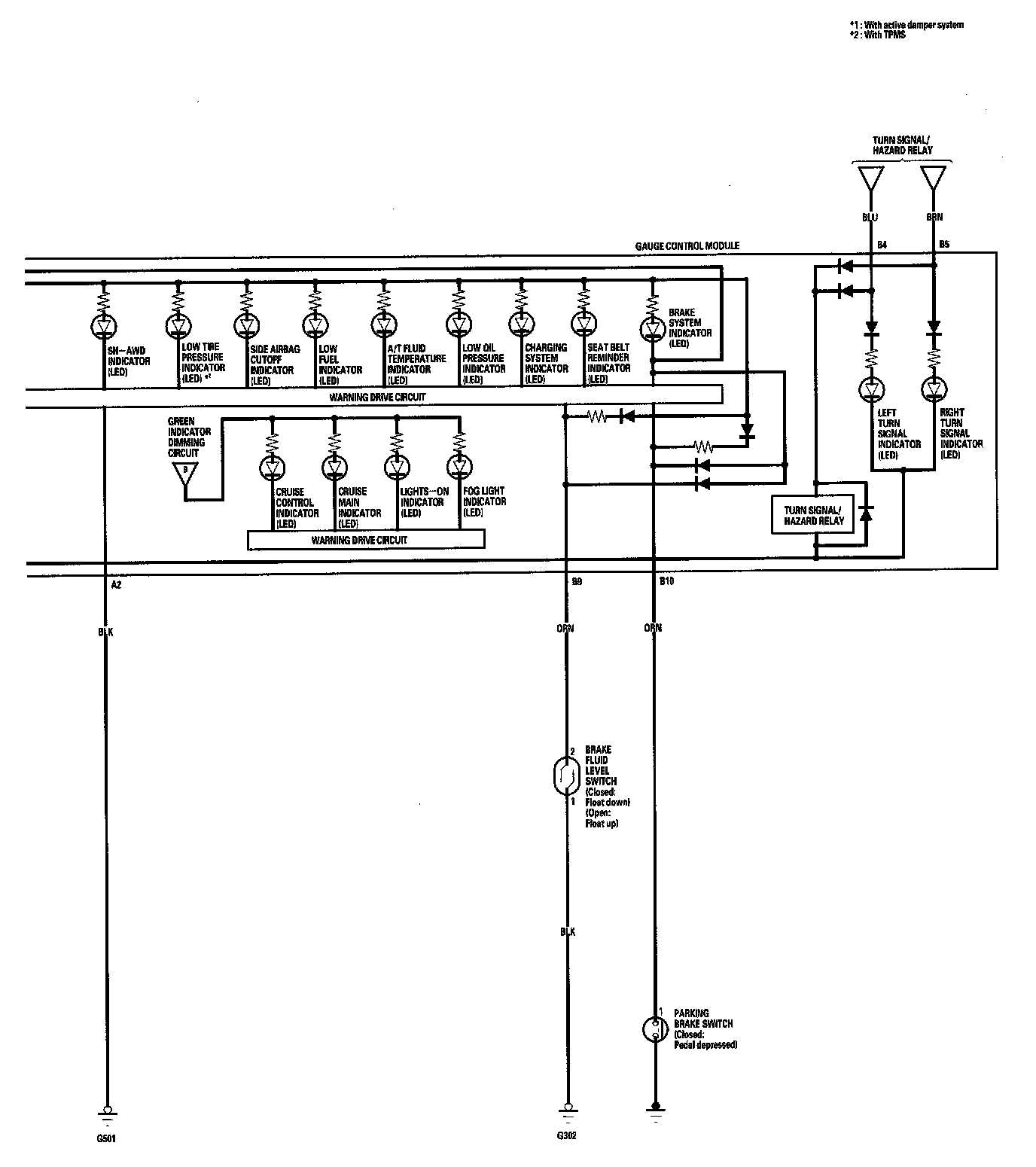

Gauges Circuit Diagram (Part 1):

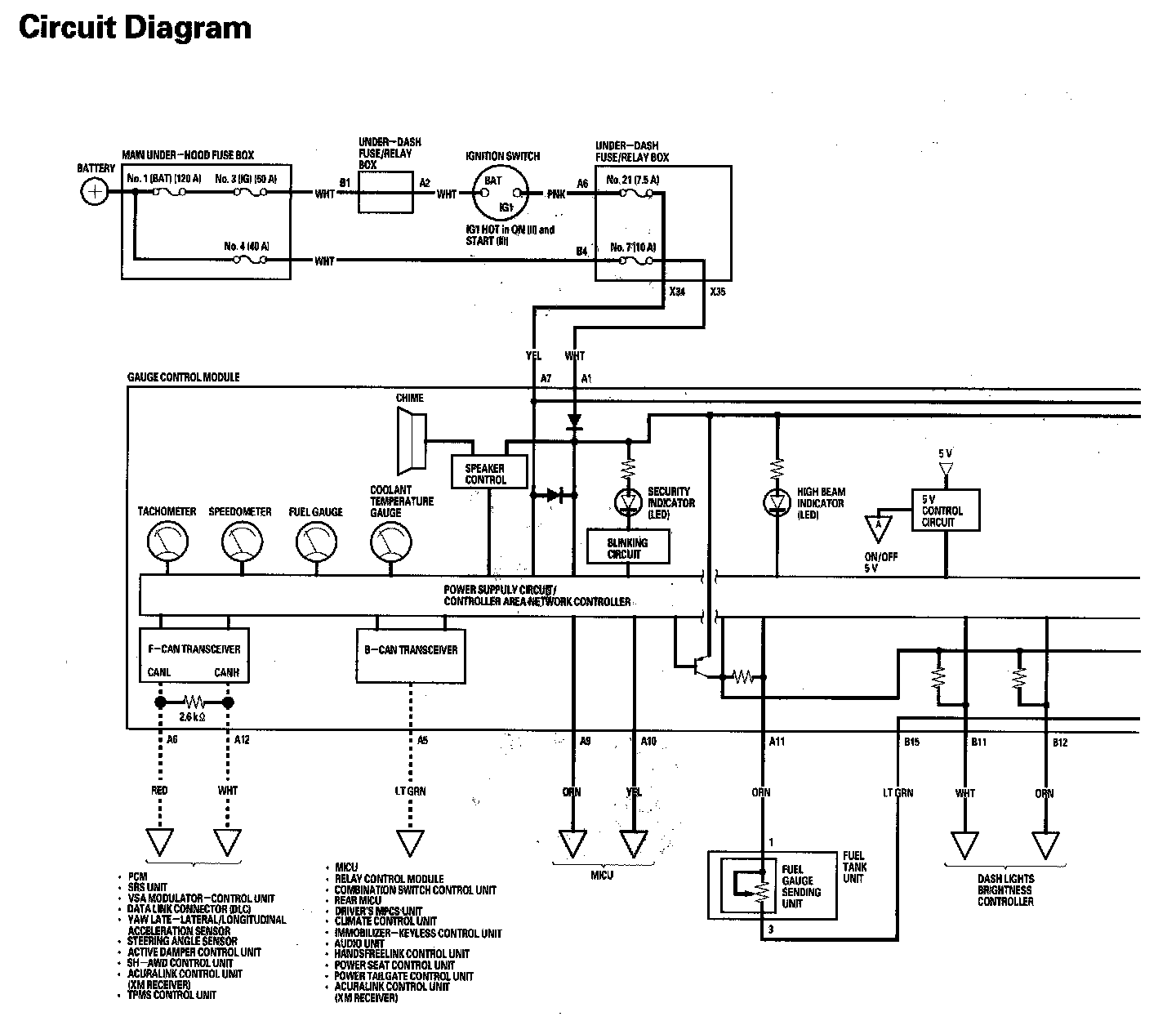

Gauges Circuit Diagram (Part 2):

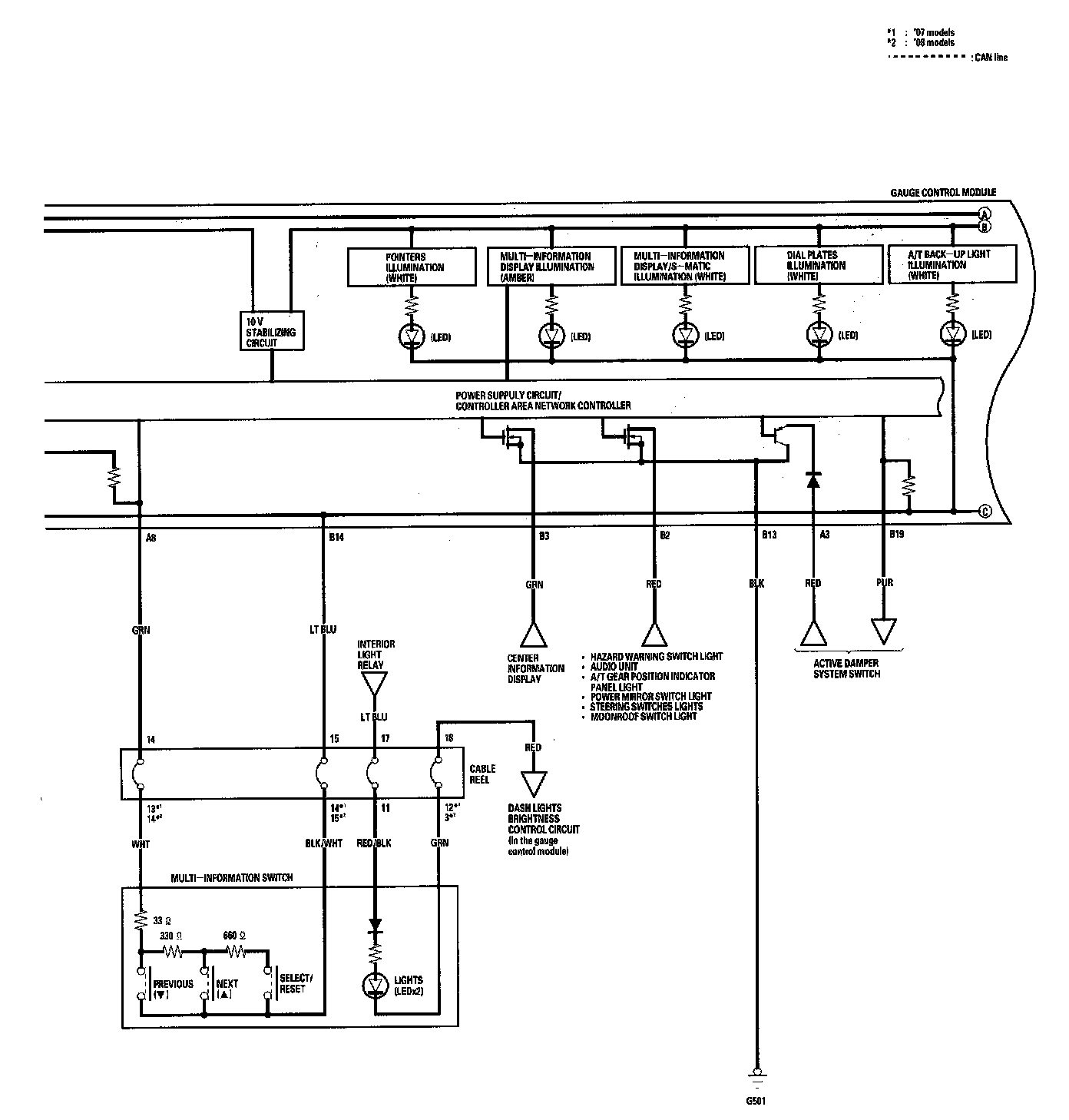

Gauges Circuit Diagram (Part 3):

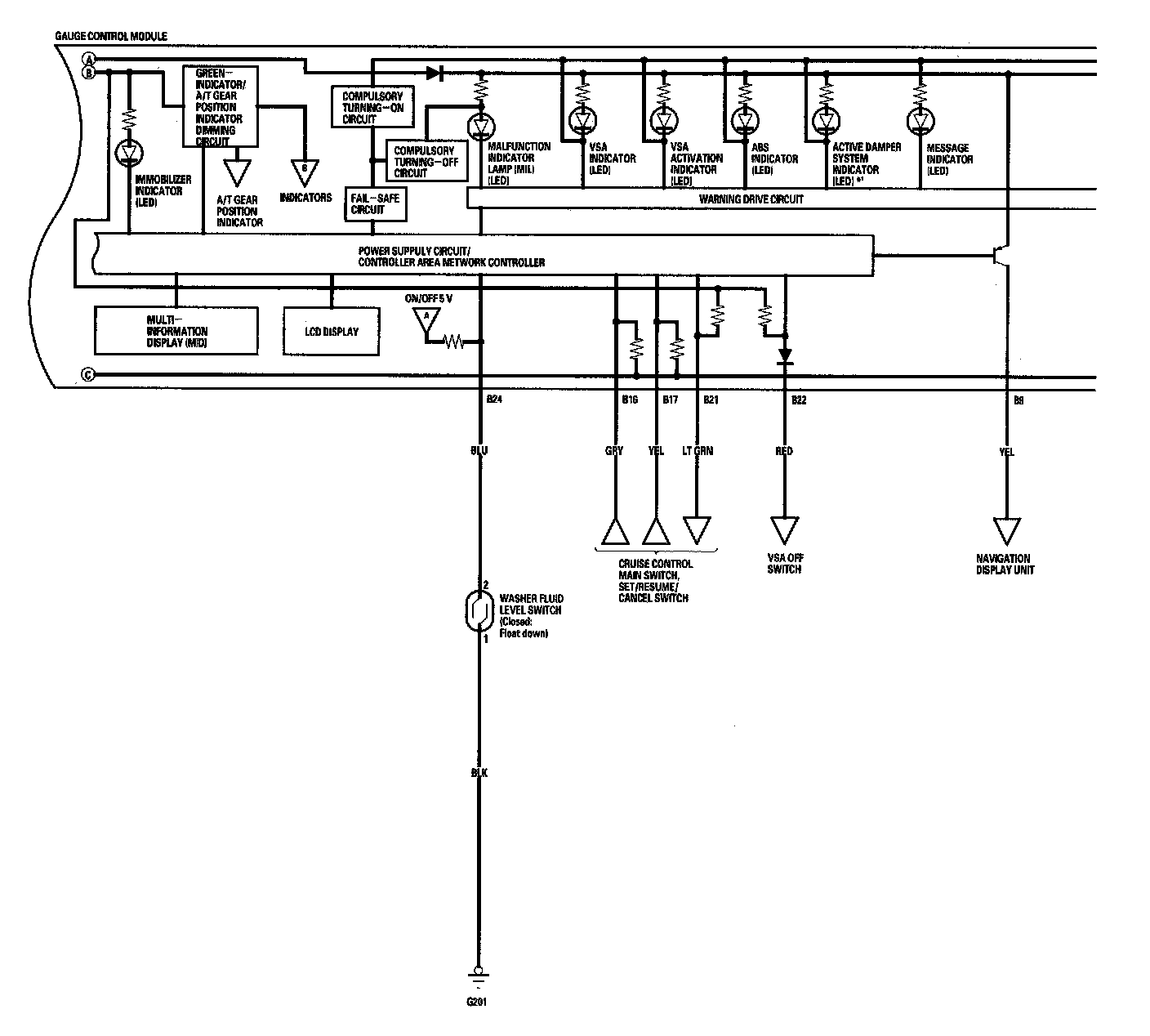

Gauges Circuit Diagram (Part 4):
