System Diagram

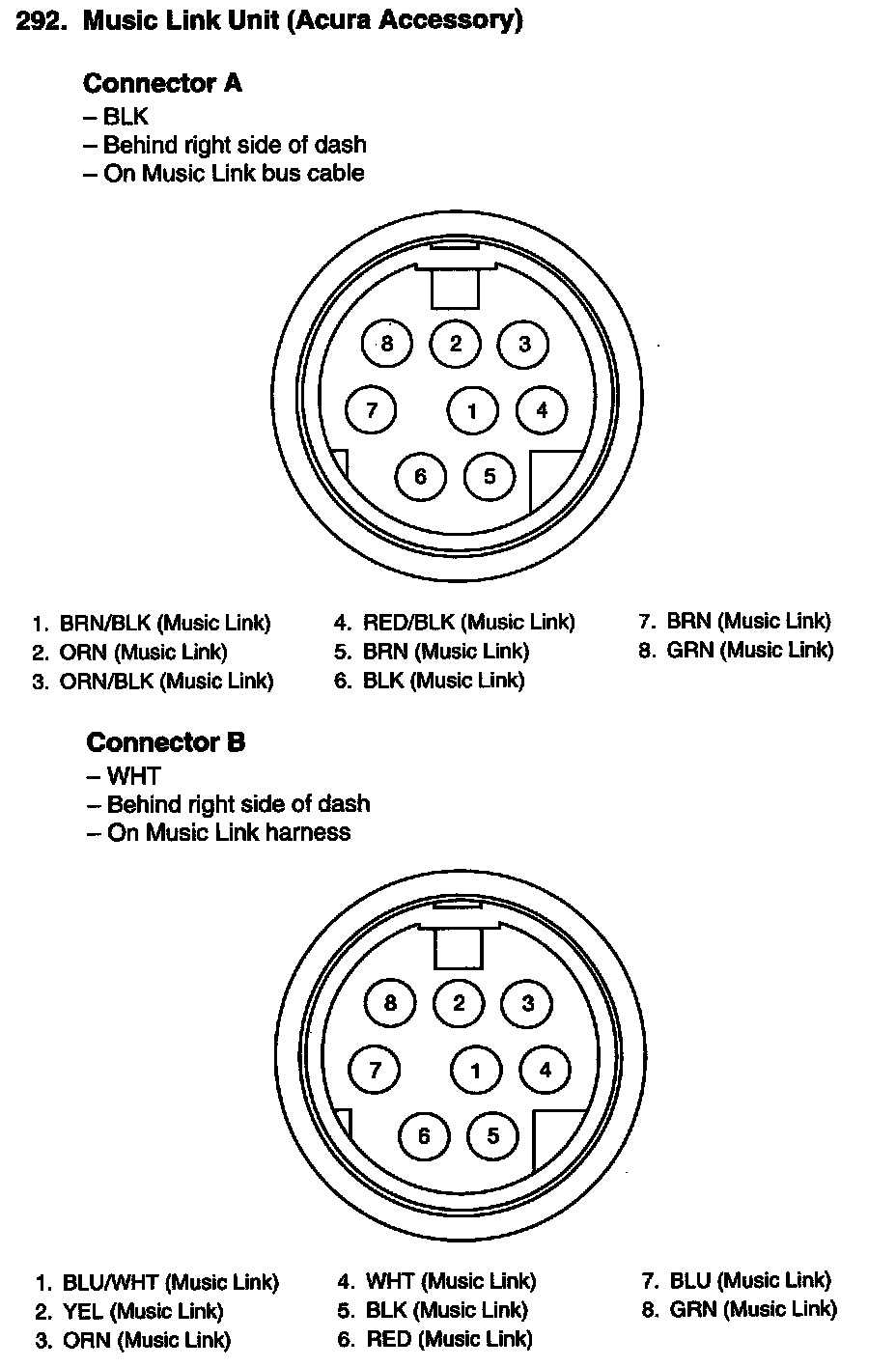

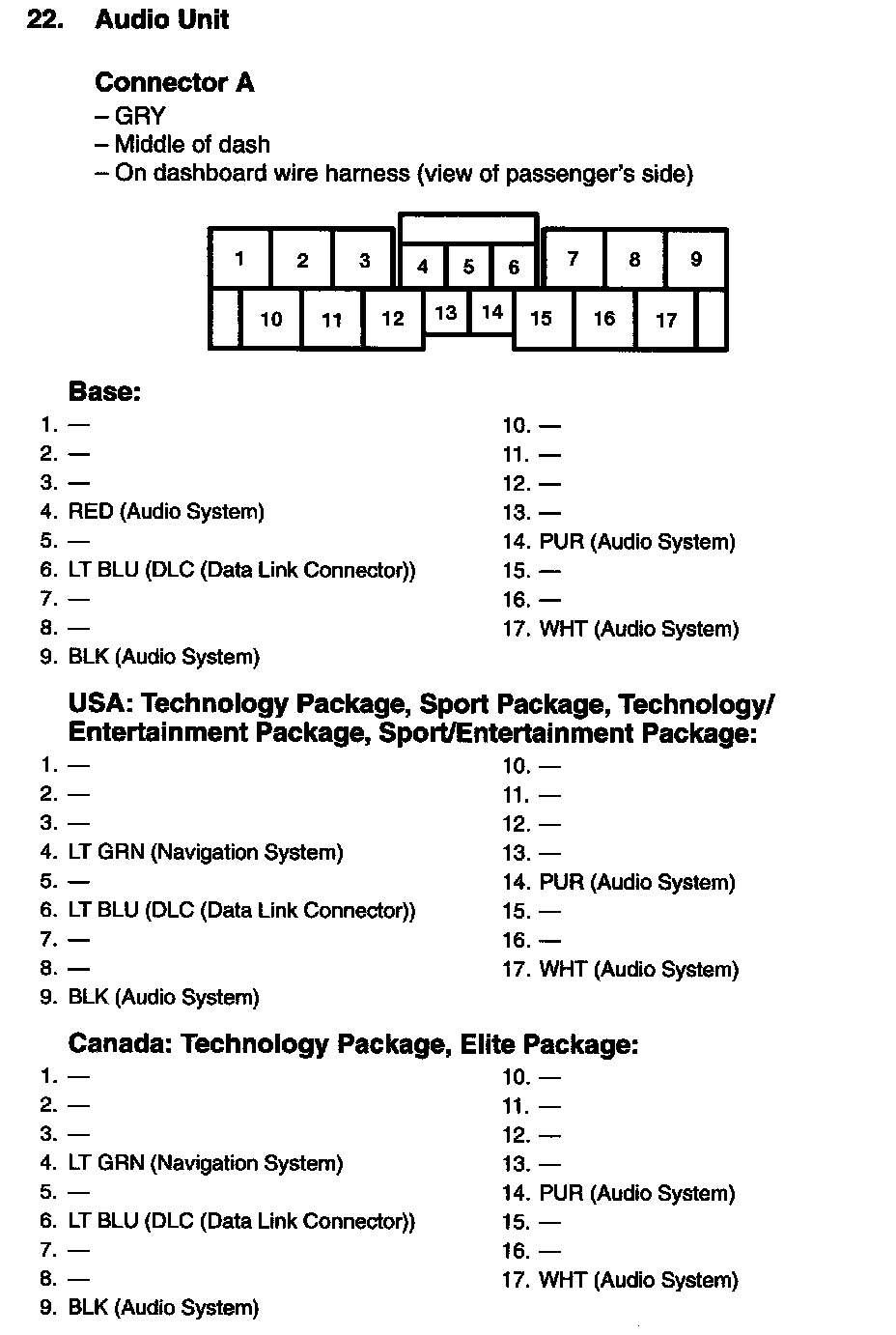

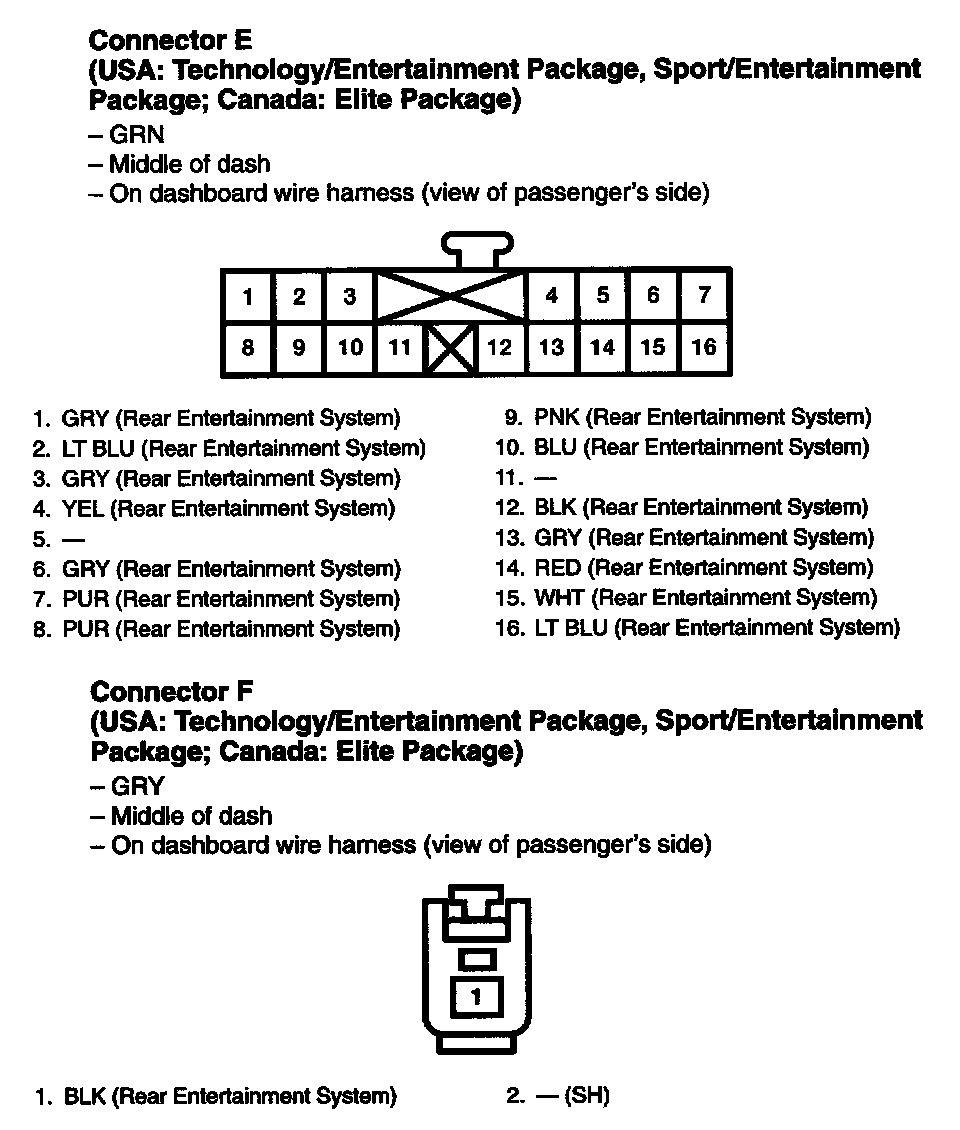

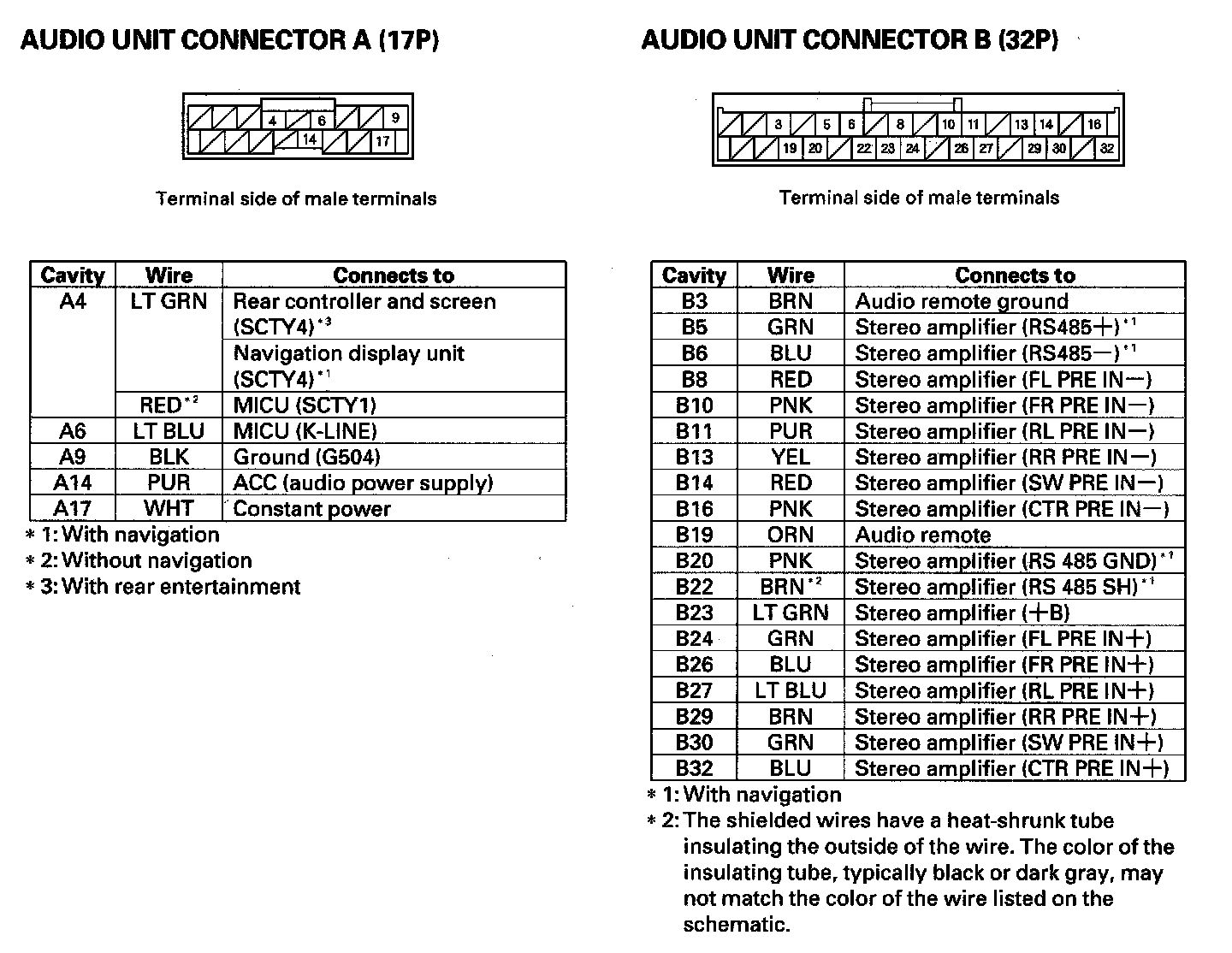

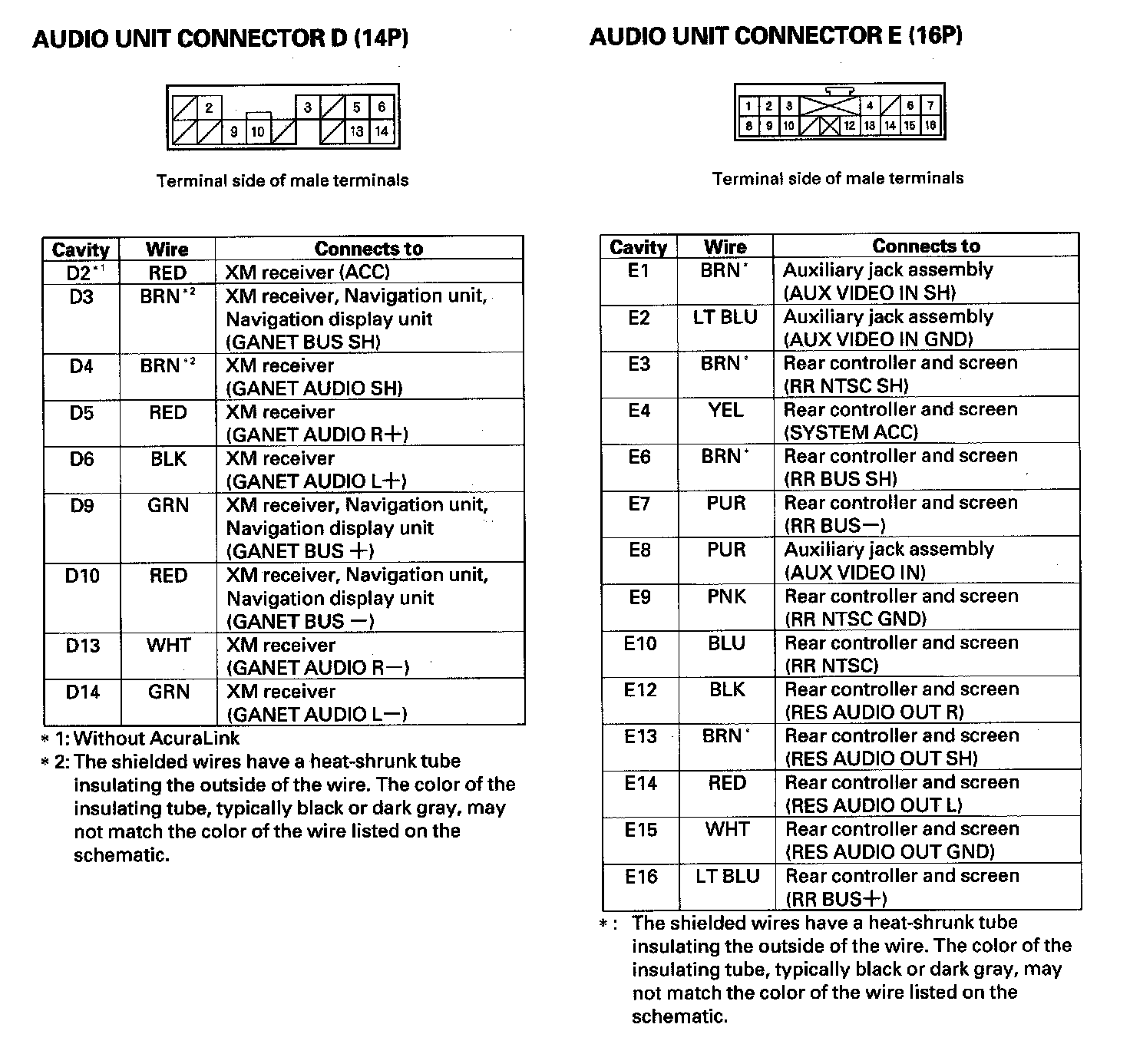

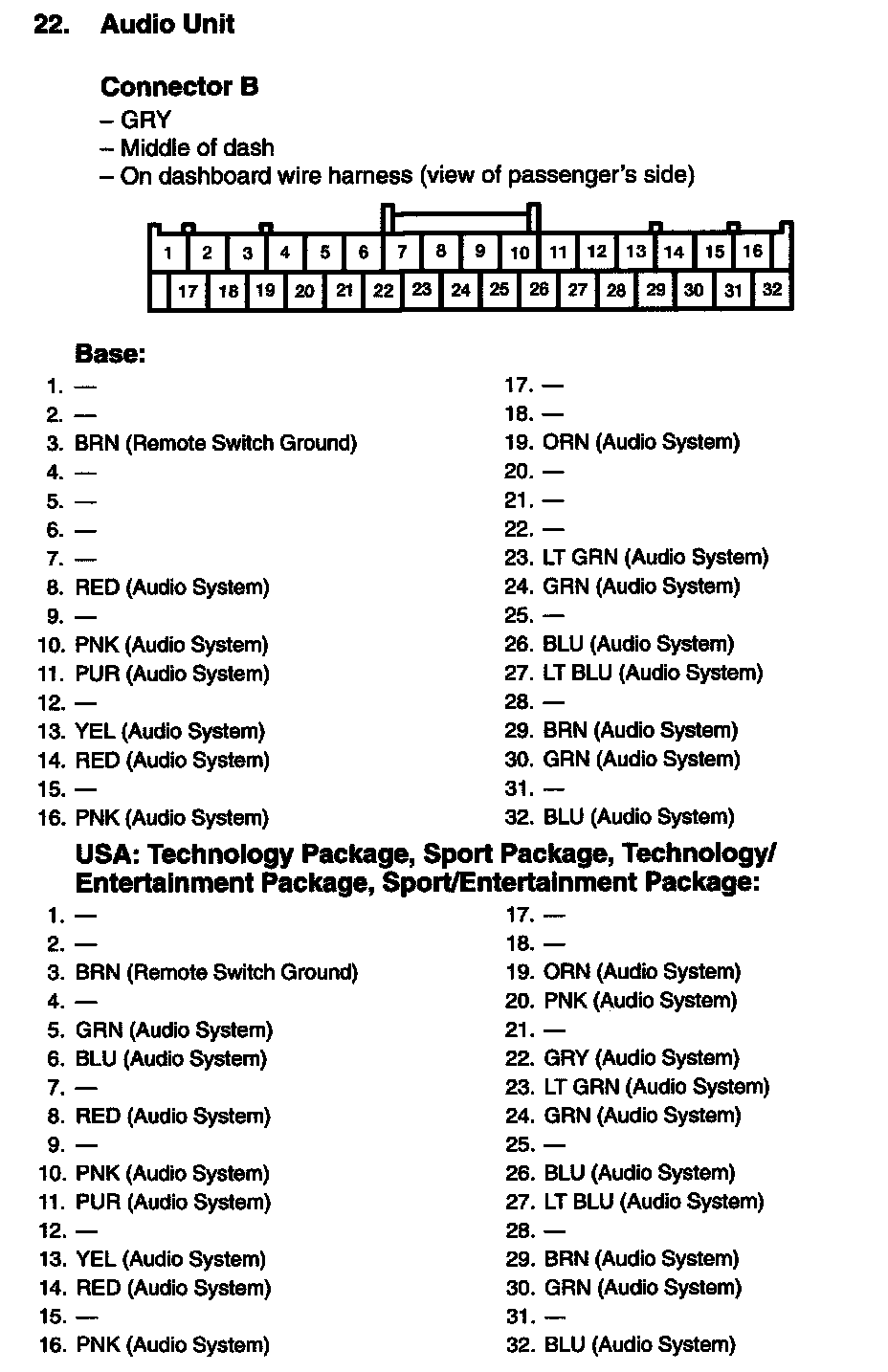

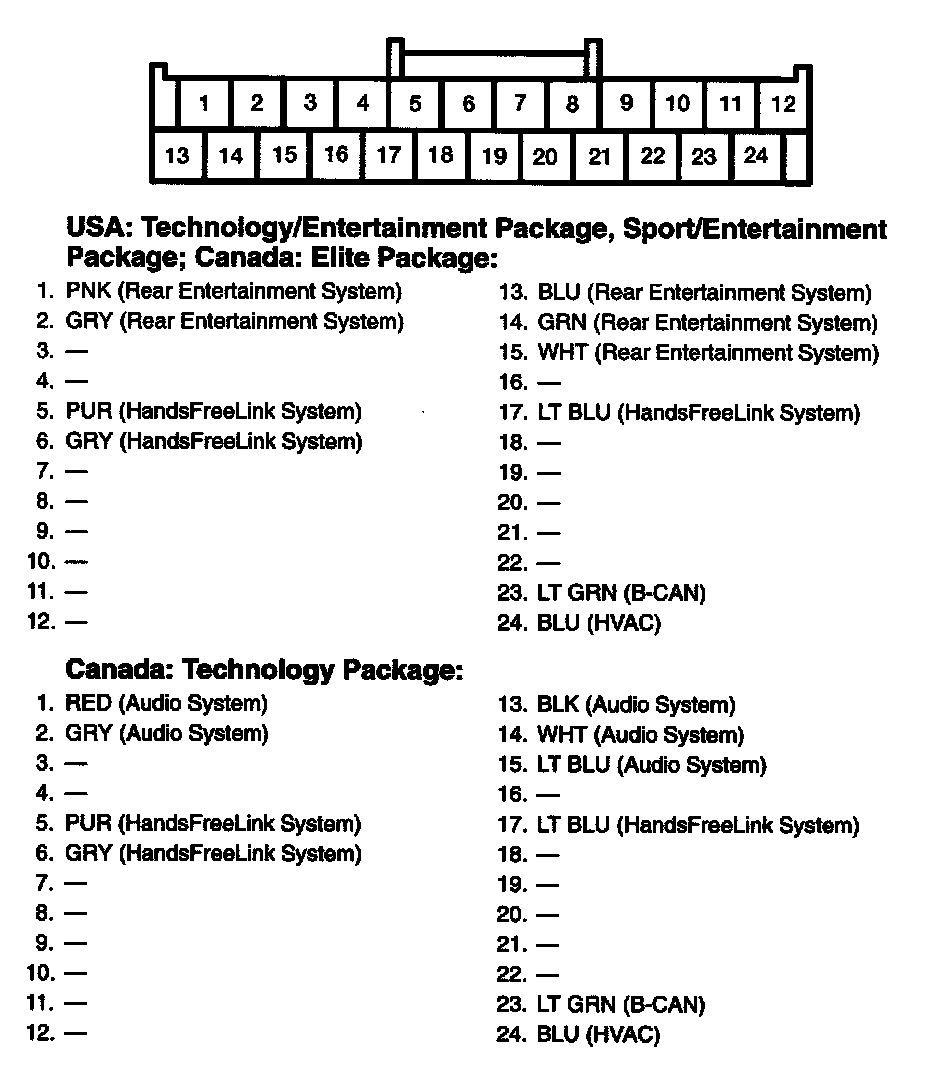

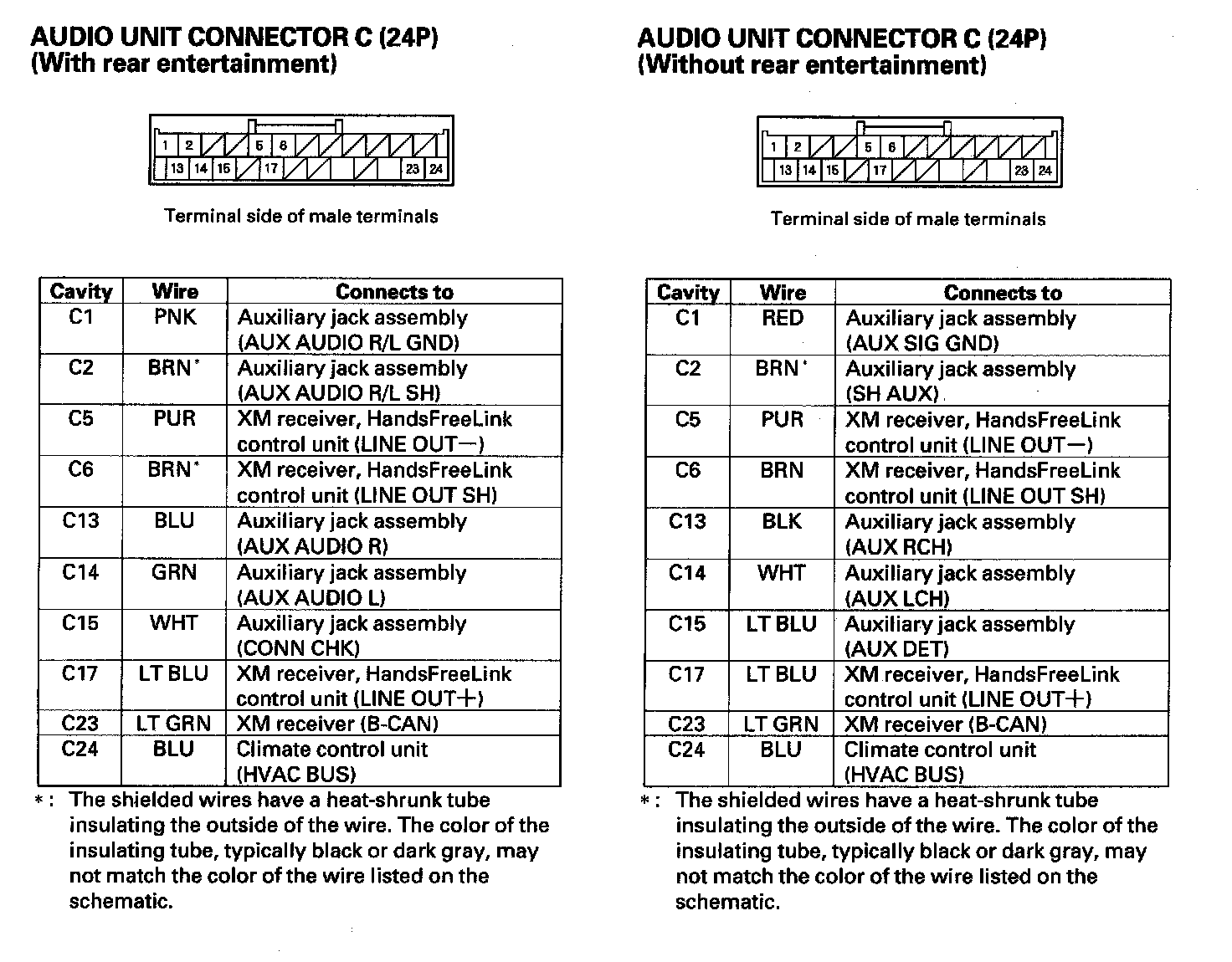

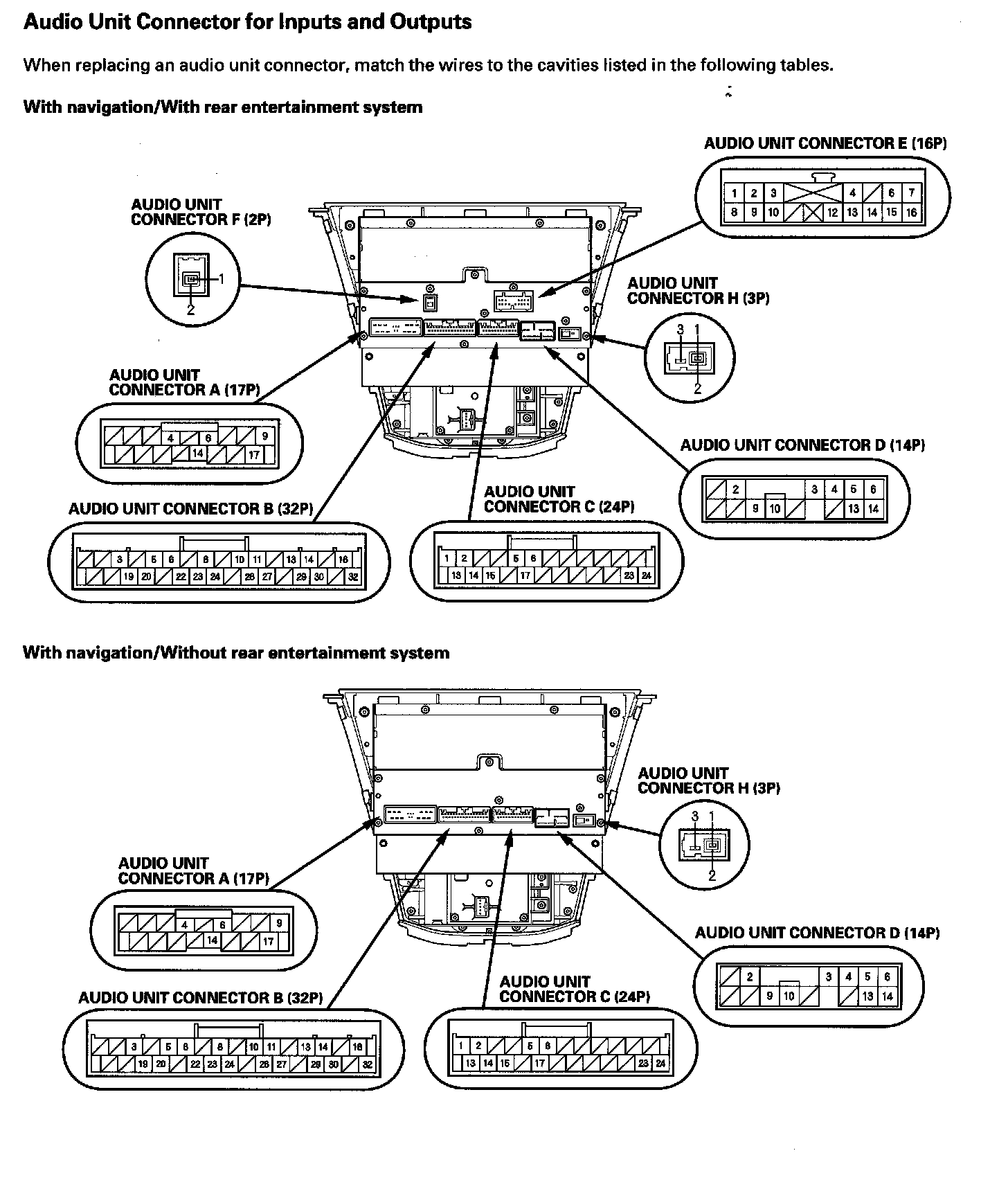

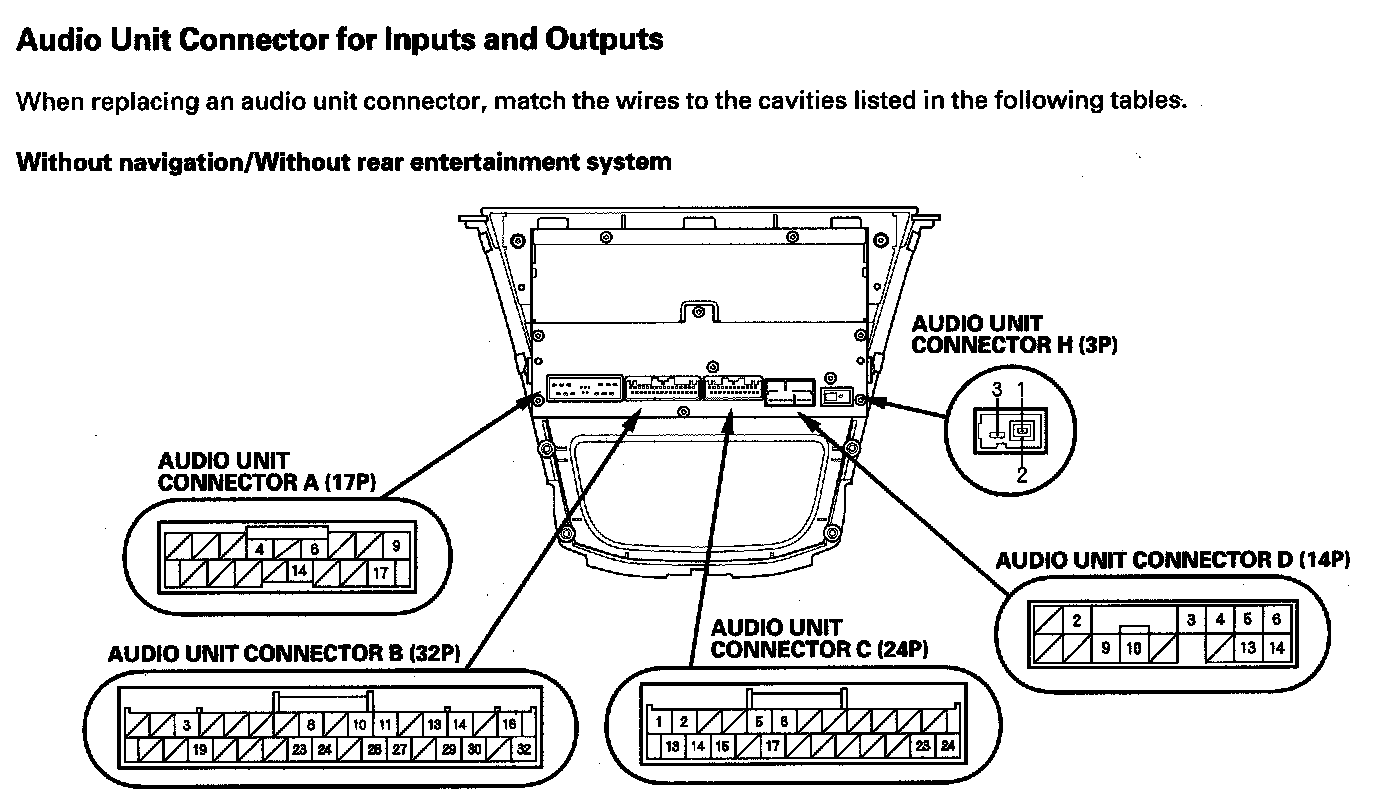

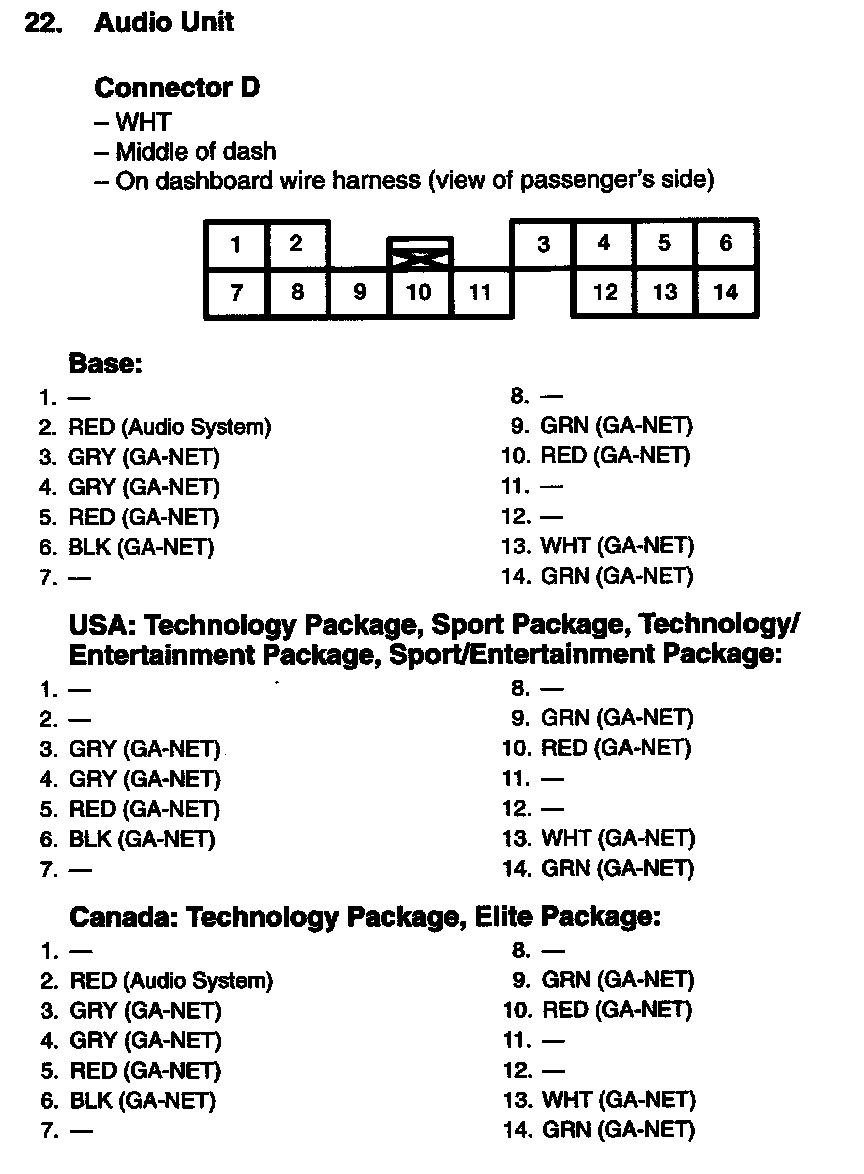

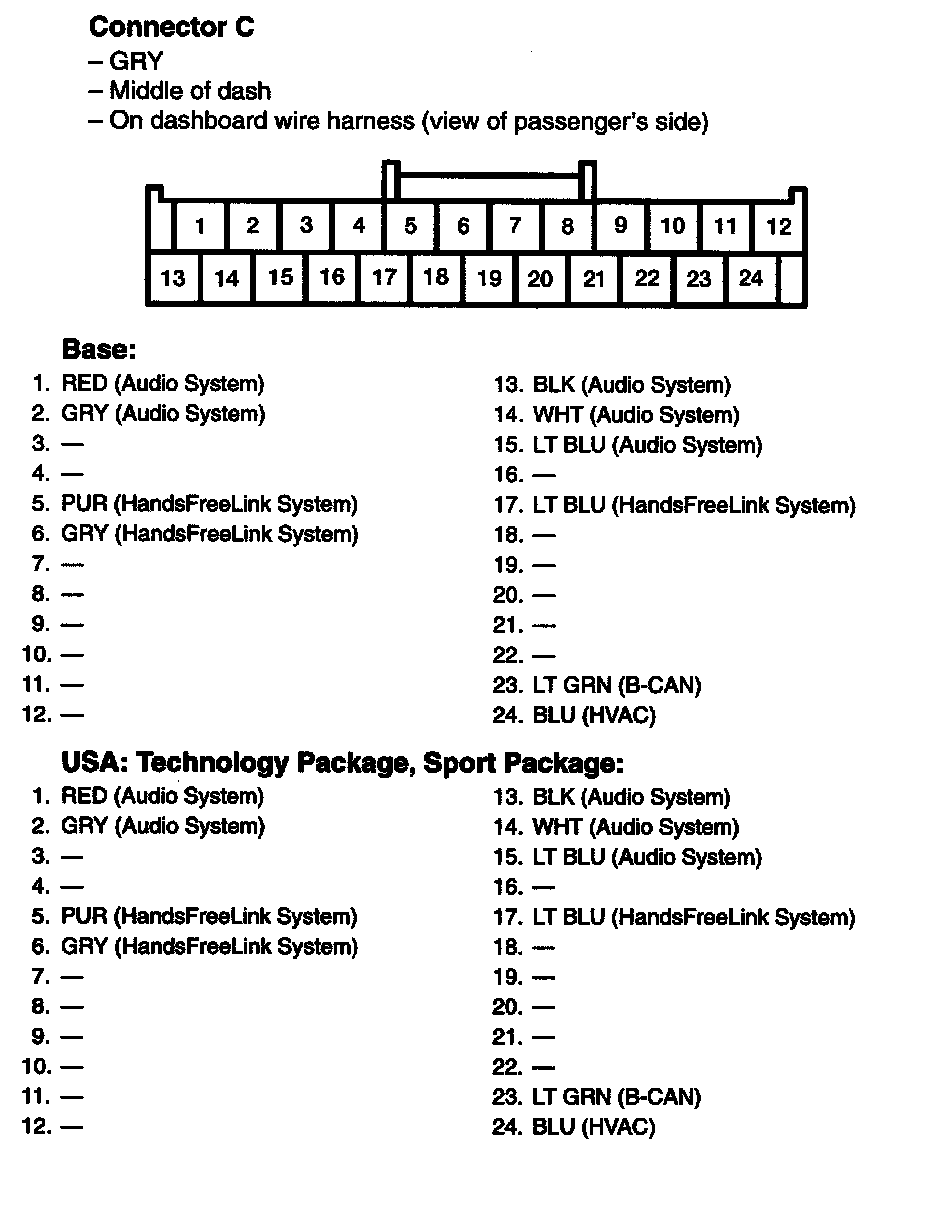

Audio Unit Connector For Inputs And Outputs (Part 1):



Audio Unit Connector For Inputs And Outputs (Part 2):



Audio Unit Connector For Inputs And Outputs (Part 3):



Audio Unit Connector For Inputs And Outputs (Part 4):



Audio Unit Connector For Inputs And Outputs (Part 5):



Audio Unit Connector For Inputs And Outputs (Part 6):

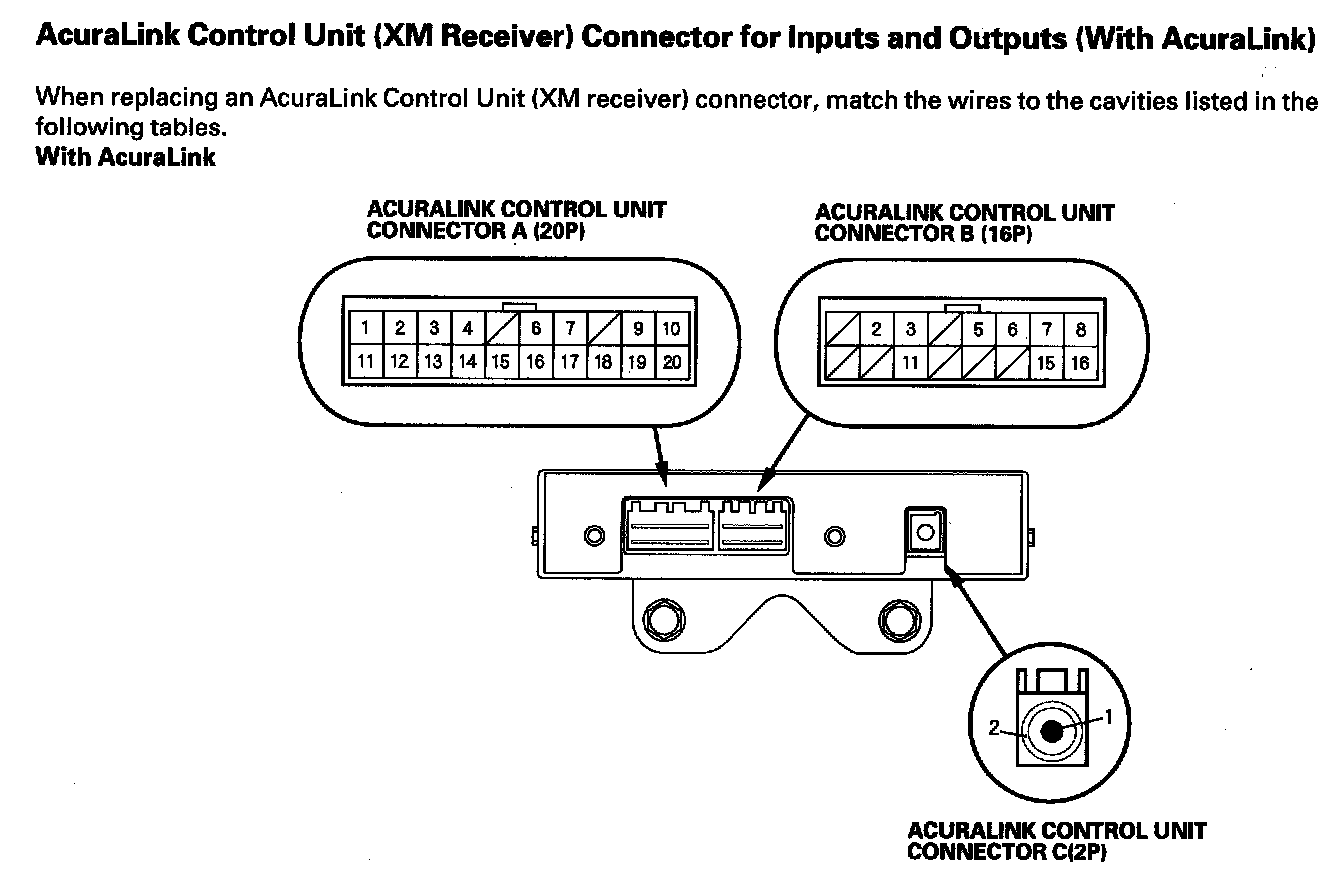

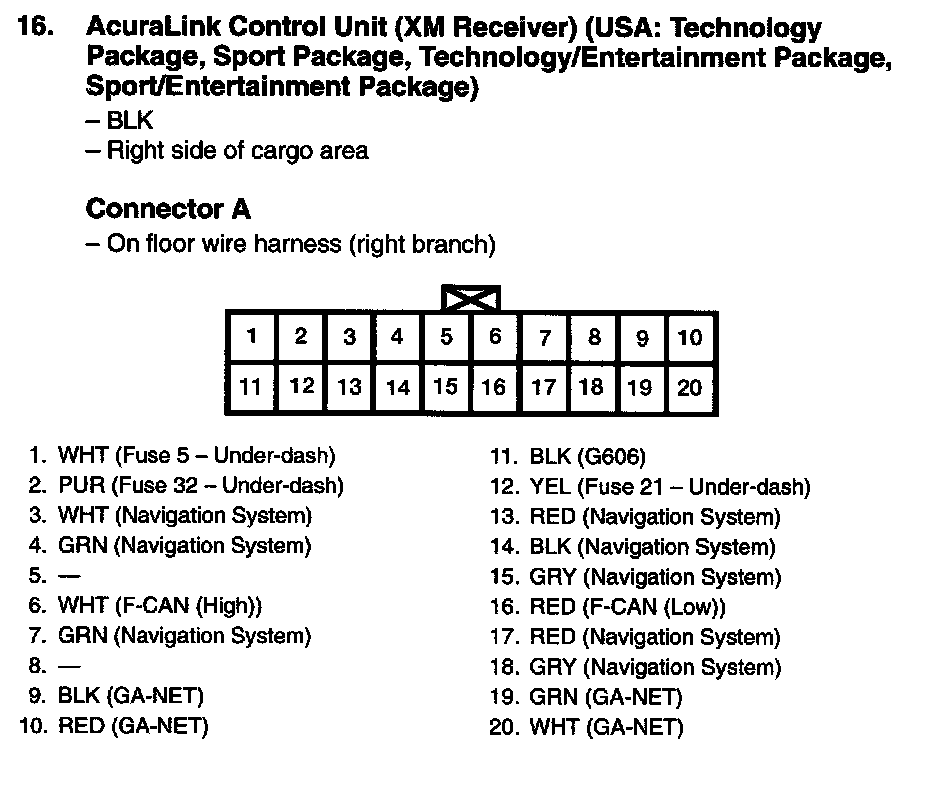

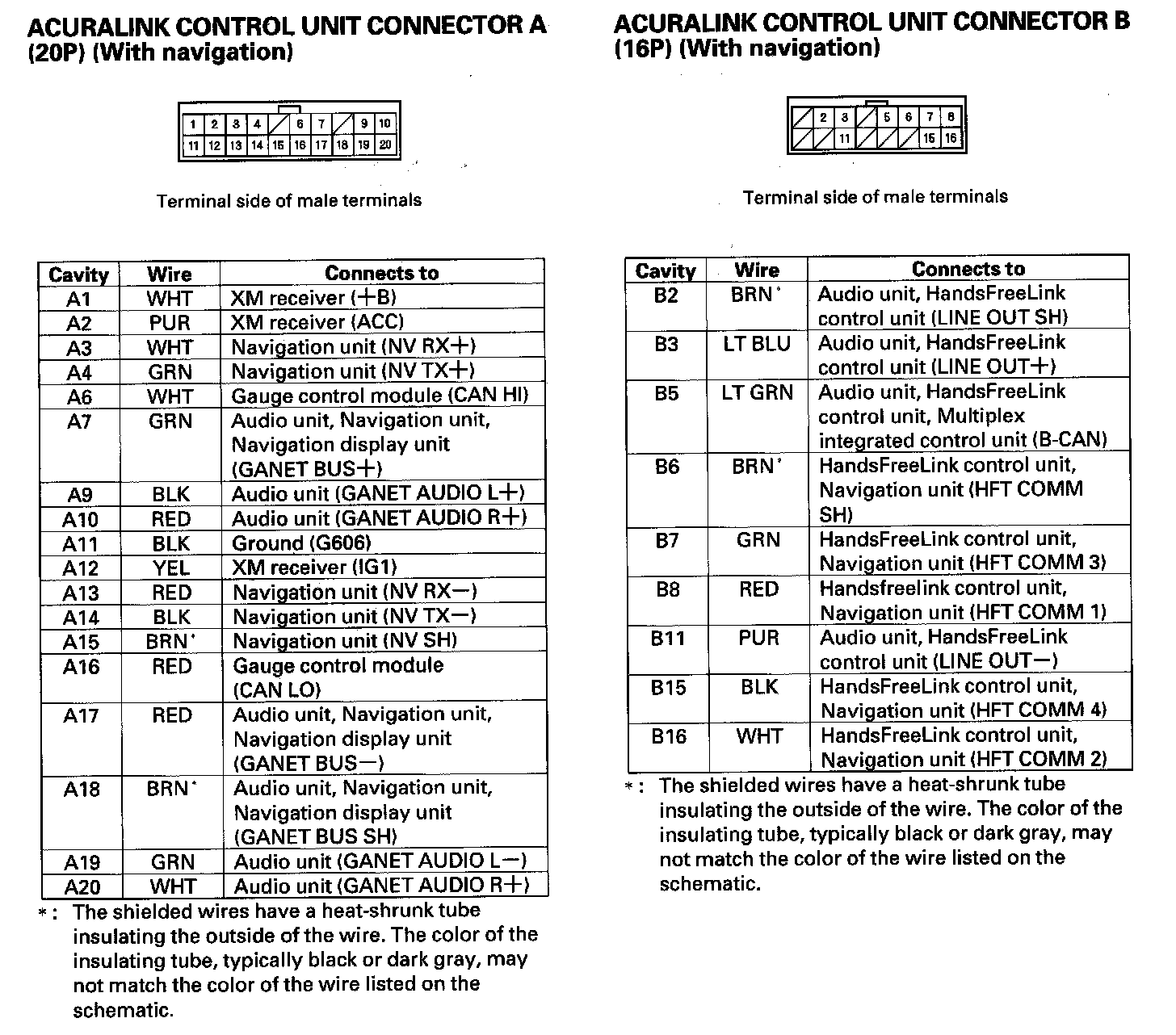

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) (Part 1):



AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) (Part 2):

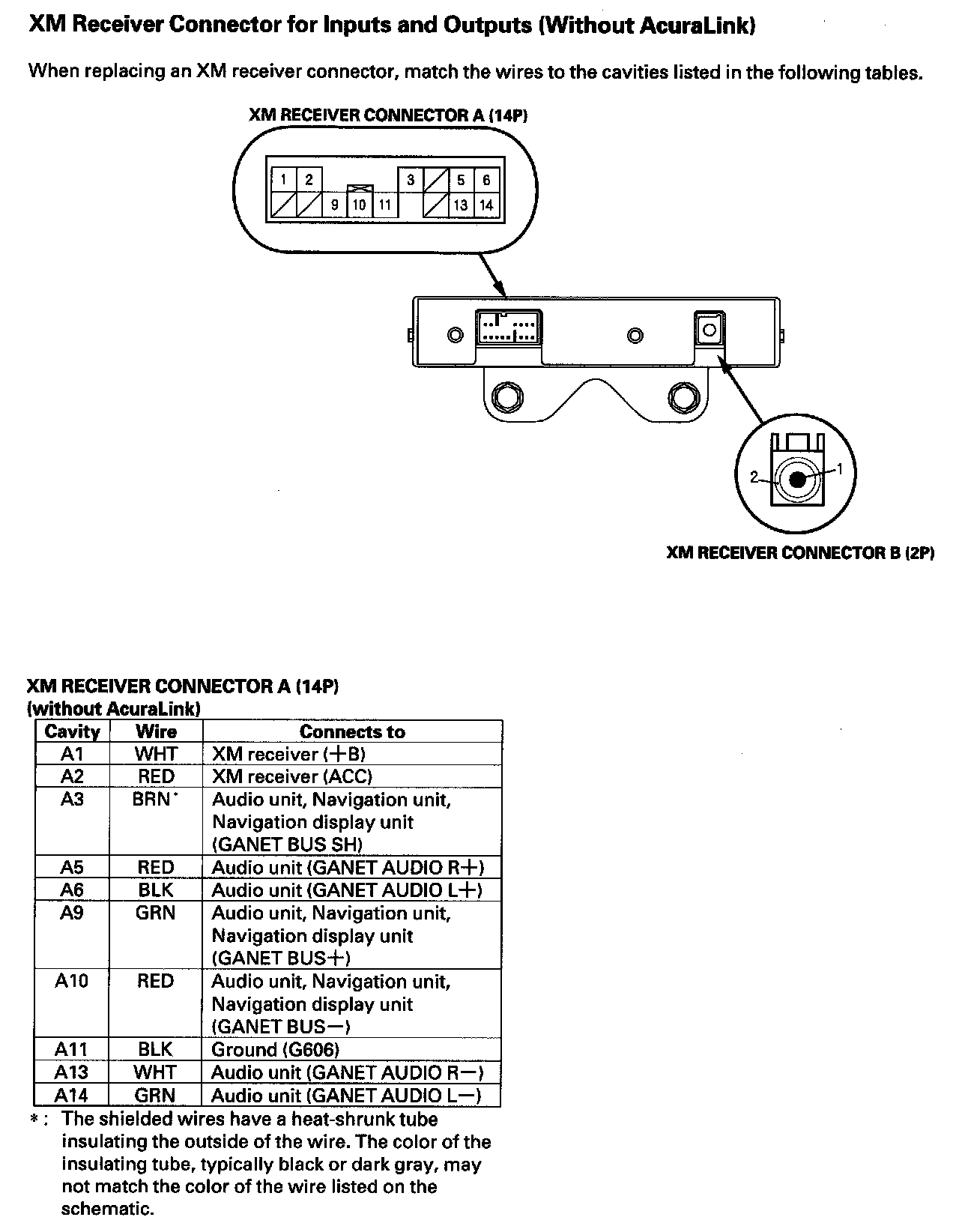

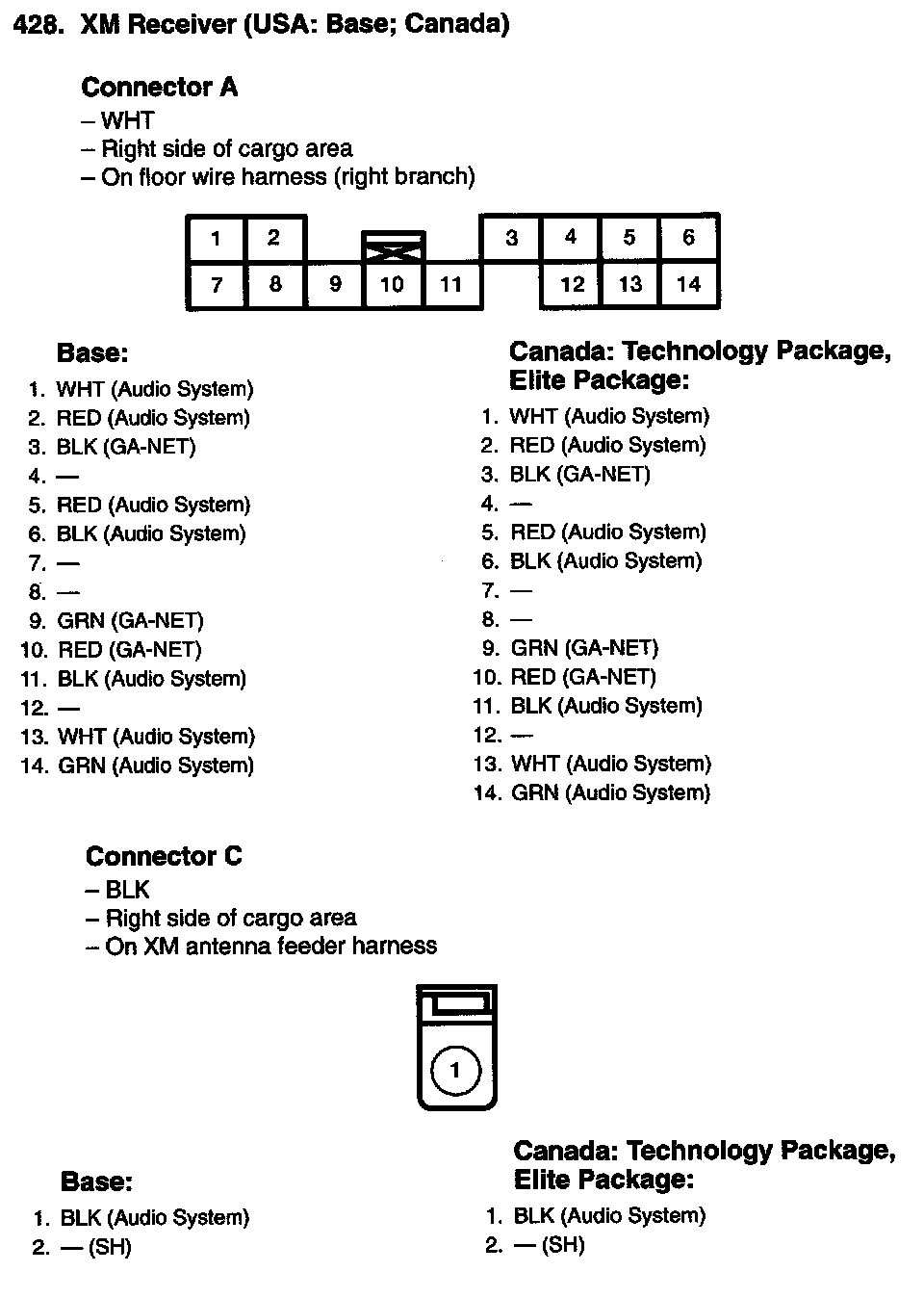

XM Receiver Connector For Inputs And Outputs (Without AcuraLink):
