Power Mirrors Circuit Diagram

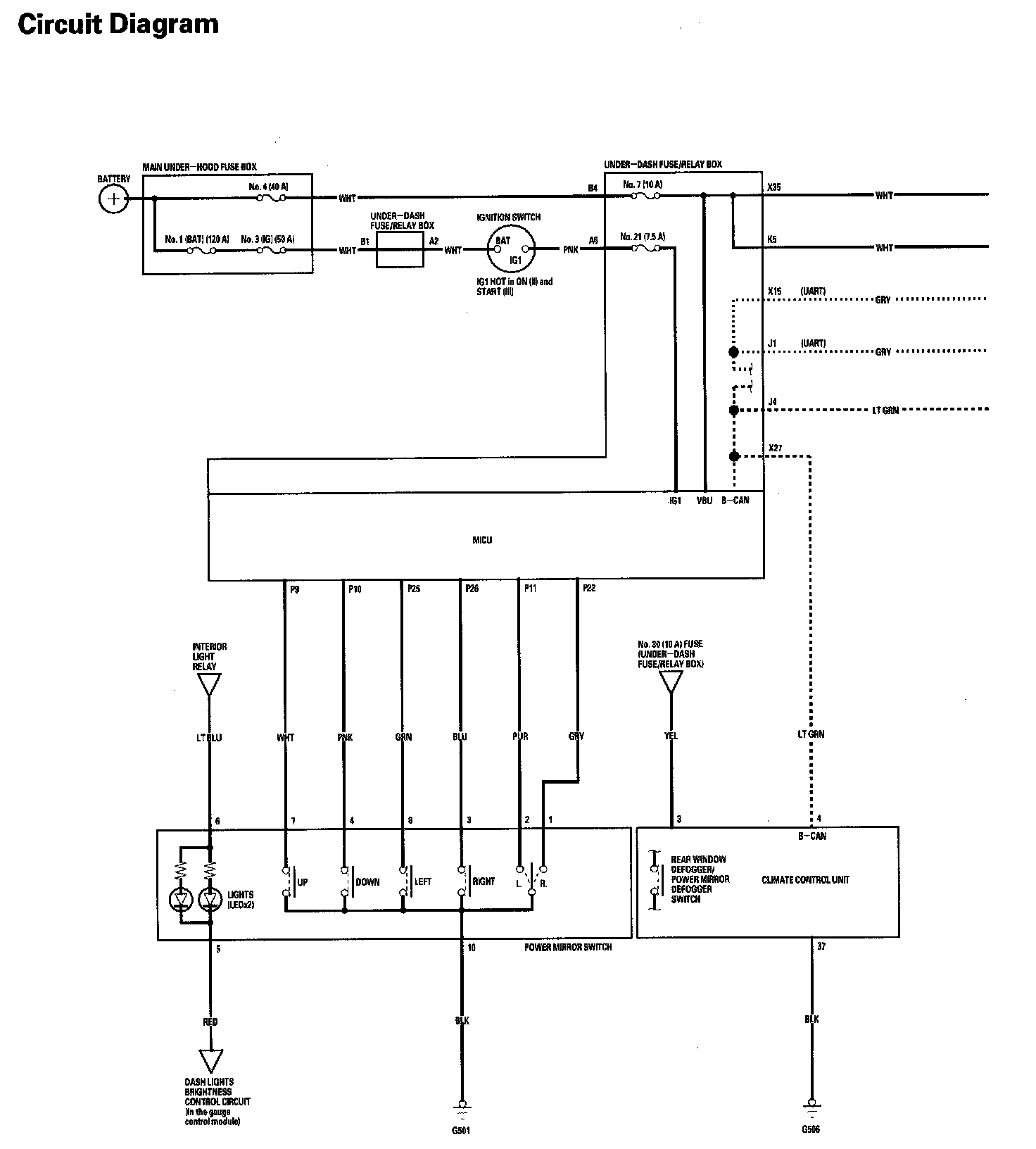

Power Mirrors Circuit Diagram (Part 1):

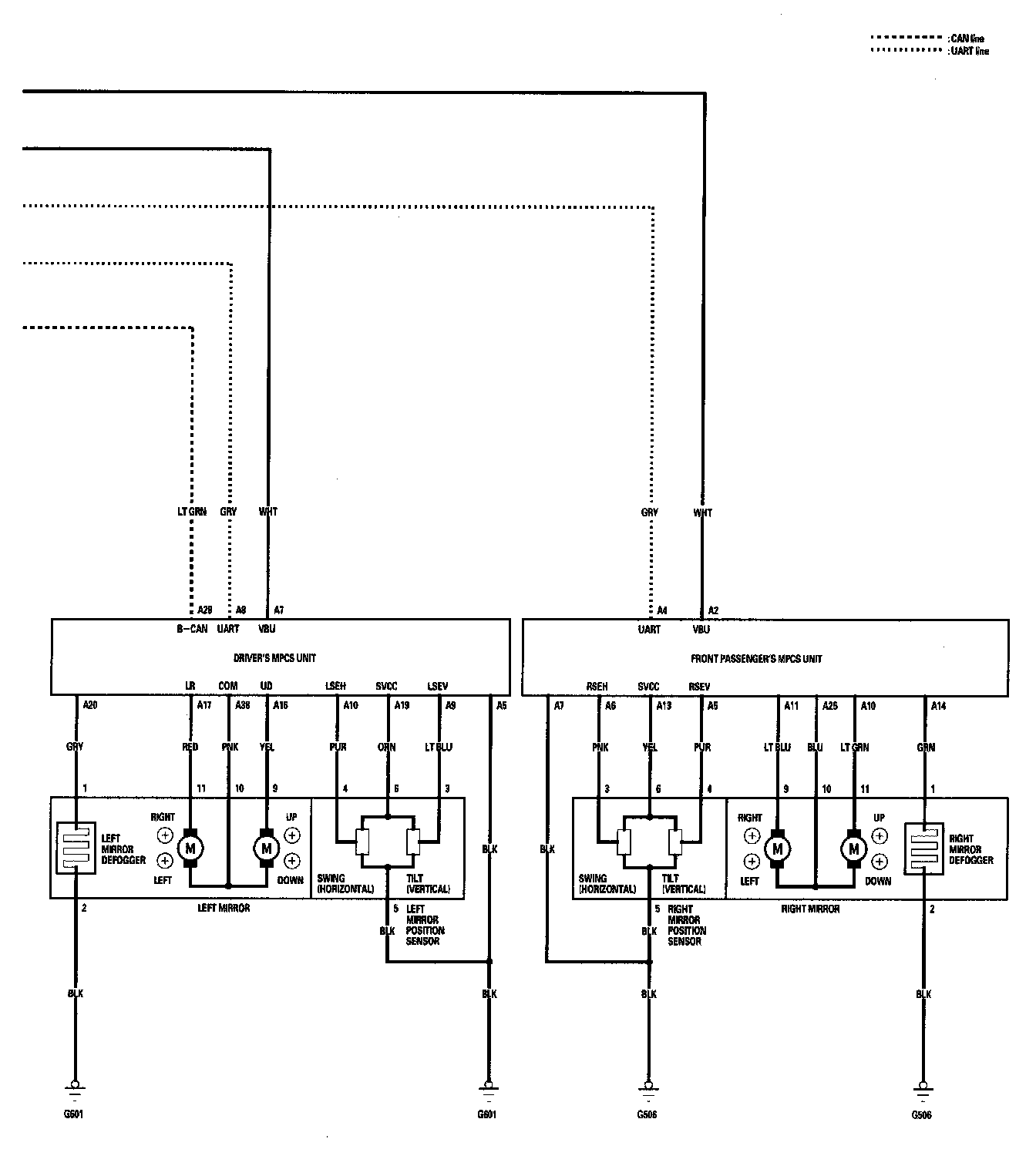

Power Mirrors Circuit Diagram (Part 2):
