Rear Door: Locations

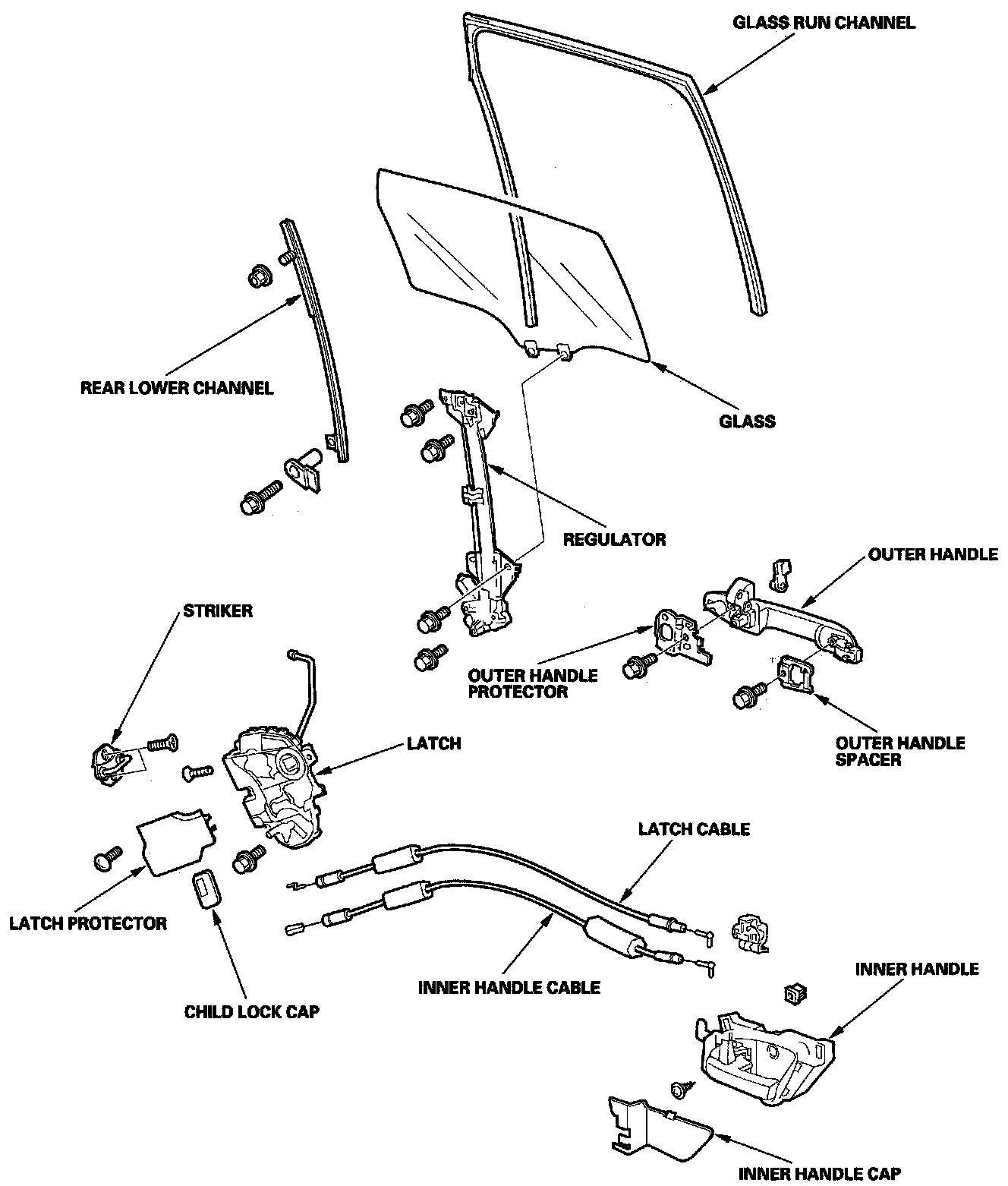

Rear Door Component Location Index (Part 1):

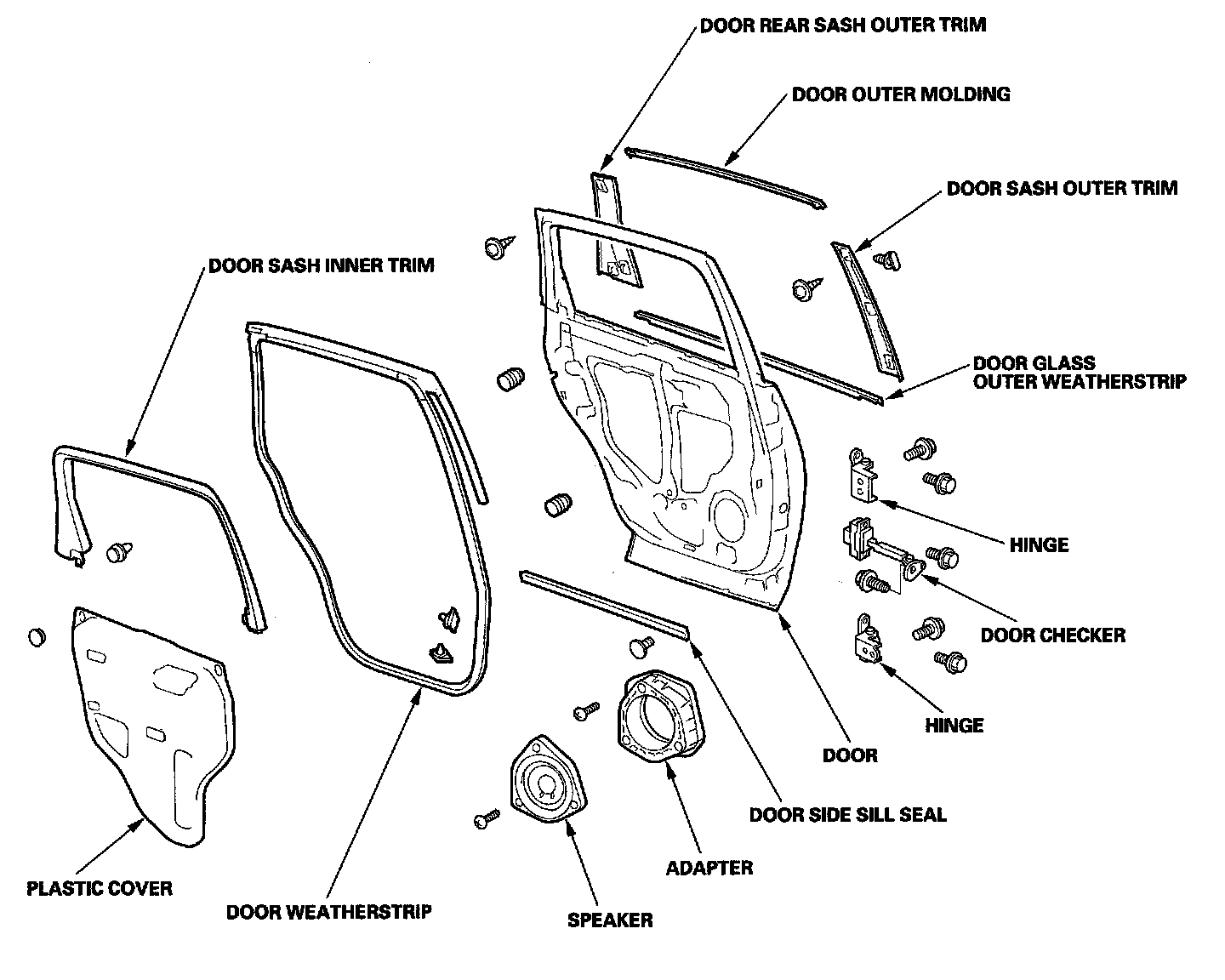

Rear Door Component Location Index (Part 2):
Rear Door Component Location Index (Part 3):
