Front Door: Locations

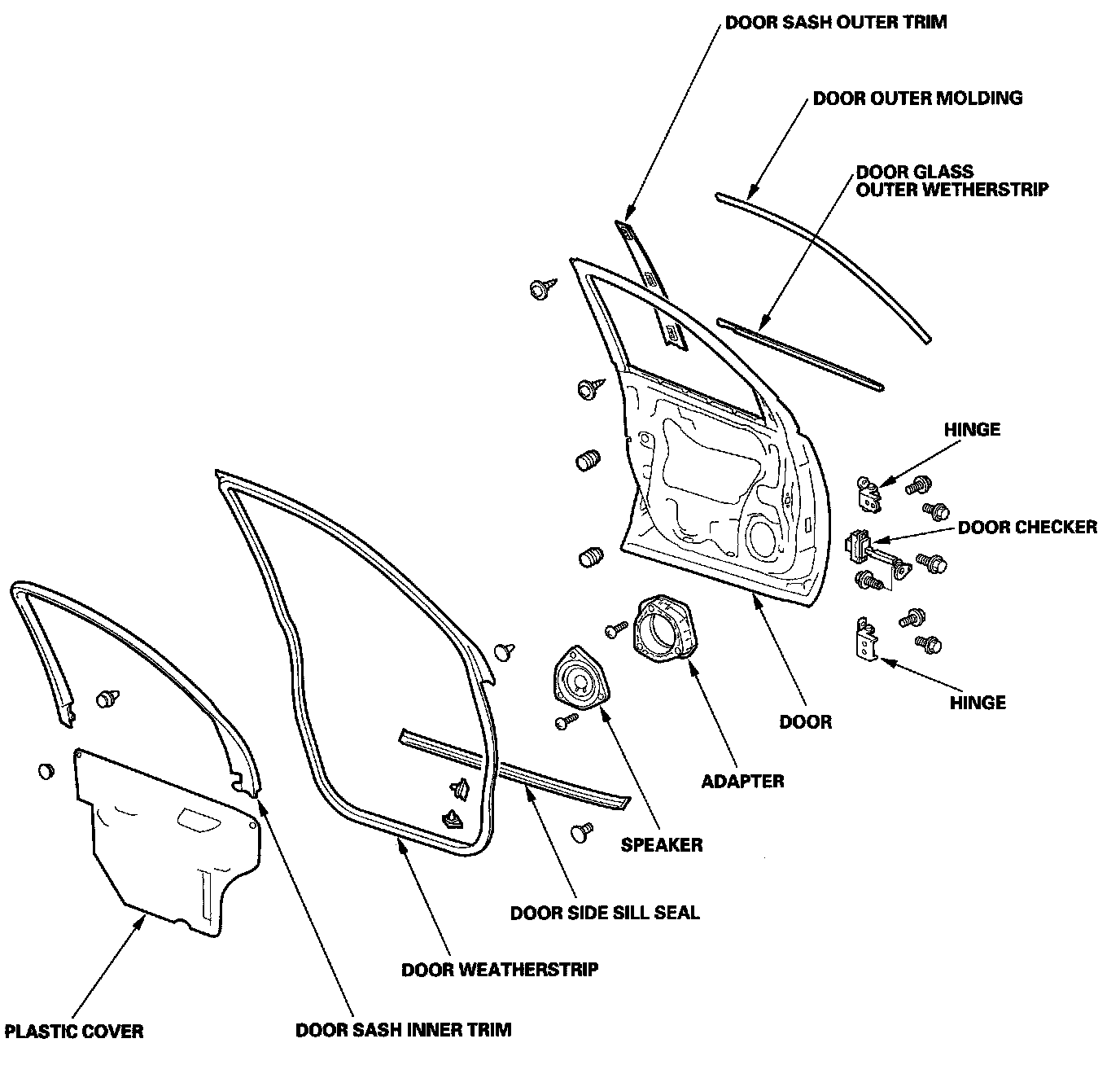

Front Door Component Location Index (Part 1):

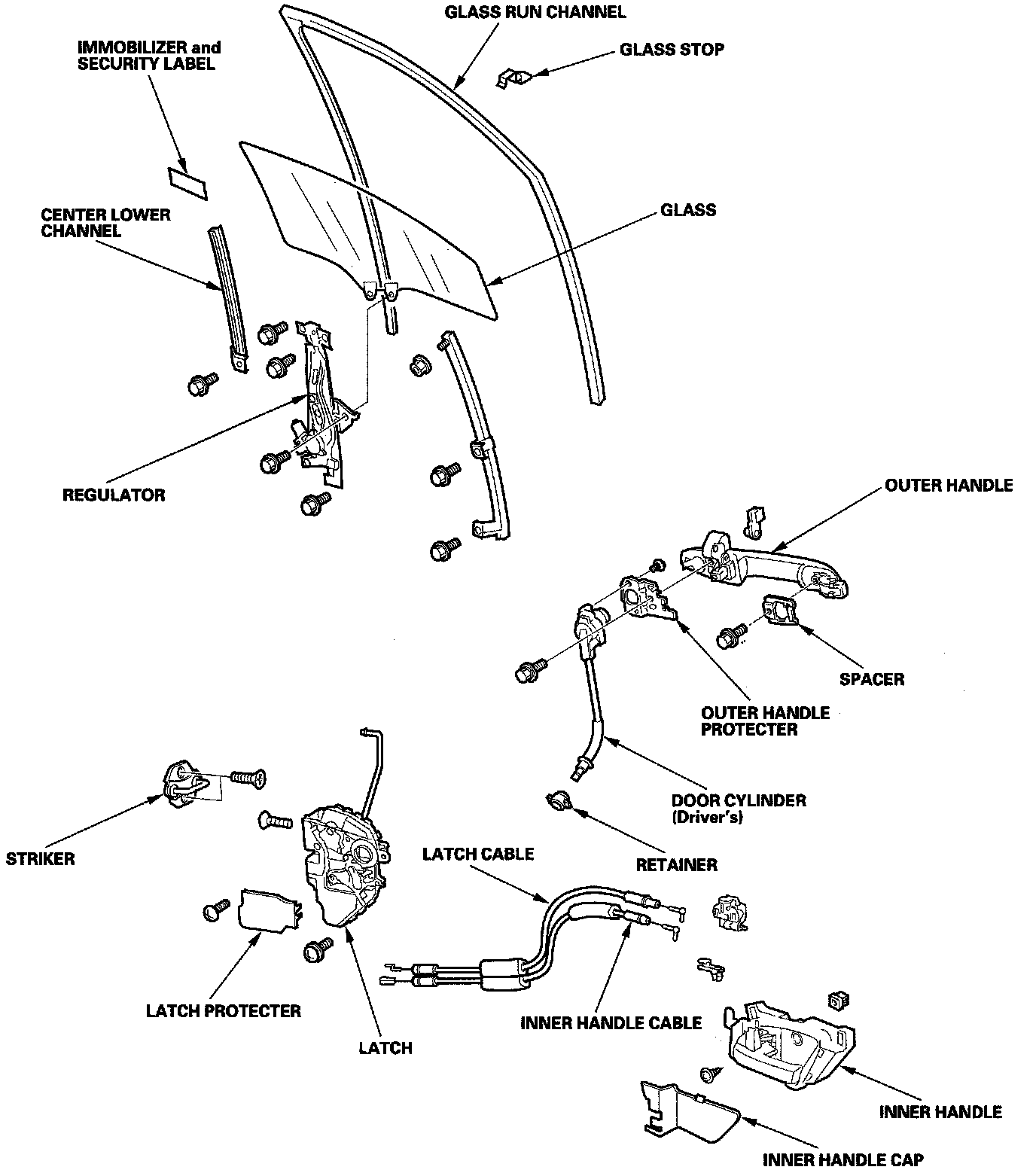

Front Door Component Location Index (Part 2):



Front Door Component Location Index (Part 3):
