Amplifier: Diagrams

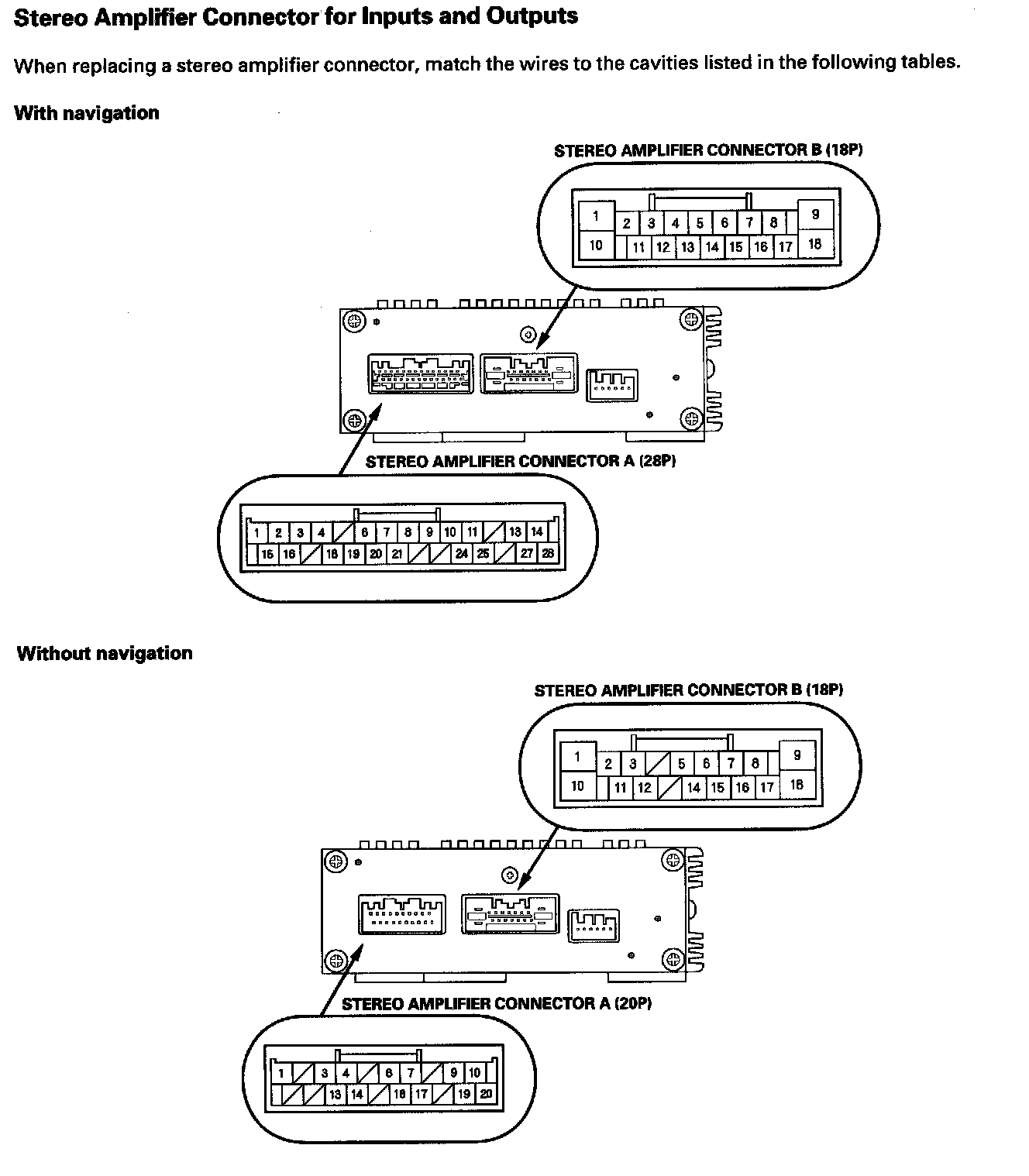

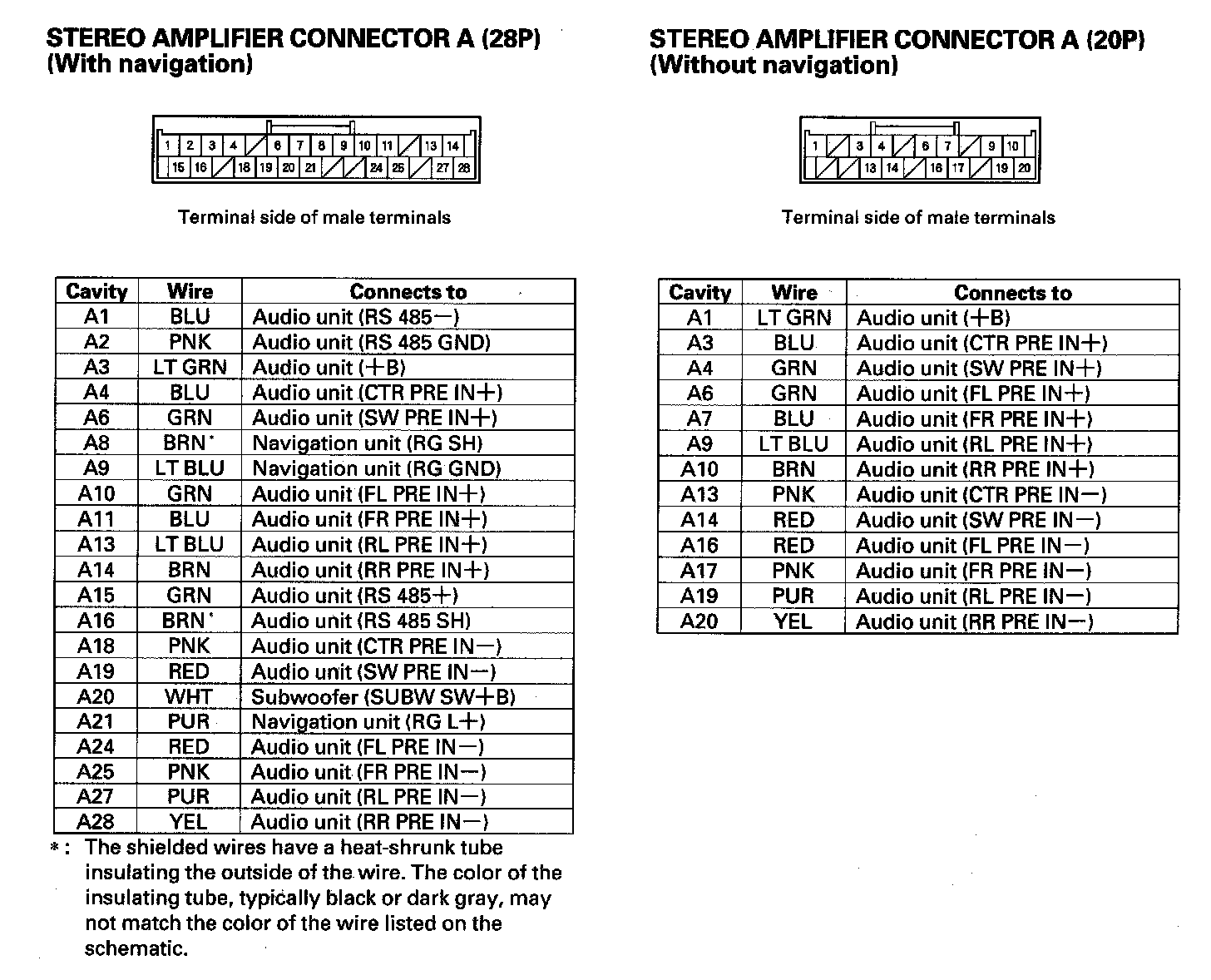

Stereo Amplifier Connector For Inputs And Outputs (Part 1):

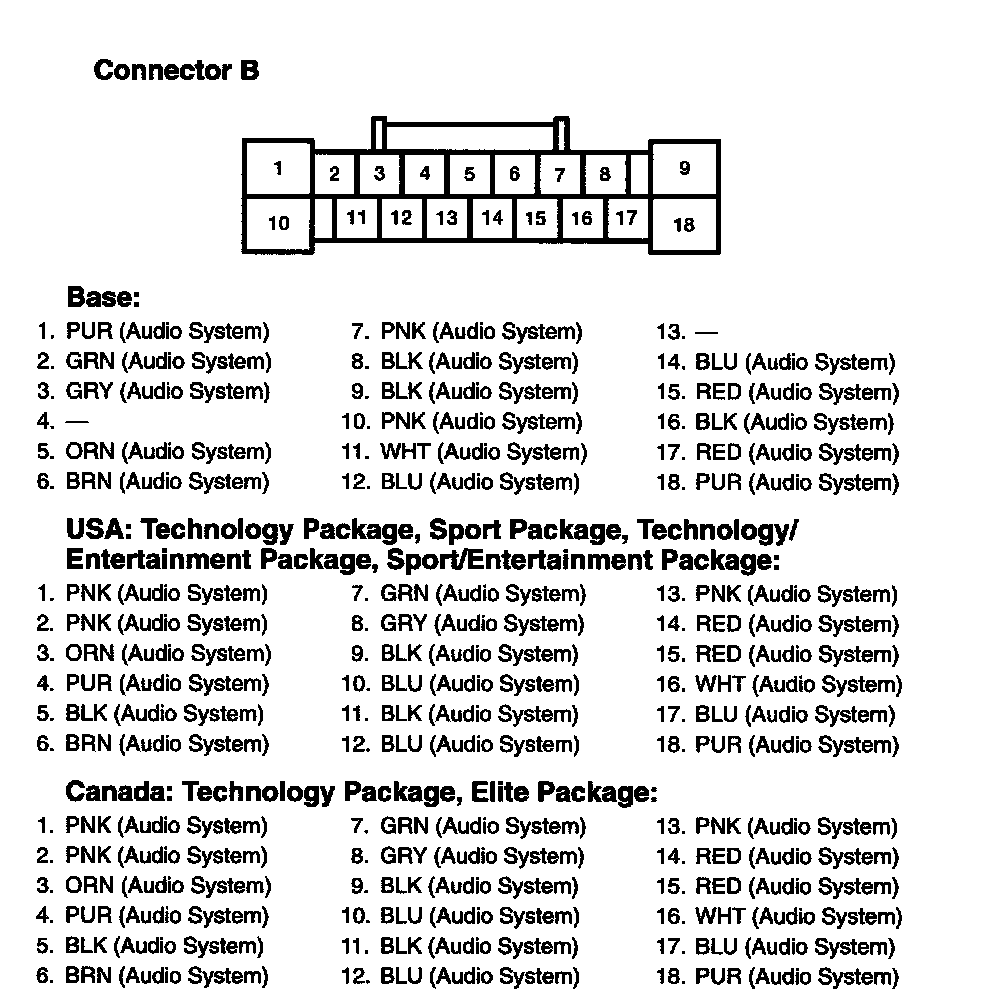

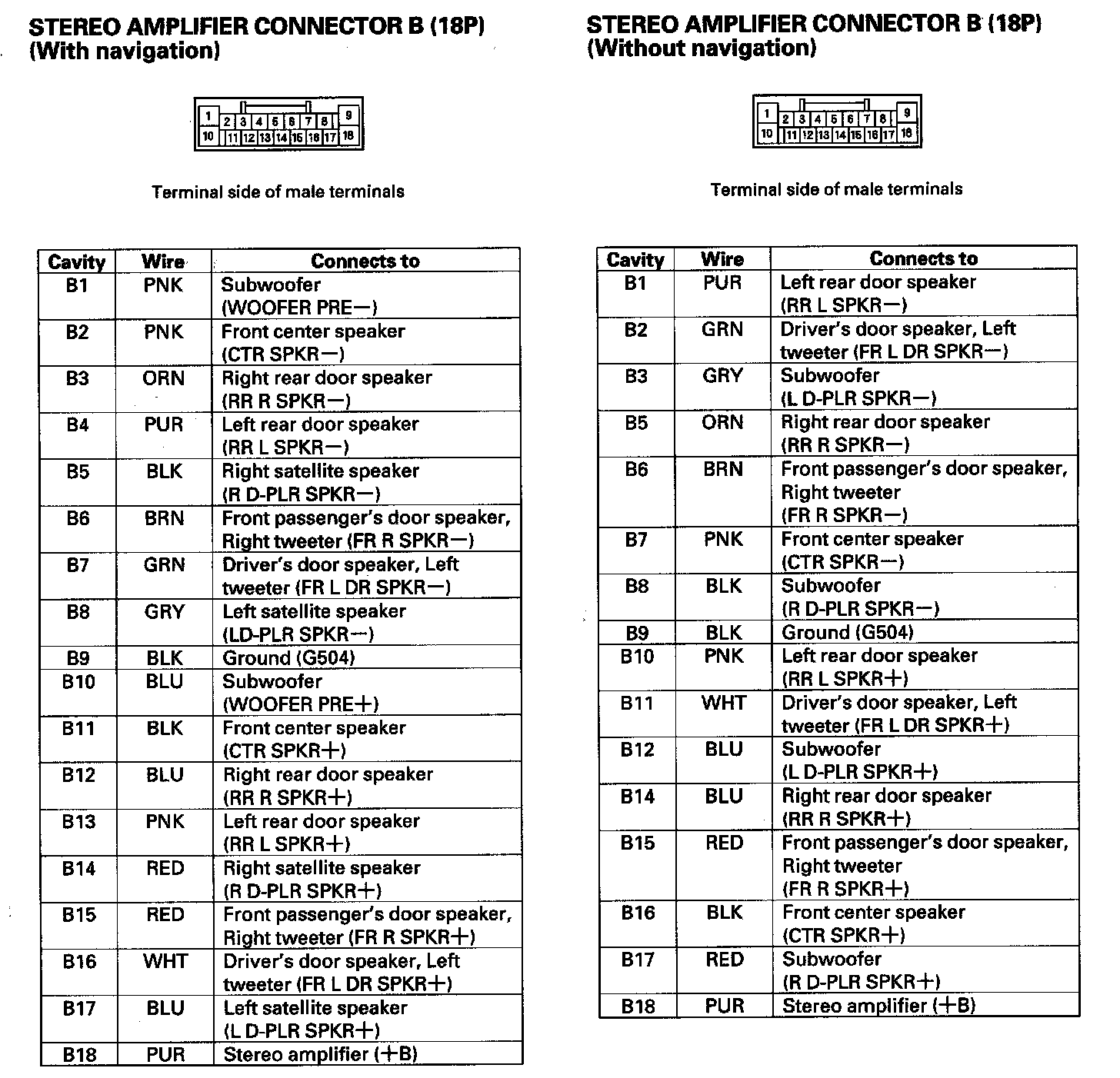

Stereo Amplifier Connector For Inputs And Outputs (Part 2):

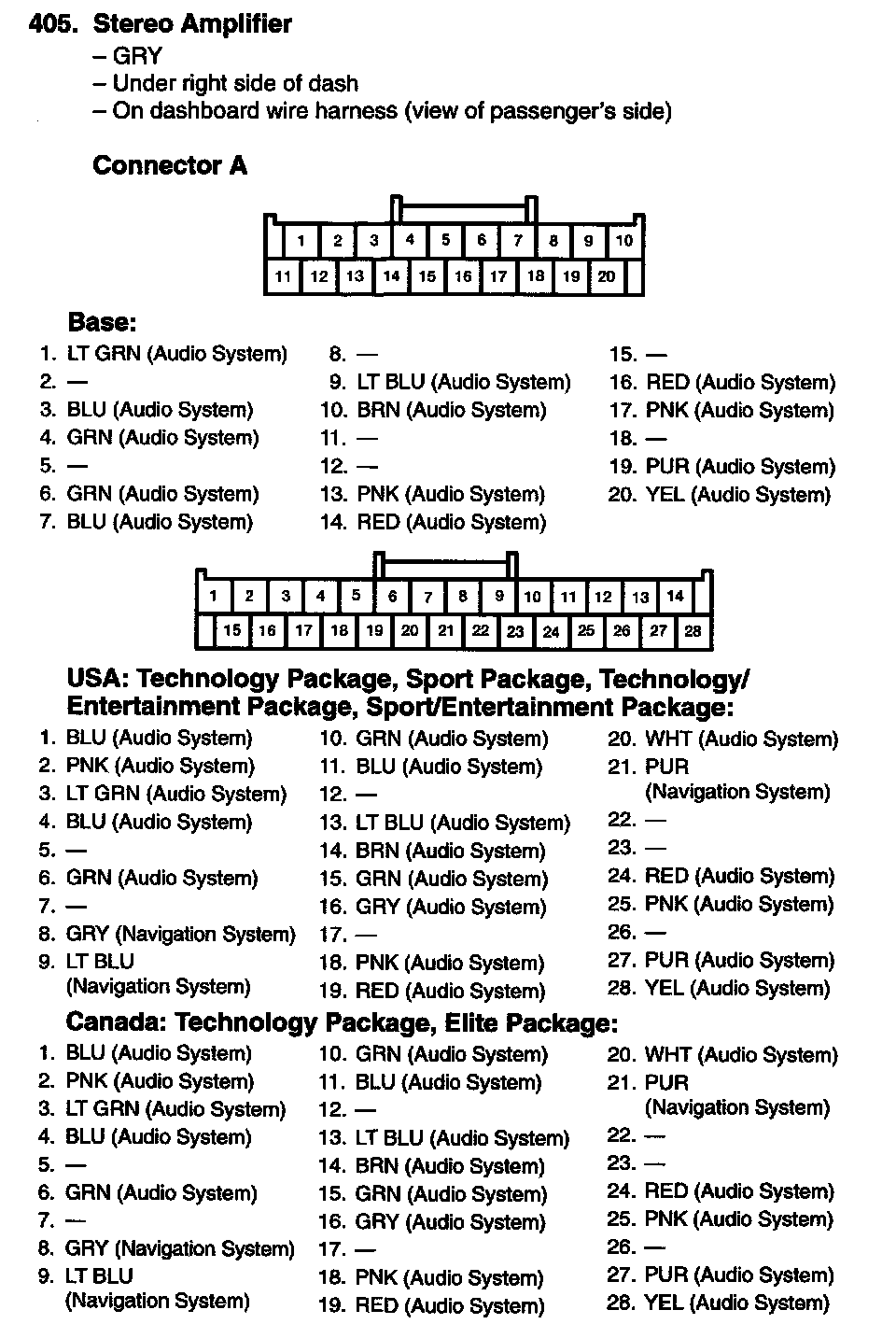

Stereo Amplifier Connector For Inputs And Outputs (Part 3):
