Home >> Acura >> 2008 >> MDX V6-3.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Diagrams >> Electrical Diagrams >> Navigation System Circuit Diagram

Navigation System Circuit Diagram

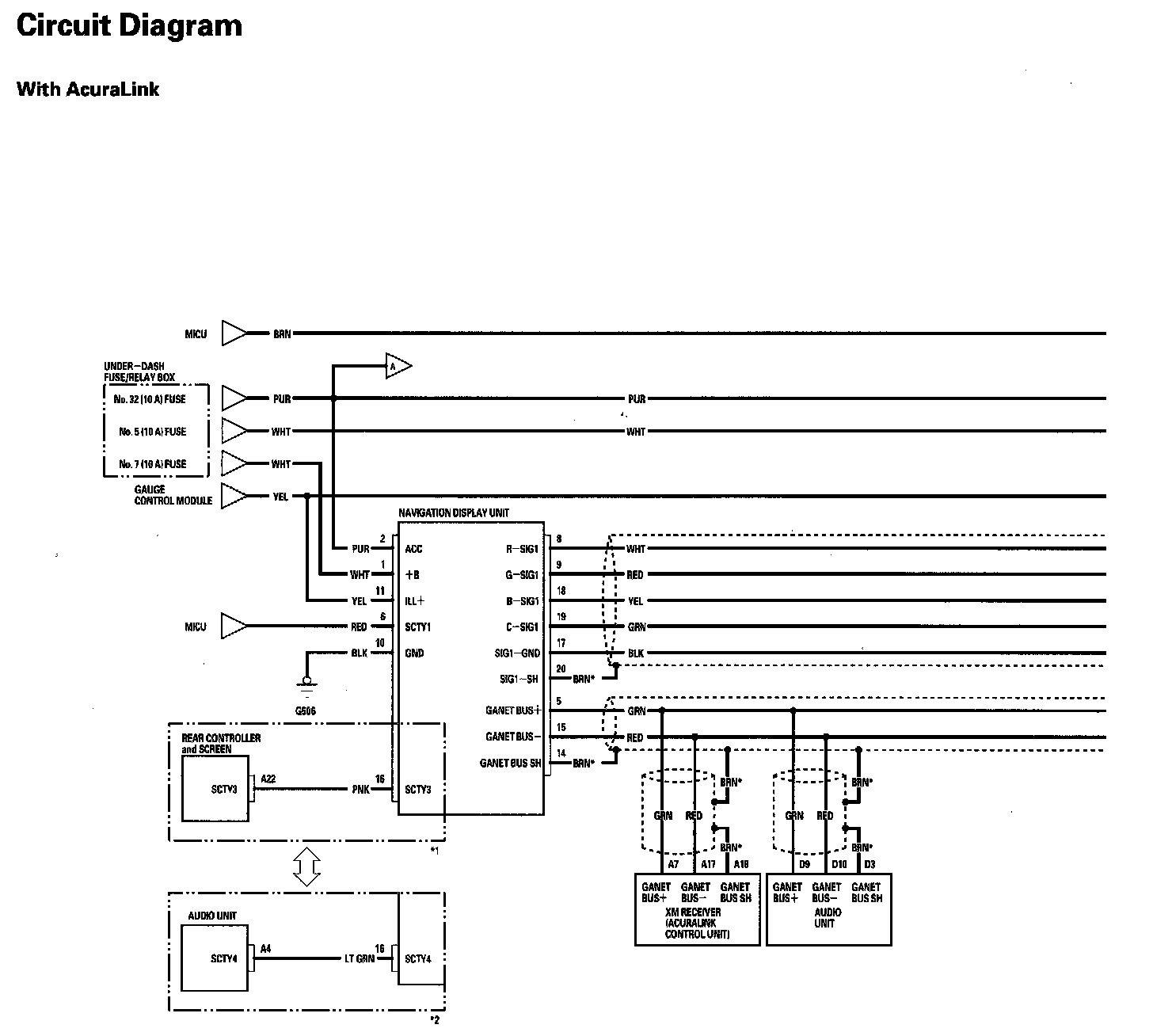

Navigation System Circuit Diagram (Part 1):

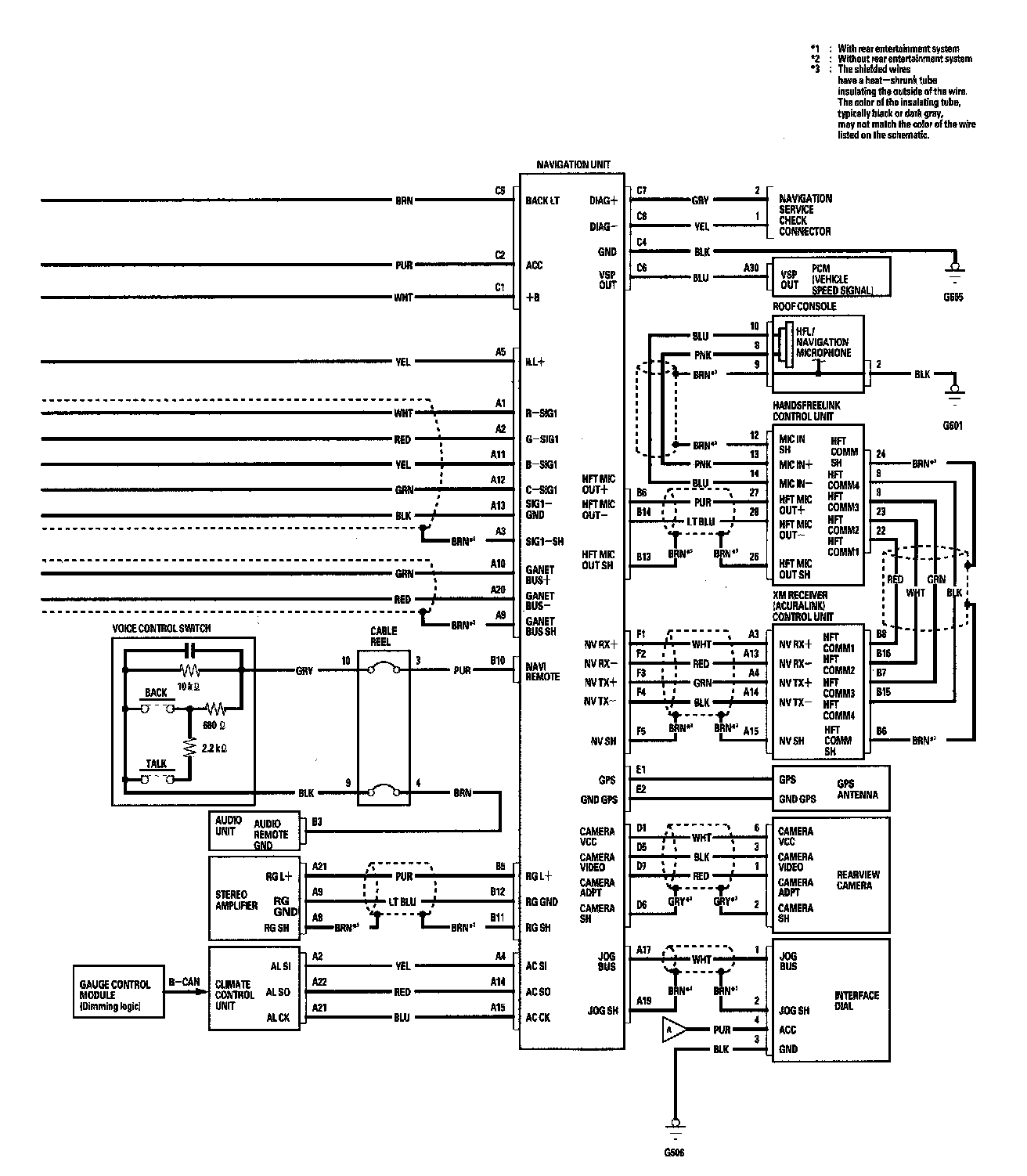

Navigation System Circuit Diagram (Part 2):

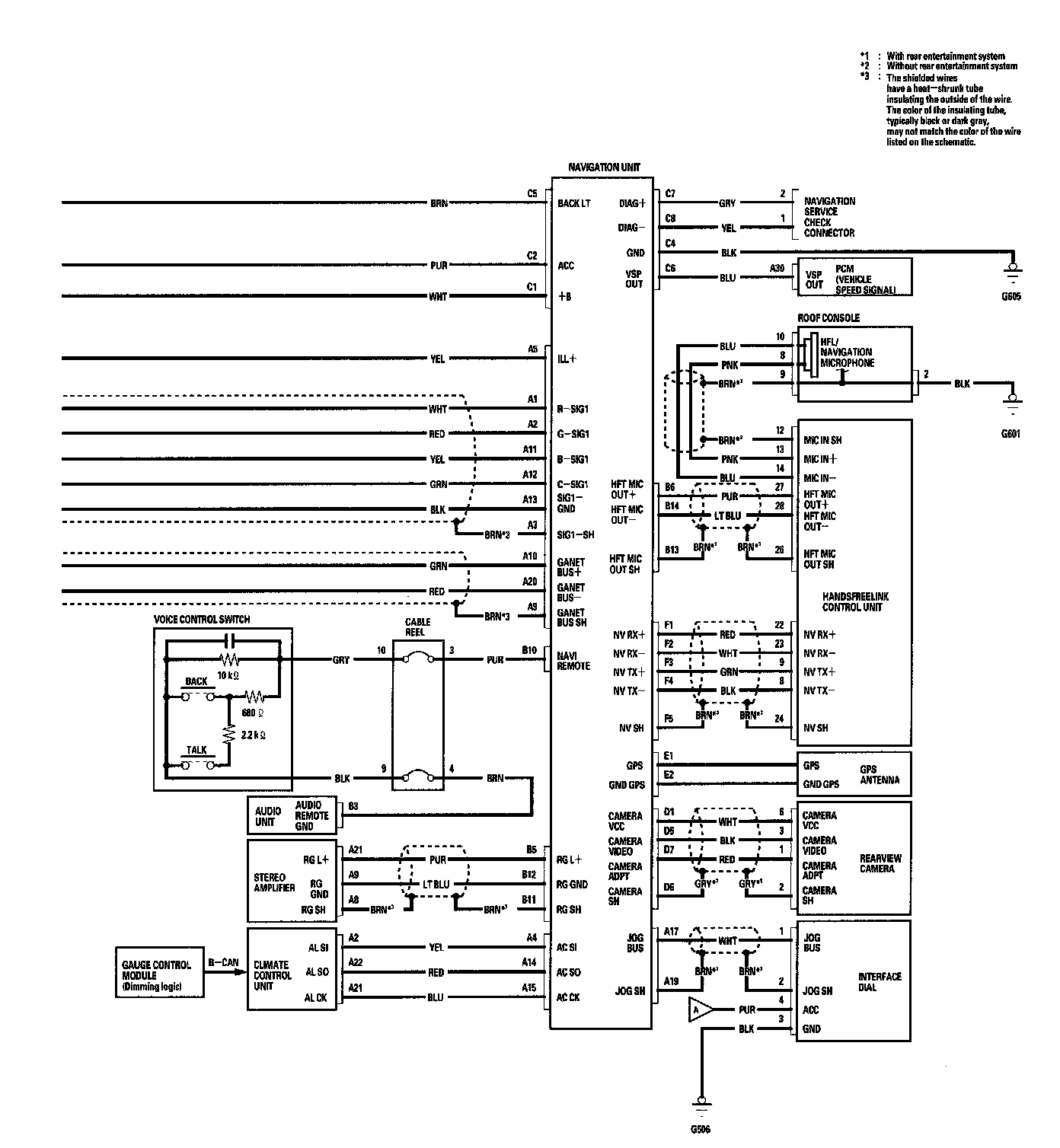

Navigation System Circuit Diagram (Part 3):



Navigation System Circuit Diagram (Part 4):
