Rear Entertainment System Circuit Diagram

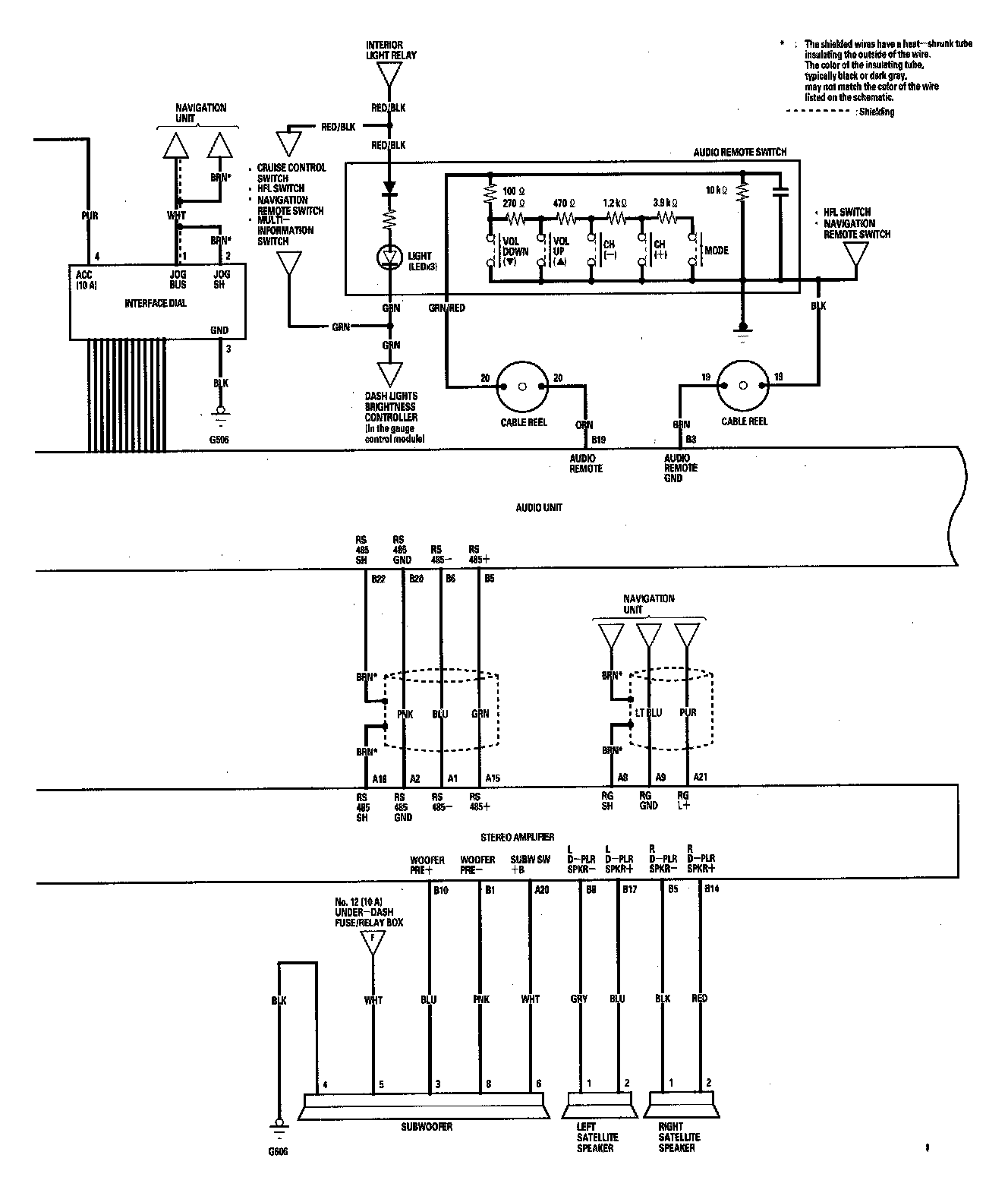

Rear Entertainment System Circuit Diagram (Part 1):

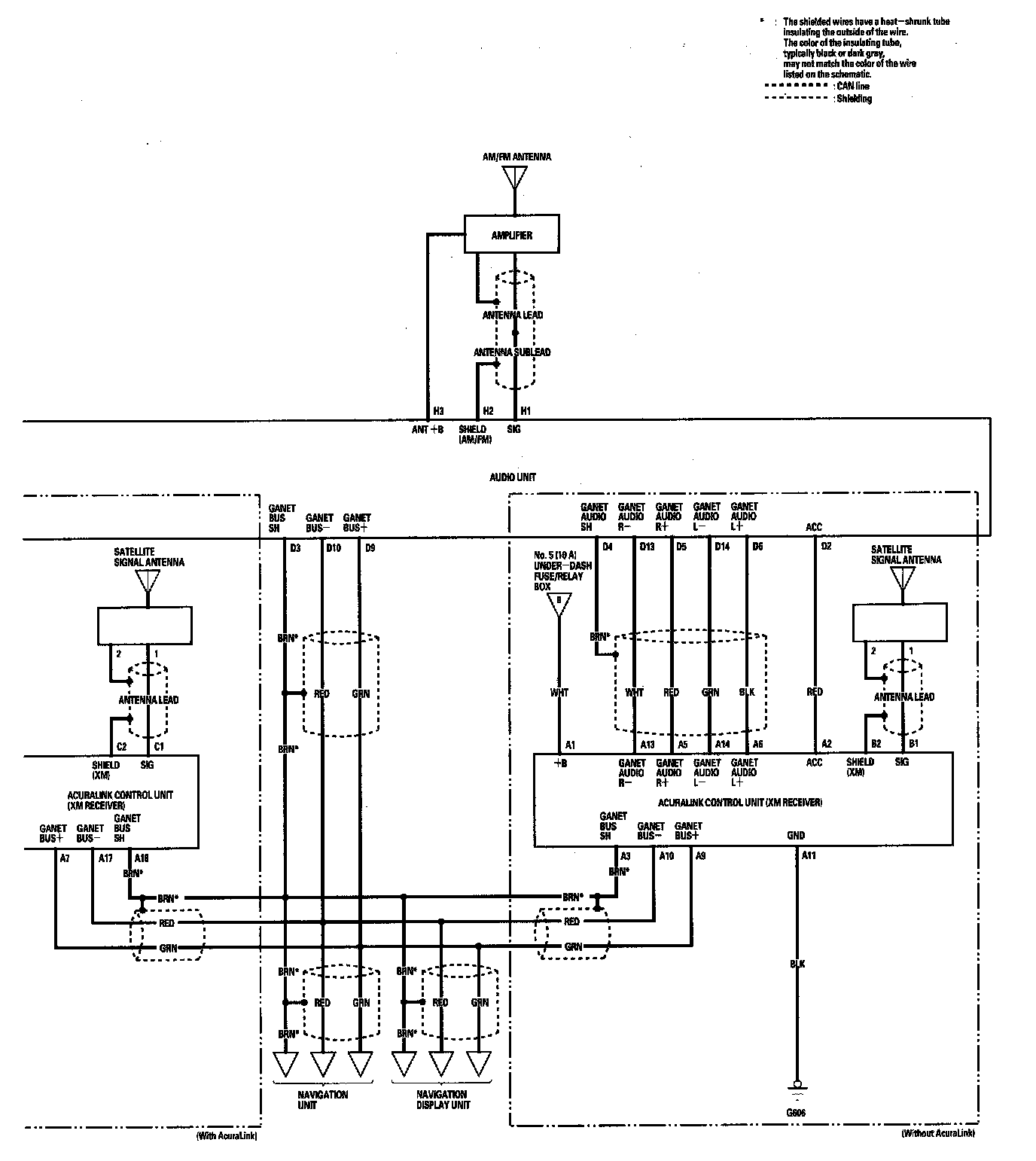

Rear Entertainment System Circuit Diagram (Part 2):

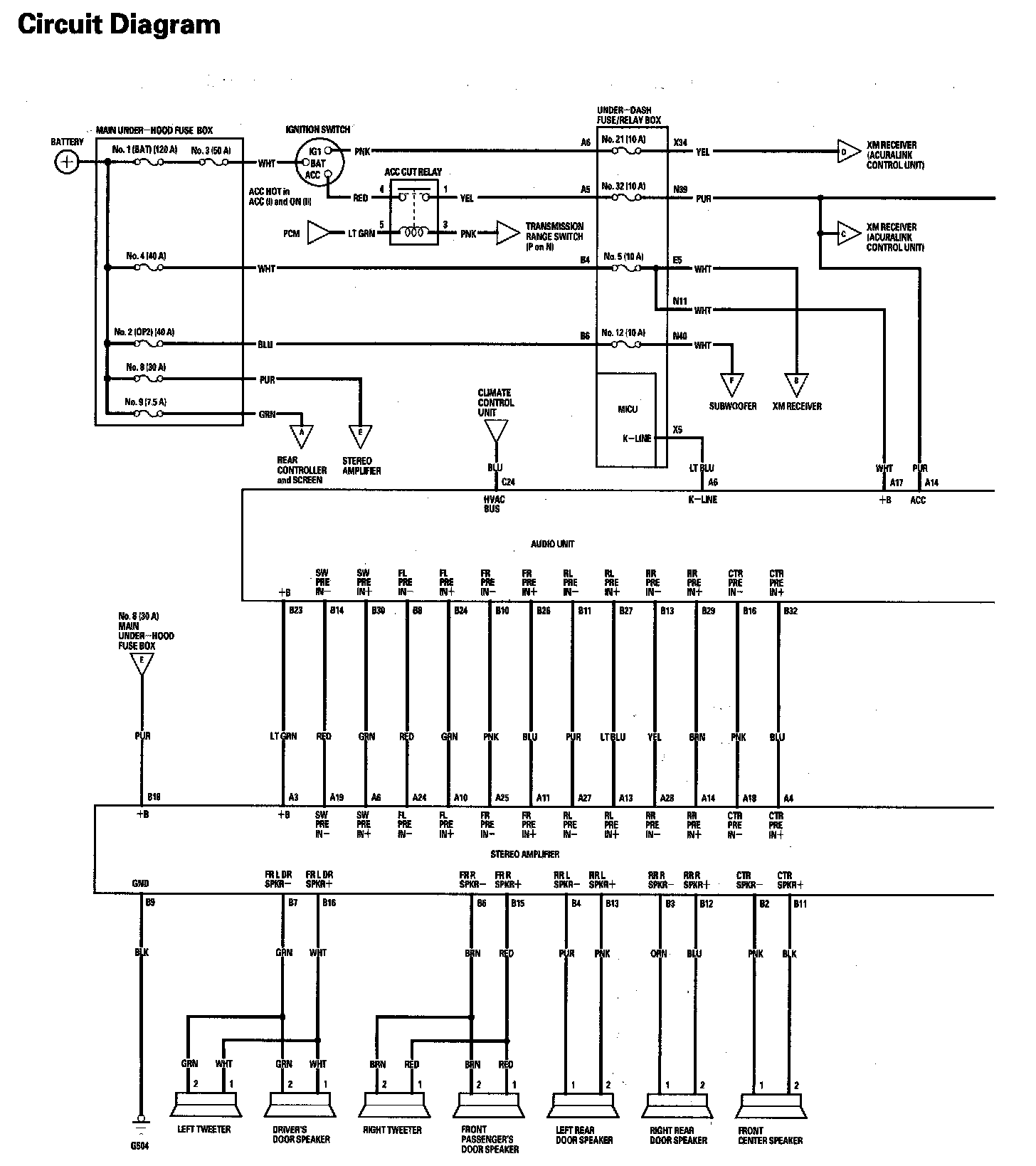

Rear Entertainment System Circuit Diagram (Part 3):

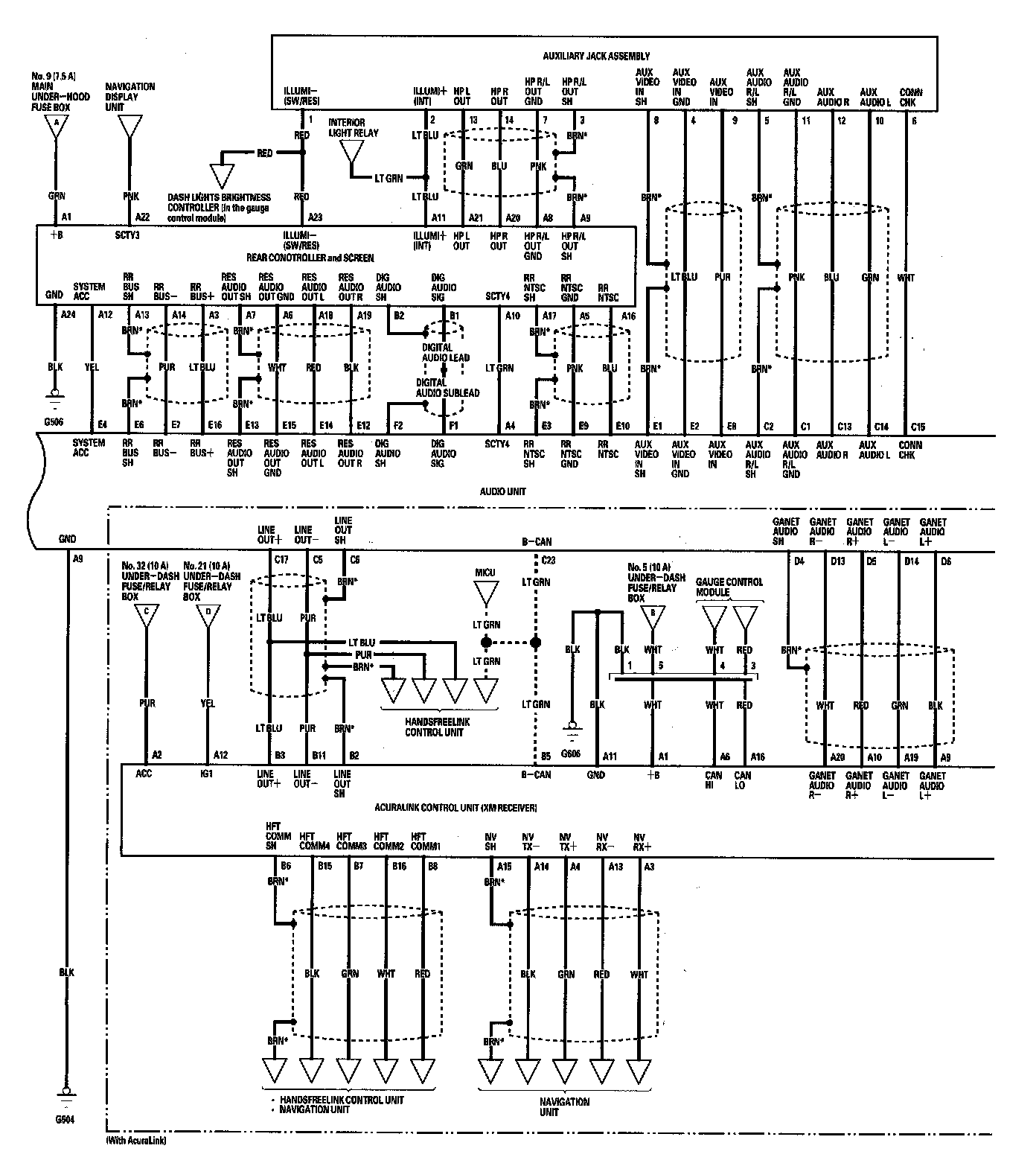

Rear Entertainment System Circuit Diagram (Part 4):
