Keyless/Power Door Locks/Security System Circuit Diagram

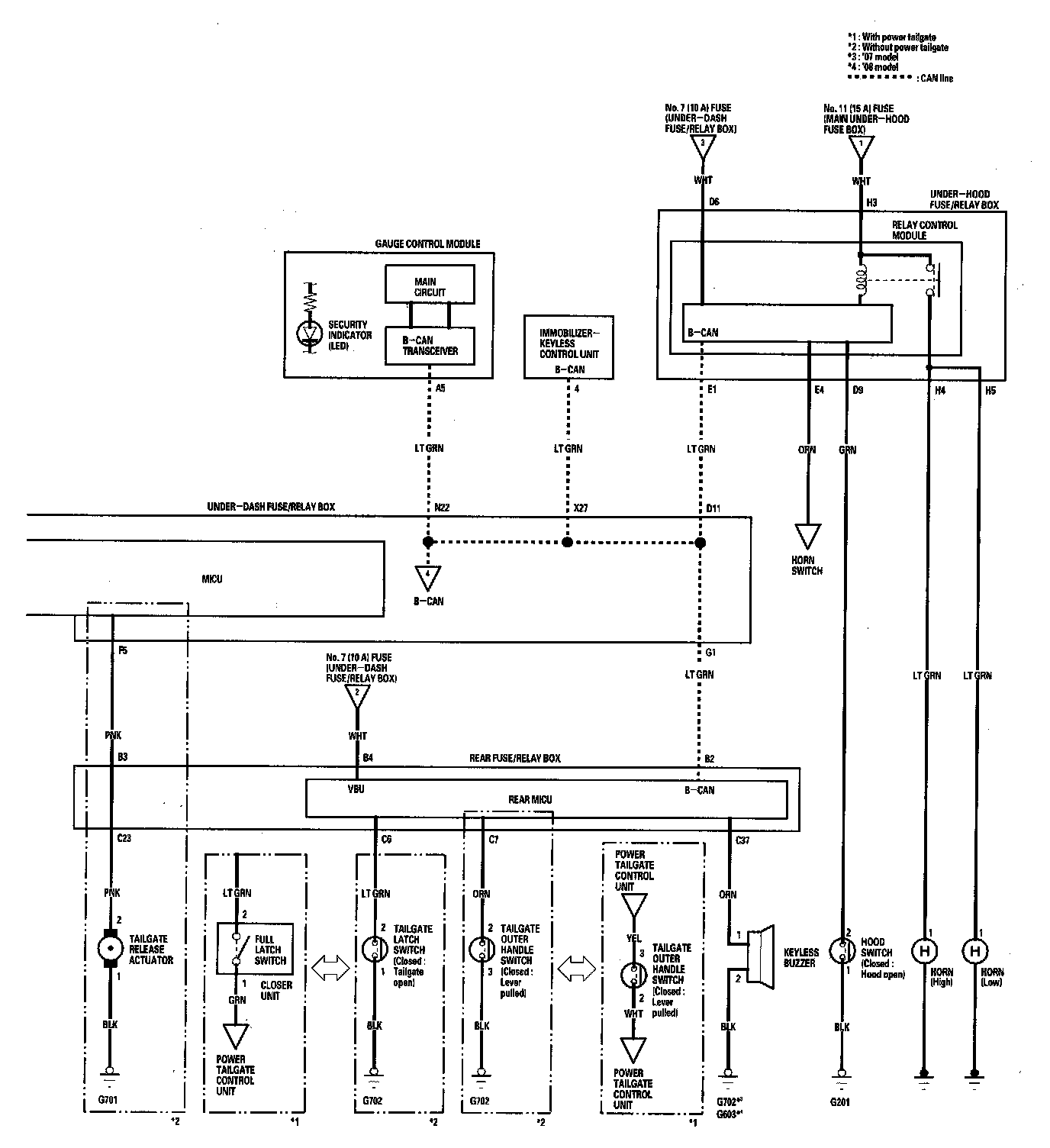

Keyless/Power Door Locks/Security System Circuit Diagram (Part 1):

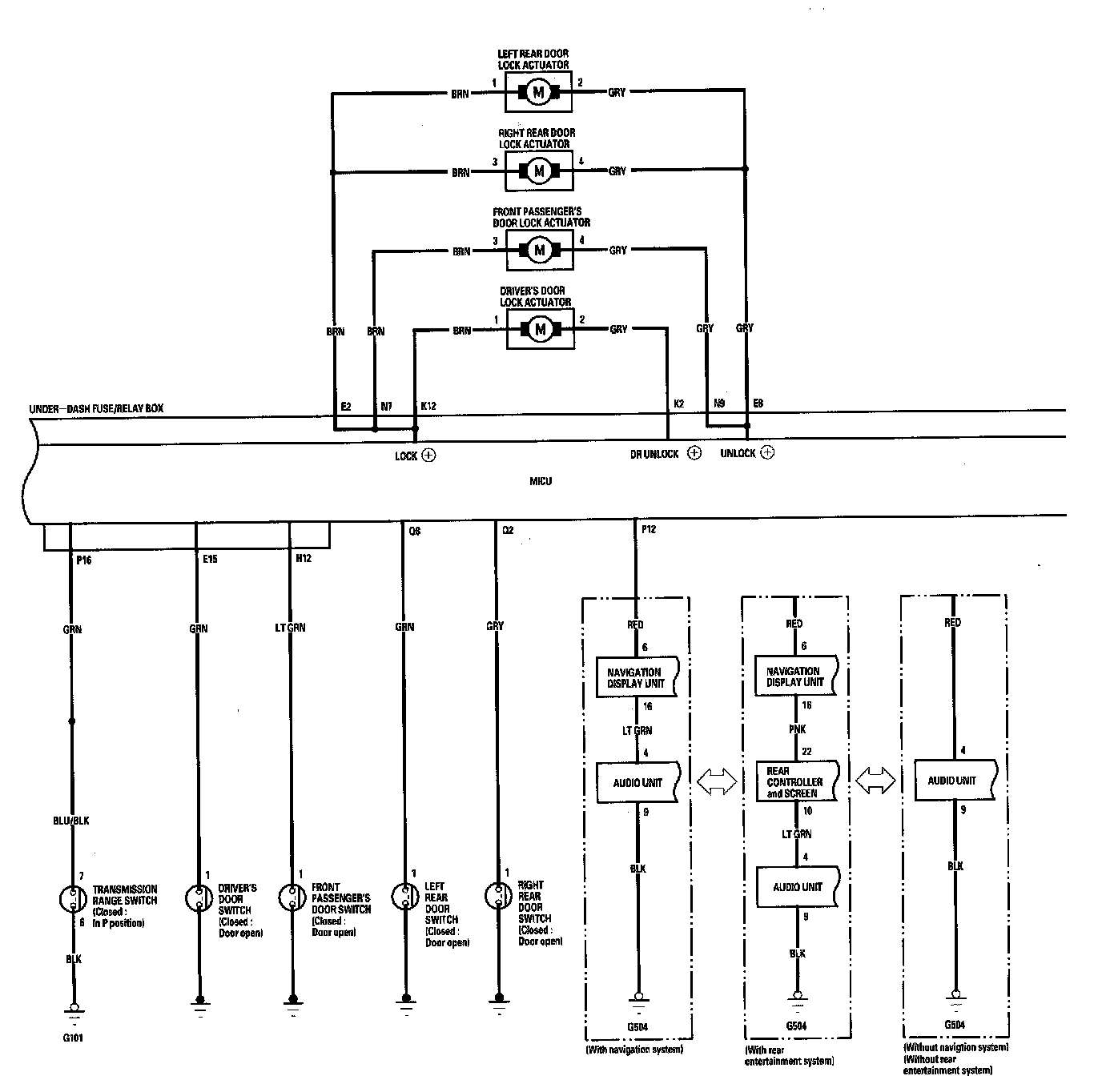

Keyless/Power Door Locks/Security System Circuit Diagram (Part 2):

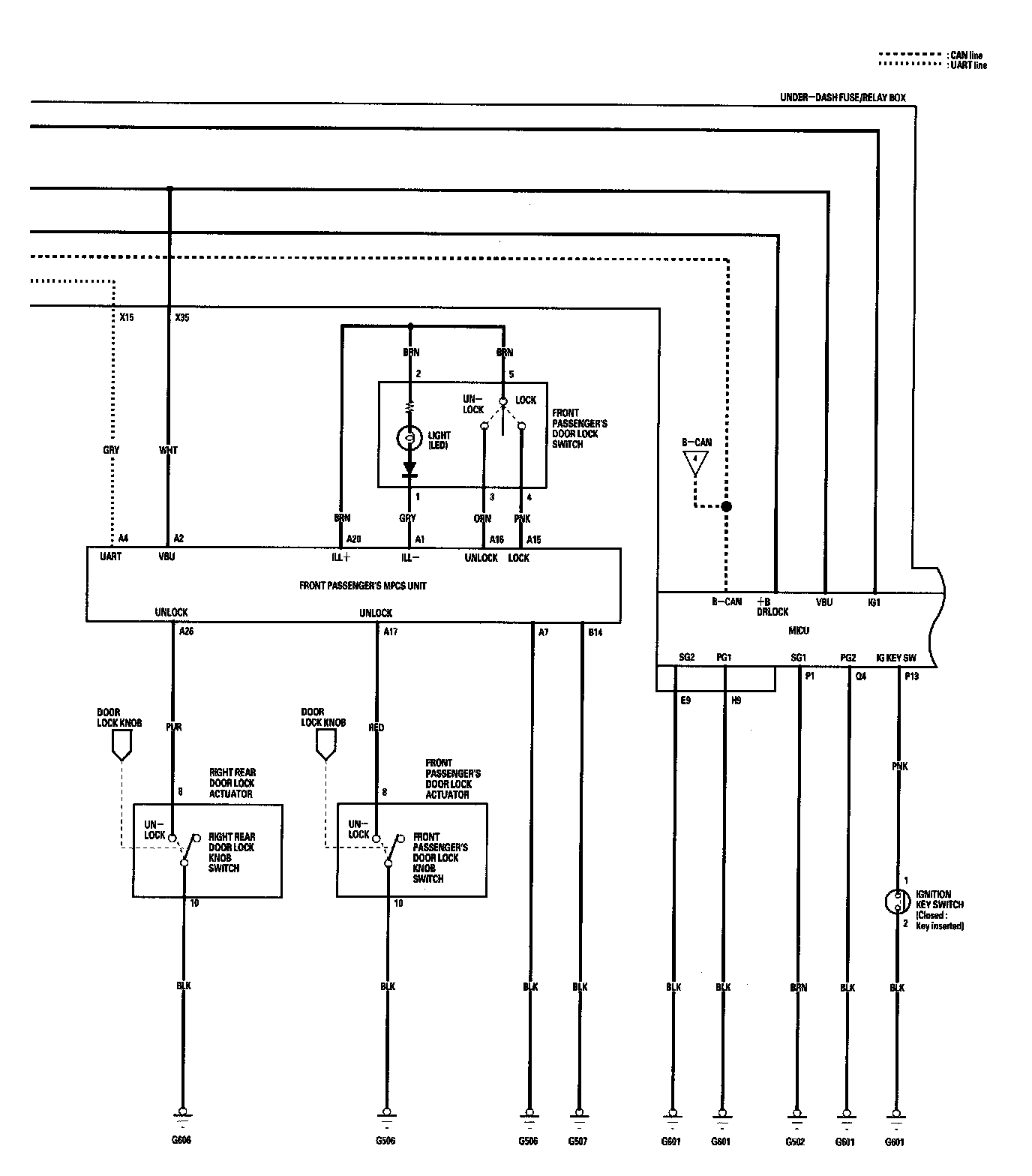

Keyless/Power Door Locks/Security System Circuit Diagram (Part 3):

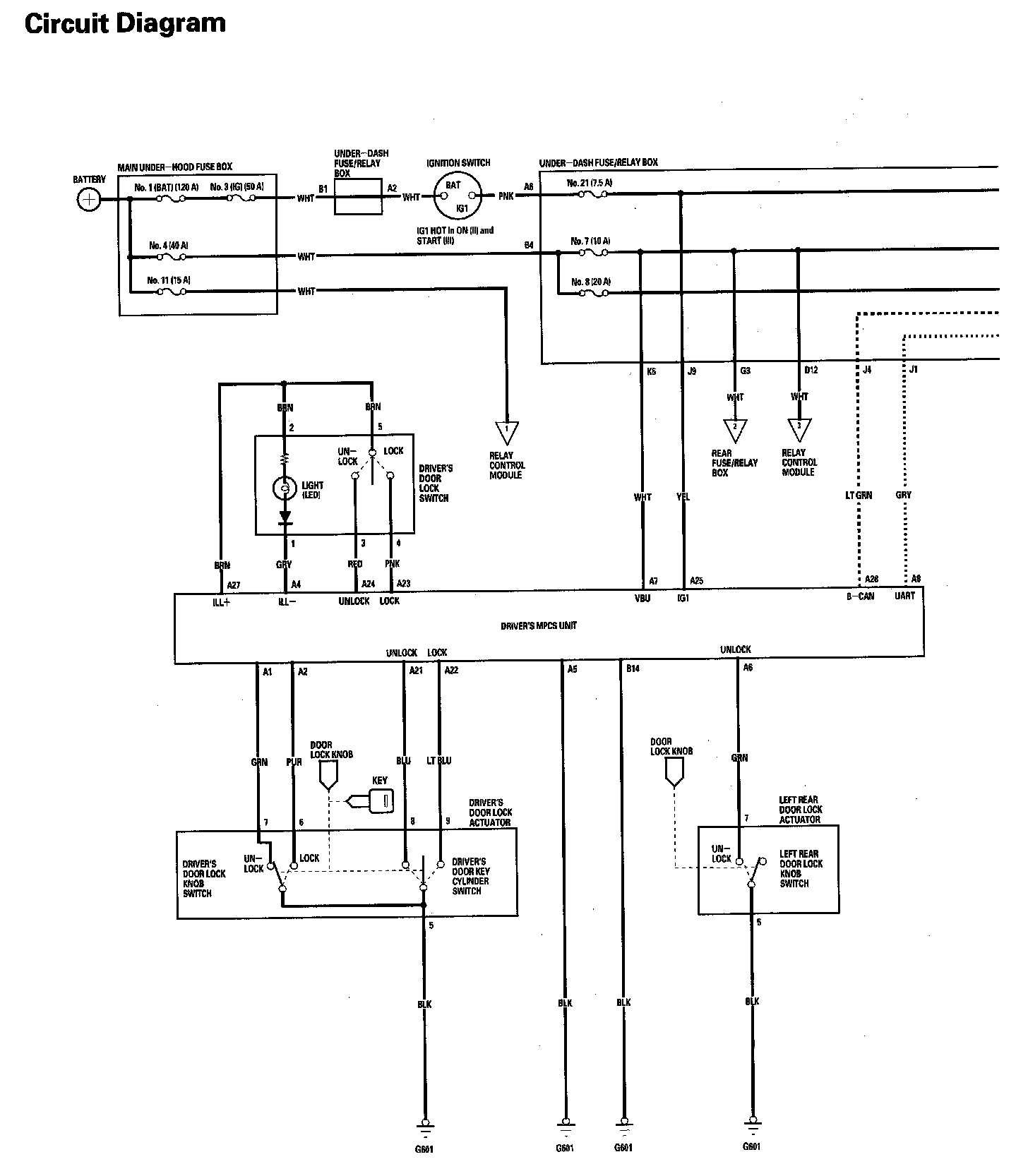

Keyless/Power Door Locks/Security System Circuit Diagram (Part 4):
