Circuit Diagram

'04-05 models

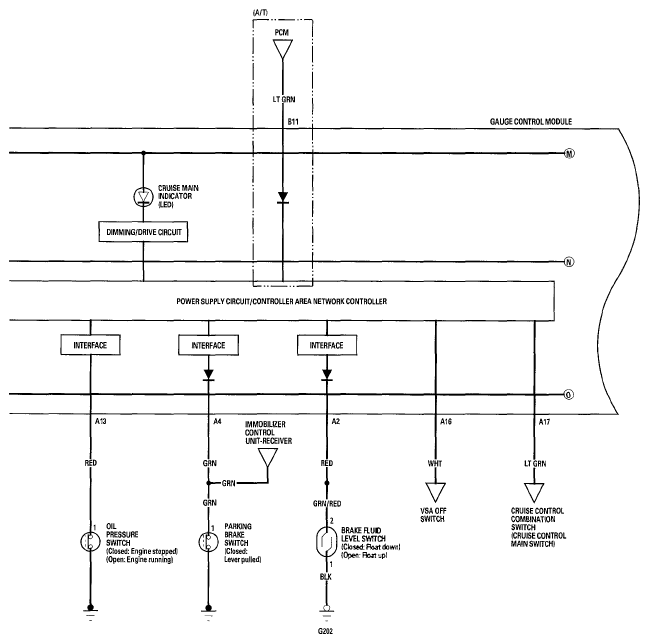

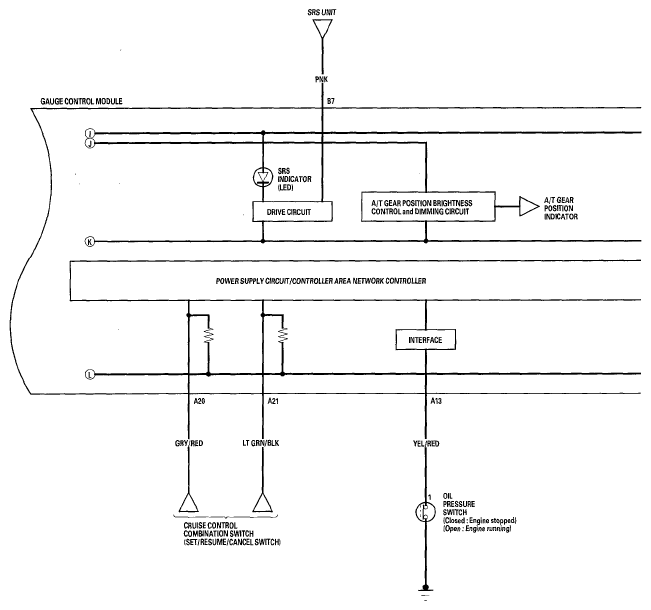

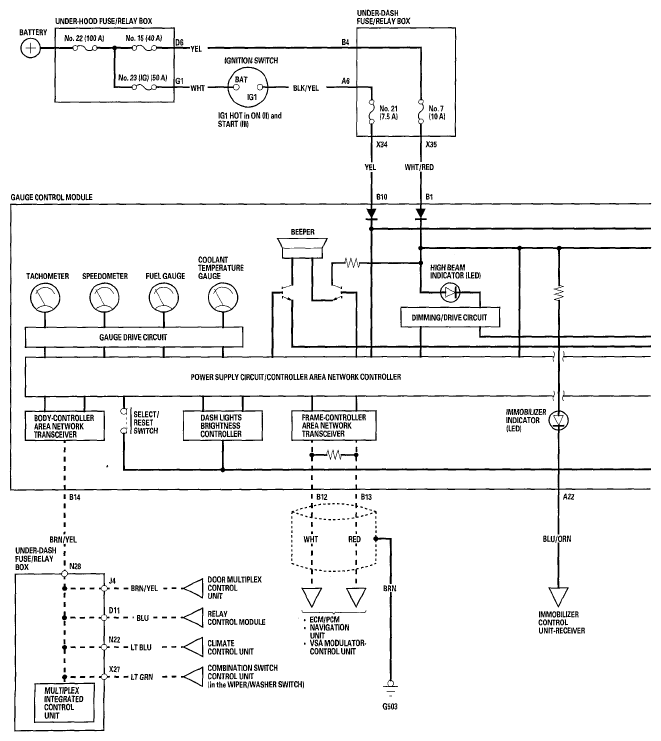

Fig 1: Gauges Circuit Diagram - 04-05 Models (1 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

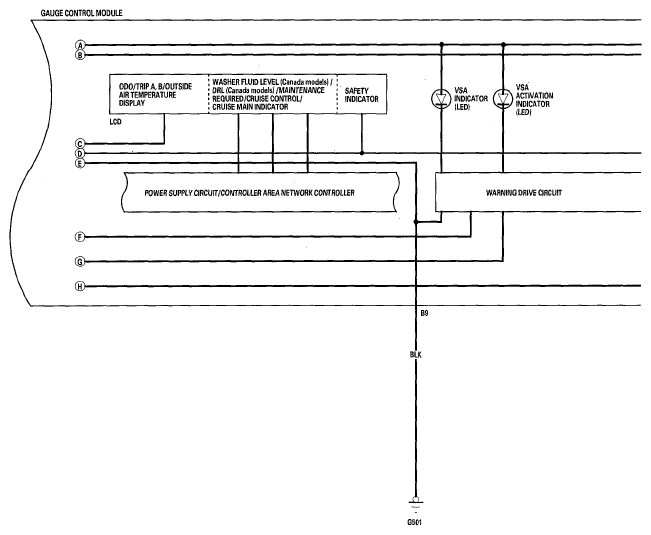

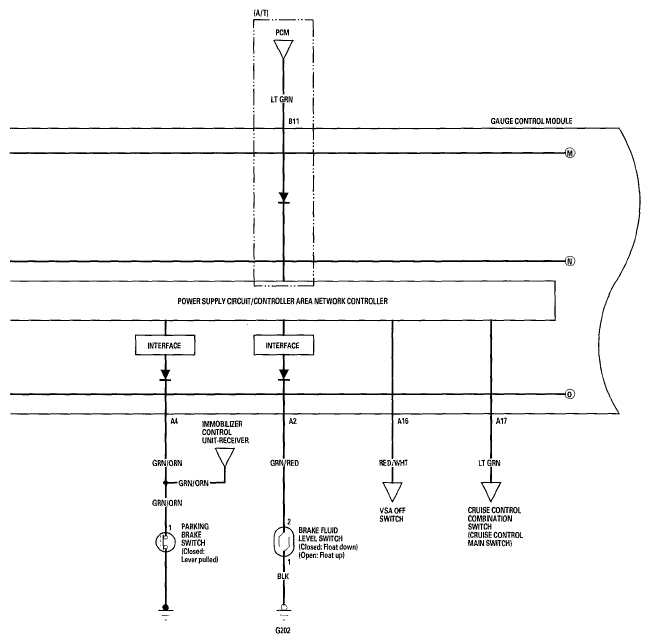

Fig 2: Gauges Circuit Diagram - 04-05 Models (2 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

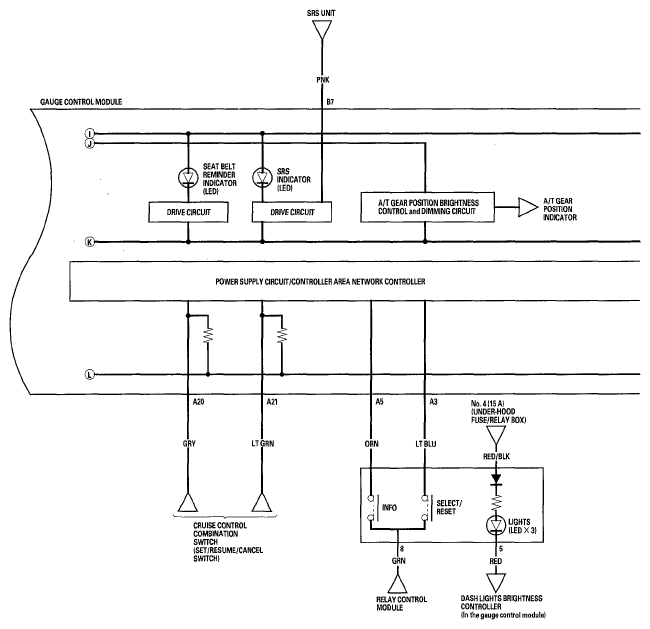

Fig 3: Gauges Circuit Diagram - 04-05 Models (3 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

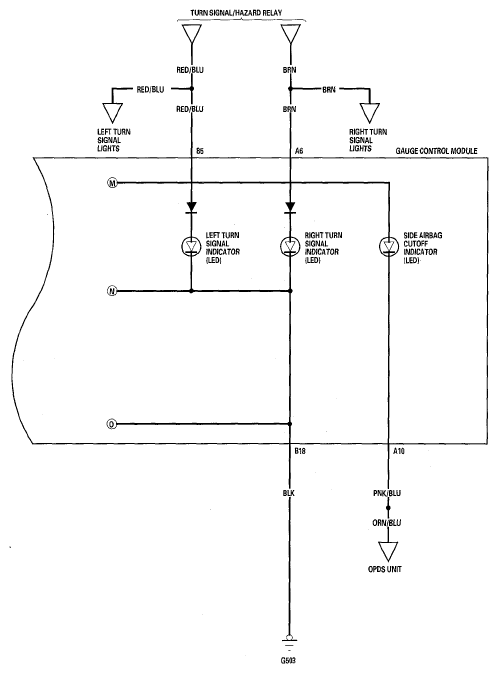

Fig 4: Gauges Circuit Diagram - 04-05 Models (4 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

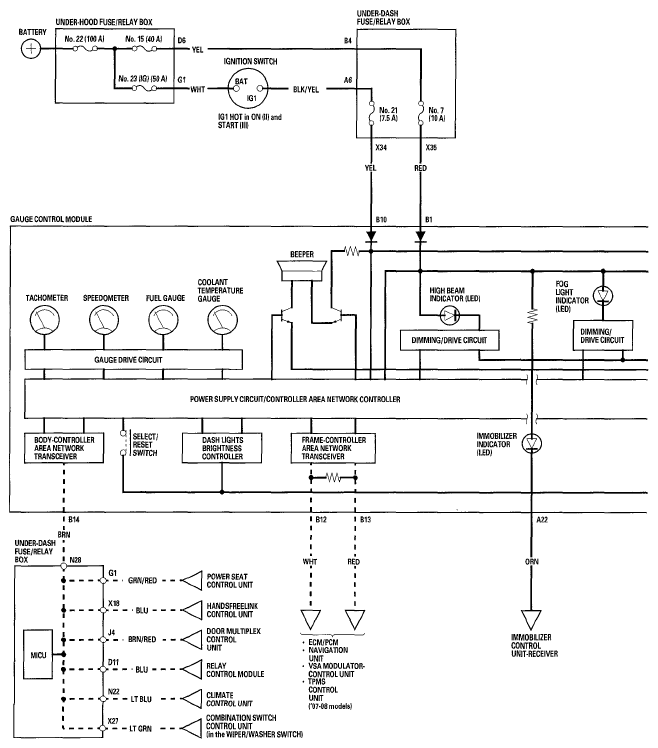

Fig 5: Gauges Circuit Diagram - 04-05 Models (5 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

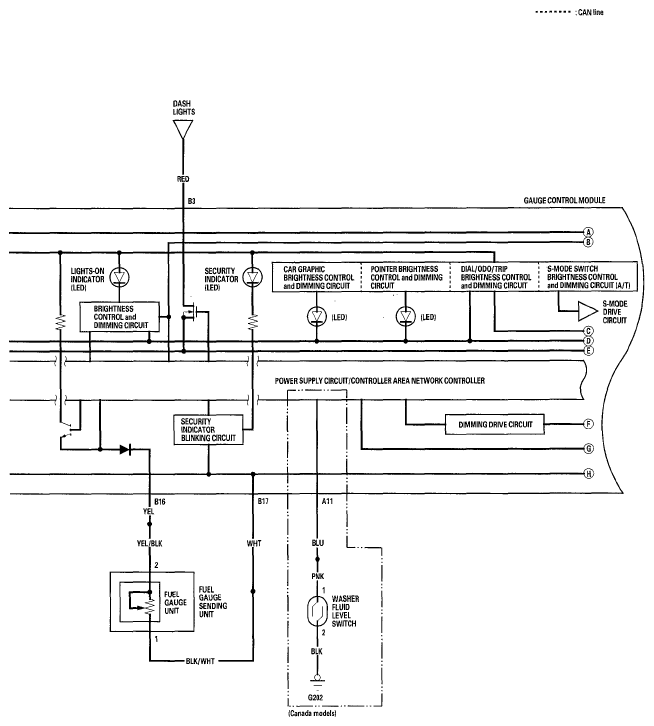

Fig 6: Gauges Circuit Diagram - 04-05 Models (6 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'04-05 models

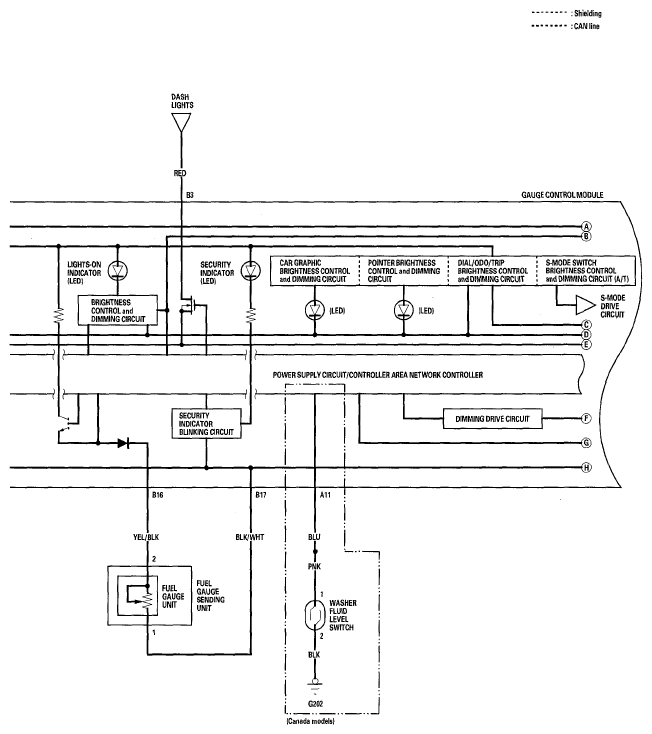

Fig 7: Gauges Circuit Diagram - 04-05 Models (7 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 models

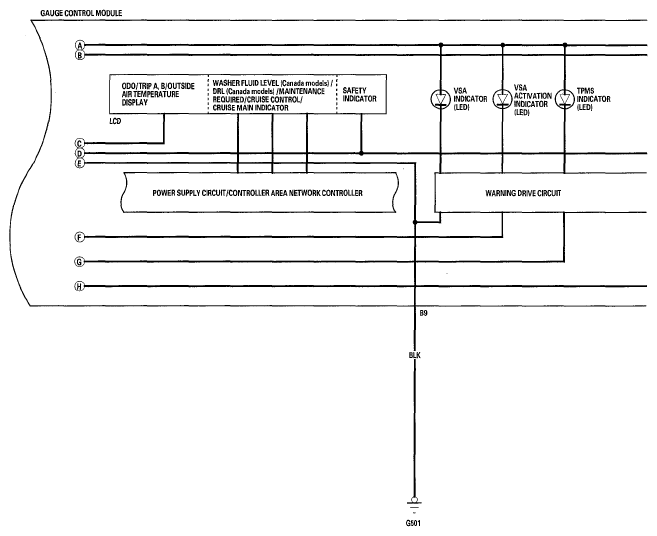

Fig 8: Gauges Circuit Diagram - 06-08 Models (1 Of 7)
