Input Shaft (Mainshaft) Speed Sensor Replacement

Input Shaft (Mainshaft) Speed Sensor Replacement

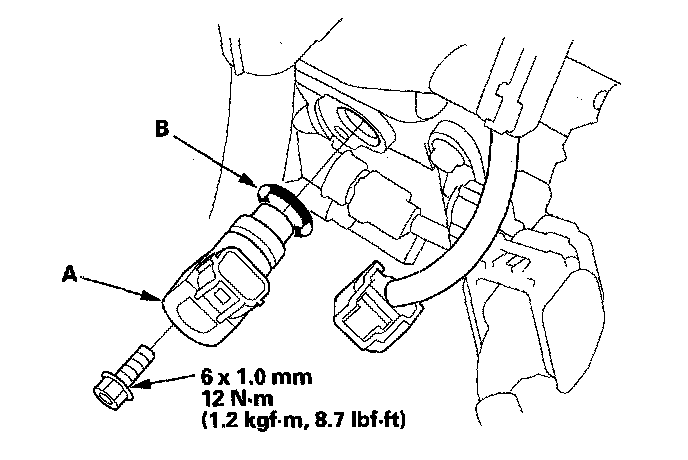

1. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft mainshaft) speed sensor (A).





2. Install the new O-ring (B) on the new input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor in the transmission housing.
3. Check the connector for rust, dirt, or oil, then connect the connector securely.
