Shift Indicator - A/T: Diagrams

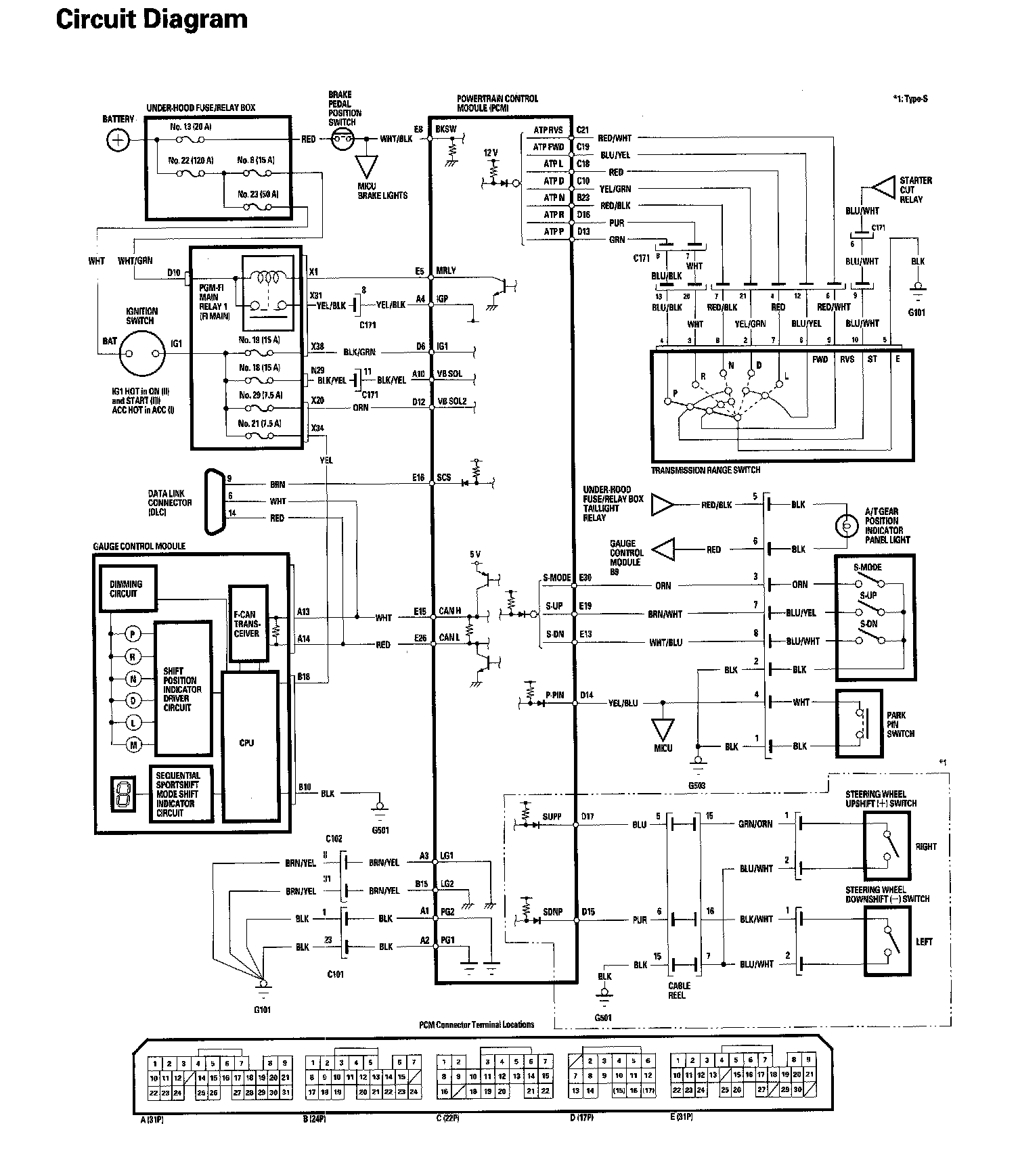

A/T Gear Position Indicator Circuit Diagram:



238. Transmission Gear Selection Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light (A/T):
