Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Locations

Combination Switch: Locations

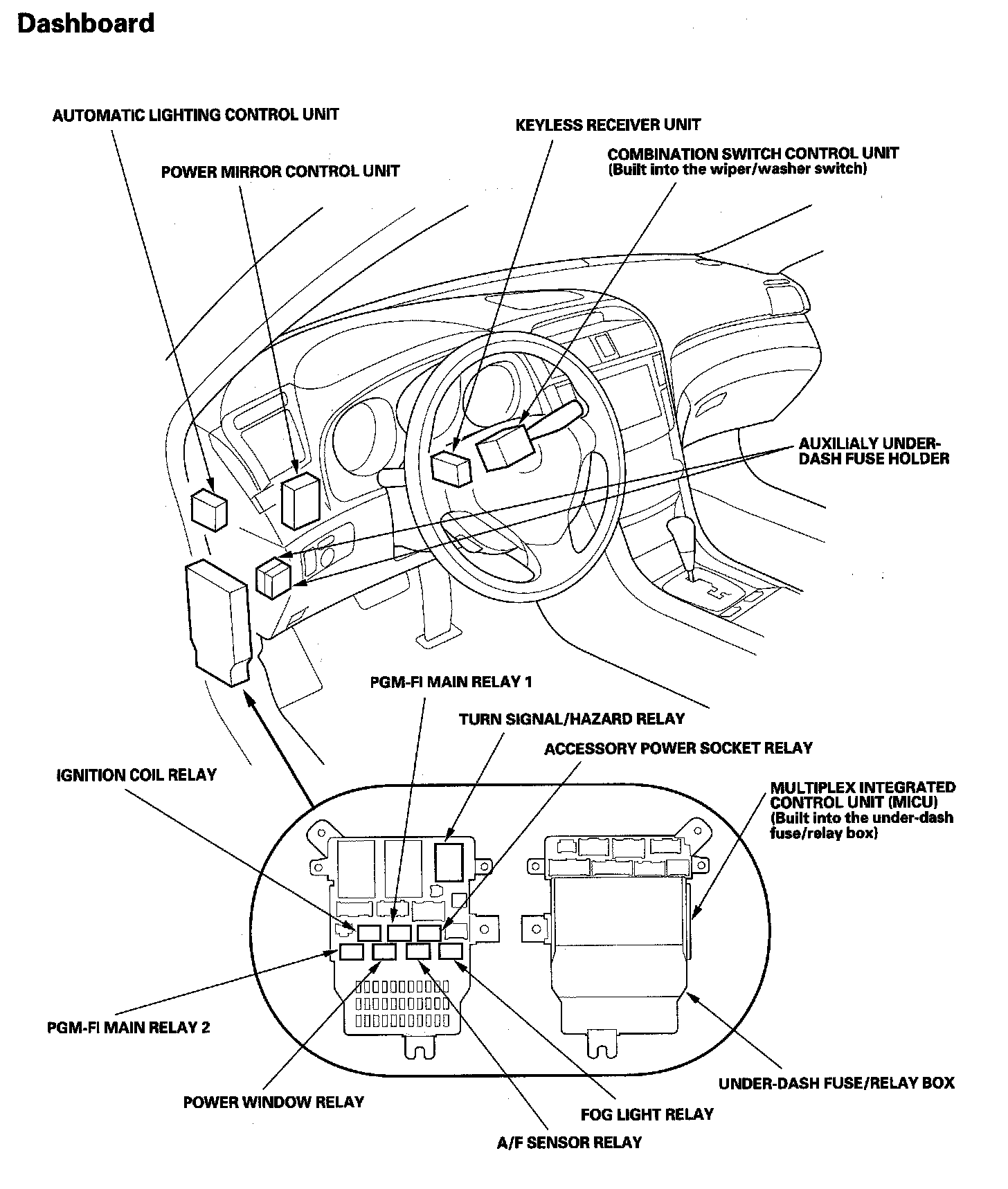

Relay and Control Unit Locations Dashboard:



Power Windows Component Location Index:
