Connector Locations

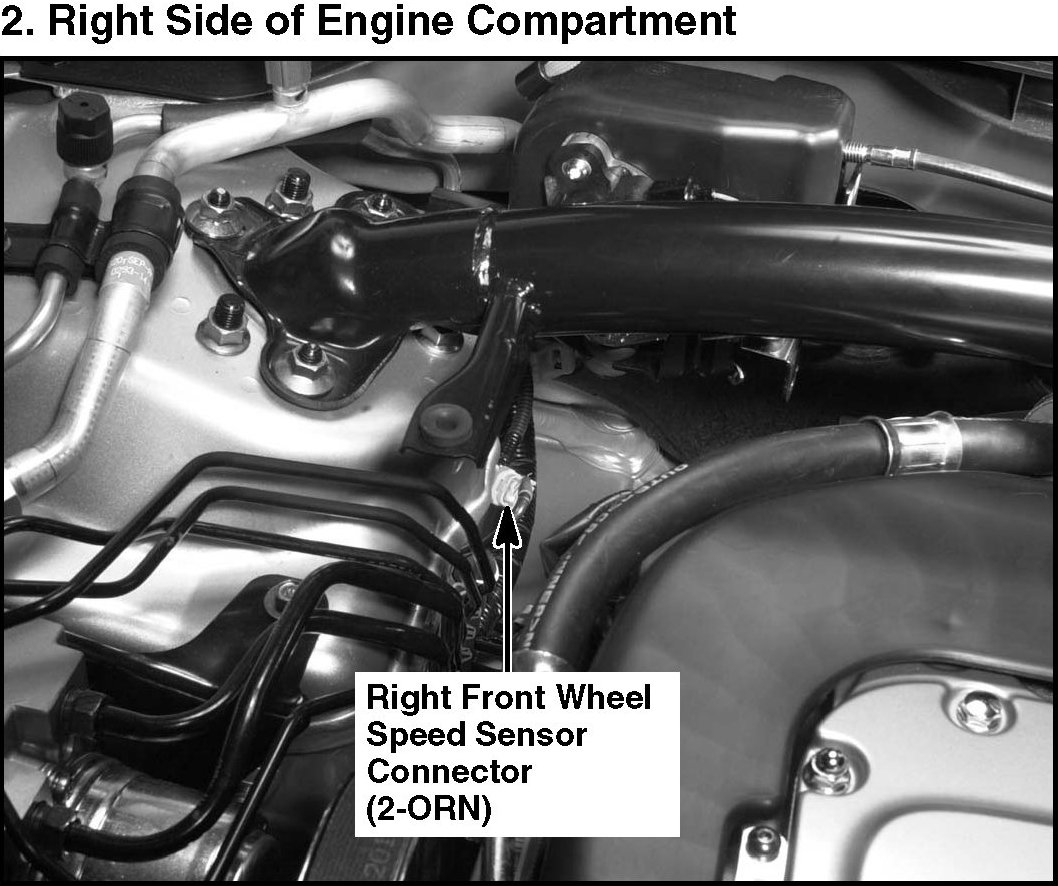

2. Right Side Of Engine Compartment:

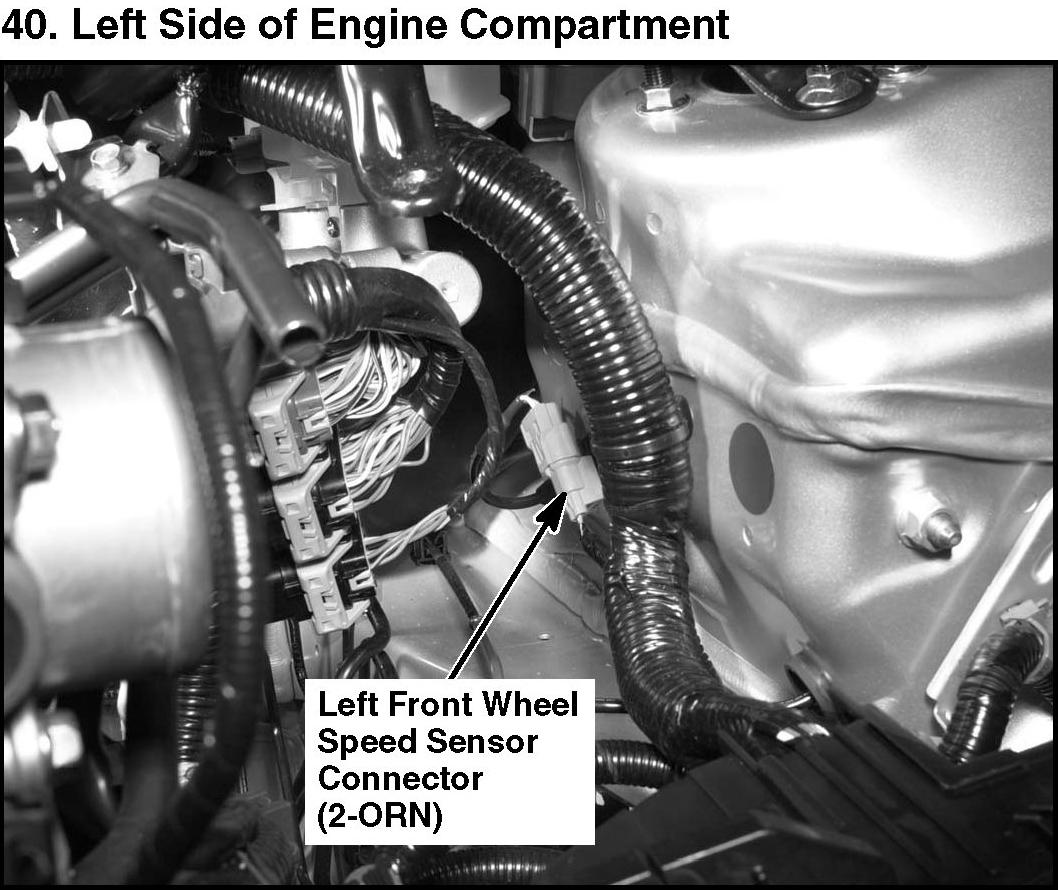

40. Left Side Of Engine Compartment:

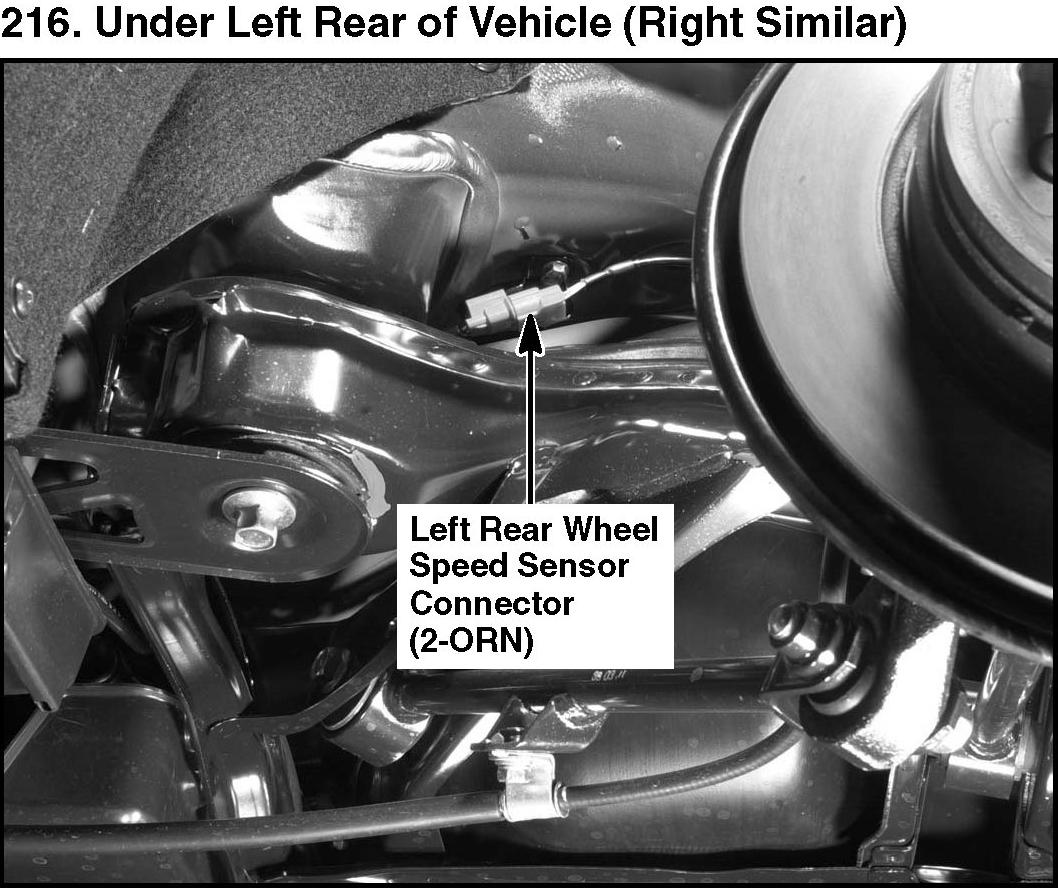

216. Under Left Rear Of Vehicle (Right Similar):
