Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector ID By Location on Harness >> Side Curtain Airbag Harness

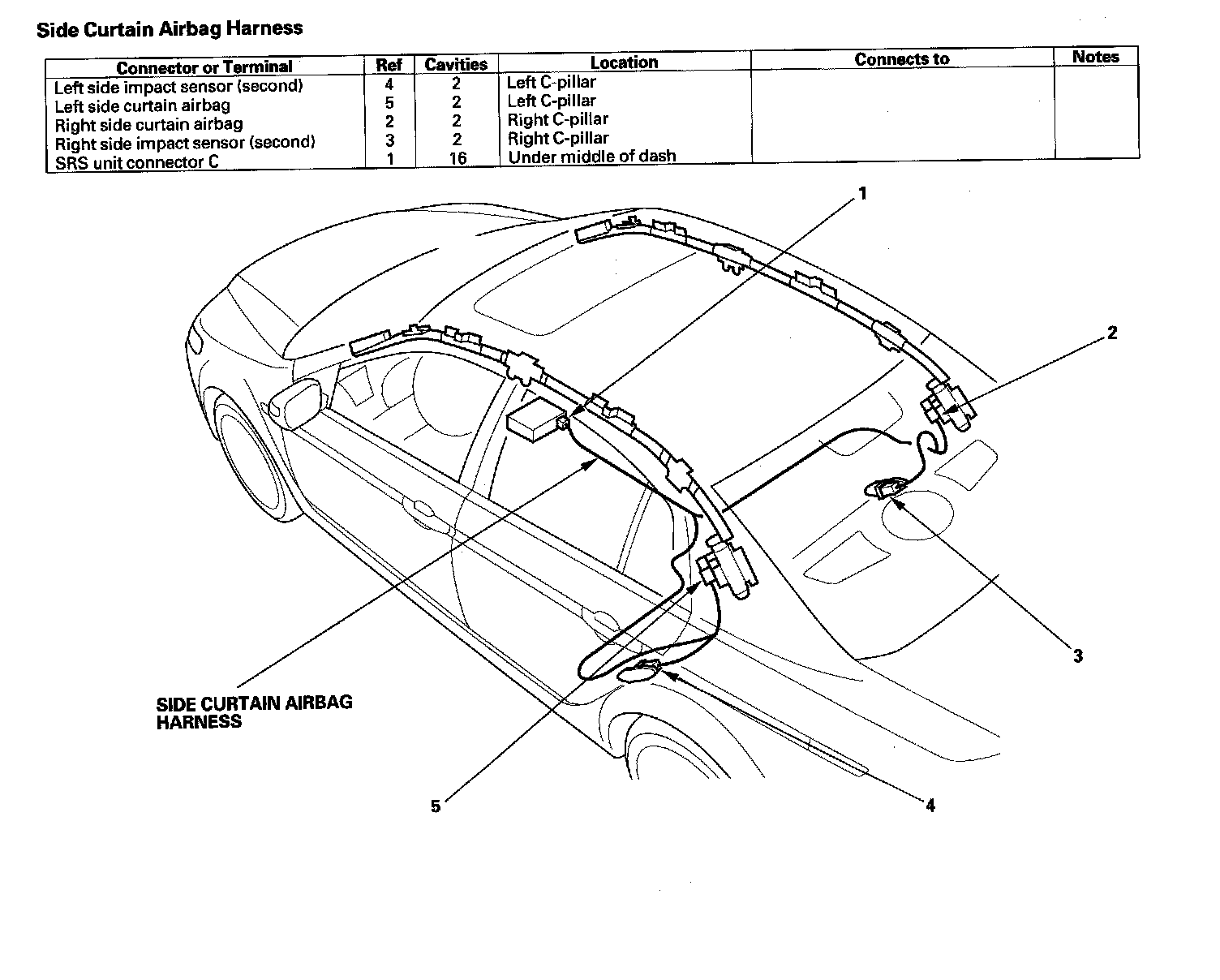

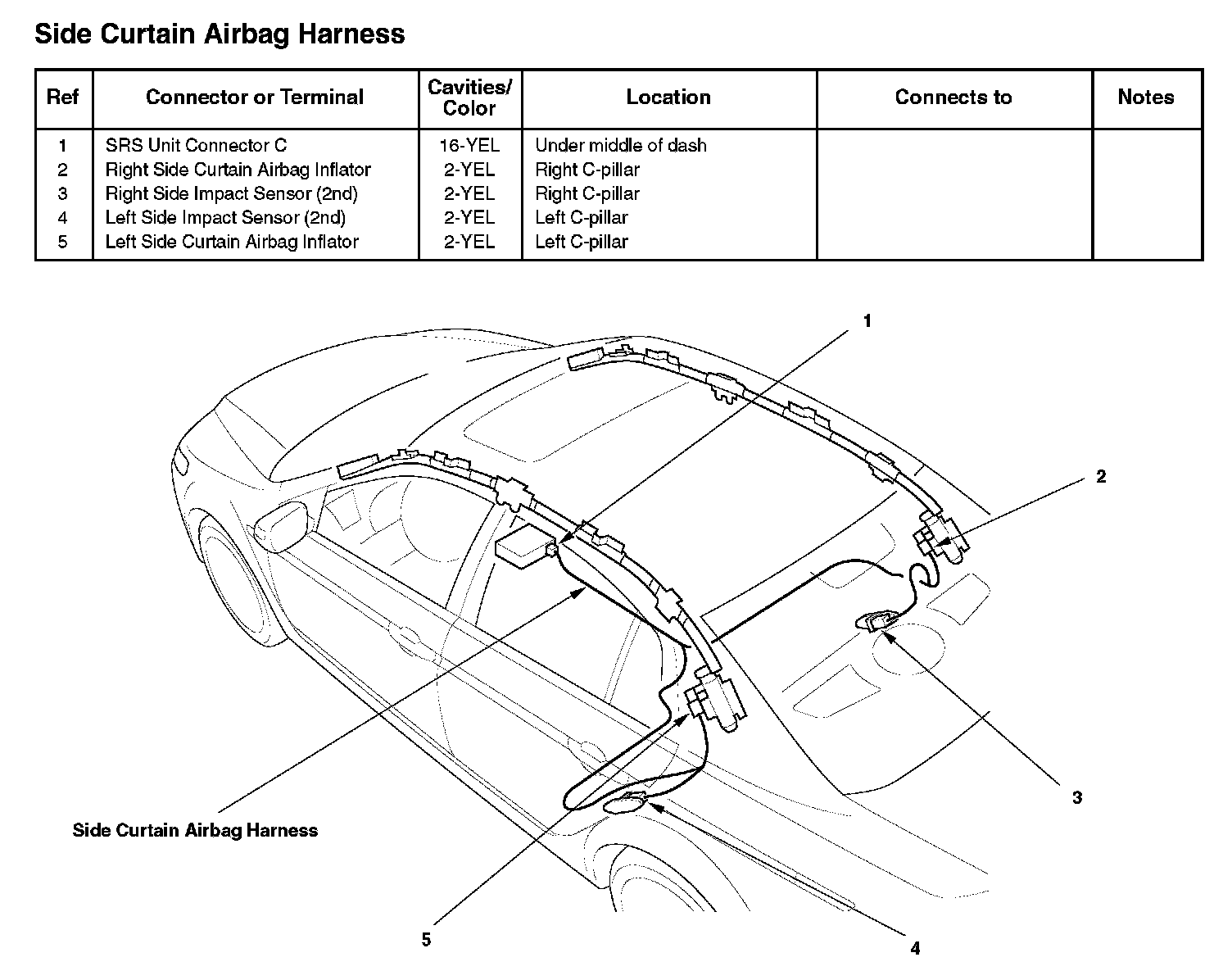

Side Curtain Airbag Harness

Side Curtain Airbag Harness:



Side Curtain Airbag Harness:
