Floor Wire Harness (Left Branch)

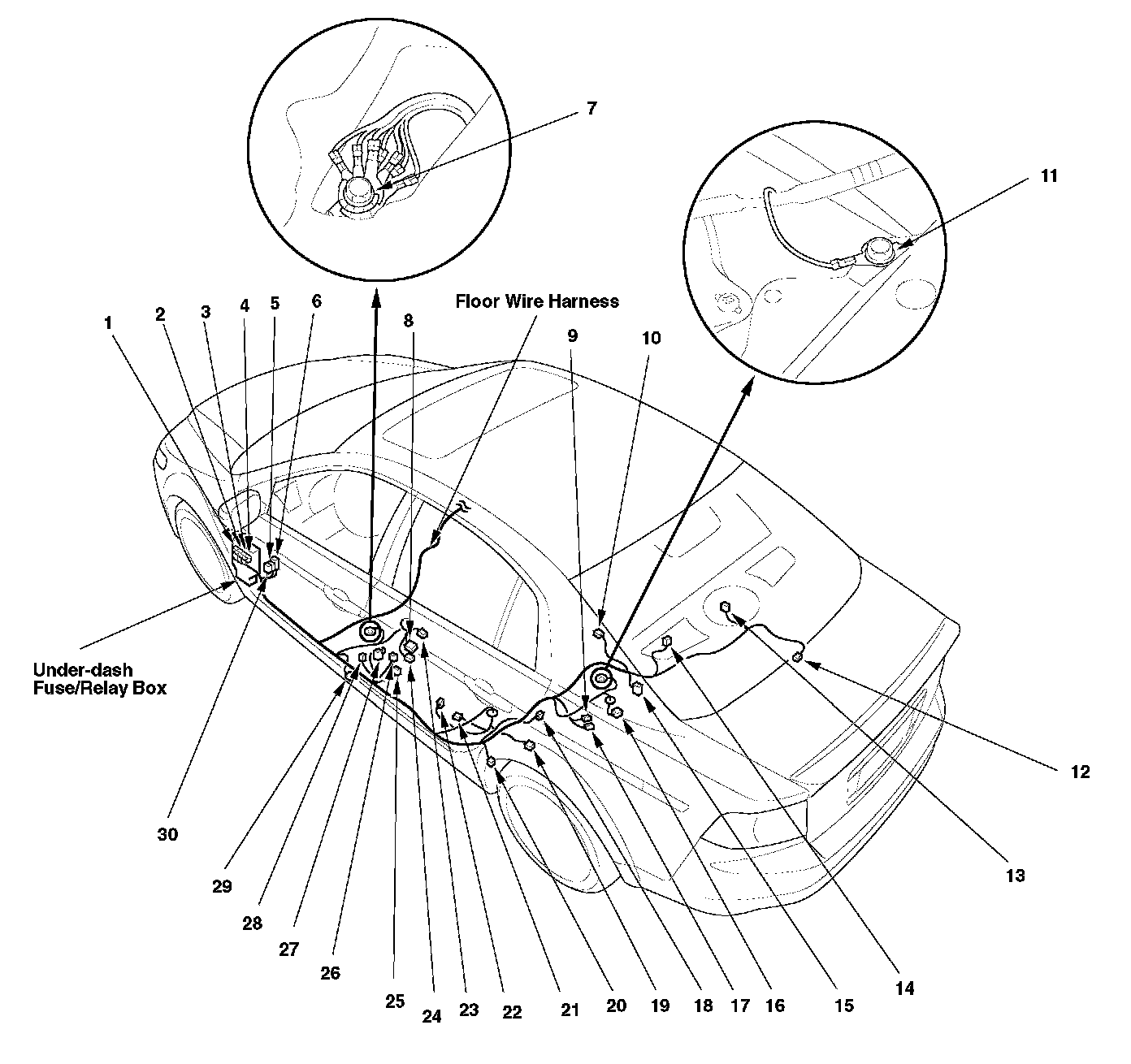

Harness Location View:

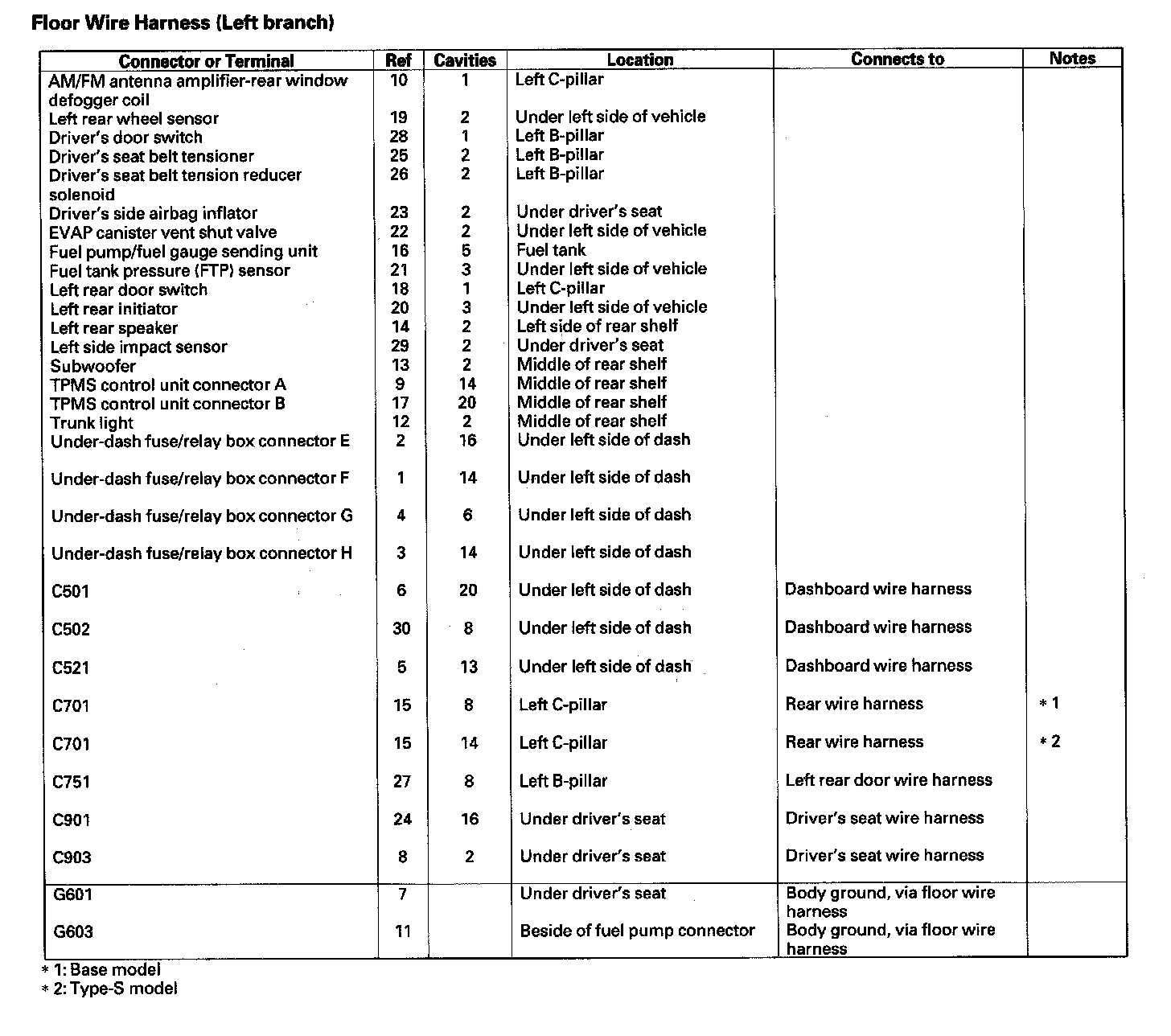

Floor Wire Harness (Left Branch):

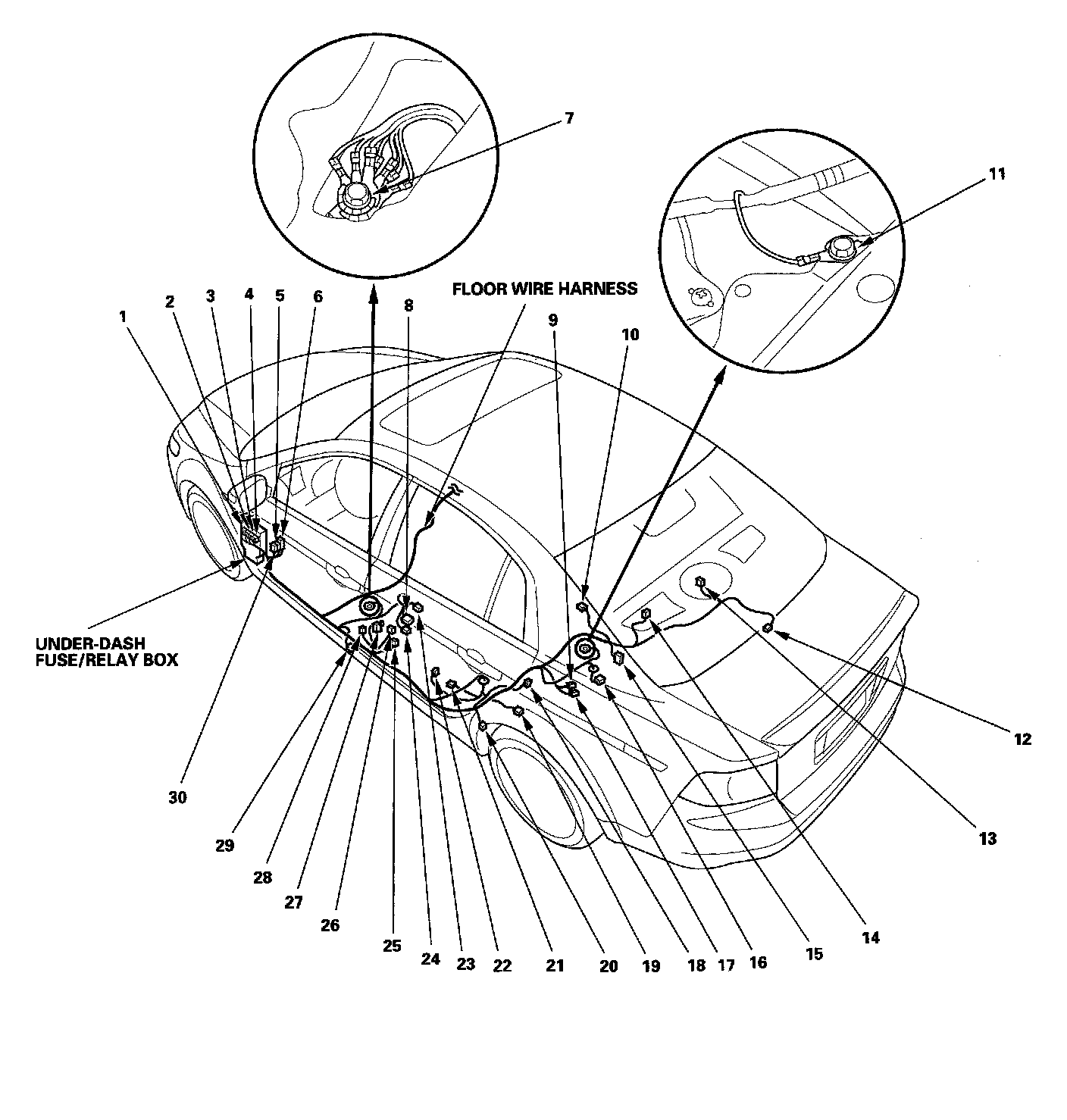

Harness Location View:

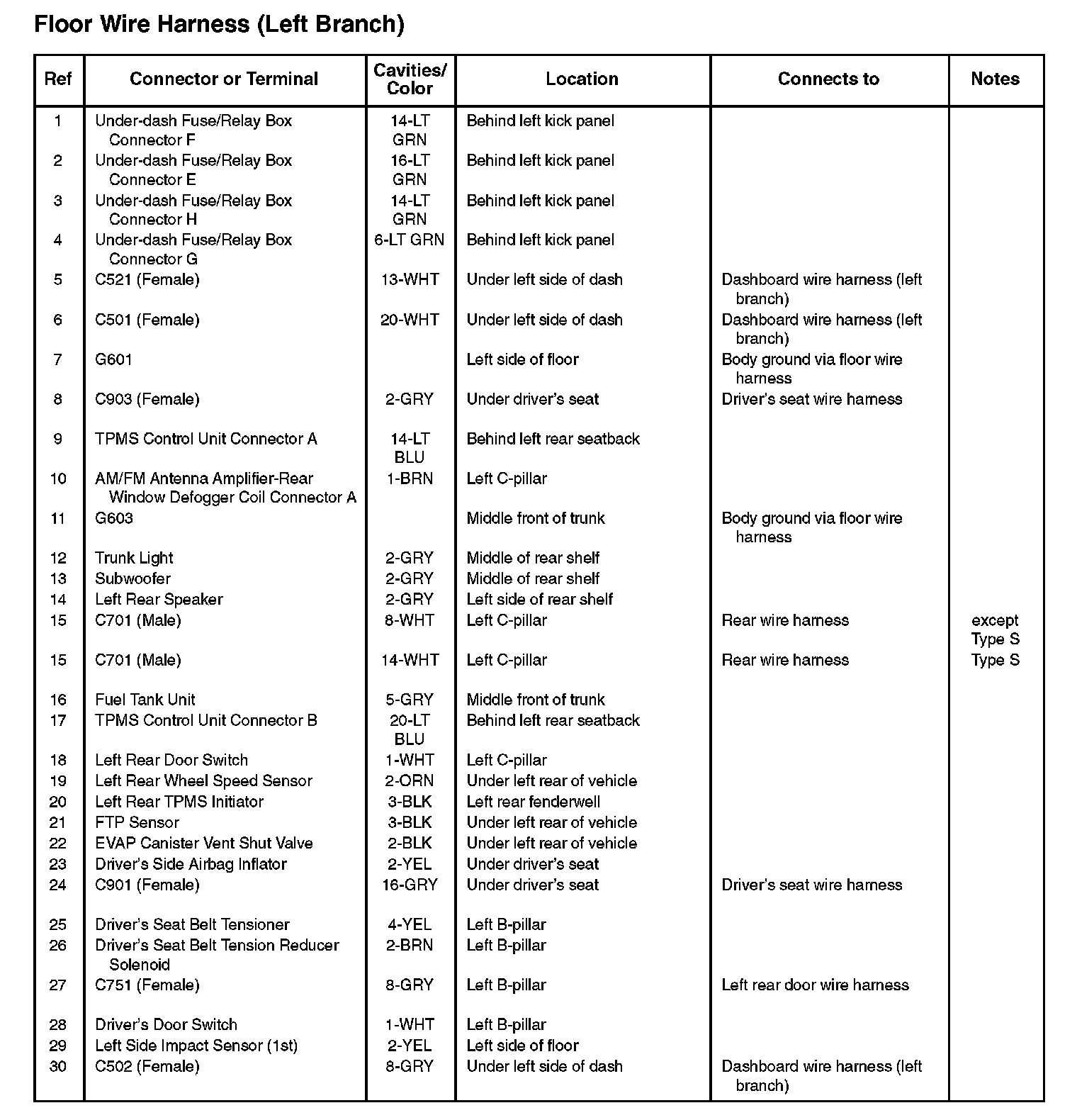

Floor Wire Harness (Left Branch):
