Part 1 of 2

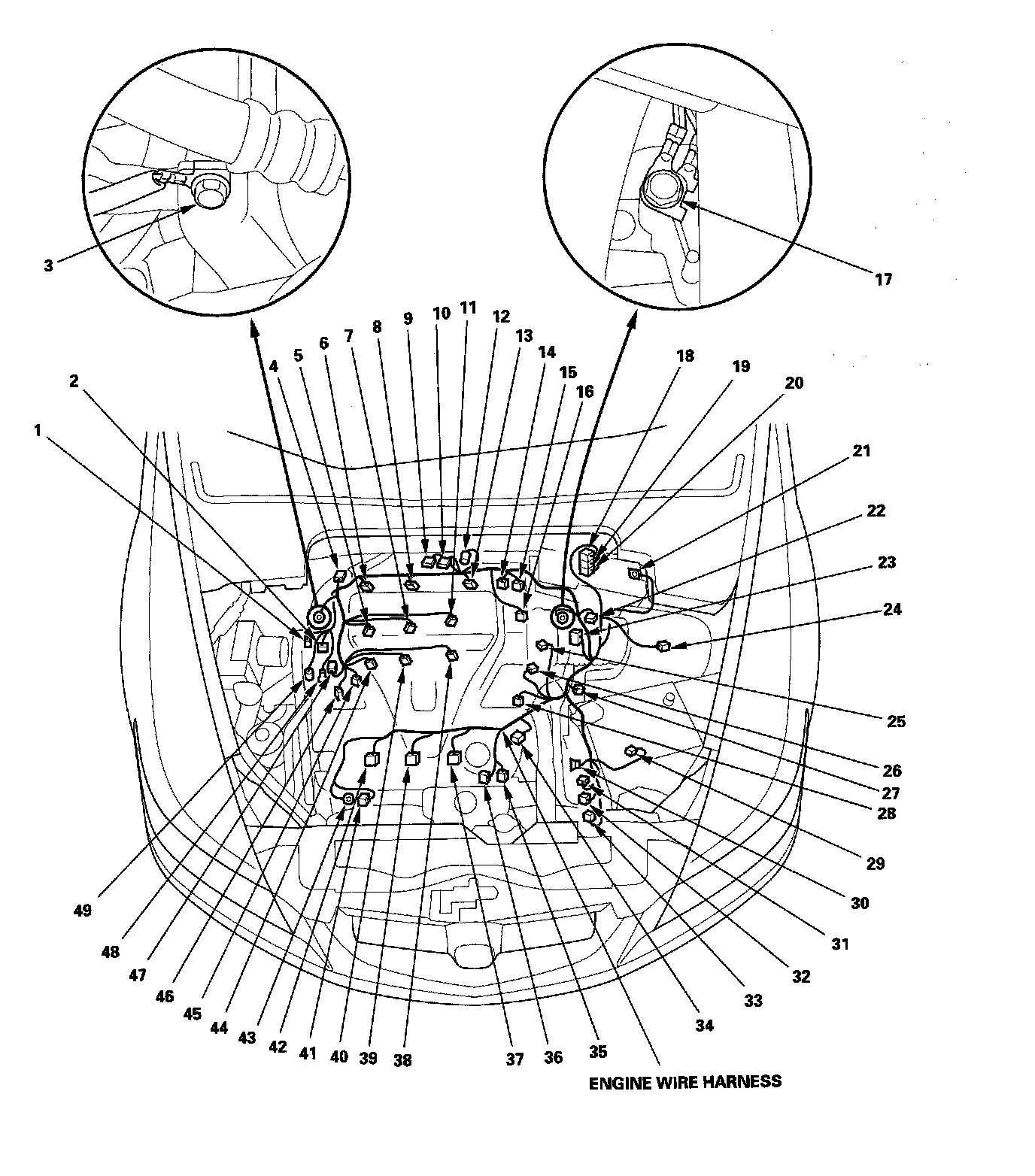

Harness Location View:

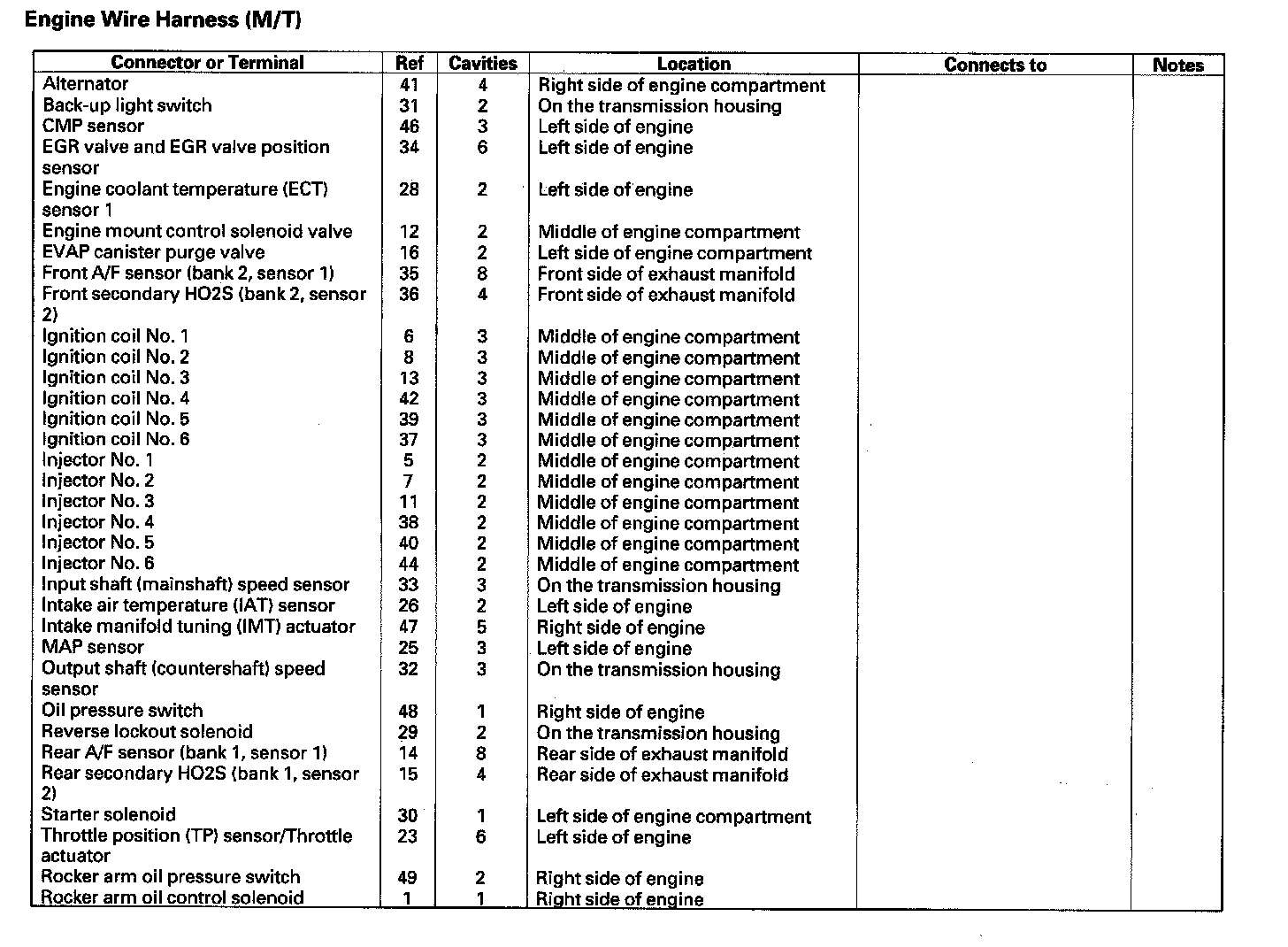

Engine Wire Harness (M/T):

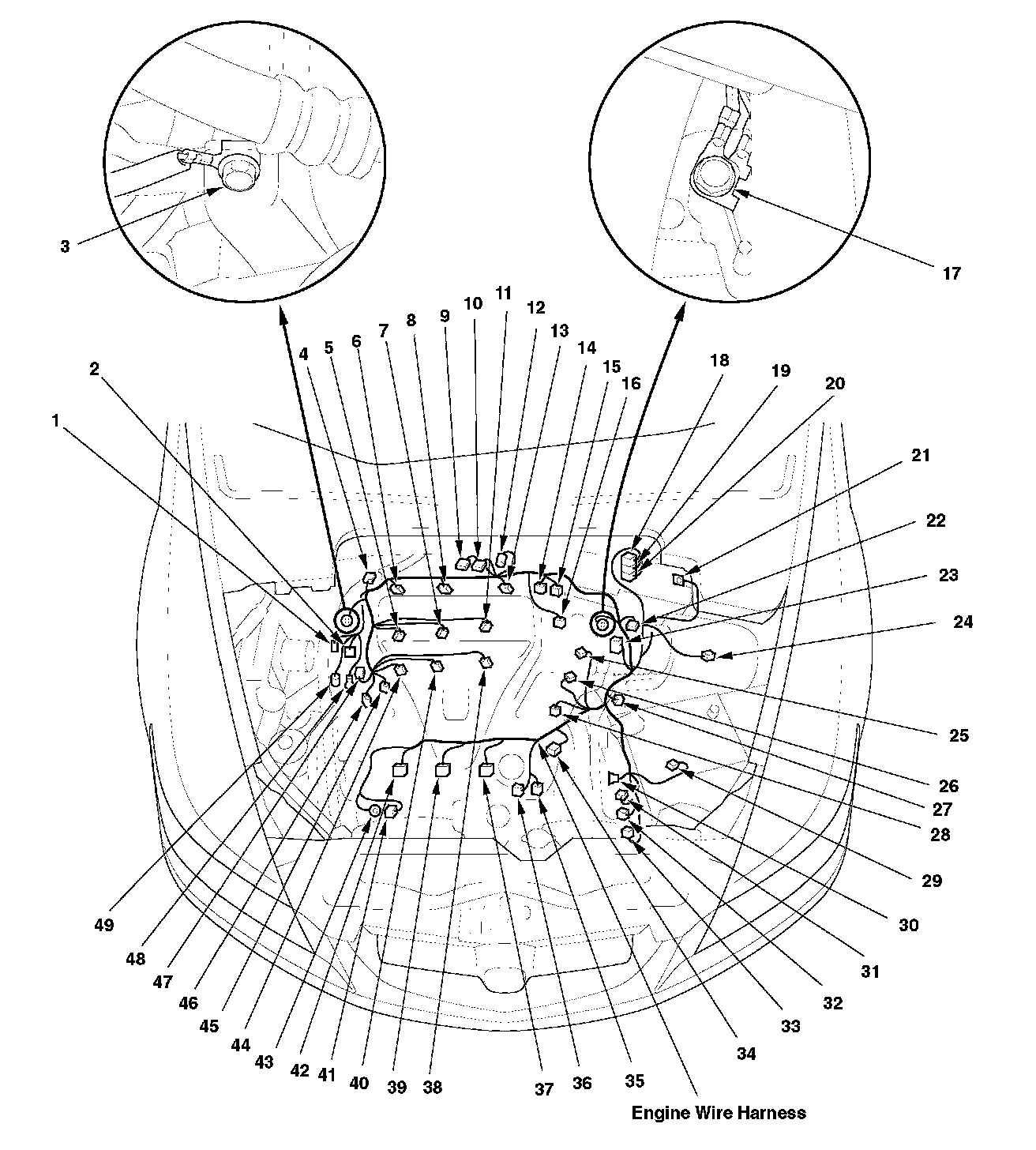

Harness Location View:

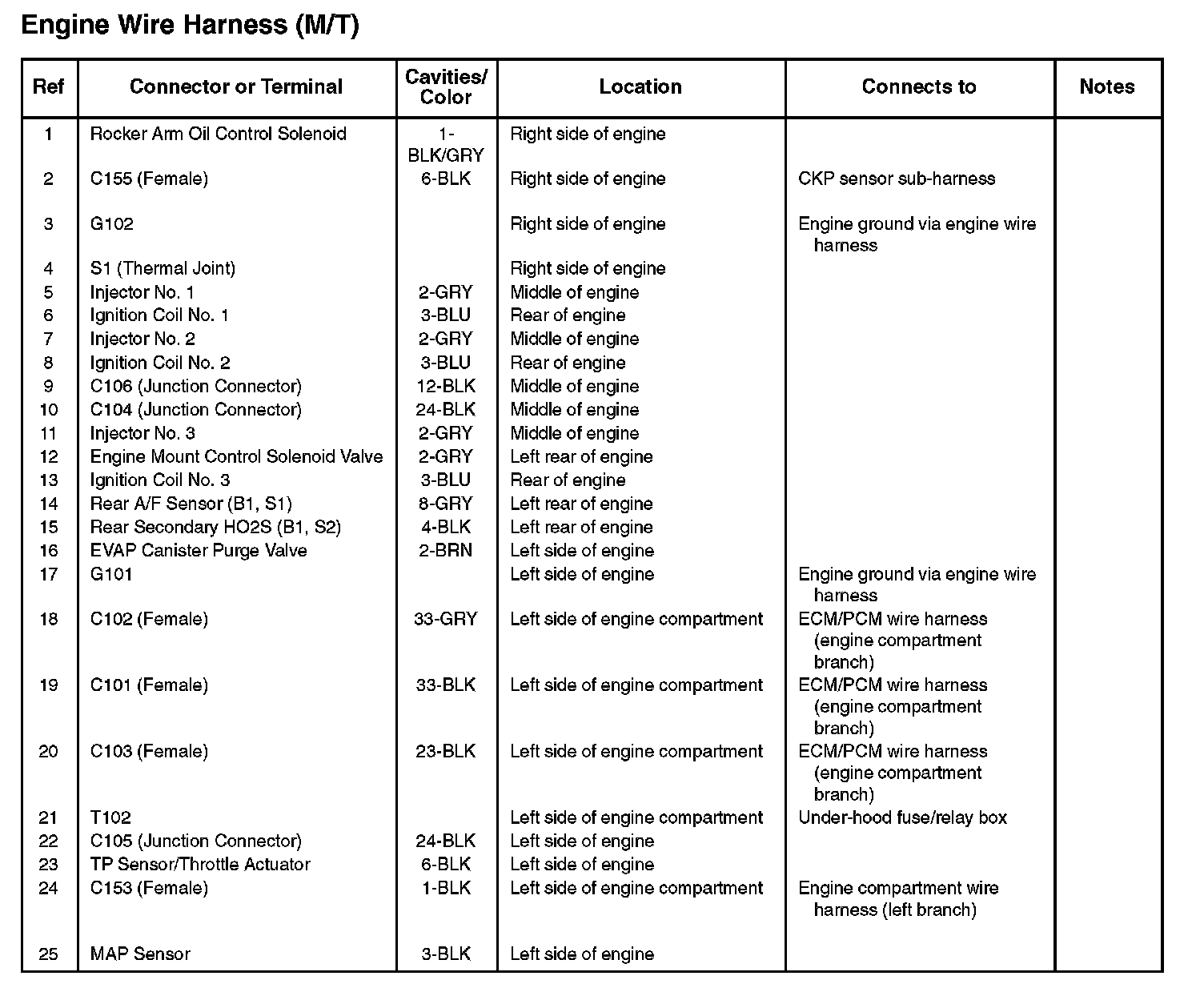

Engine Wire Harness(M/T):
