Part 2 of 2

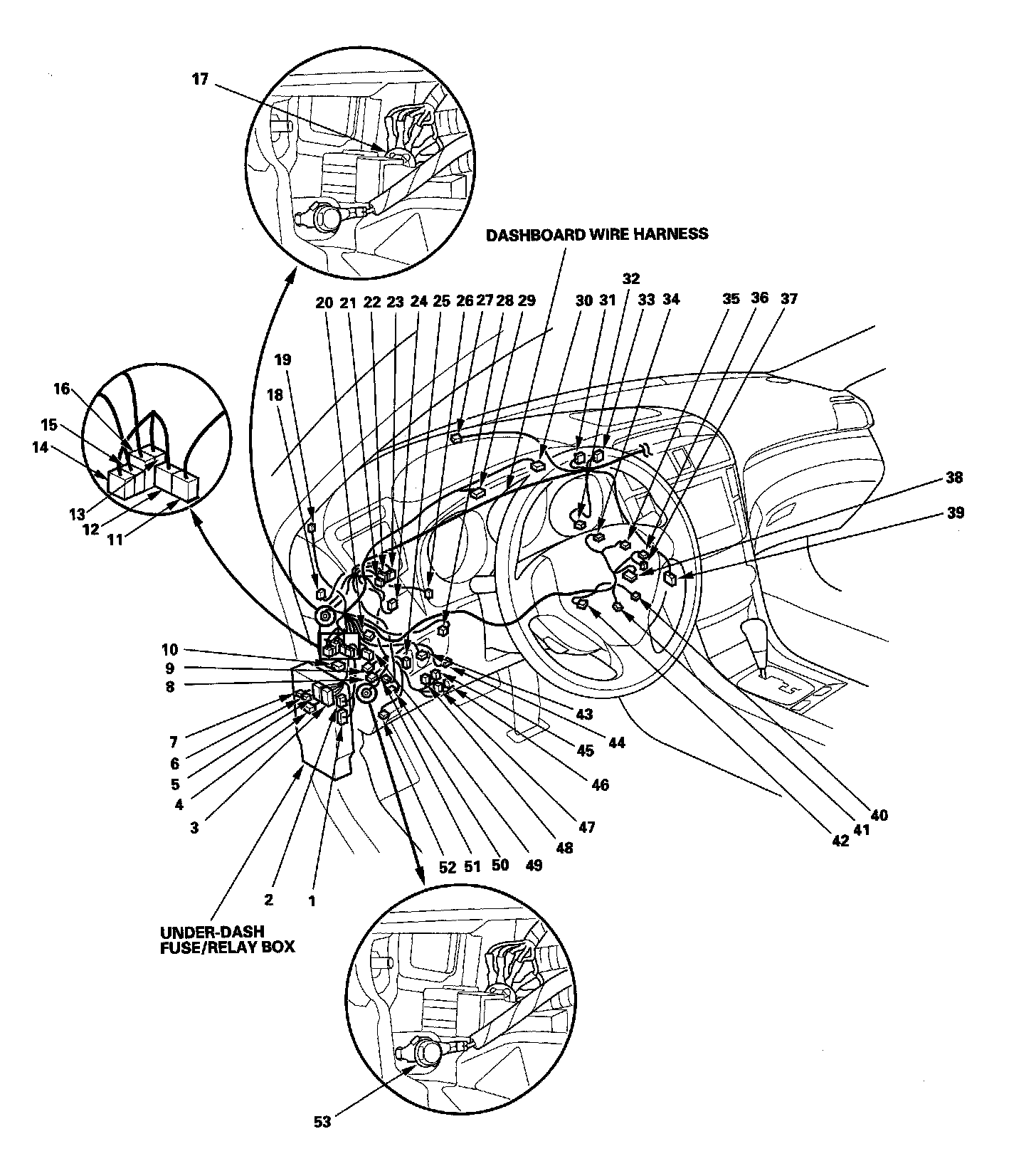

Harness Location View:

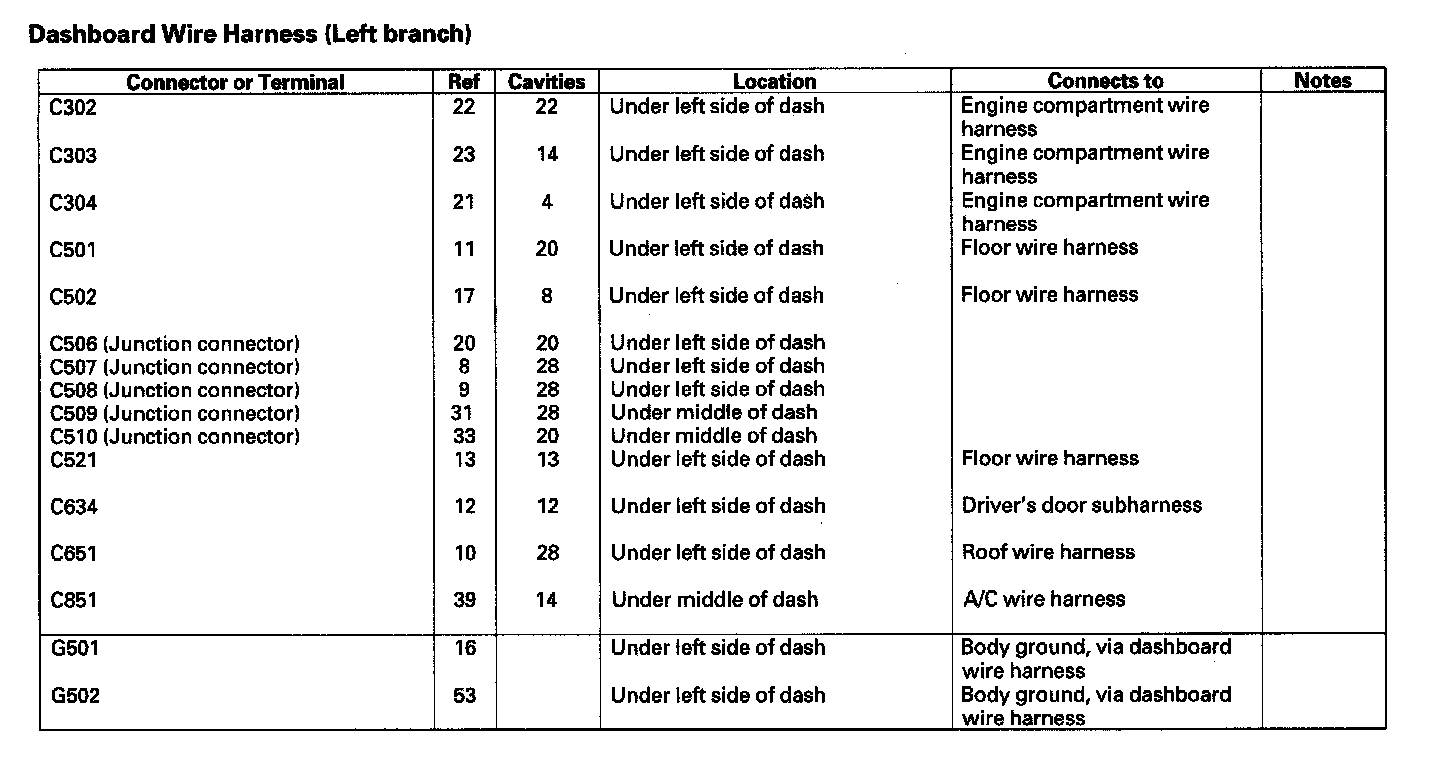

Dashboard Wire Harness (Left Branch):

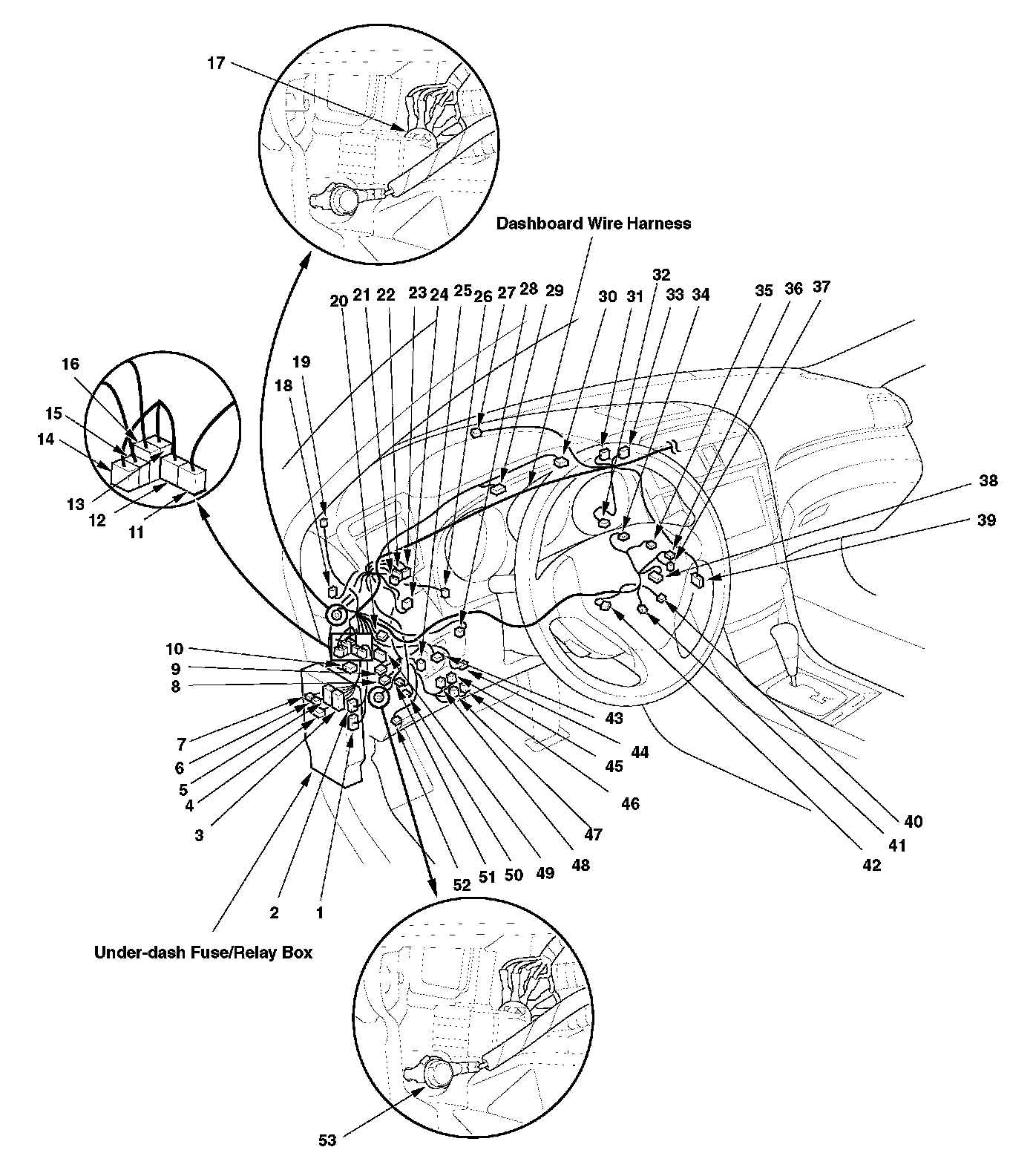

Harness Location View:

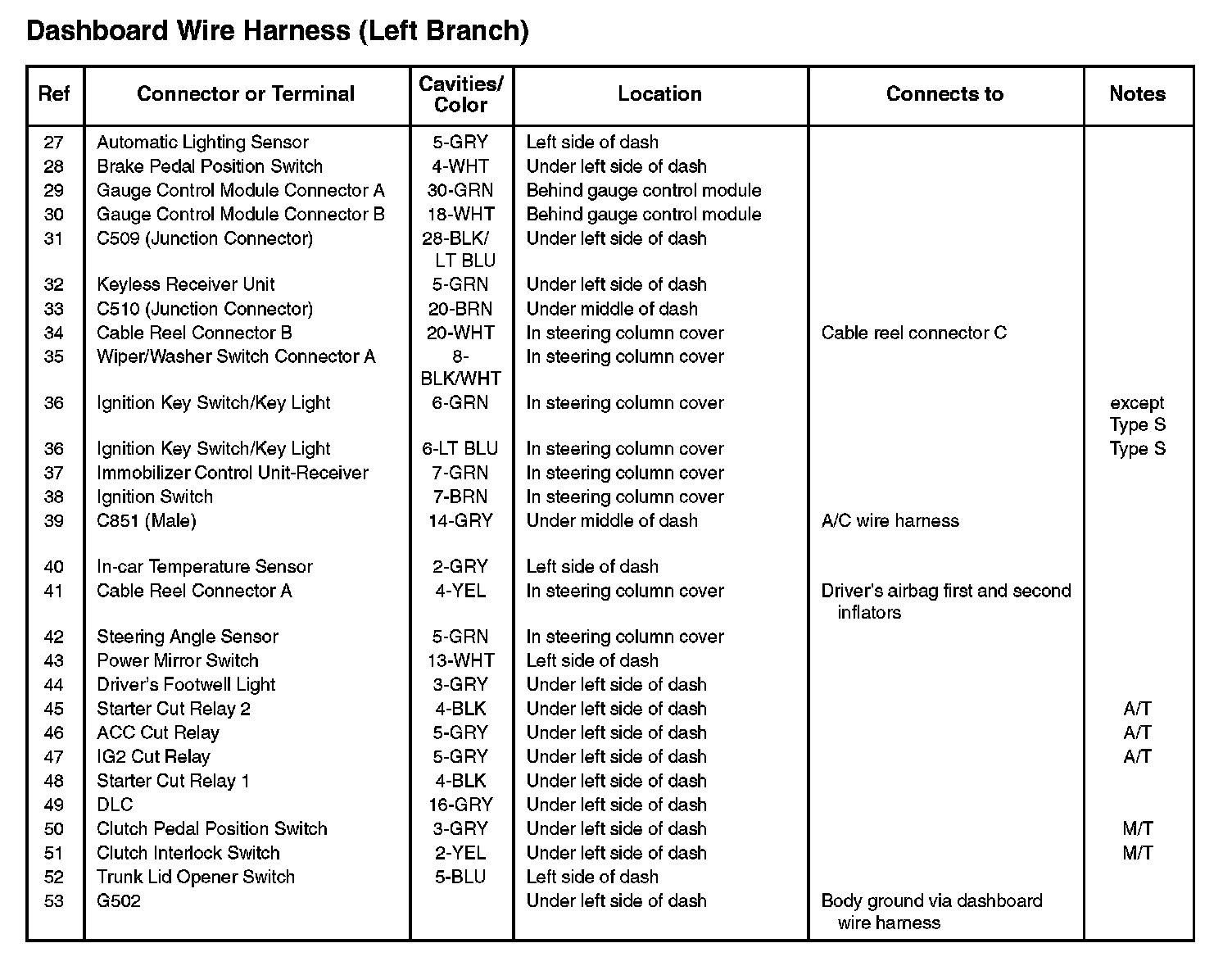

Dashboard Wire Harness (Left Branch):
