Exterior Lights Circuit Diagram

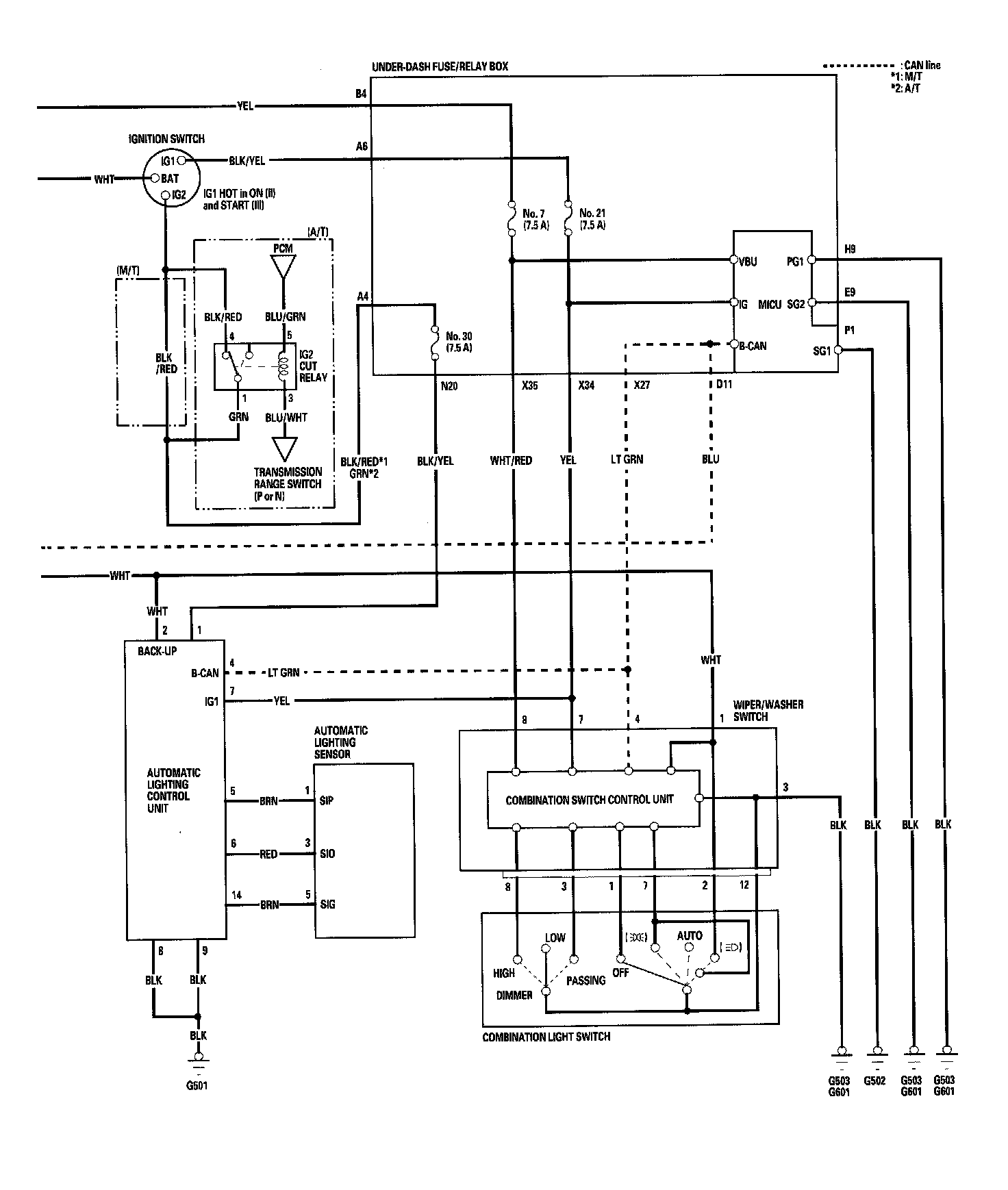

Exterior Lights Circuit Diagram Part 1:

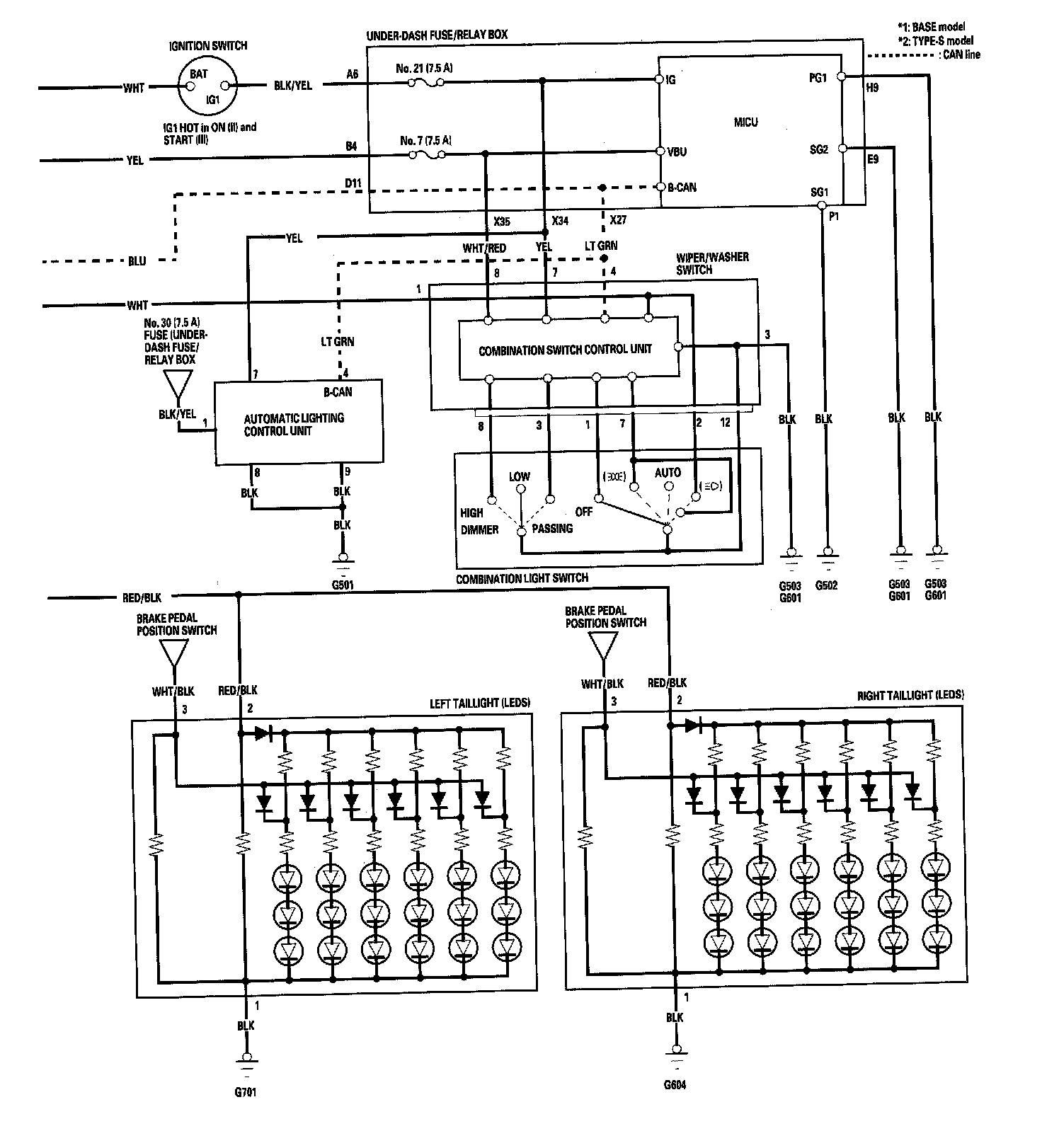

Exterior Lights Circuit Diagram Part 2:

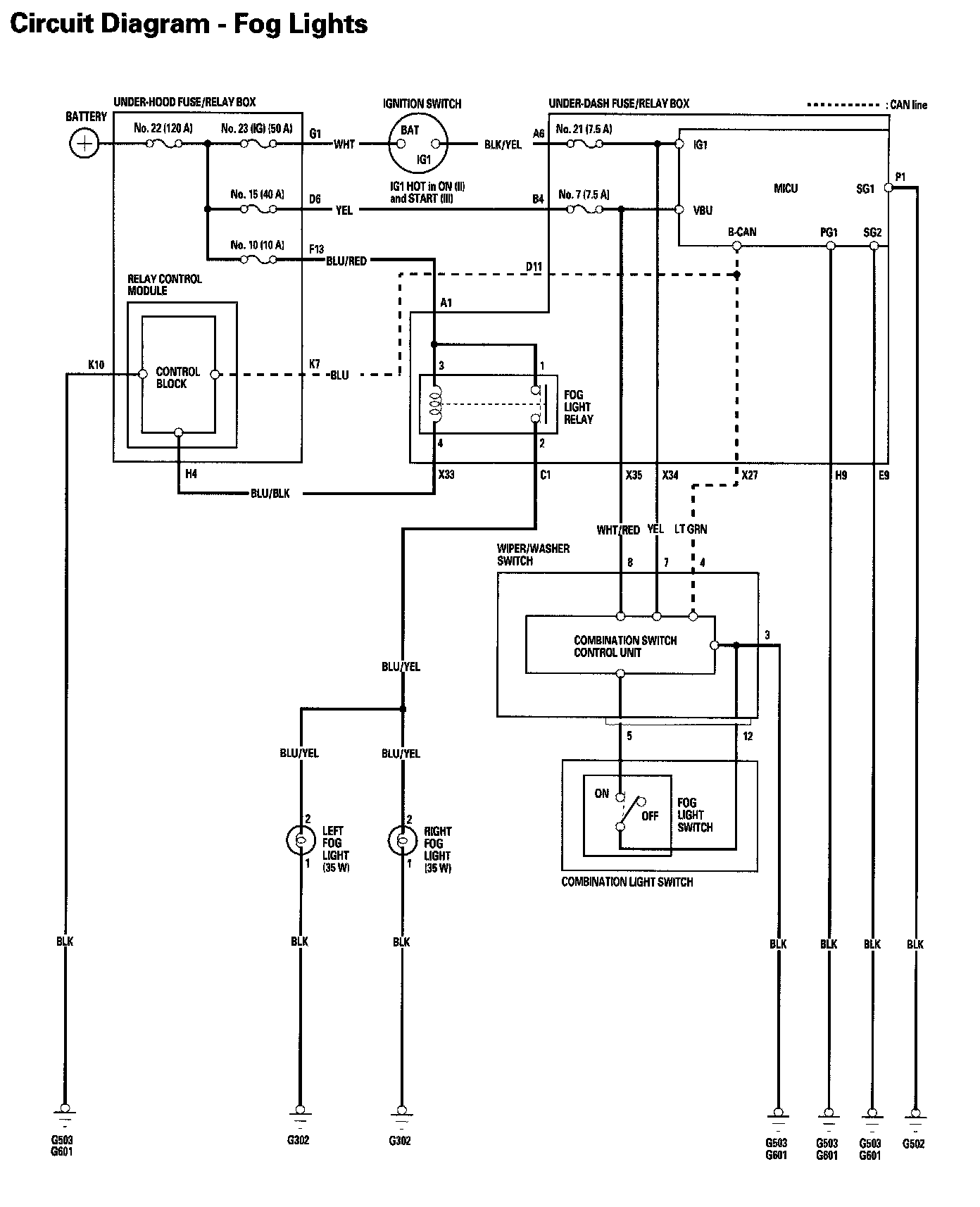

Exterior Lights Circuit Diagram - Fog Lights:

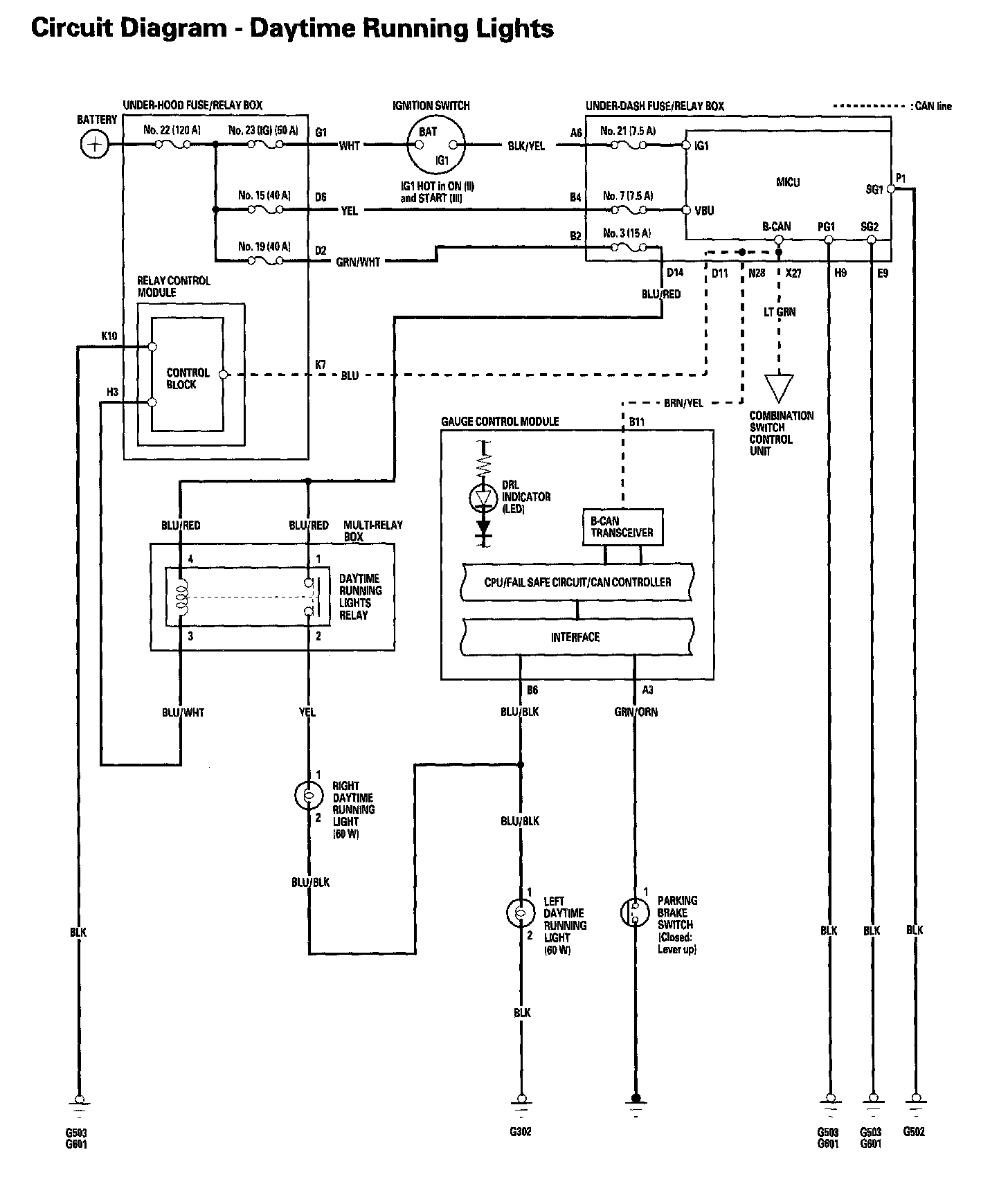

Circuit Diagram - Daytime Running Lights:

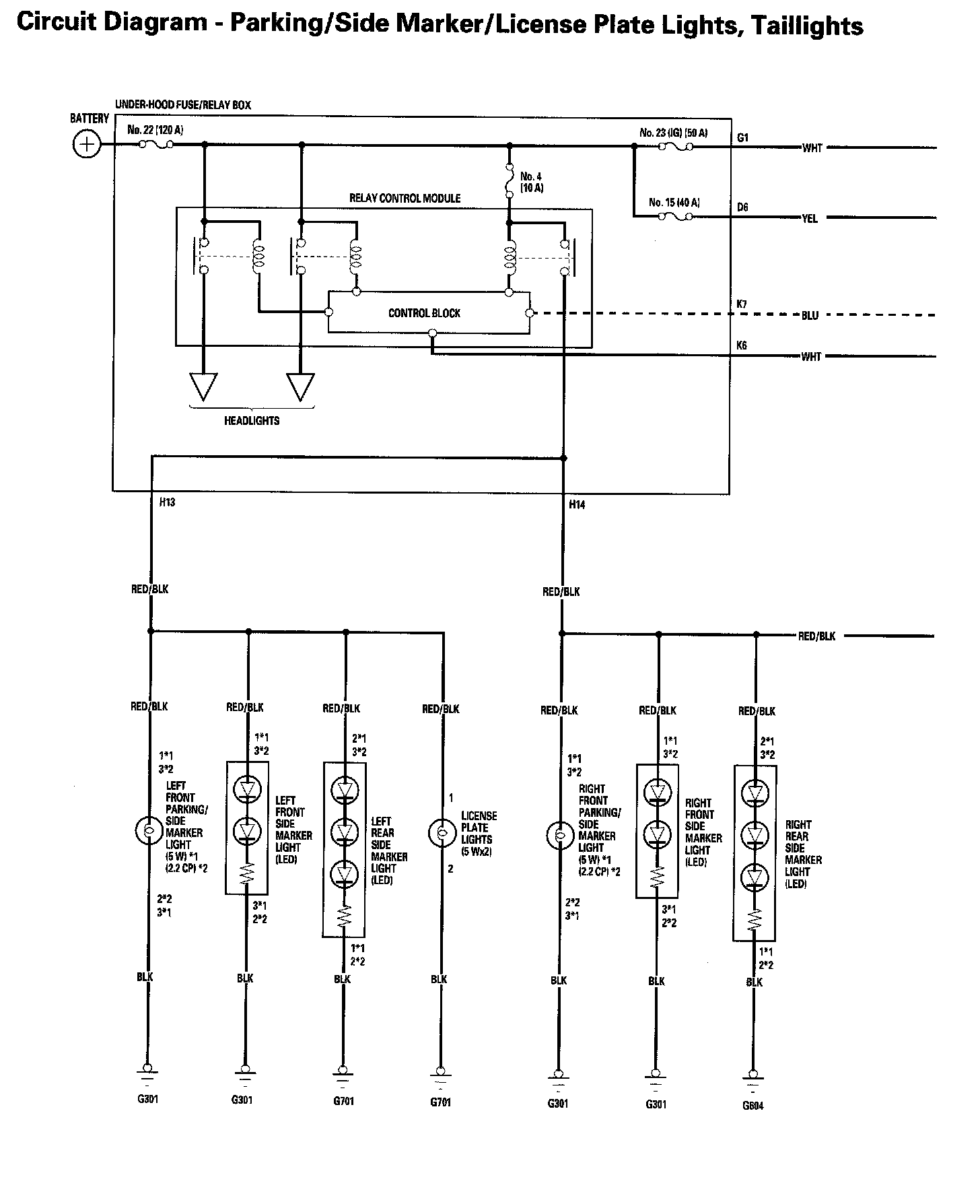

Exterior Lights Circuit Diagram - Parking/side Marker/License Plate Lights, Taillights Part 1:

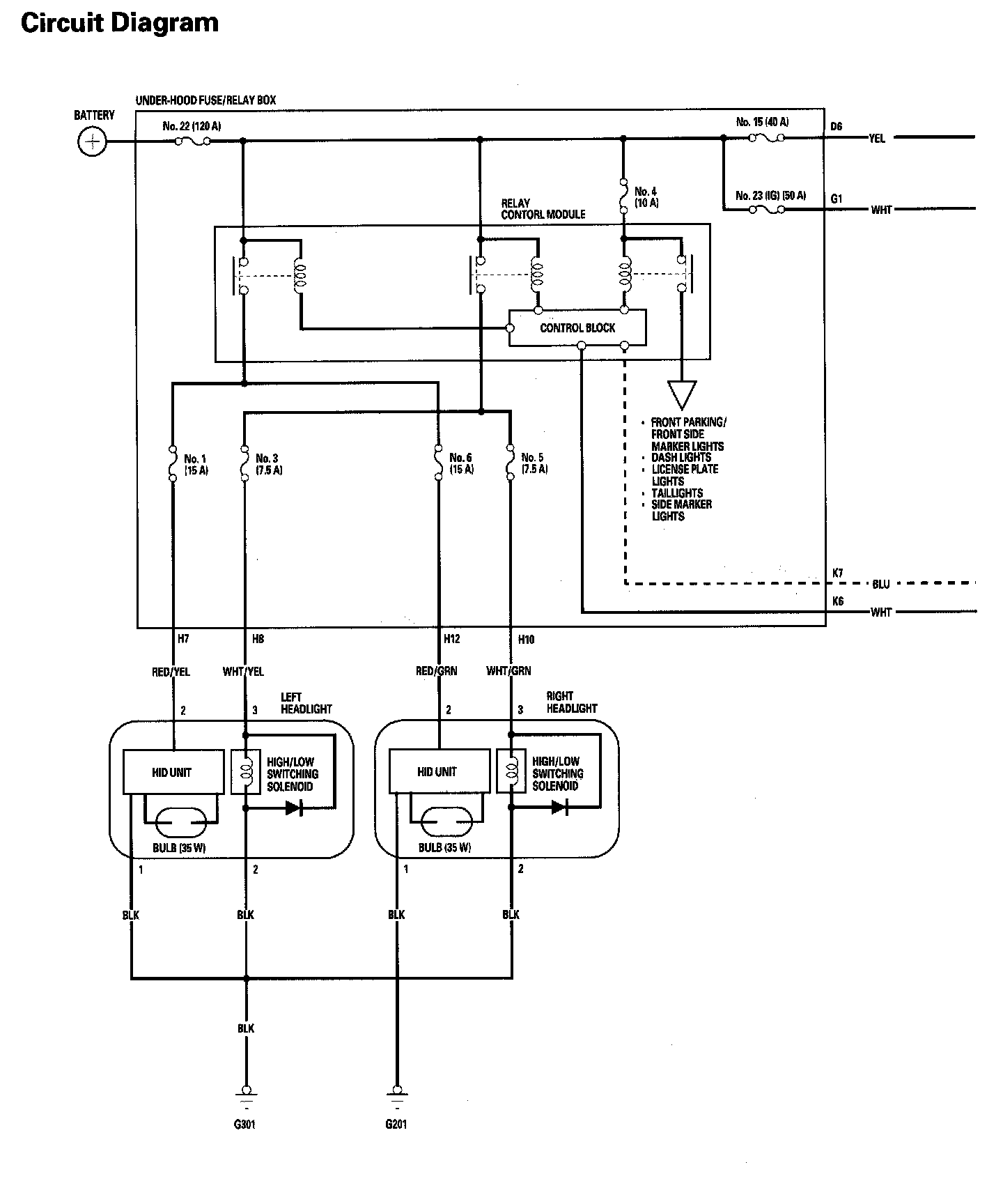

Exterior Lights Circuit Diagram Parking/Side Marker/License Plate Lights, Taillights Part 2:

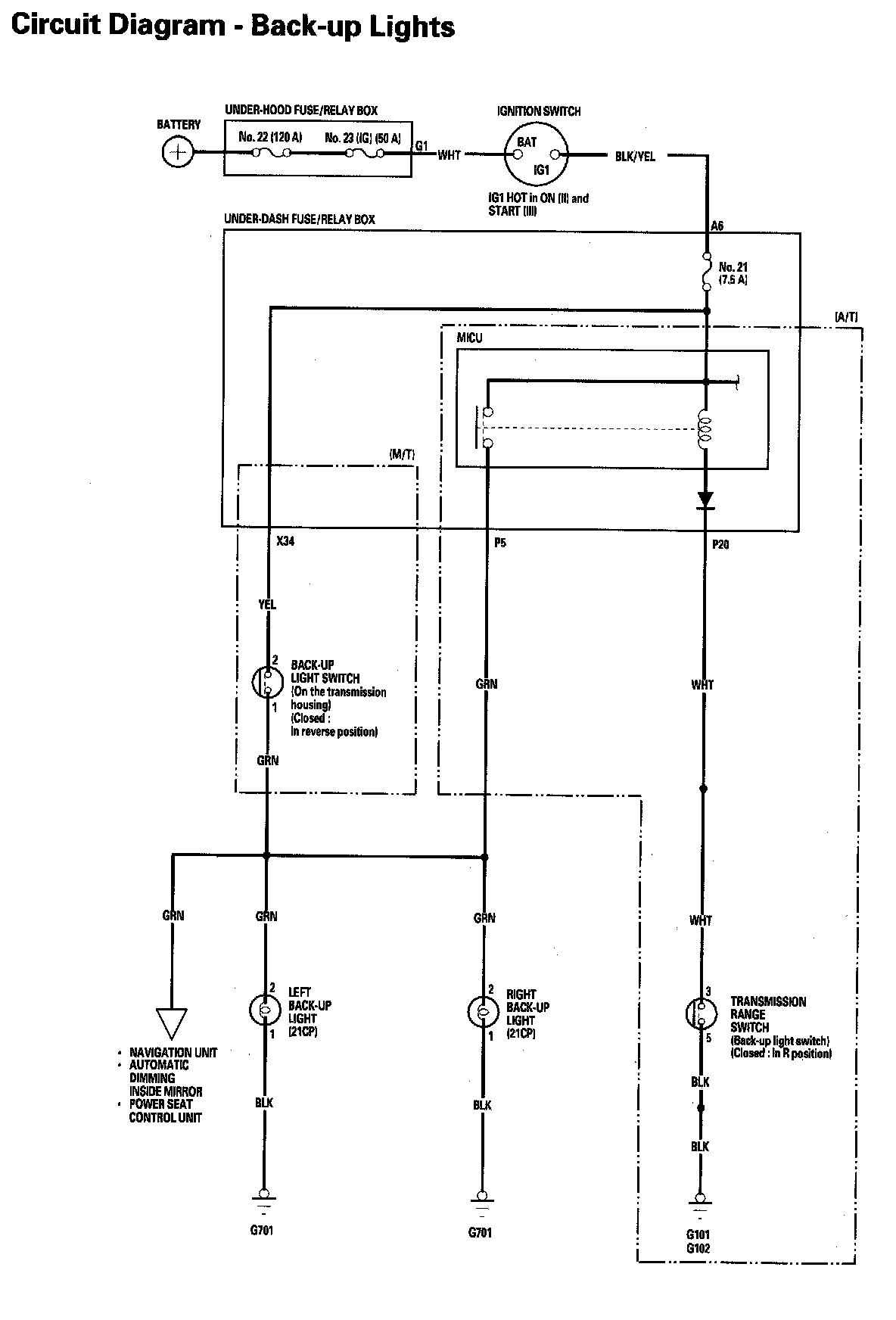

Circuit Diagram - Back-up Lights:

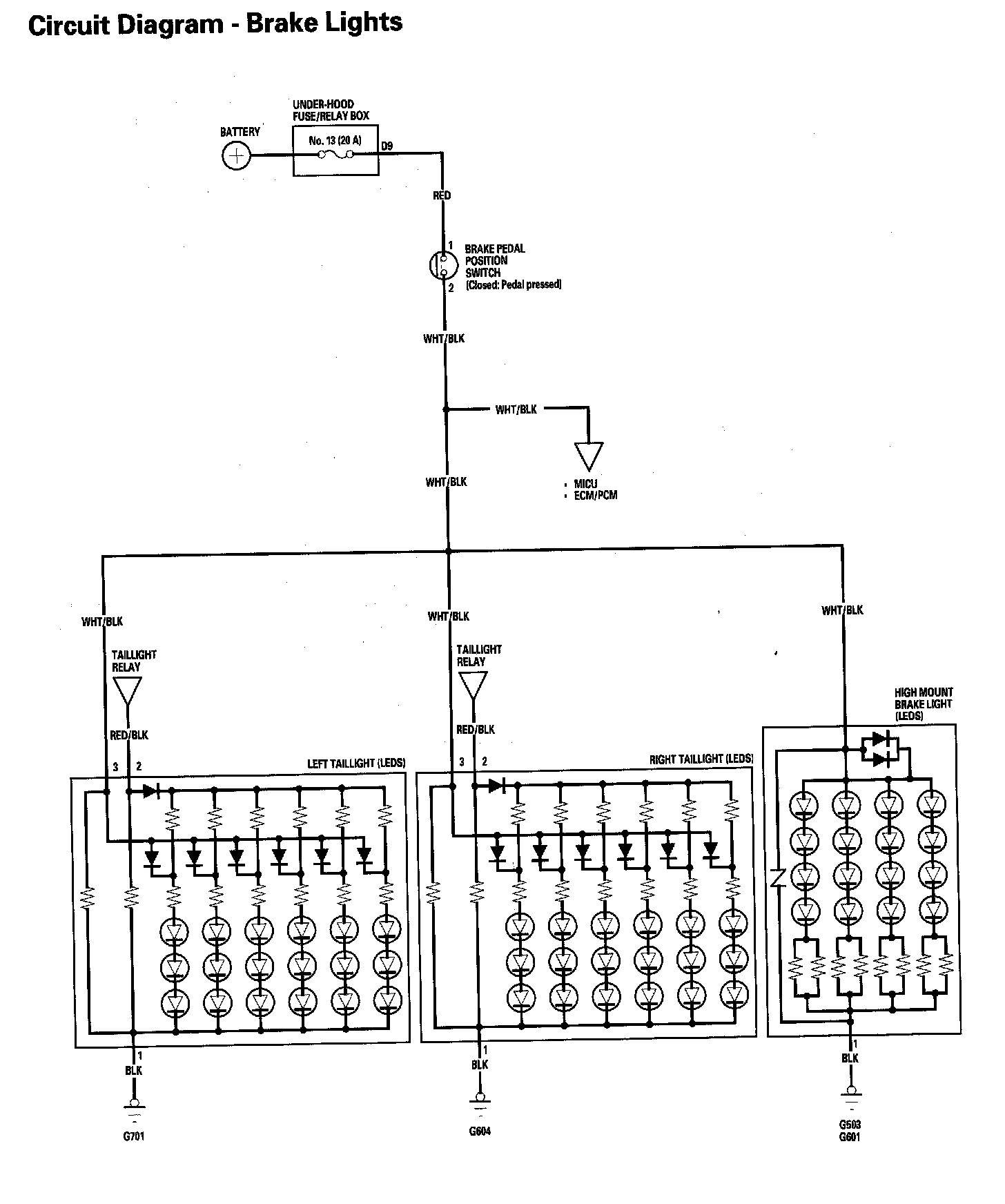

Circuit Diagram - Brake Lights:
