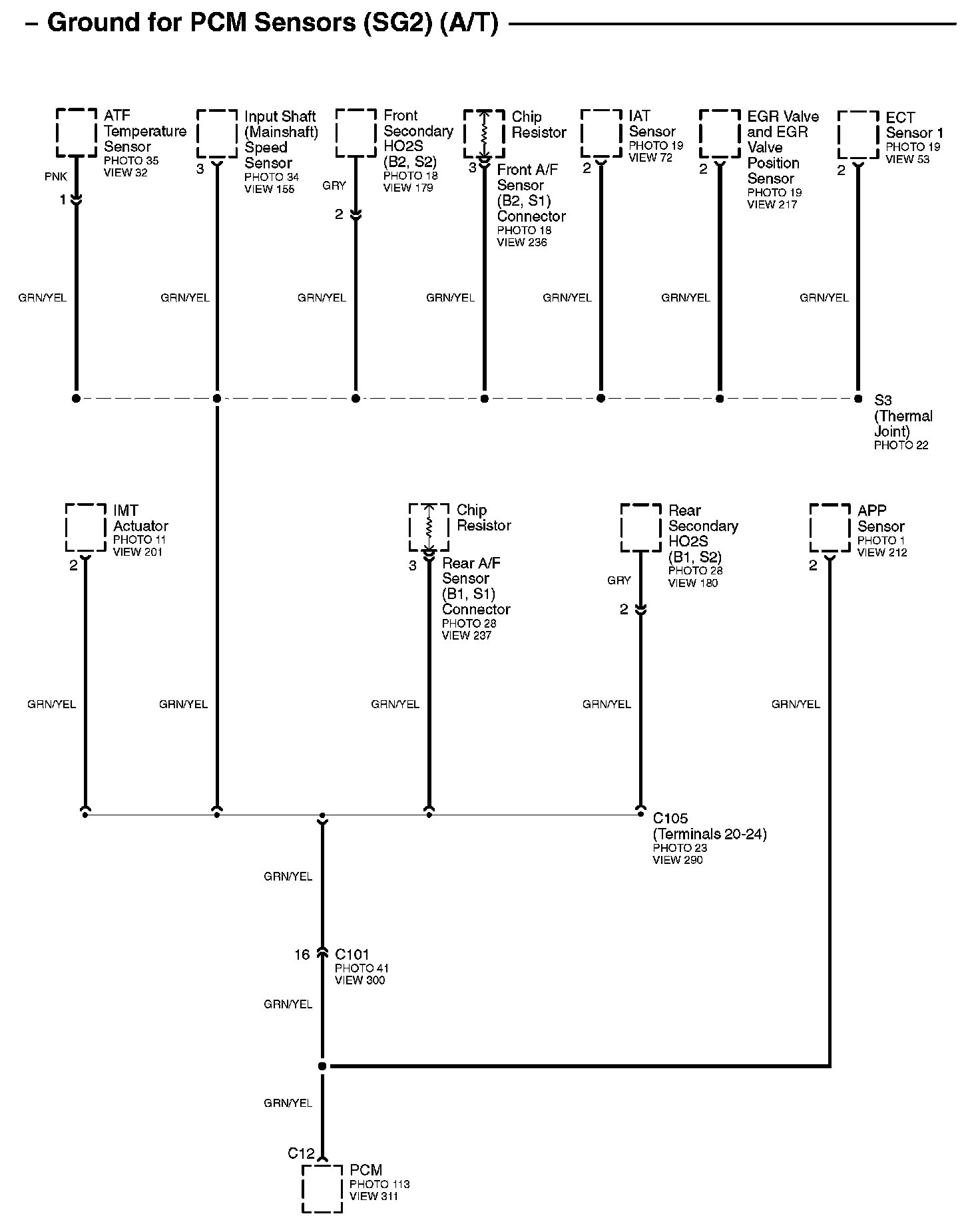

Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Diagram 15-16
