Home
>>
Acura
>>
2007
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector ID By Location on Harness
>>
Front Passenger's Door Sub-harness
Front Passenger's Door Sub-harness

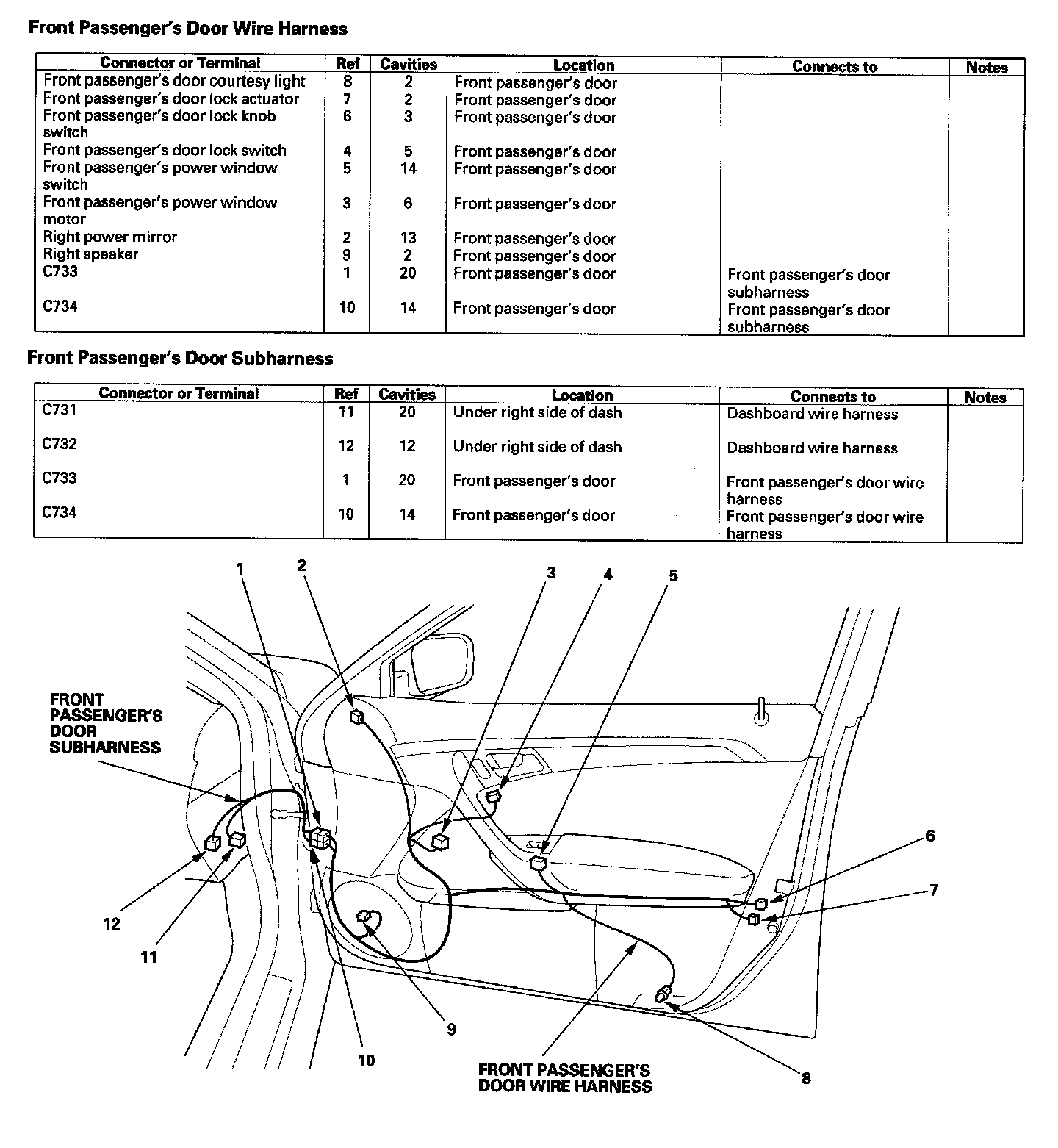

Front Passenger's Door Wire Harness/Front Passenger's Door Sub-harness:

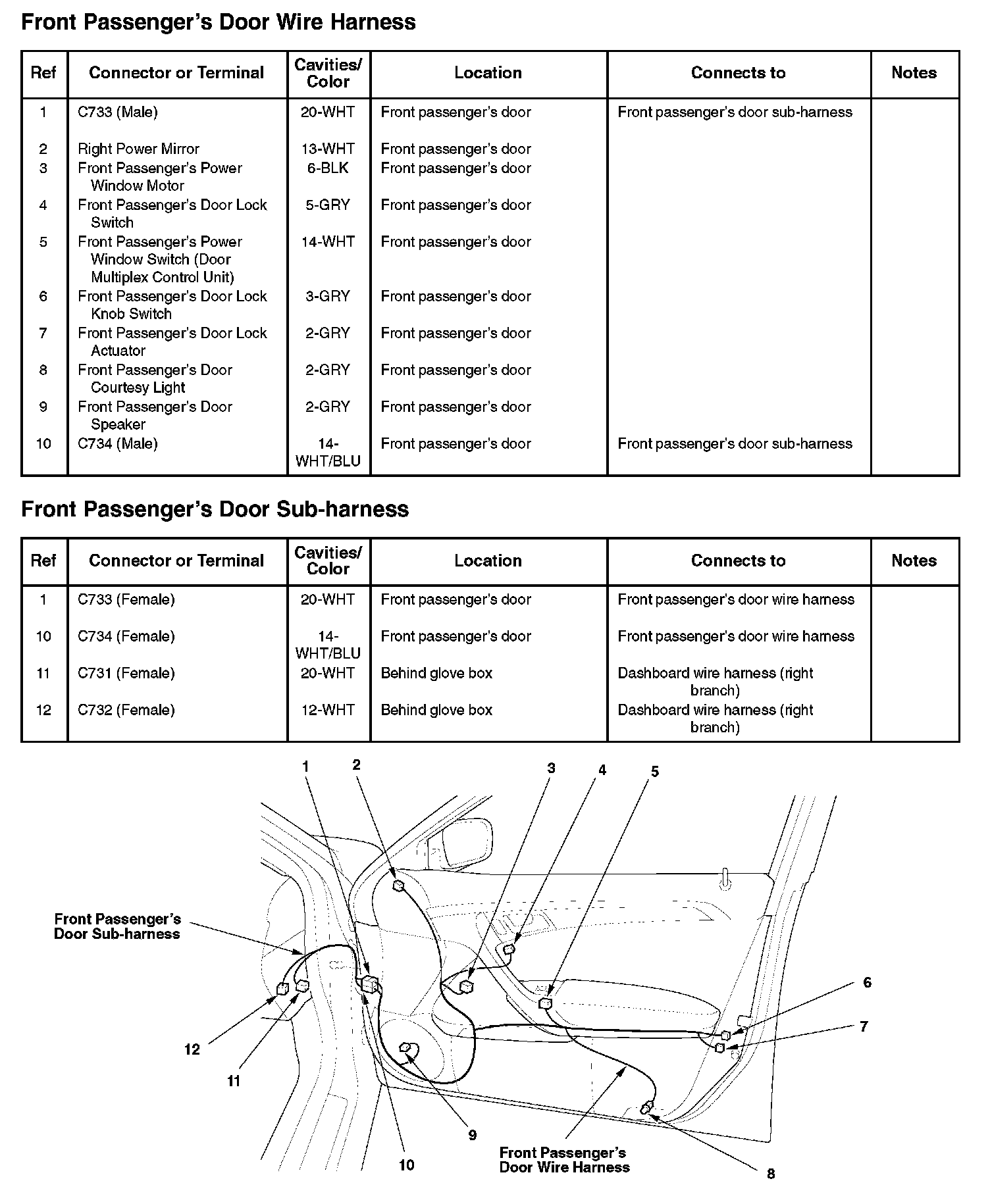

Front Passenger's Door Wire Harness / Front Passenger's Door Subharness:
