Engine Compartment Wire Harness (Left Branch)
Engine Compartment Wire Harness (Left Branch)

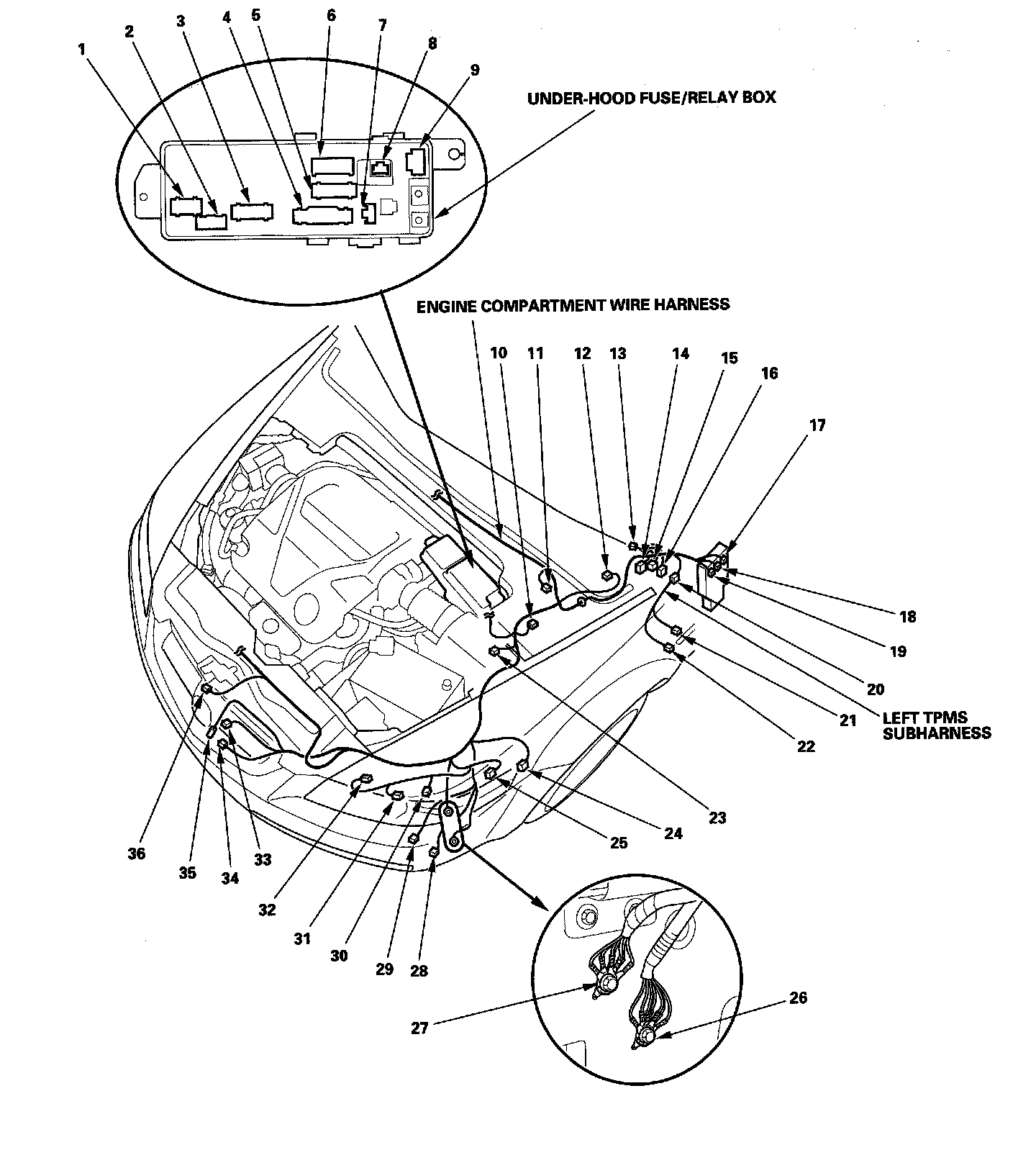

Harness Location View:

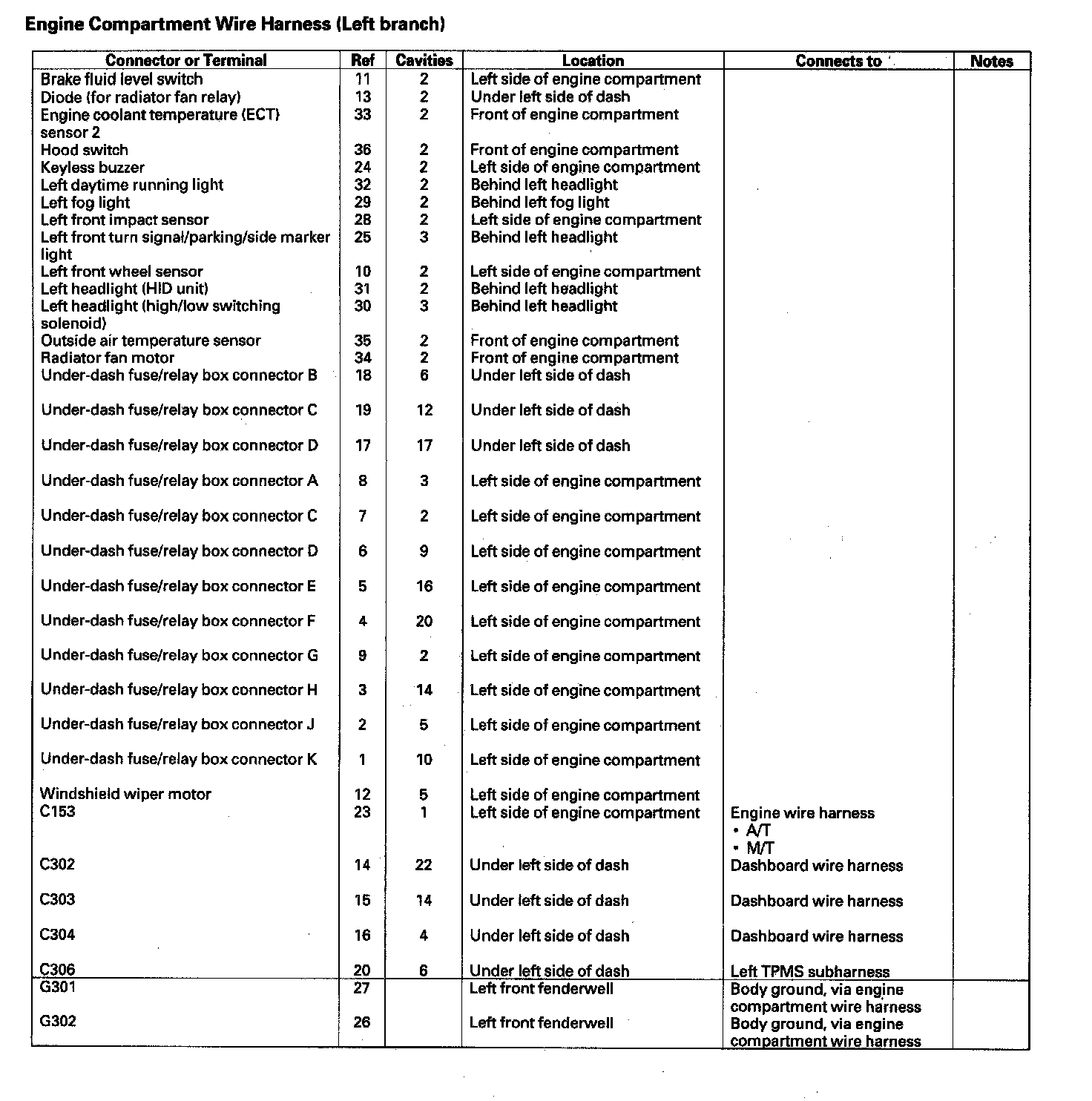

Engine Compartment Wire Harness (Left Branch):

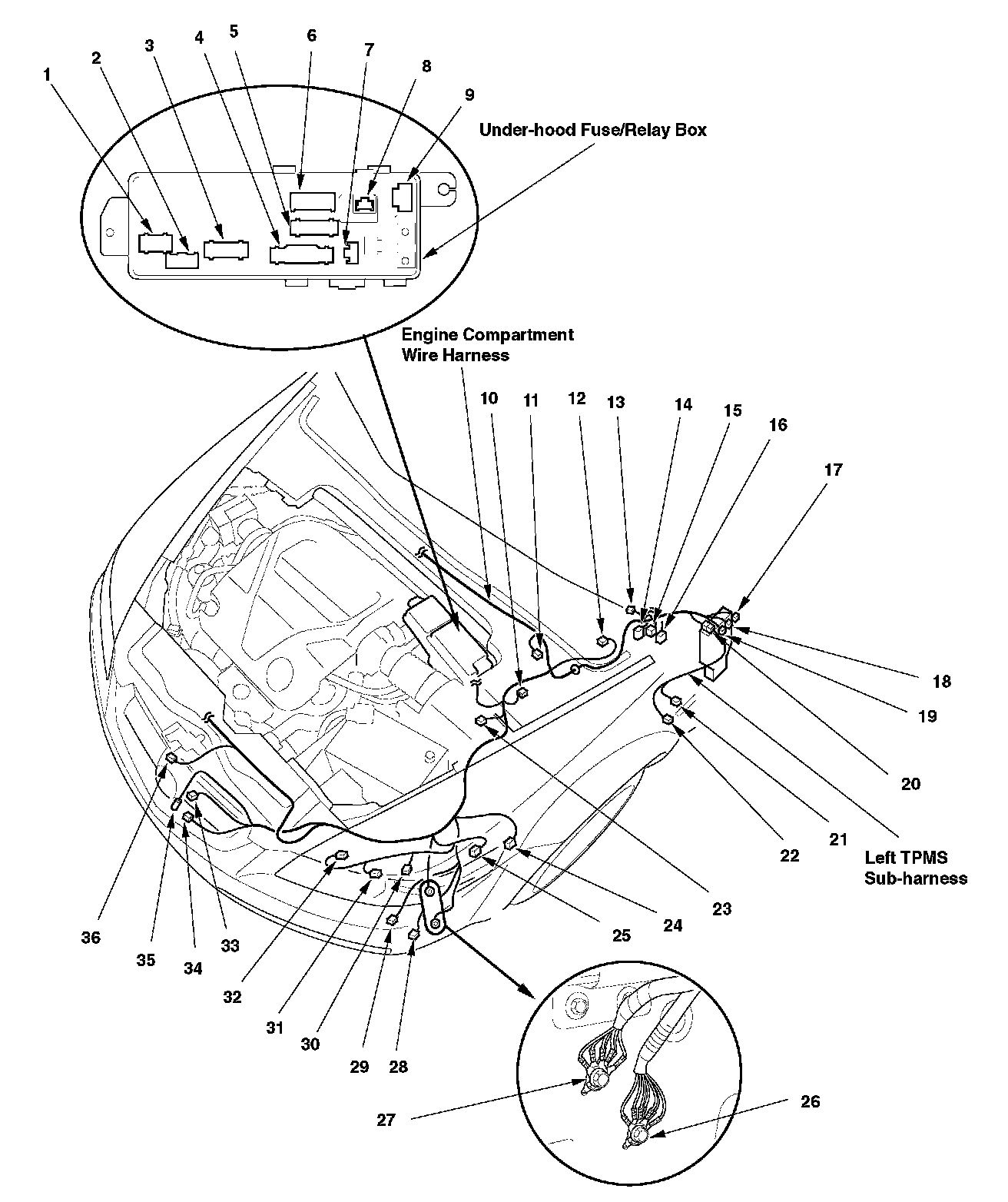

Harness Location View:

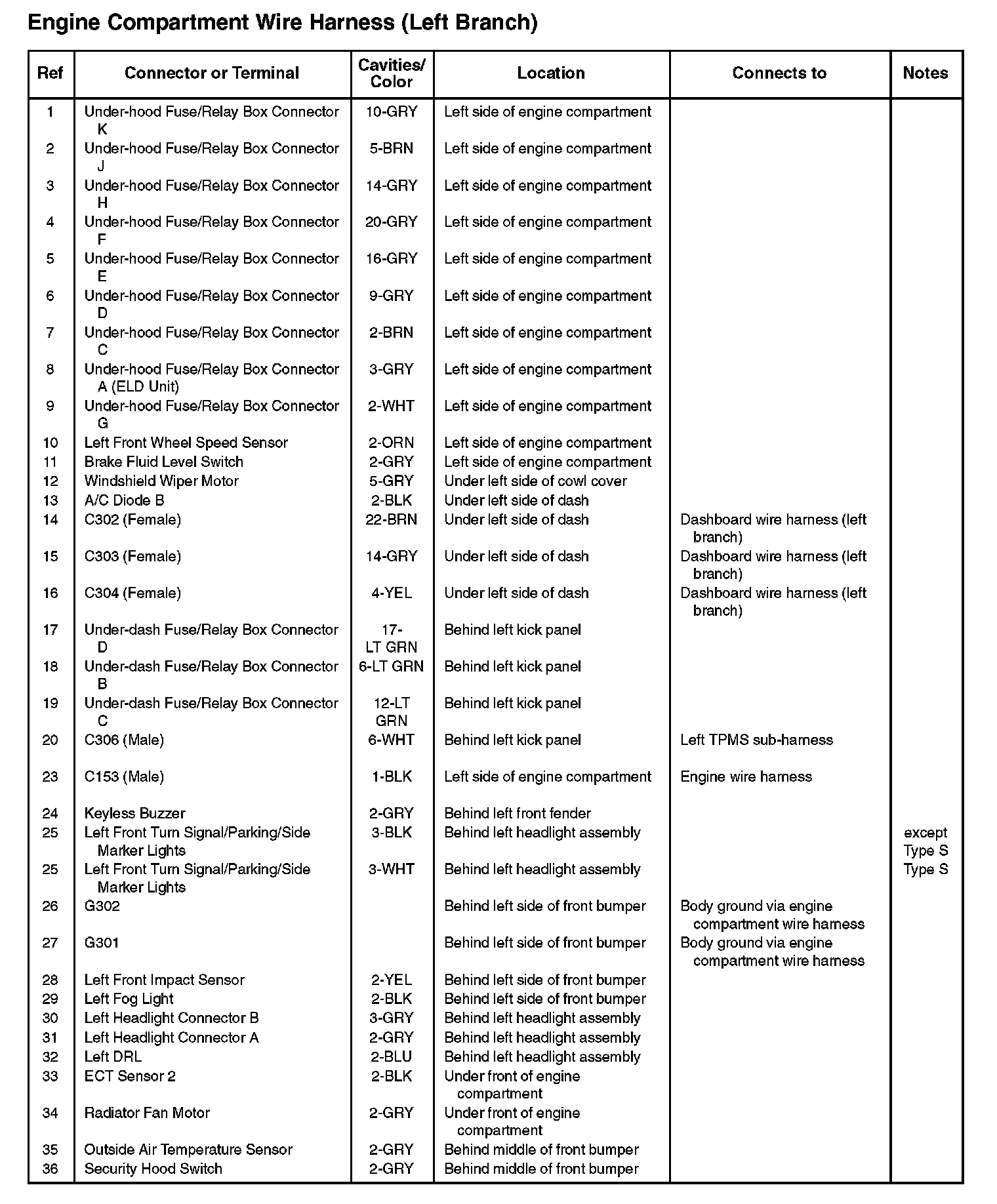

Engine Compartment Wire Harness (Left Branch):
