Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Lock Cylinder Switch >> Locations

Lock Cylinder Switch: Locations

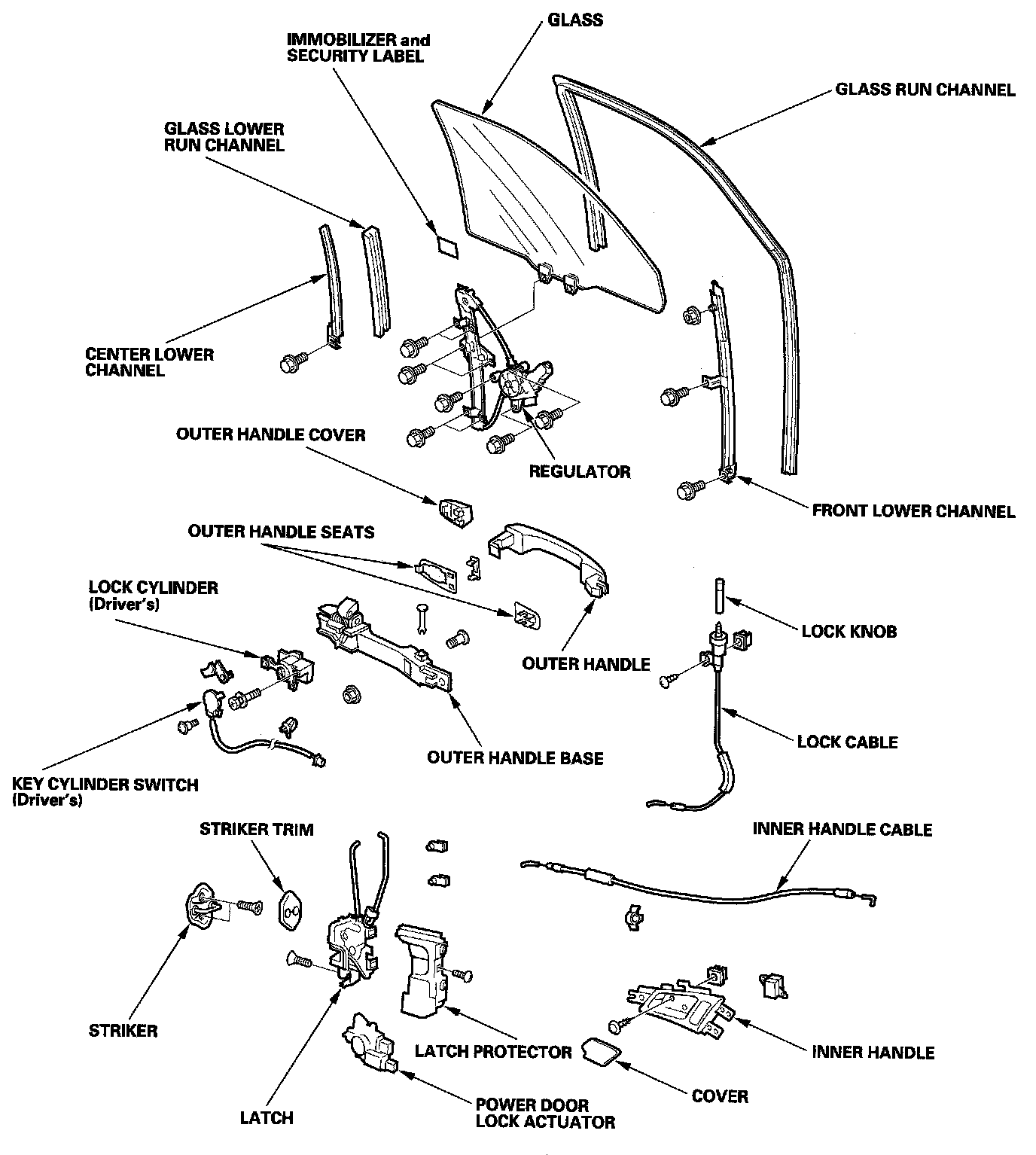

Front Door Component Location Index:
