Wiring Diagrams

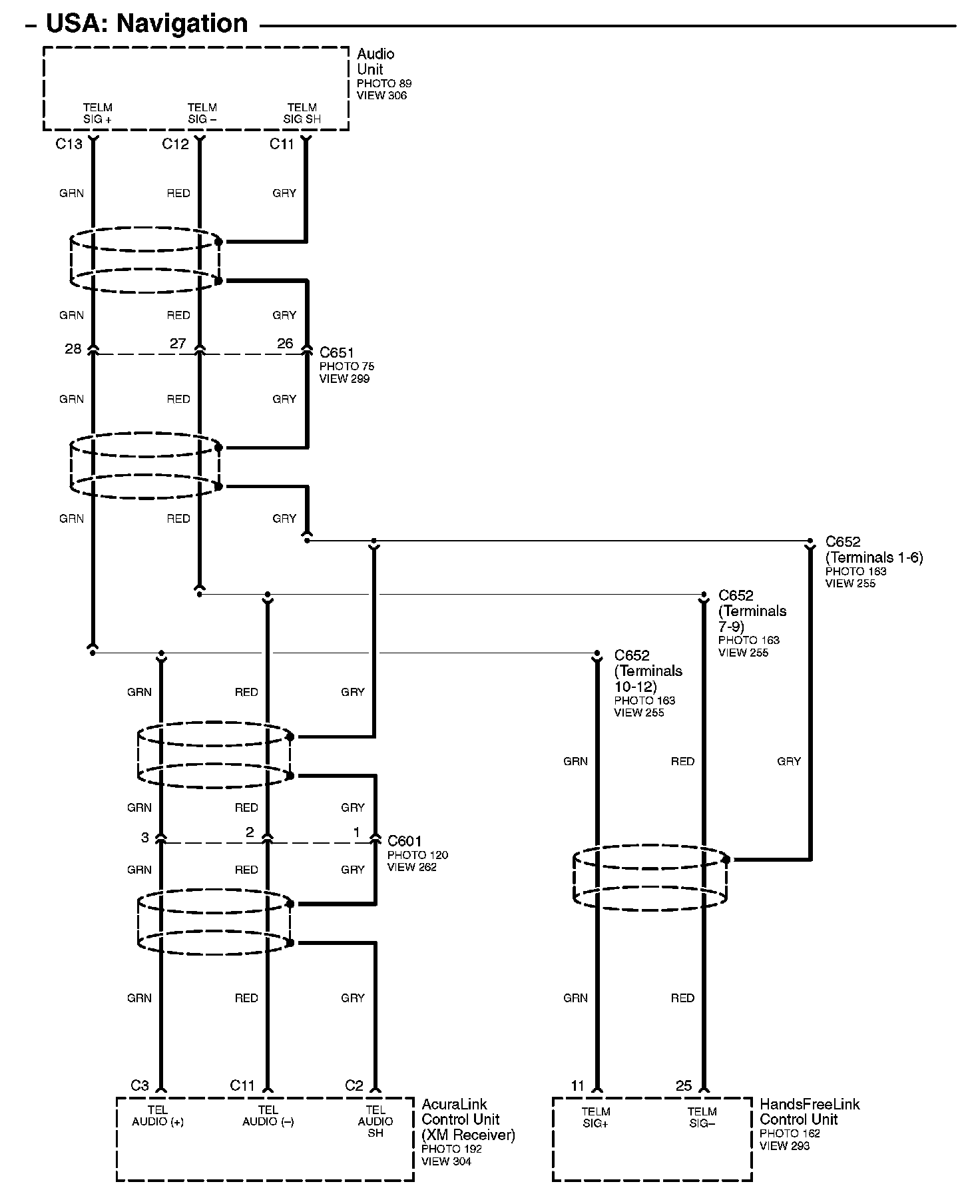

Diagram 153-0:

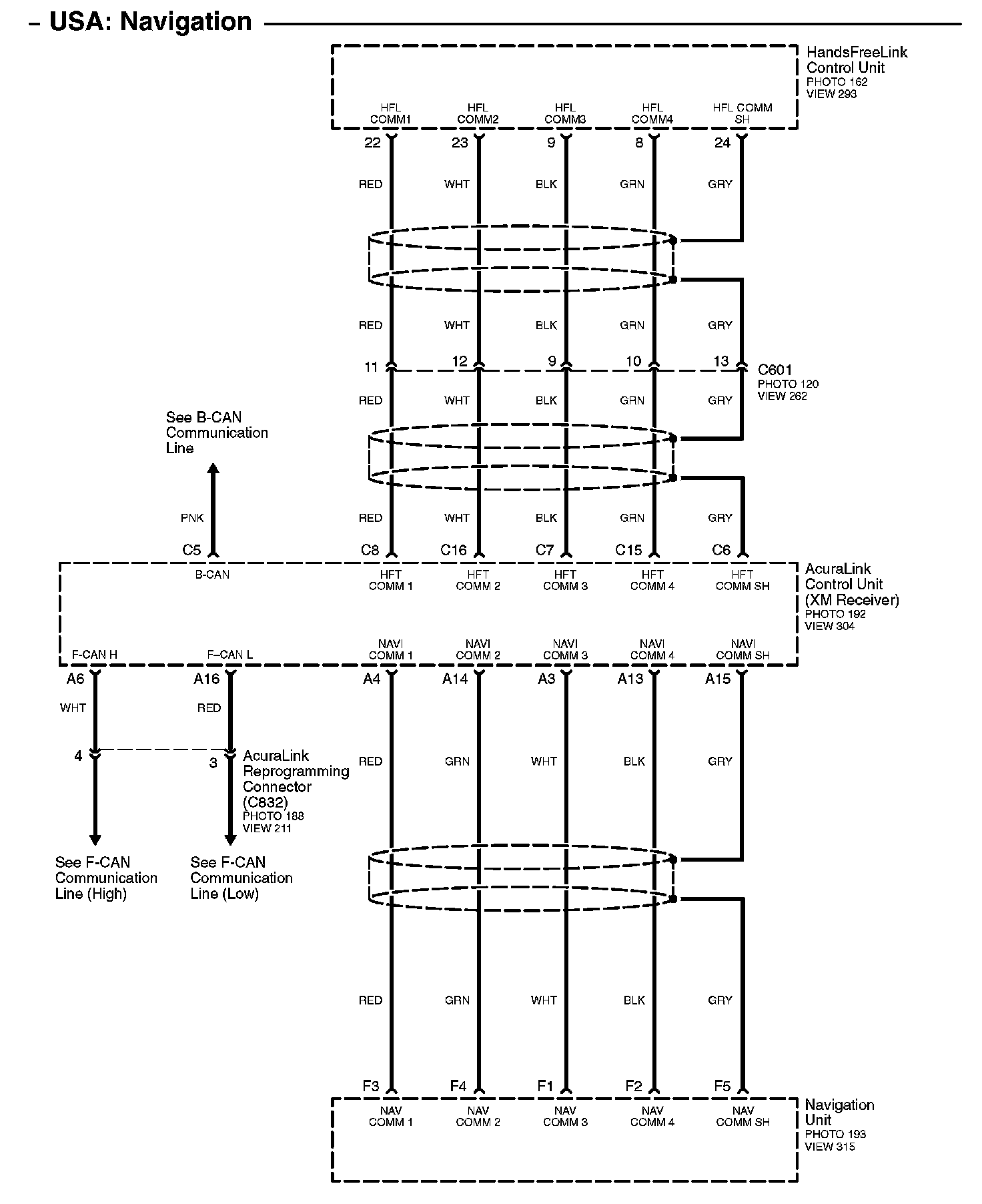

Diagram 153-1:

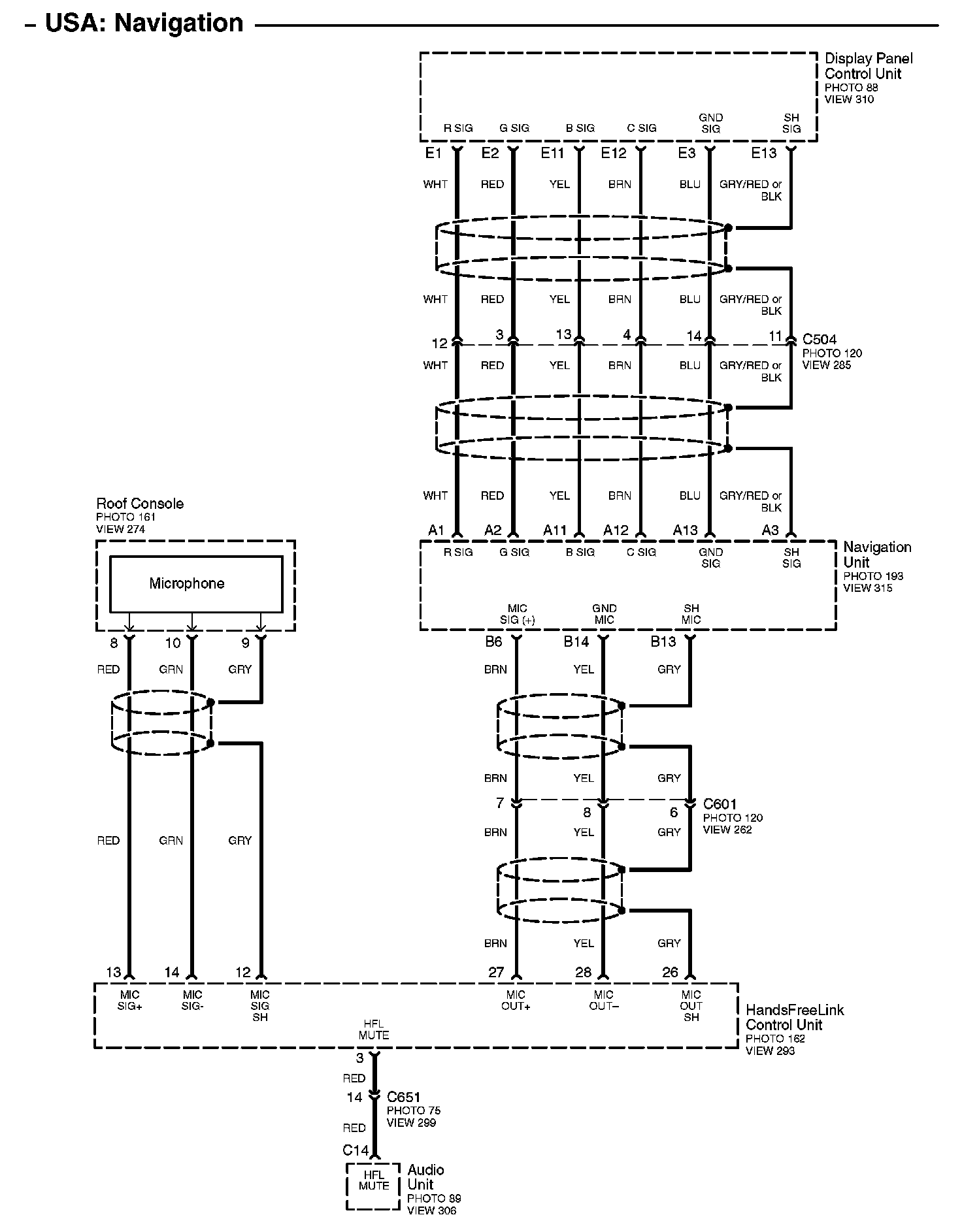

Diagram 153-2:

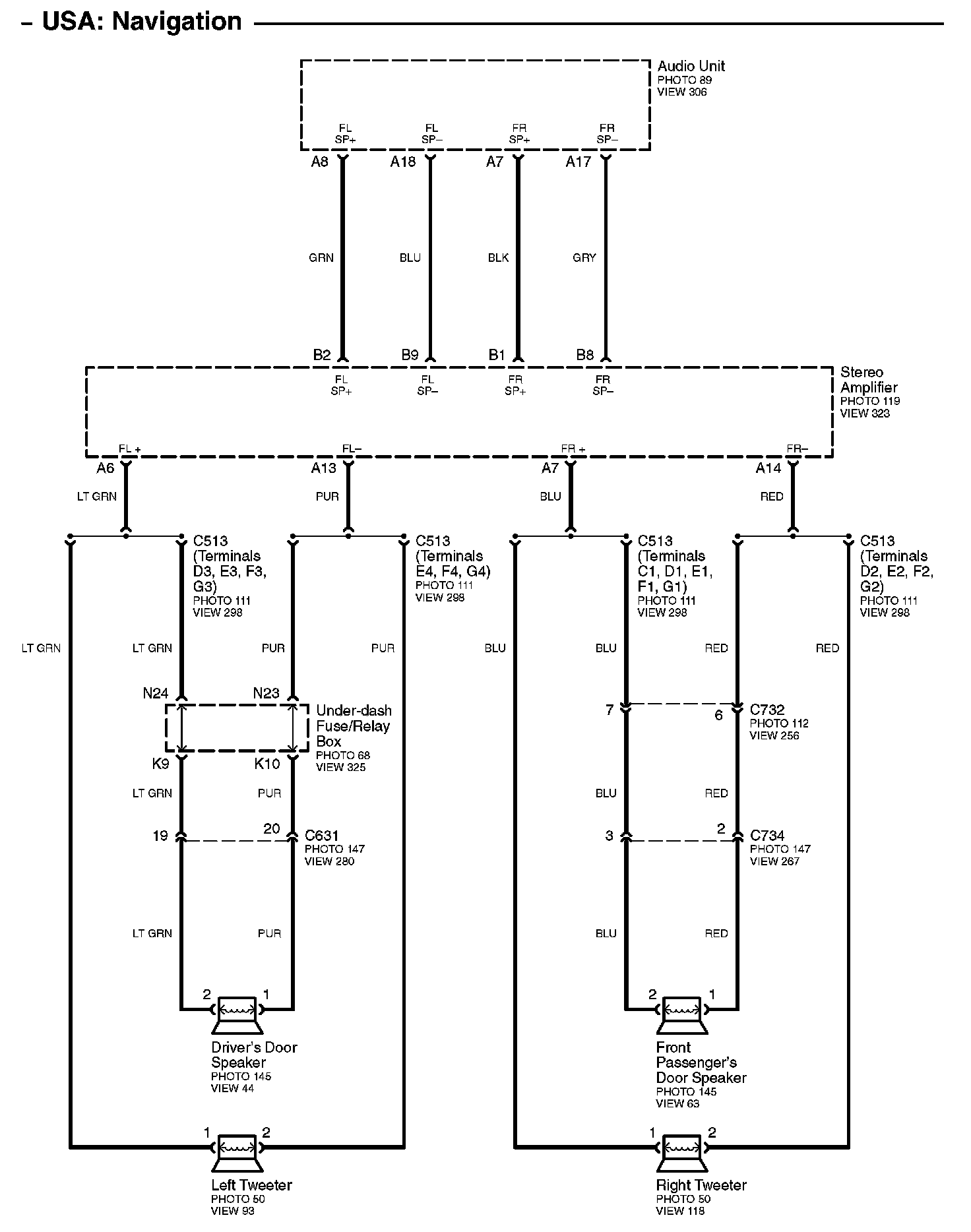

Diagram 153-3:

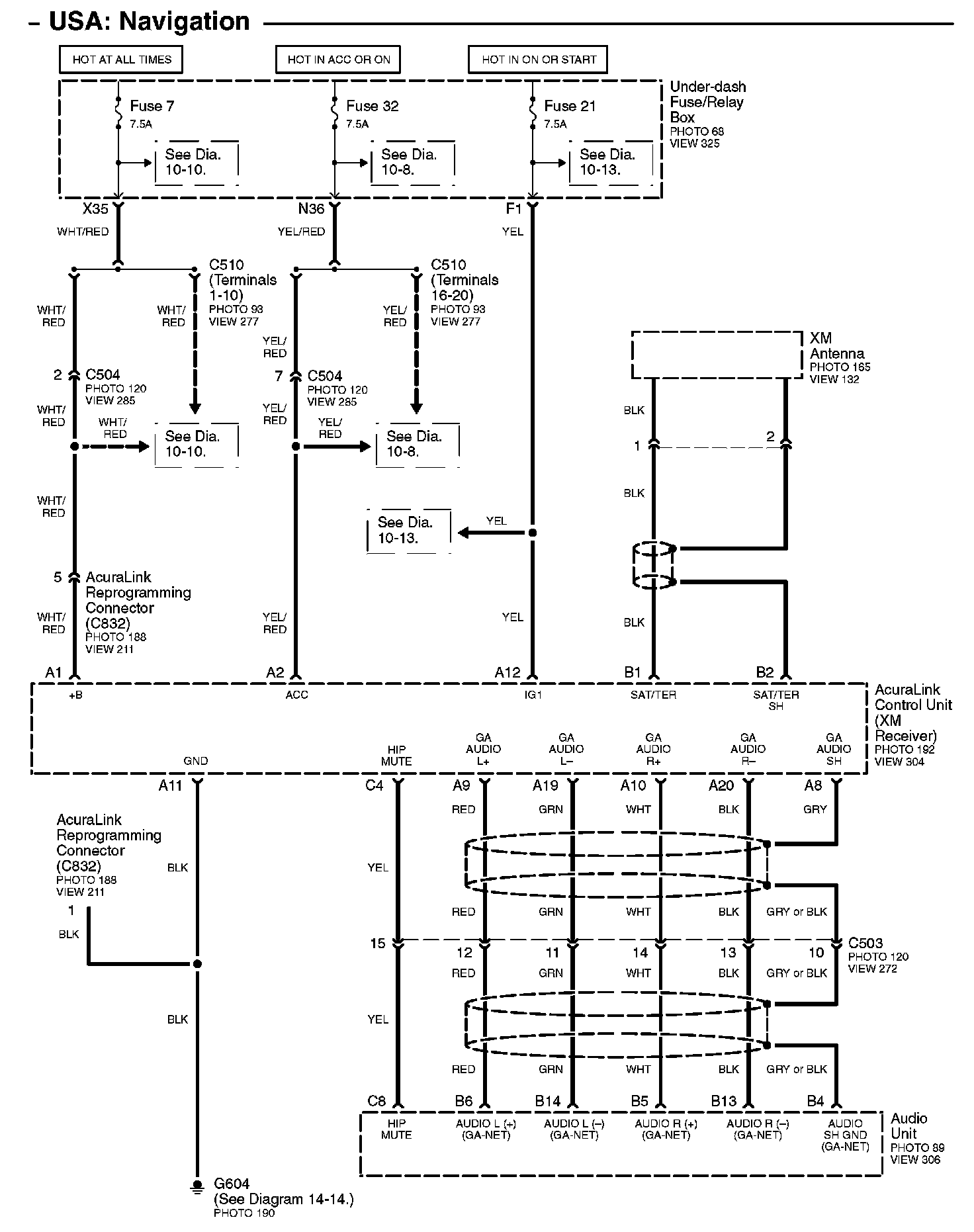

Diagram 153-4:

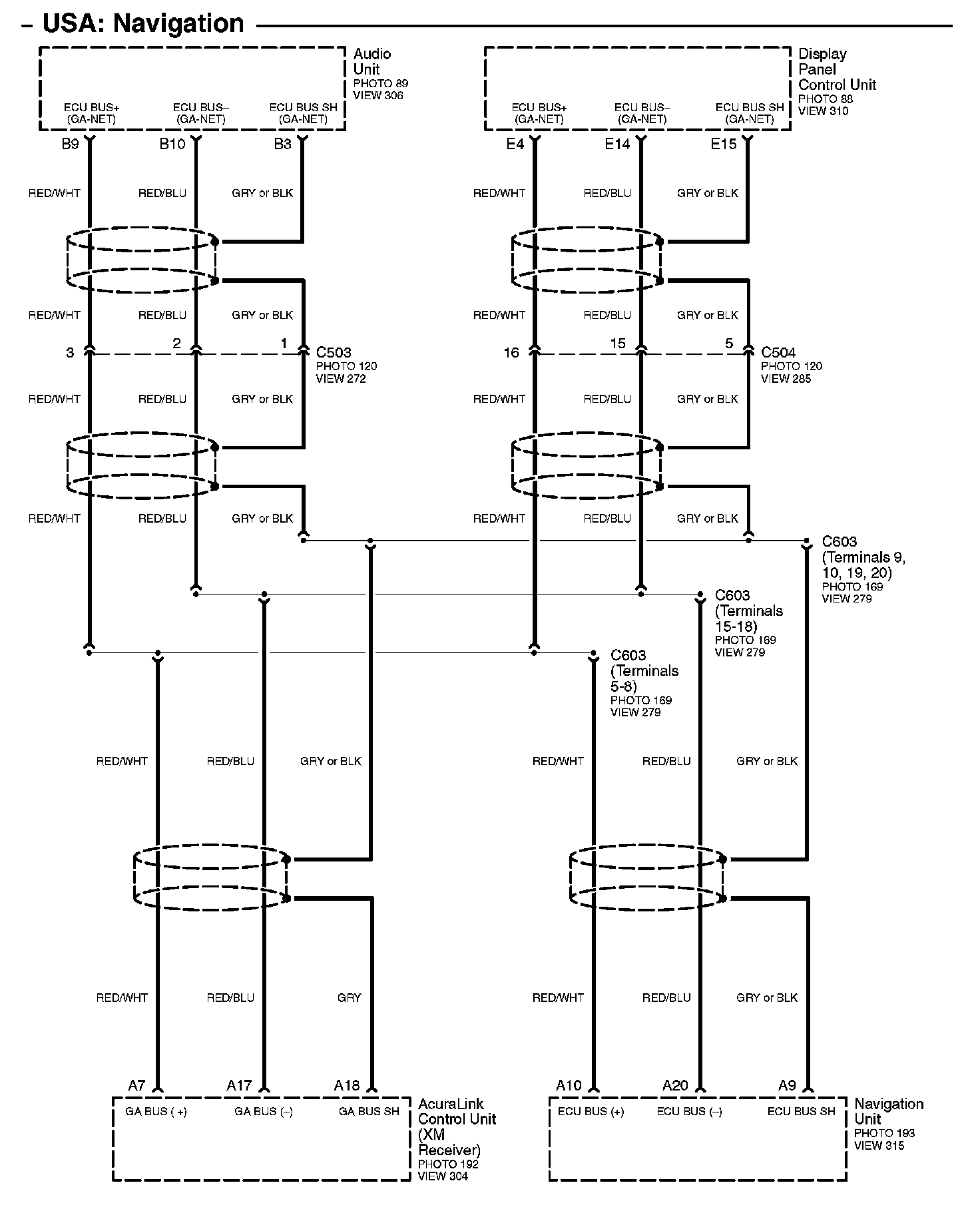

Diagram 153-5:

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
