Component Location Index

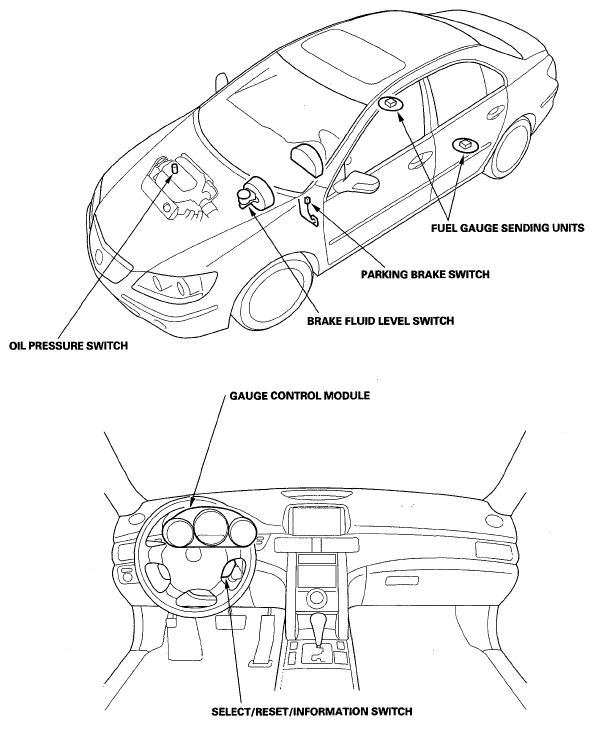

Fig 1: Identifying Gauges Component Location (1 Of 2)
G05497117Courtesy of AMERICAN HONDA MOTOR CO., INC.

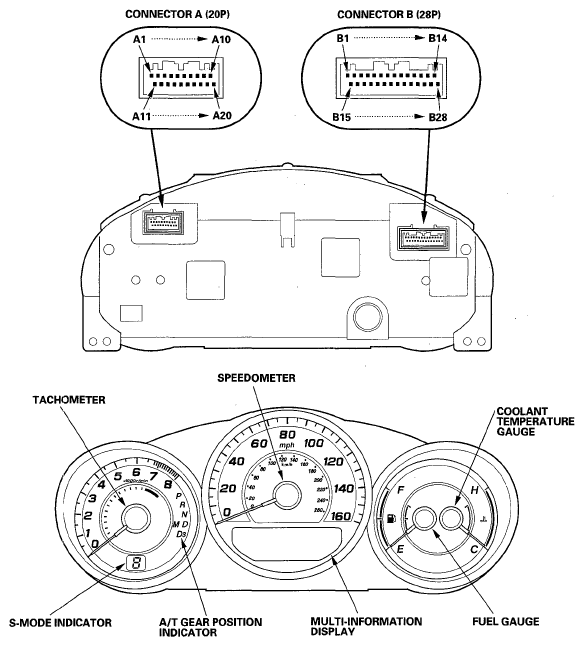

Fig 2: Identifying Gauges Component Location (2 Of 2)
G05497118Courtesy of AMERICAN HONDA MOTOR CO., INC.
