Circuit Diagram

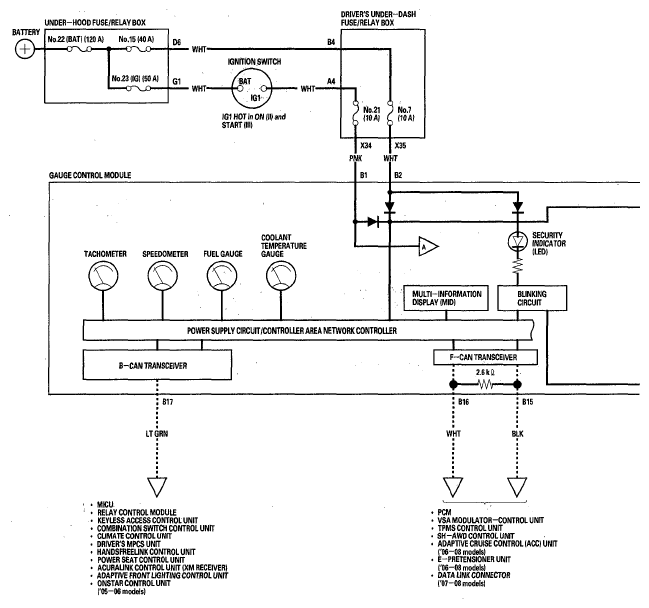

Fig 1: Gauges - Circuit Diagram (1 Of 7)

G05497125

Courtesy of AMERICAN HONDA MOTOR CO., INC.

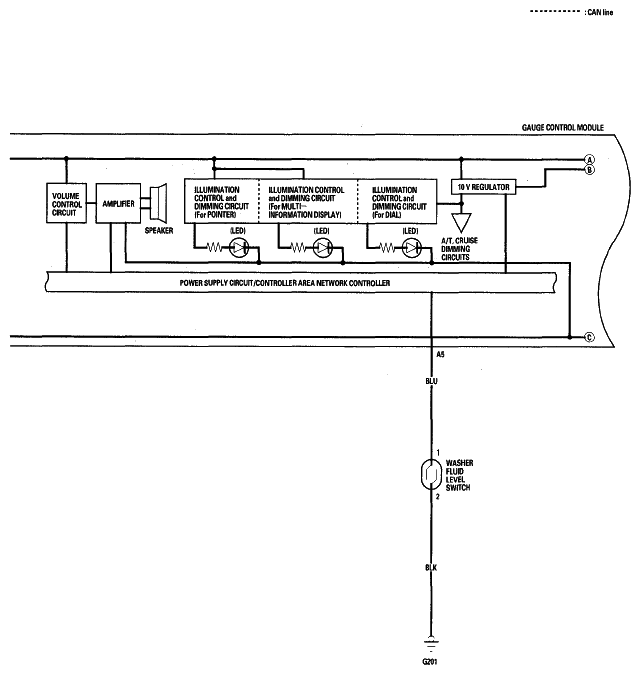

Fig 2: Gauges - Circuit Diagram (2 Of 7)

G05497126

Courtesy of AMERICAN HONDA MOTOR CO., INC.

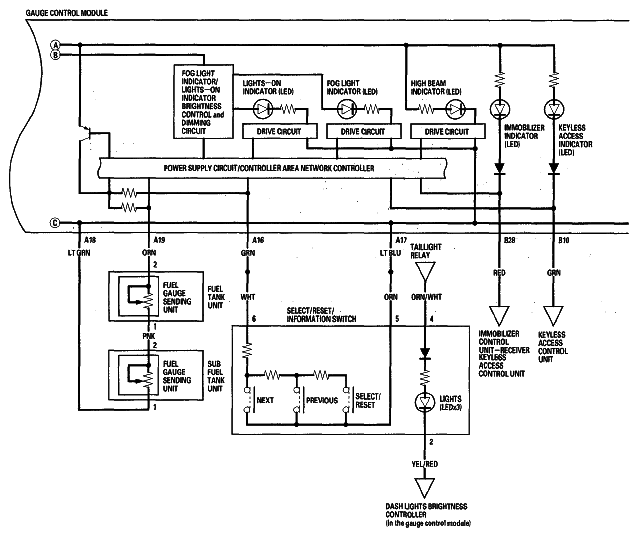

Fig 3: Gauges - Circuit Diagram (3 Of 7)

G05497127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

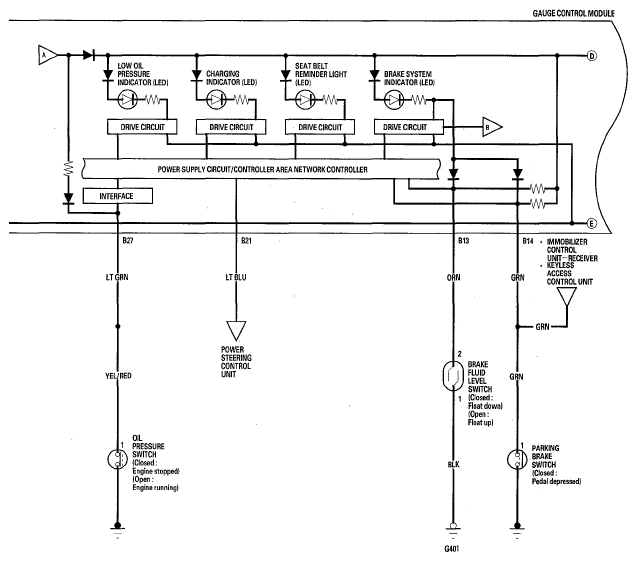

Fig 4: Gauges - Circuit Diagram (4 Of 7)

G05497128

Courtesy of AMERICAN HONDA MOTOR CO., INC.

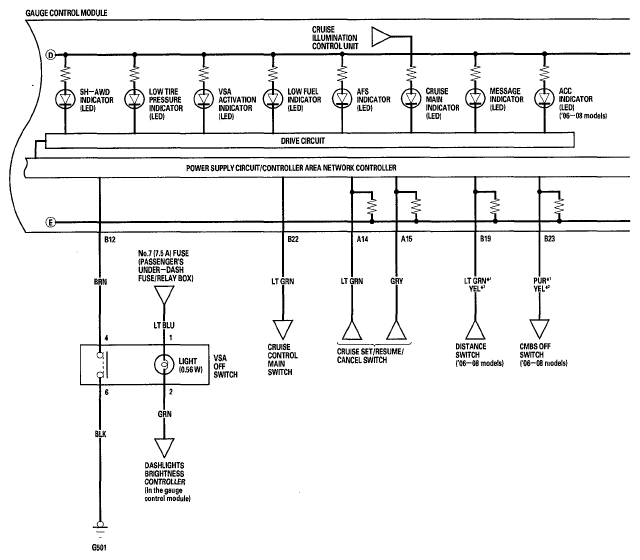

Fig 5: Gauges - Circuit Diagram (5 Of 7)

G05497129

Courtesy of AMERICAN HONDA MOTOR CO., INC.

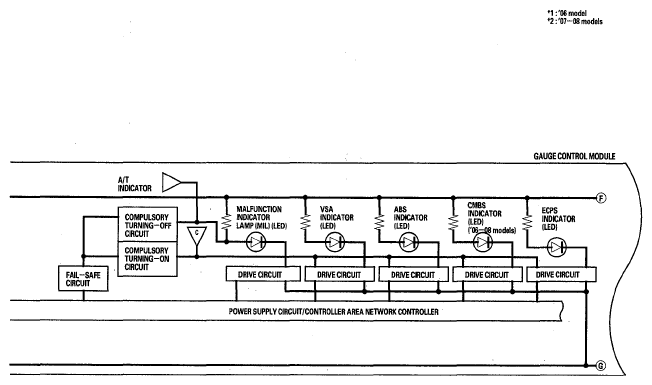

Fig 6: Gauges - Circuit Diagram (6 Of 7)

G05497130

Courtesy of AMERICAN HONDA MOTOR CO., INC.

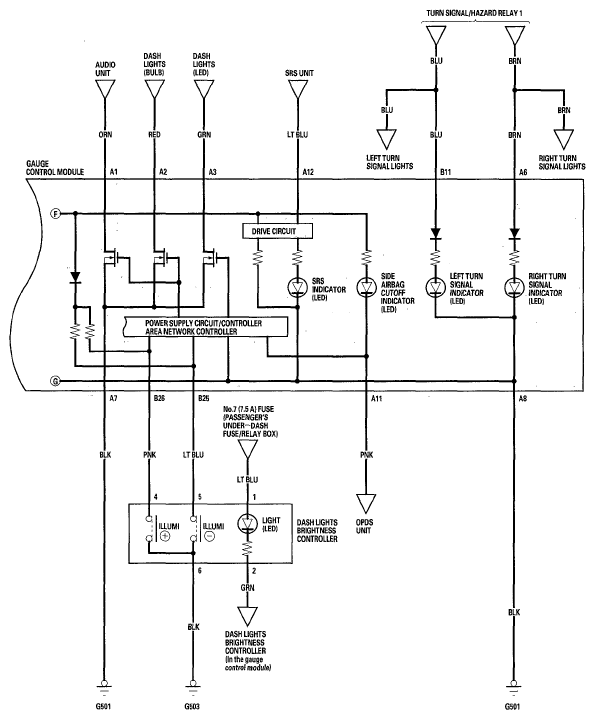

Fig 7: Gauges - Circuit Diagram (7 Of 7)

G05497131

Courtesy of AMERICAN HONDA MOTOR CO., INC.
