A/T Gear Position Indicator Circuit Diagram

Circuit Diagram

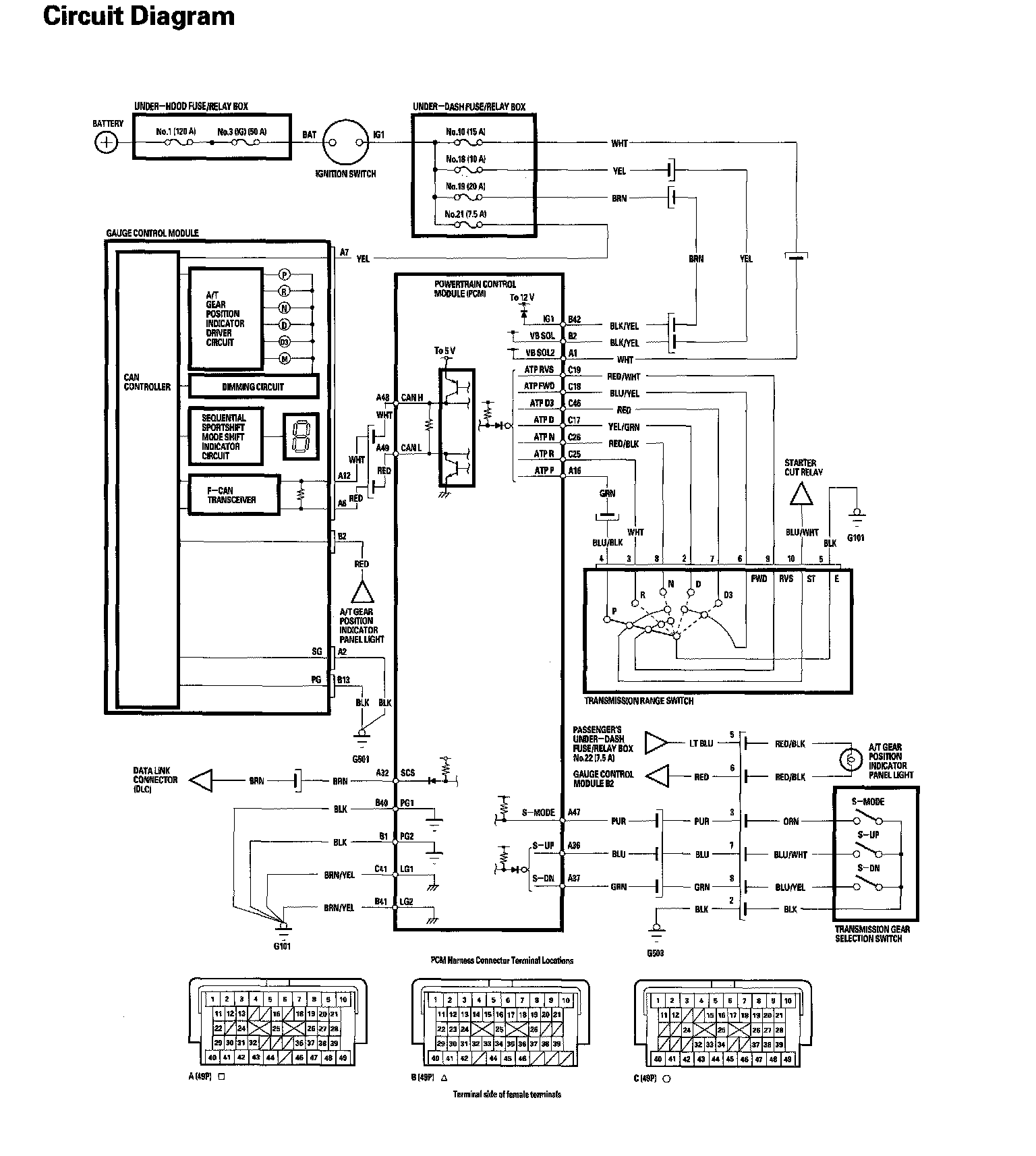

A/T Gear Position Indicator Circuit Diagram:
