Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Locations

Differential Assembly: Locations

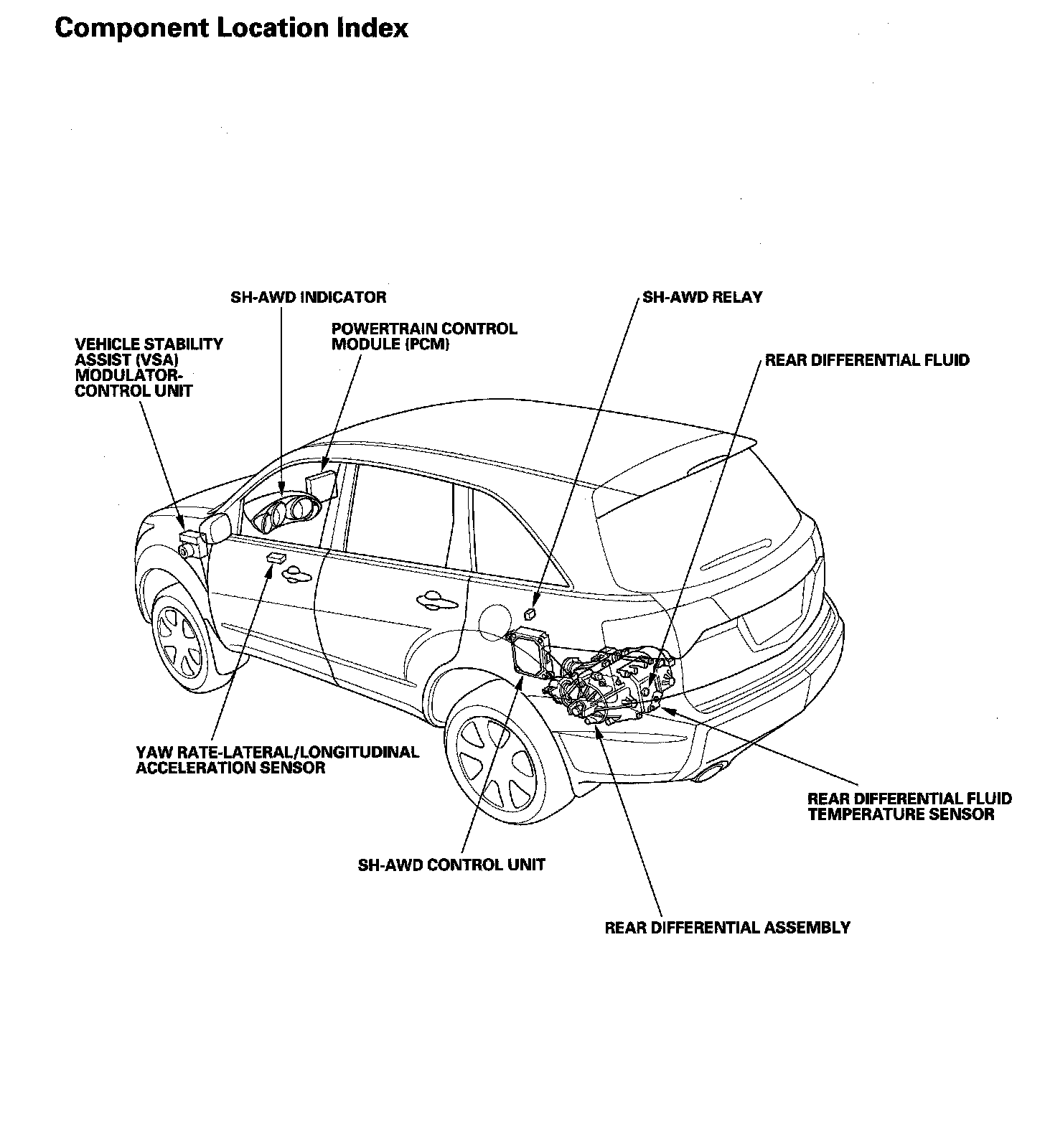

Component Location Index

Rear Differential Component Location Index:
