Electrical Diagrams

Circuit Diagram

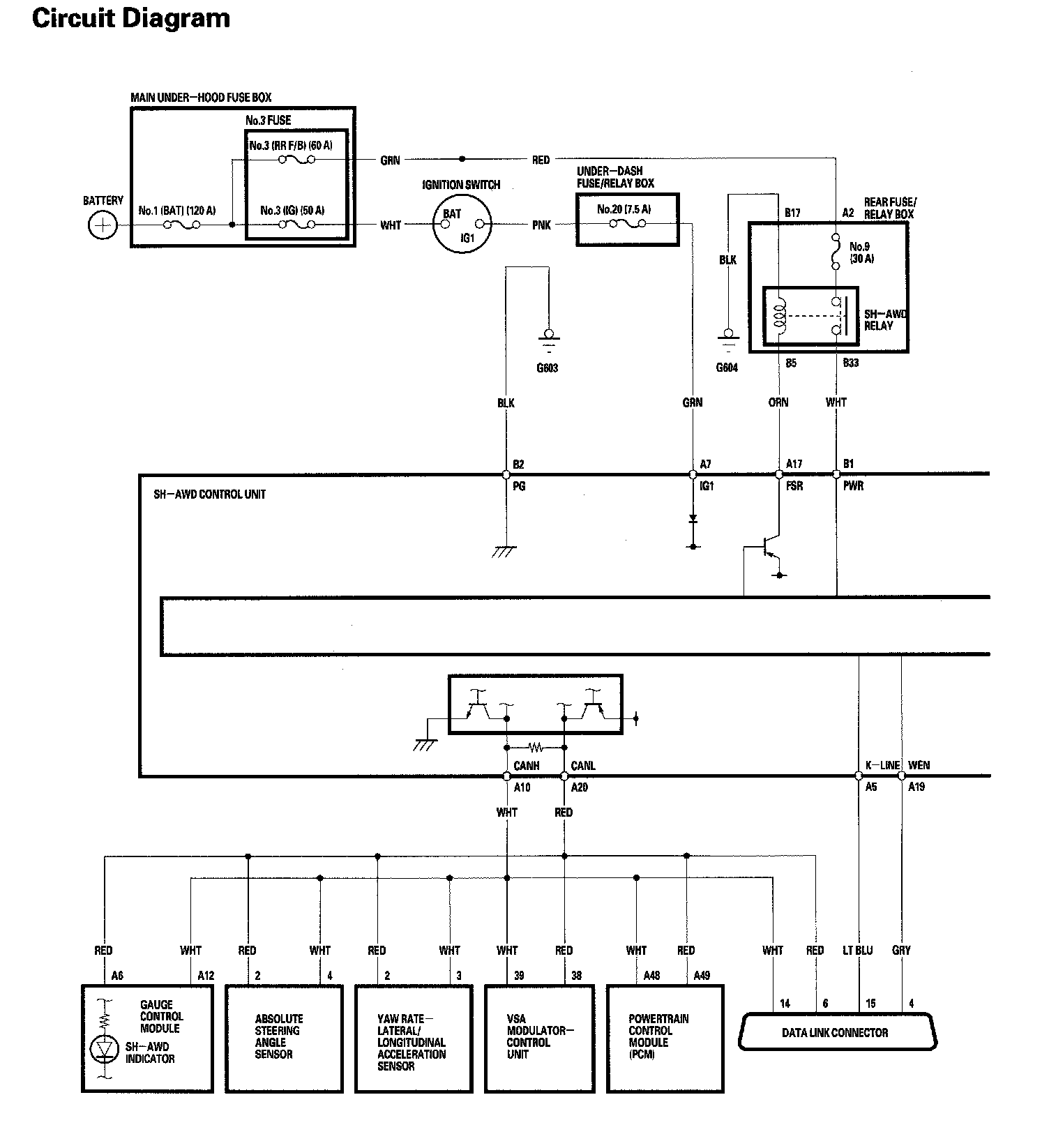

Rear Differential Circuit Diagram (Part 1):

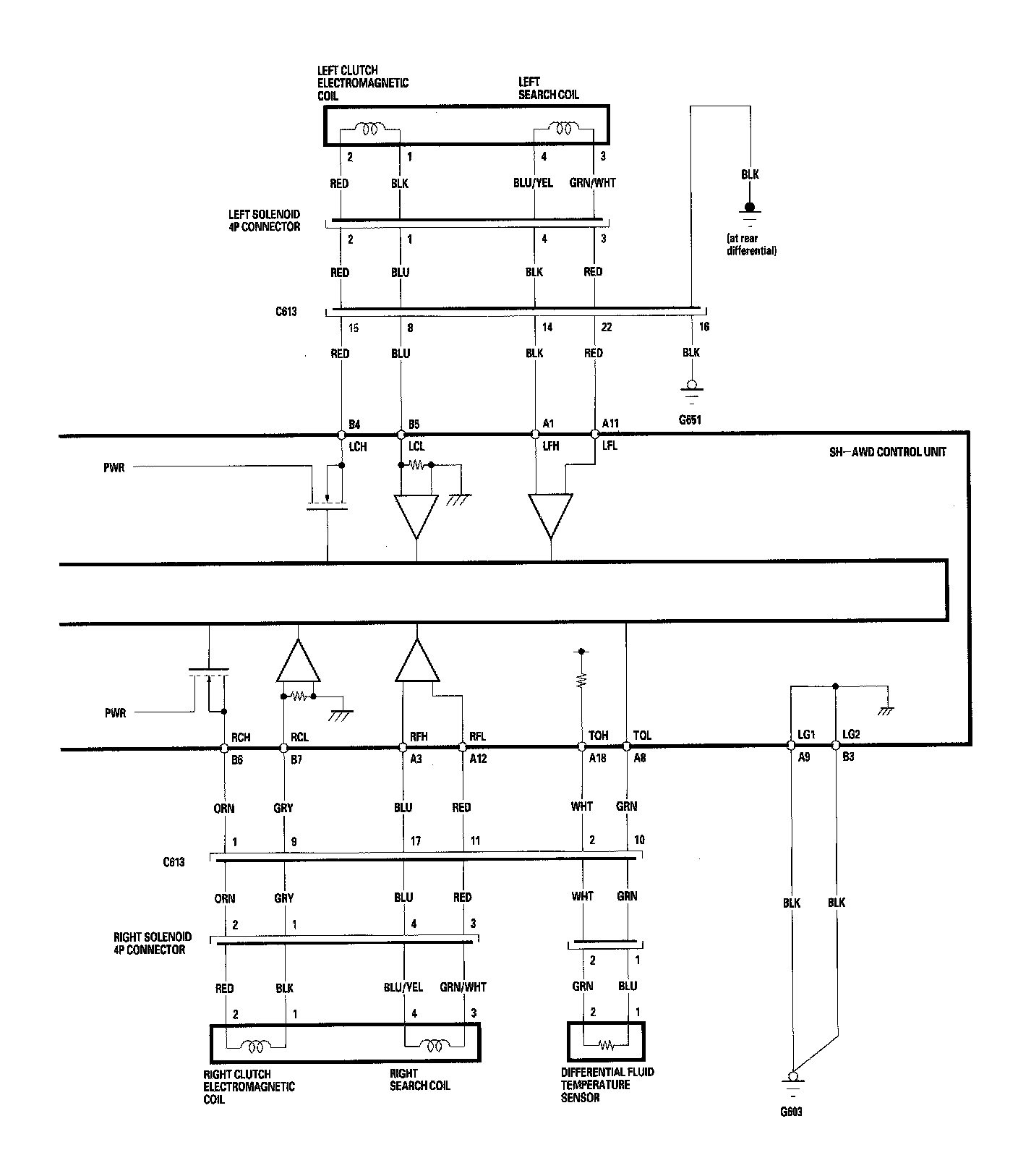

Rear Differential Circuit Diagram (Part 2):
