Suspension - Rear Suspension Knock or Clunk Noise

07-033

June 27, 2007

Applies To:
2007 MDX - From VIN 2HNYD....7H500001 thru 2HNYD....7H521790

2007 MDX: Knock or Clunk From the Rear Suspension

SYMPTOM
There is a knock or clunk from the rear suspension when driving over bumps.

PROBABLE CAUSE
The head on one or both of the rear damper upper flange bolts is not concentric.

CORRECTIVE ACTION
Replace the upper mounting bolts on both rear dampers.

PARTS INFORMATION

Damper flange bolt (two required):
P/N 90171-STX-A01

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 417135

Flat Rate Time: 0.5 hour

Failed Part: P/N 90171-STX-A01

Defect Code: 07701

Symptom Code: 04201

Template ID: 07-033A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Raise the vehicle on a lift.

2. Remove the rear wheels.

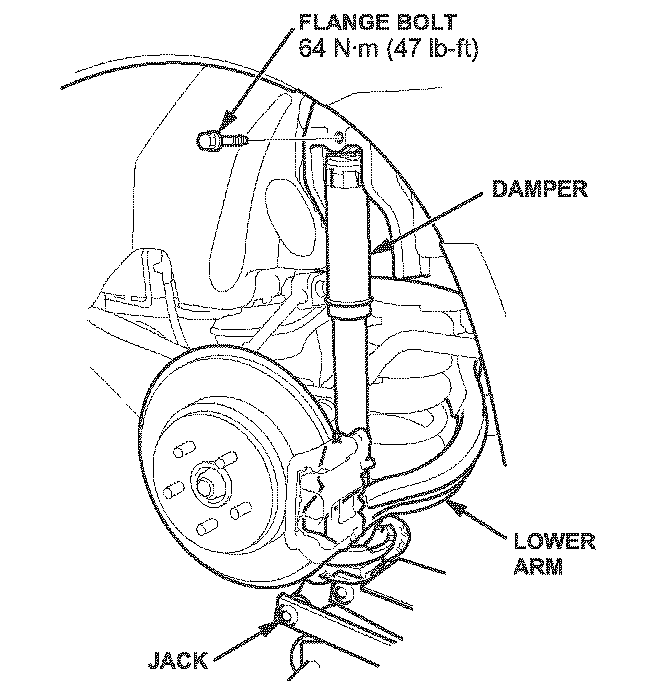

3. Position a jack under the lower arm. Raise the jack until the suspension begins to compress.

4. Remove the flange bolt from the top of the damper.

5. Install a new flange bolt, and torque it to 64 N.m (47 lb-ft).

6. Remove the jack from the lower arm.

7. Repeat steps 3 thru 6 for the other side.

8. Install the rear wheels and torque the wheel nuts to 127 N.m (94 lb-ft).

9. Lower the vehicle.

10. Test-drive the vehicle over rough roads. If there is still a noise, continue with normal troubleshooting.
