Suspension Control Module: Testing and Inspection

Active Damper Control Unit Inputs and Outputs for Connector A (20P)

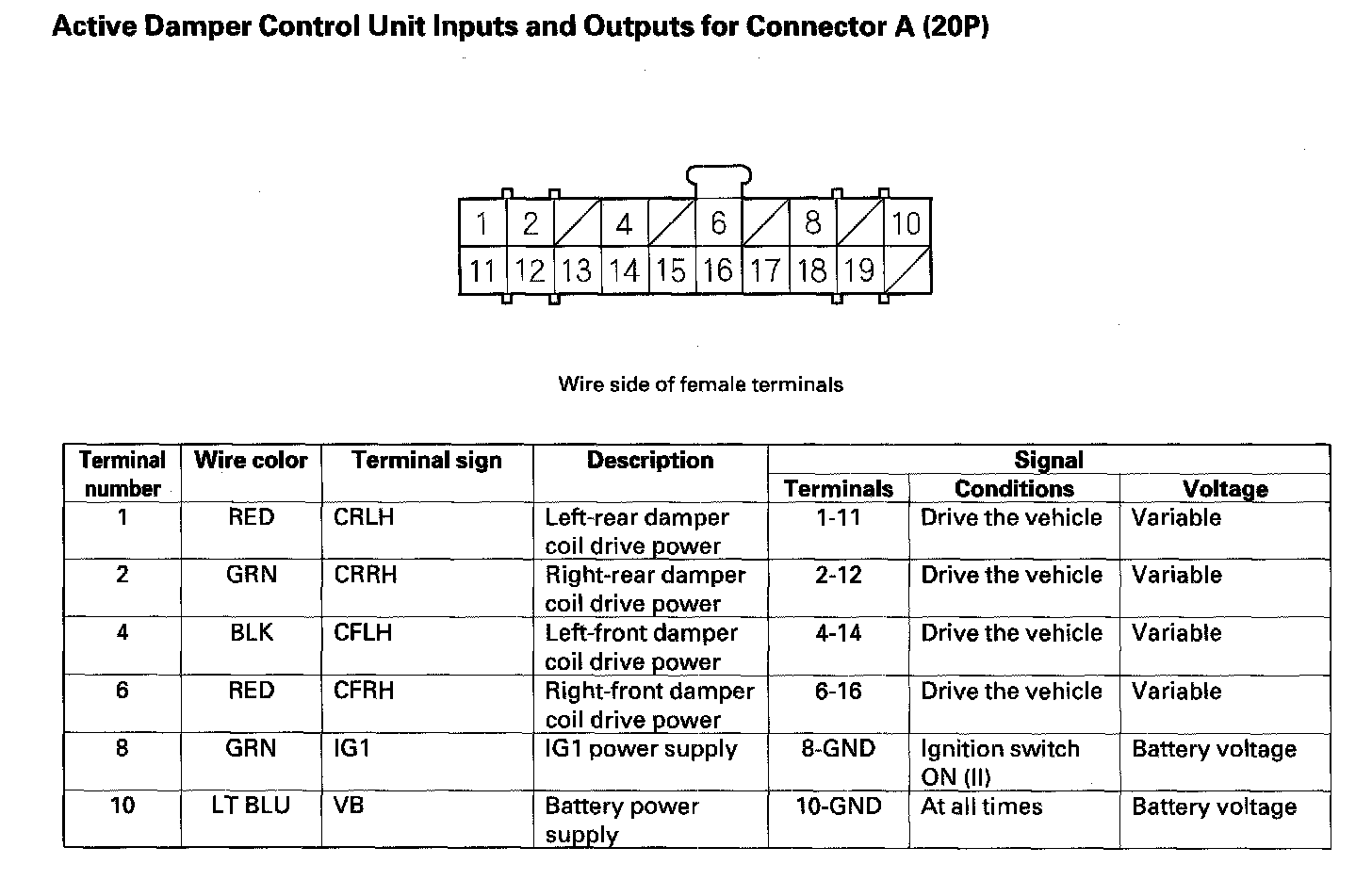

Active Damper Control Unit Inputs and Outputs for Connector A (20P) (Part 1):

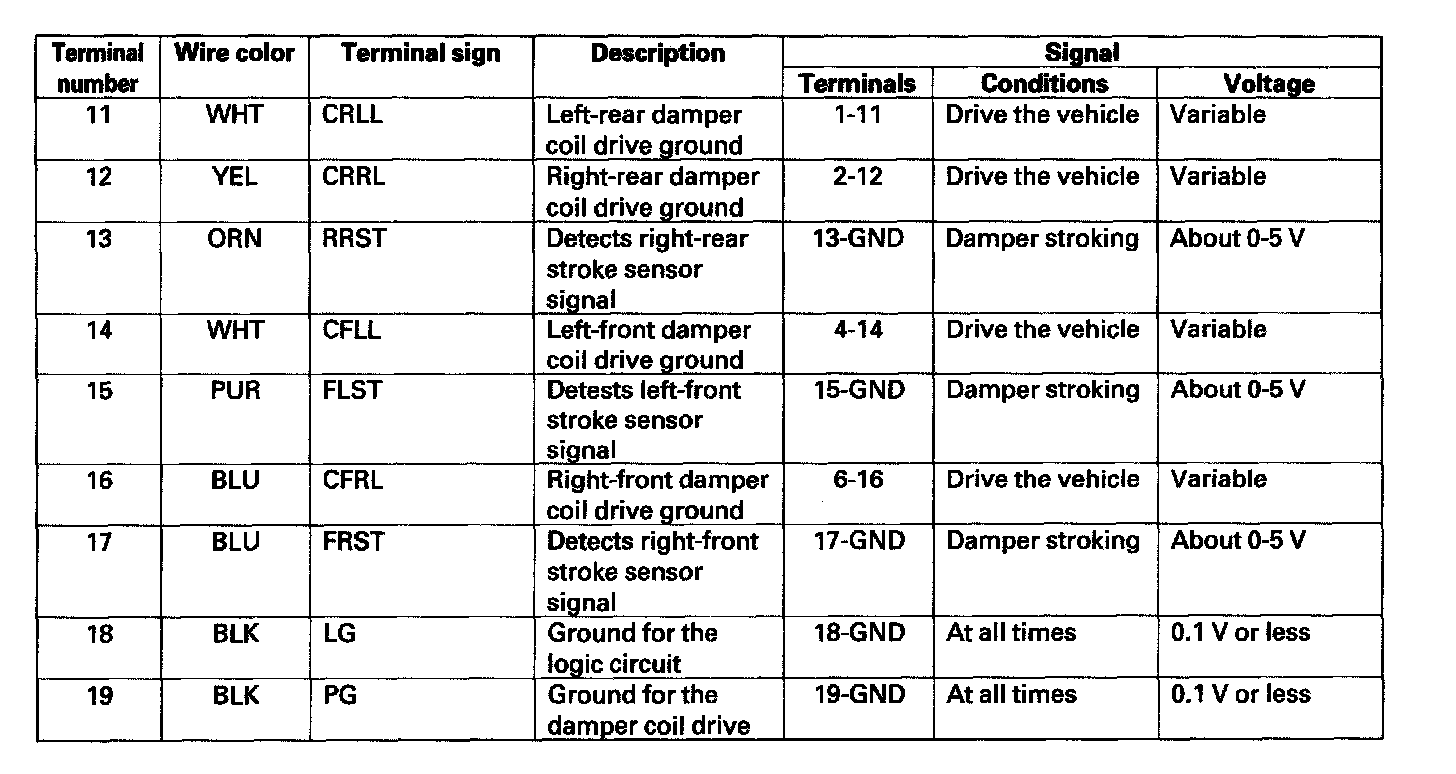

Active Damper Control Unit Inputs and Outputs for Connector A (20P) (Part 2):

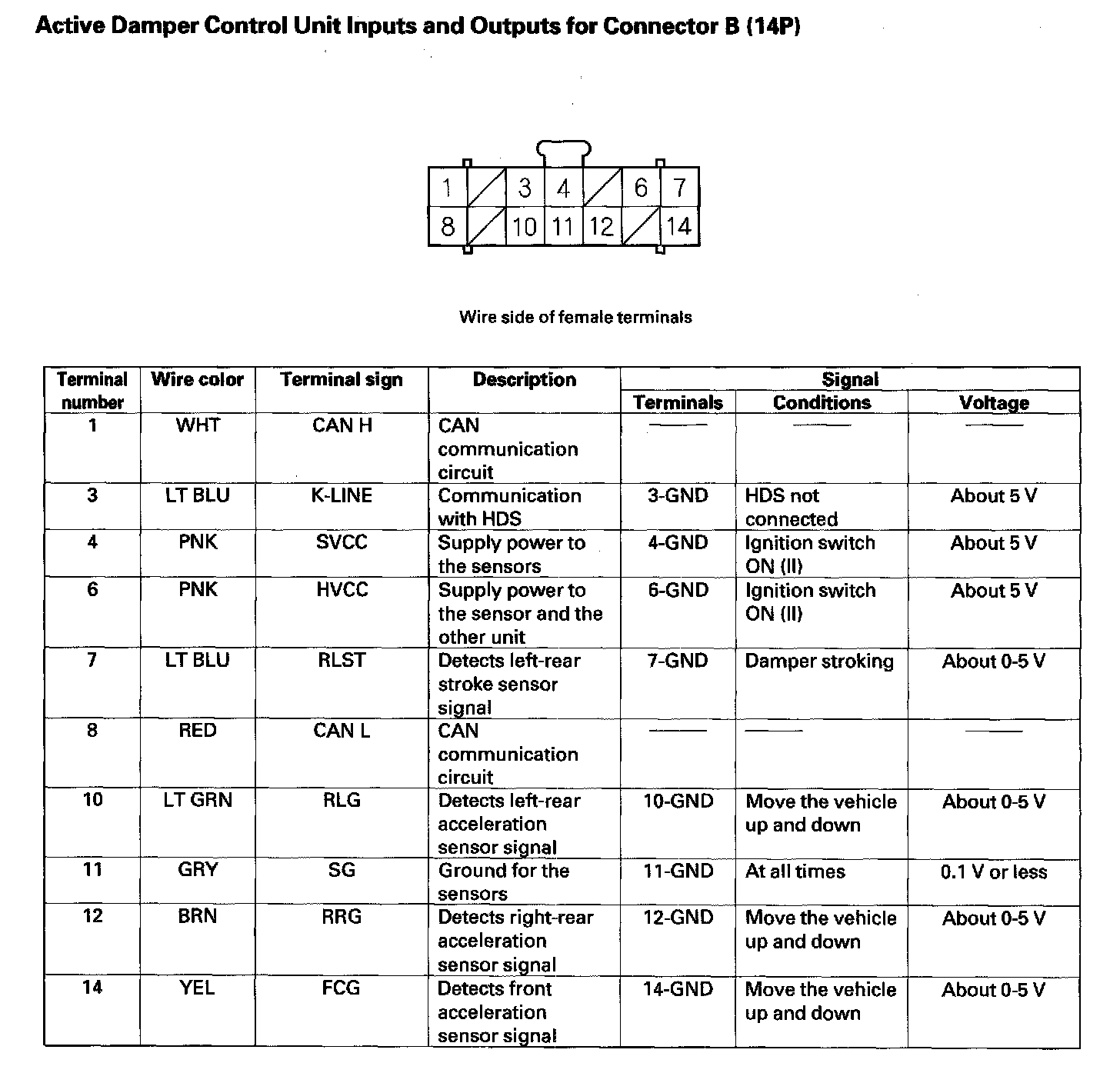

Active Damper Control Unit Inputs and Outputs for Connector B (14P):
