Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Ground-to-Component Index

Ground-to-Component Index

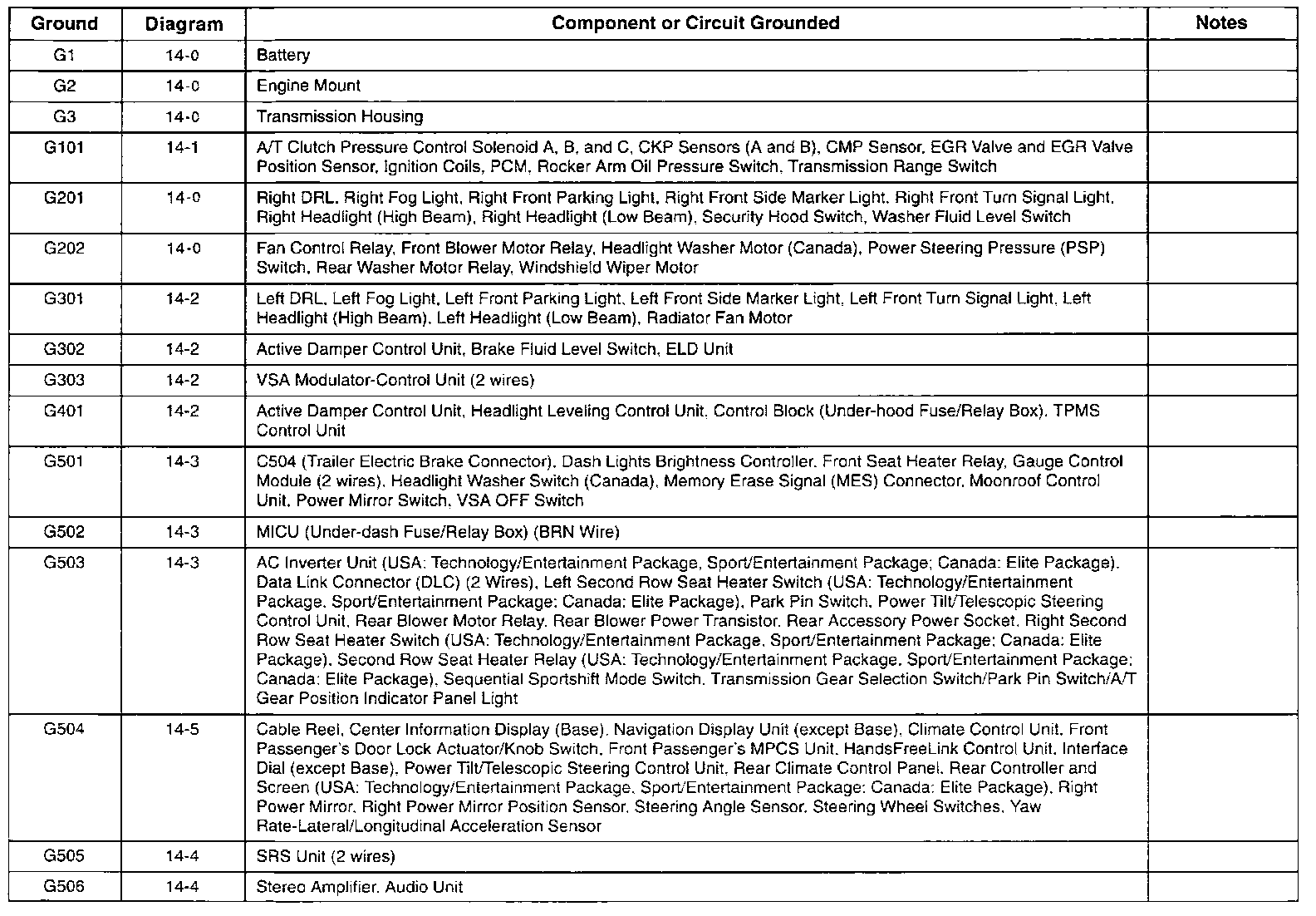

Ground-to-Components Index Part 1:

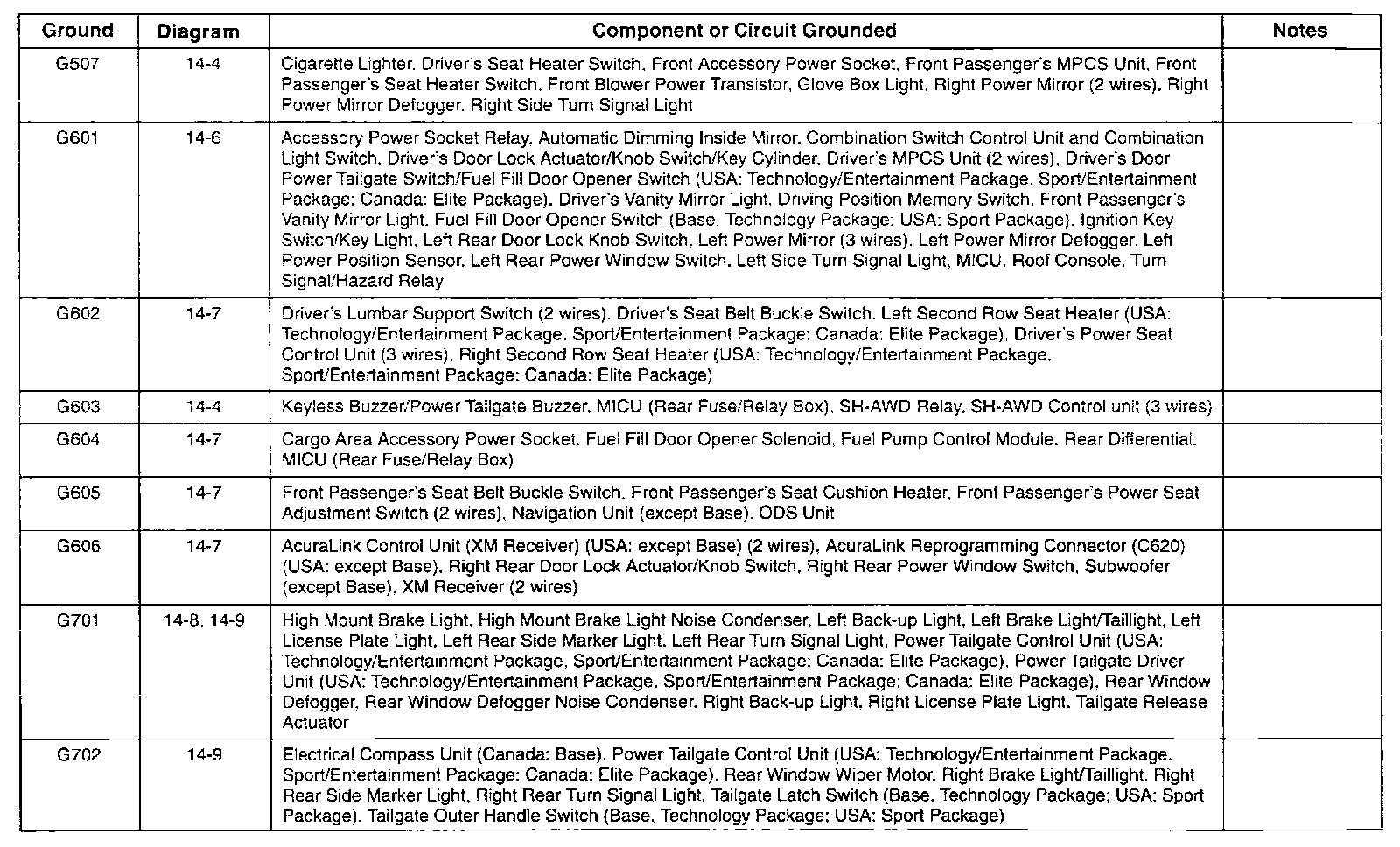

Ground-to-Components Index Part 2:
