Connectors and Harnesses

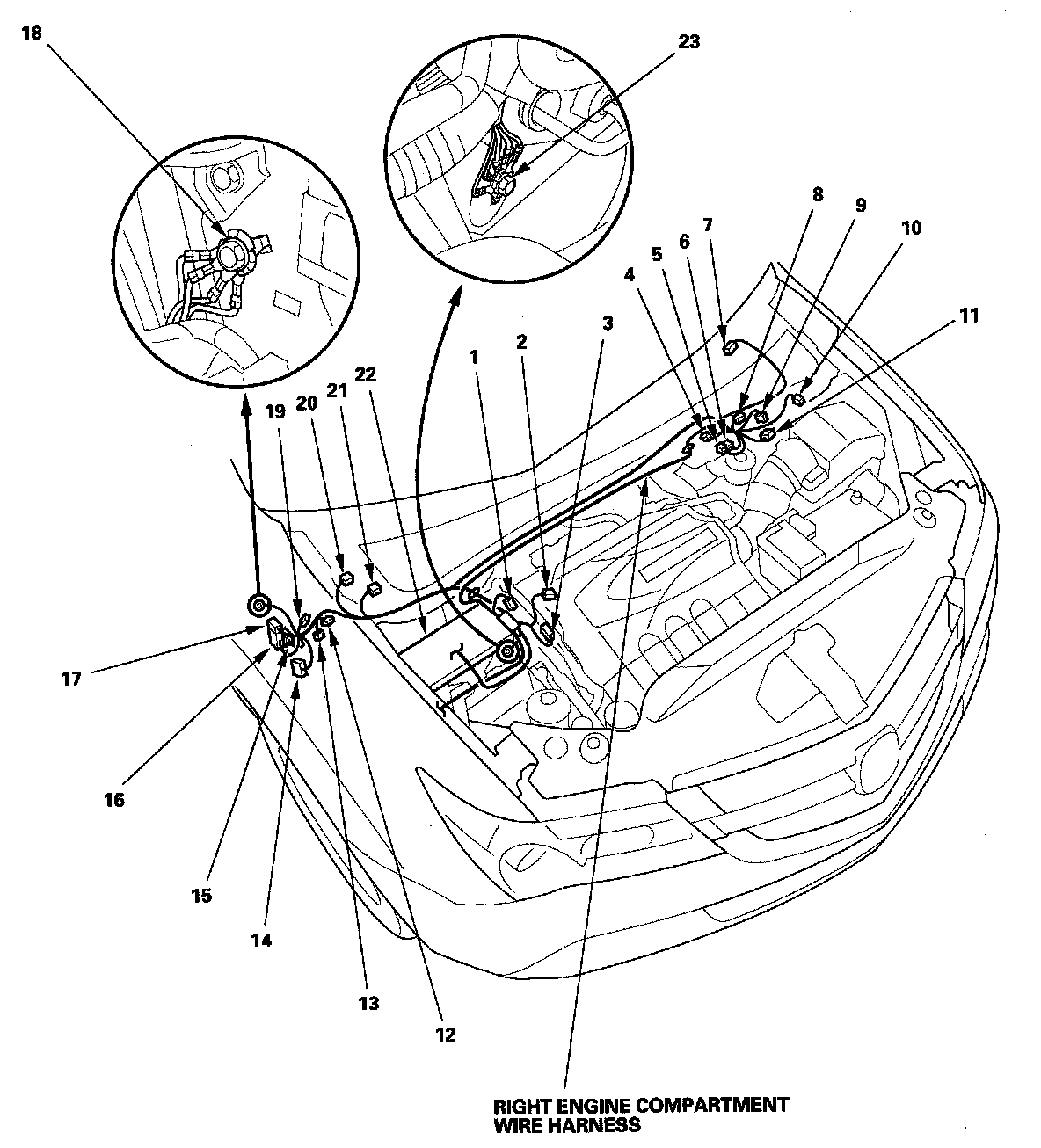

Harness Location View:

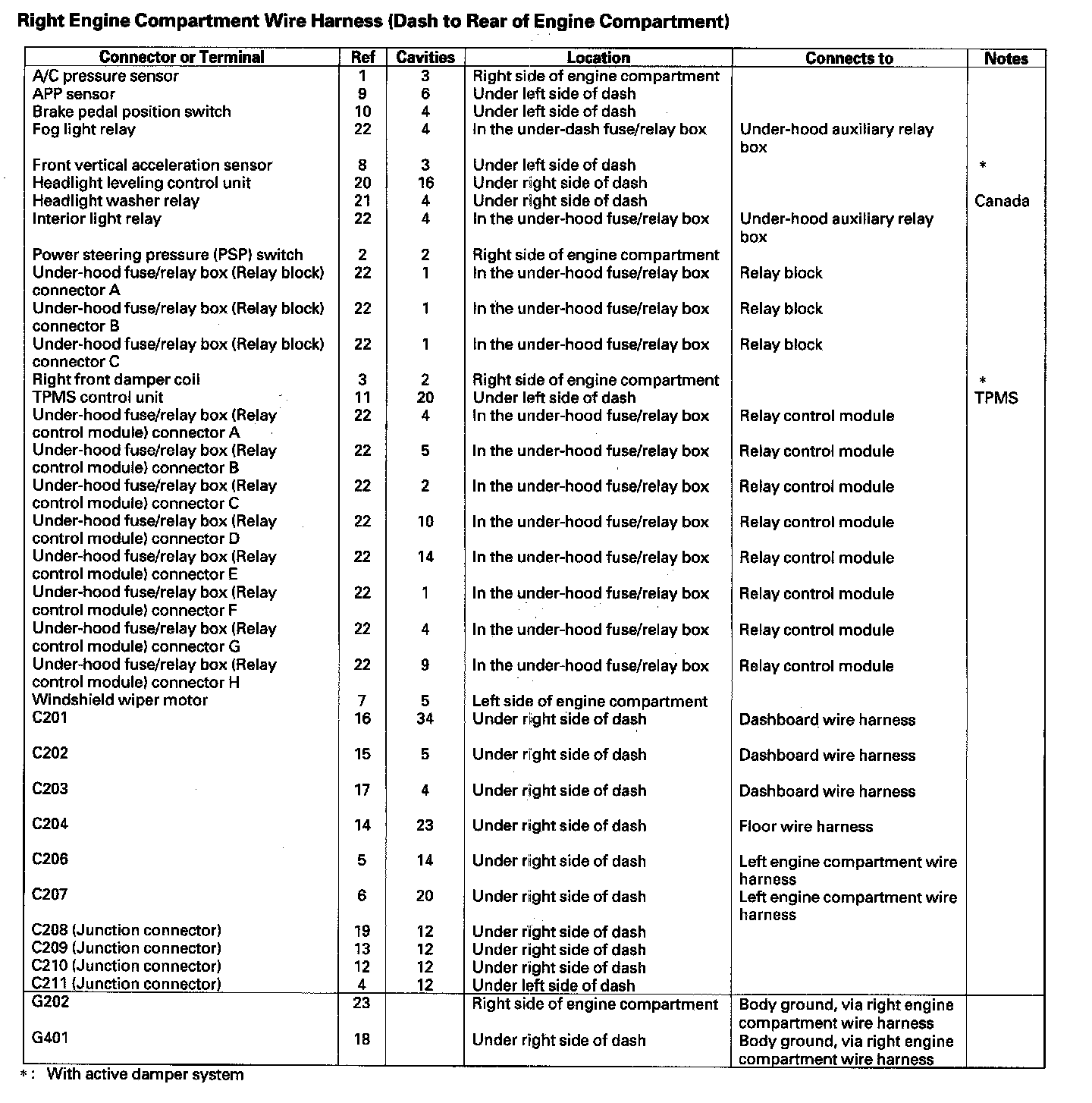

Right Engine Compartment Wire Harness (Dash To Rear Engine Compartment):
