Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Driver's Seat Subharness

Driver's Seat Subharness

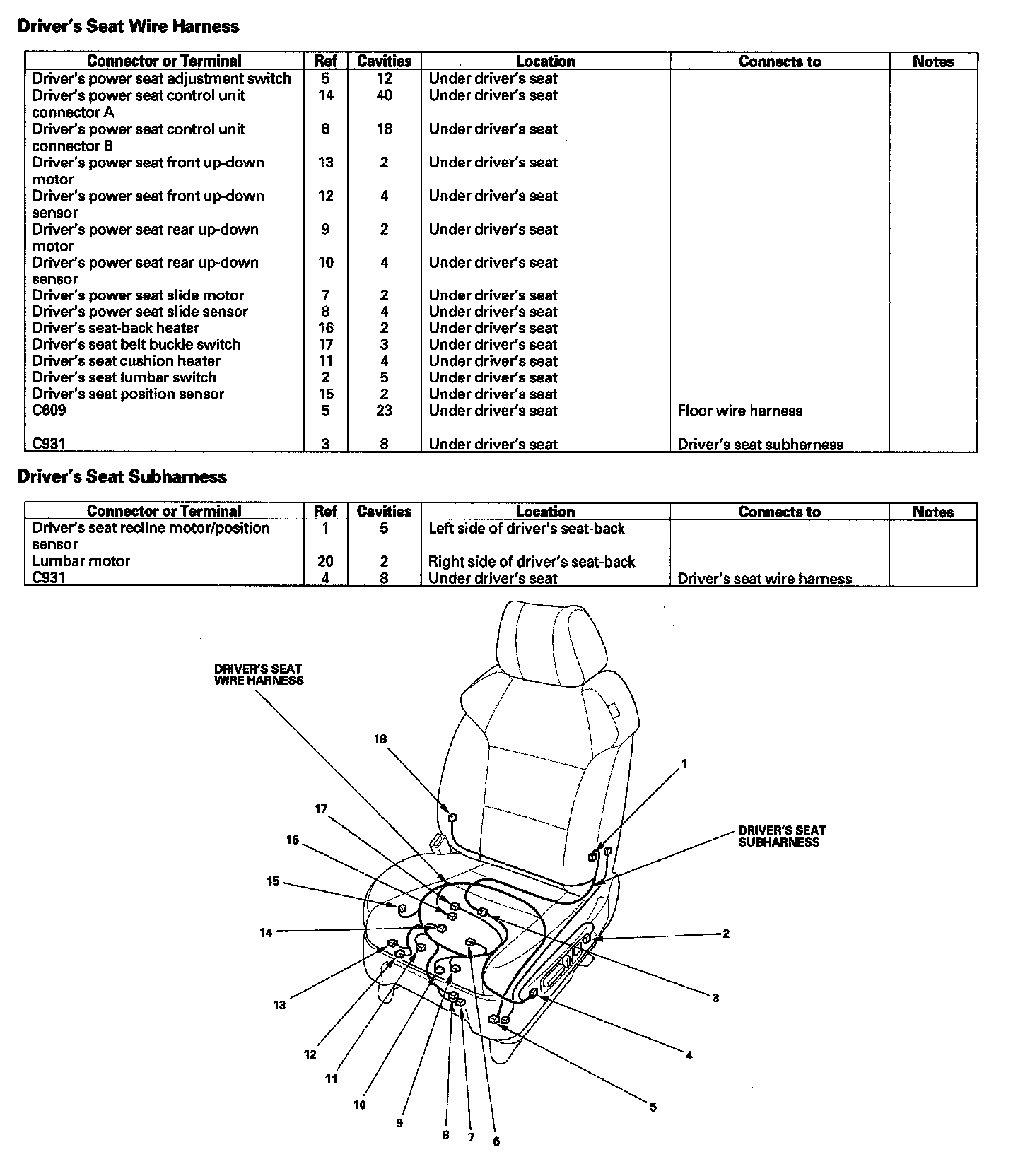

Driver's Seat Wire Harness / Driver's Seat Subharness:
