Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Locations

Fog/Driving Lamp Relay: Locations

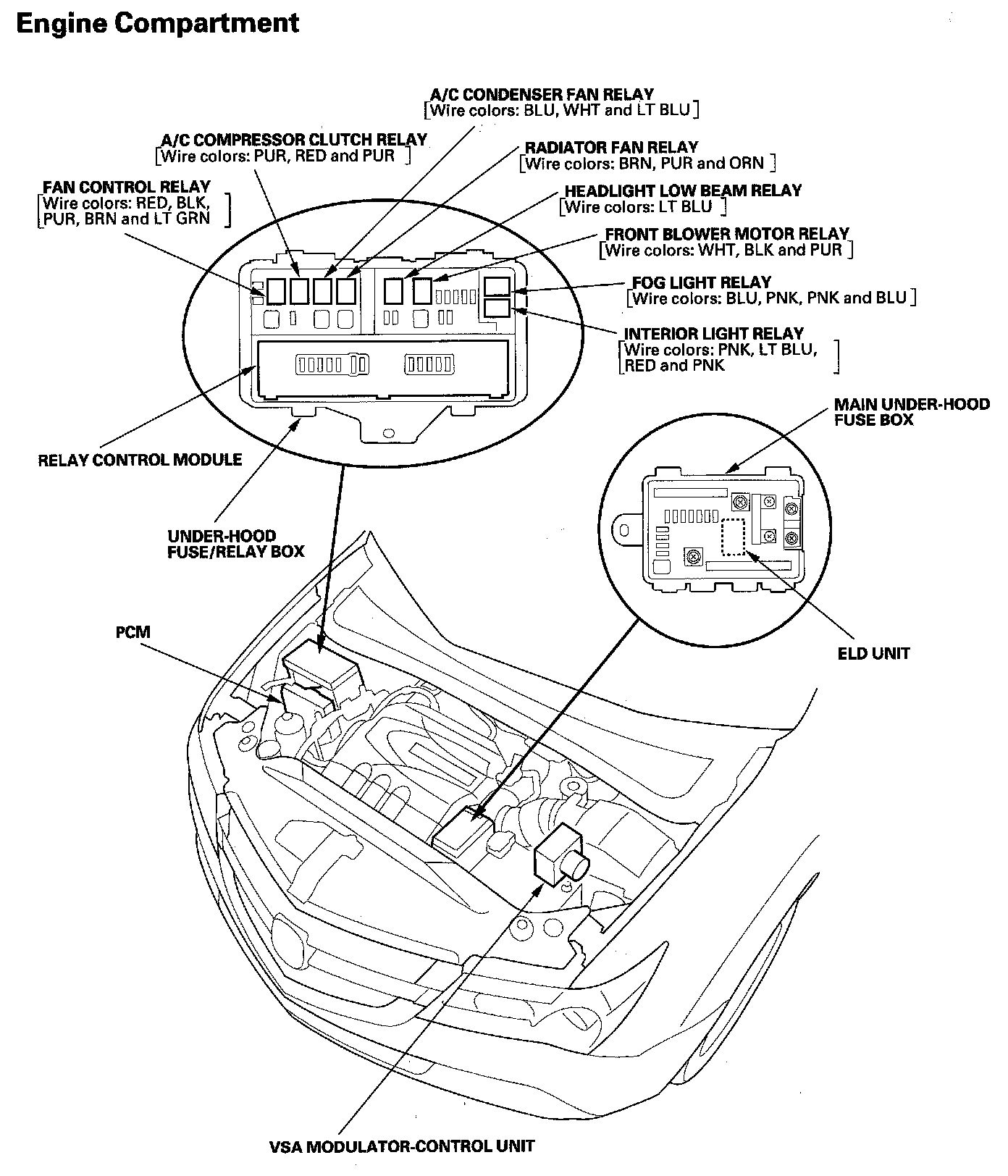

Relay And Control Unit Locations Engine Compartment:

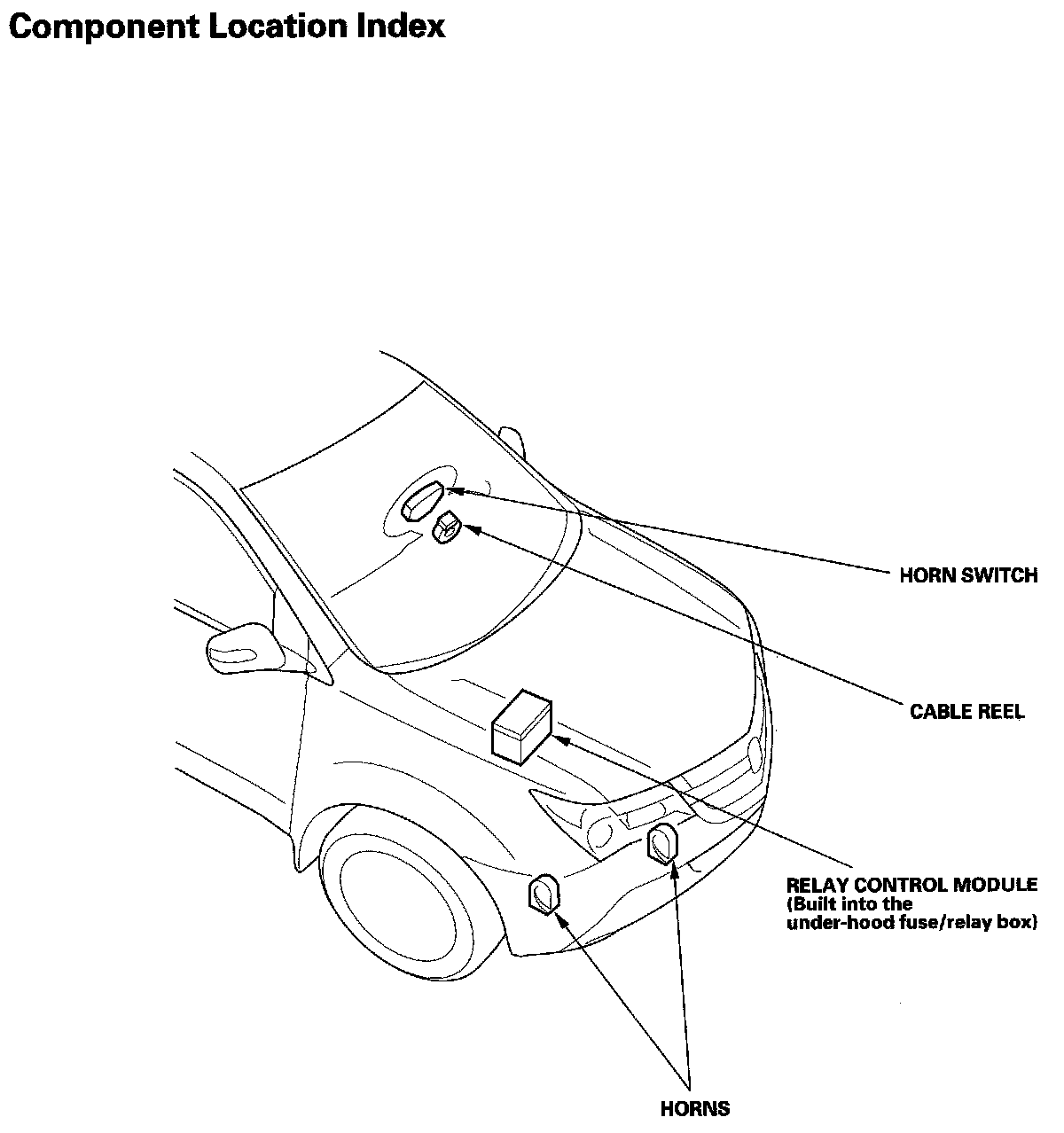

Horns Component Location Index:
