Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Locations

Headlamp: Locations

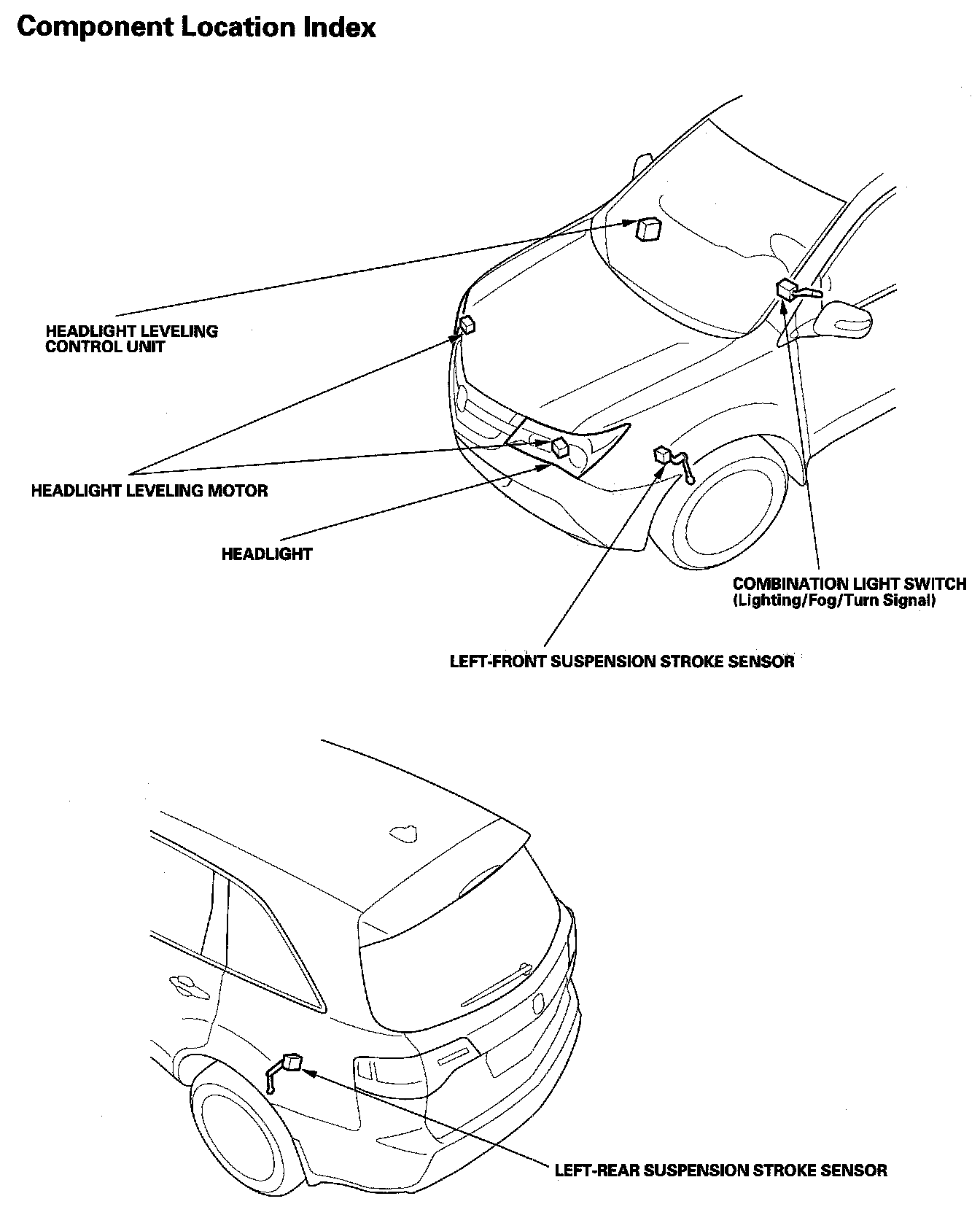

Headlight Leveling System Component Location Index:

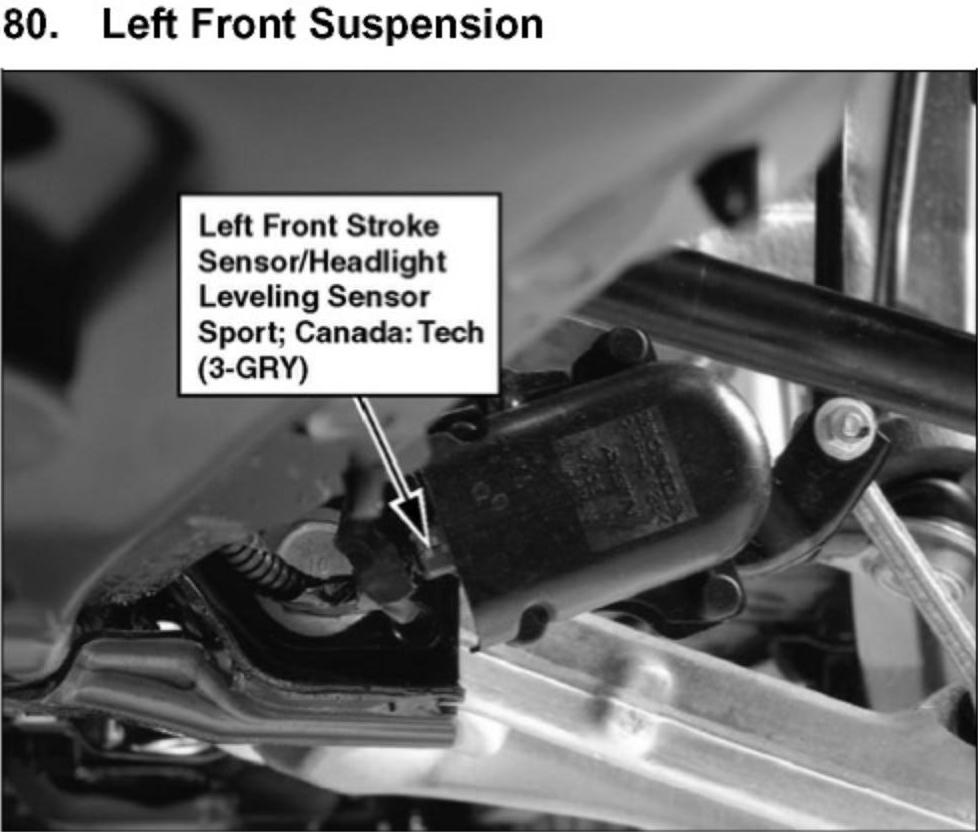

80. Left Front Suspension:

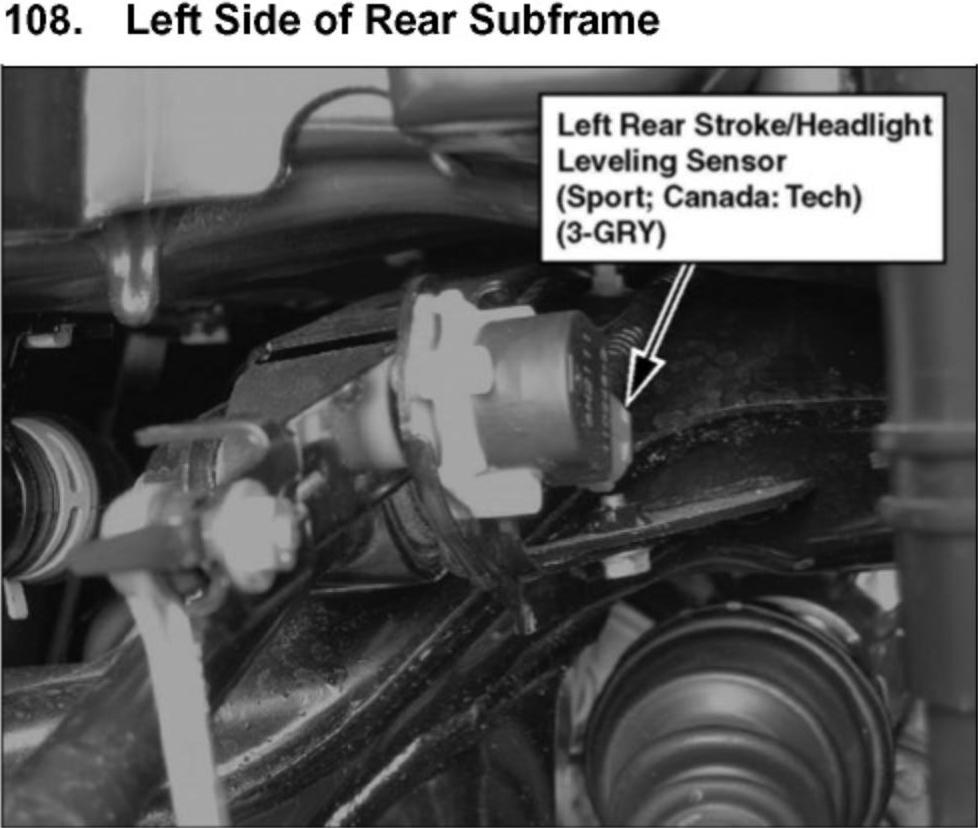

108. Left Side of Rear Subframe:
