Exterior Lights Circuit Diagram

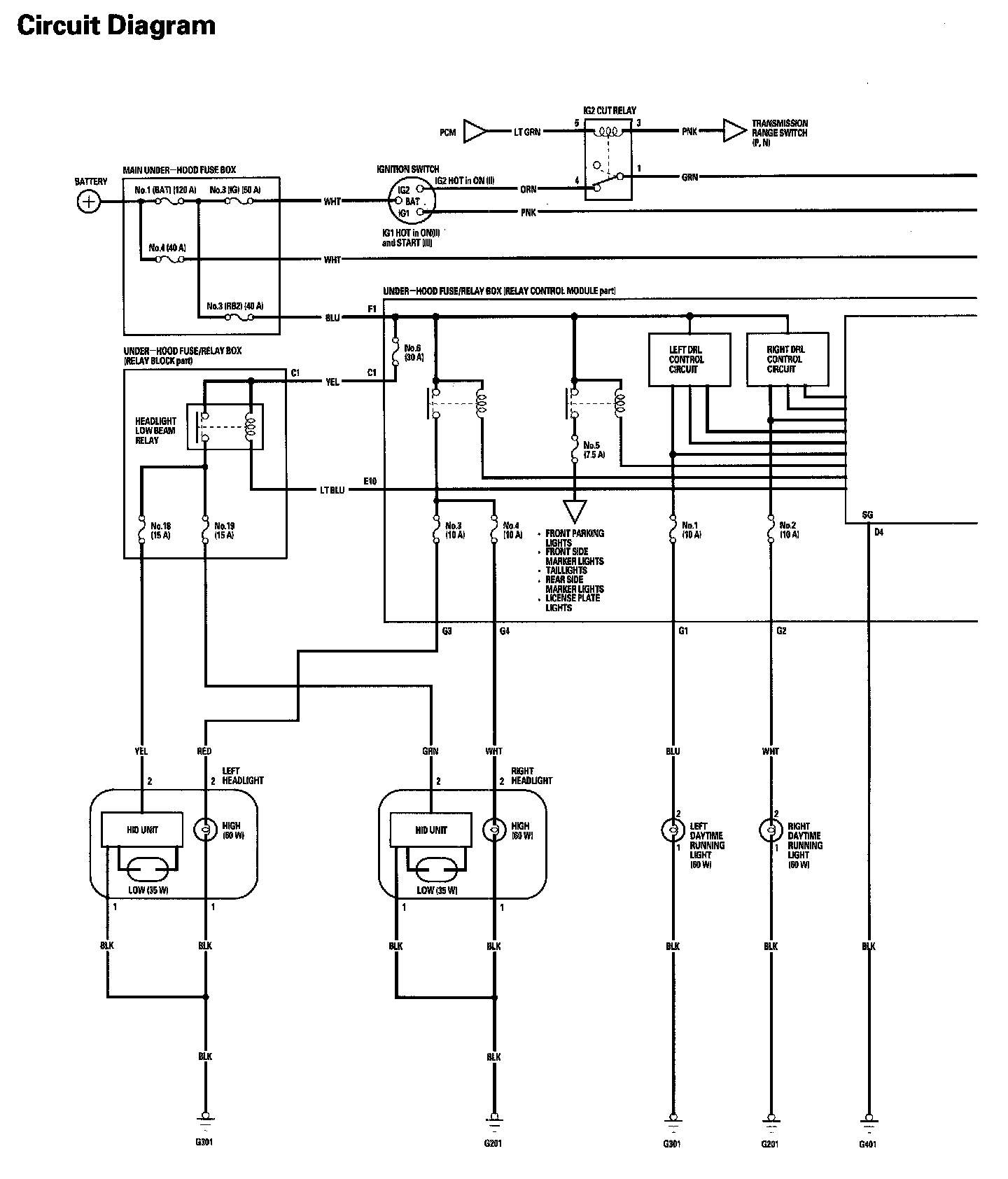

Exterior Lights Circuit Diagram Part 1:

Exterior Lights Circuit Diagram Part 2:

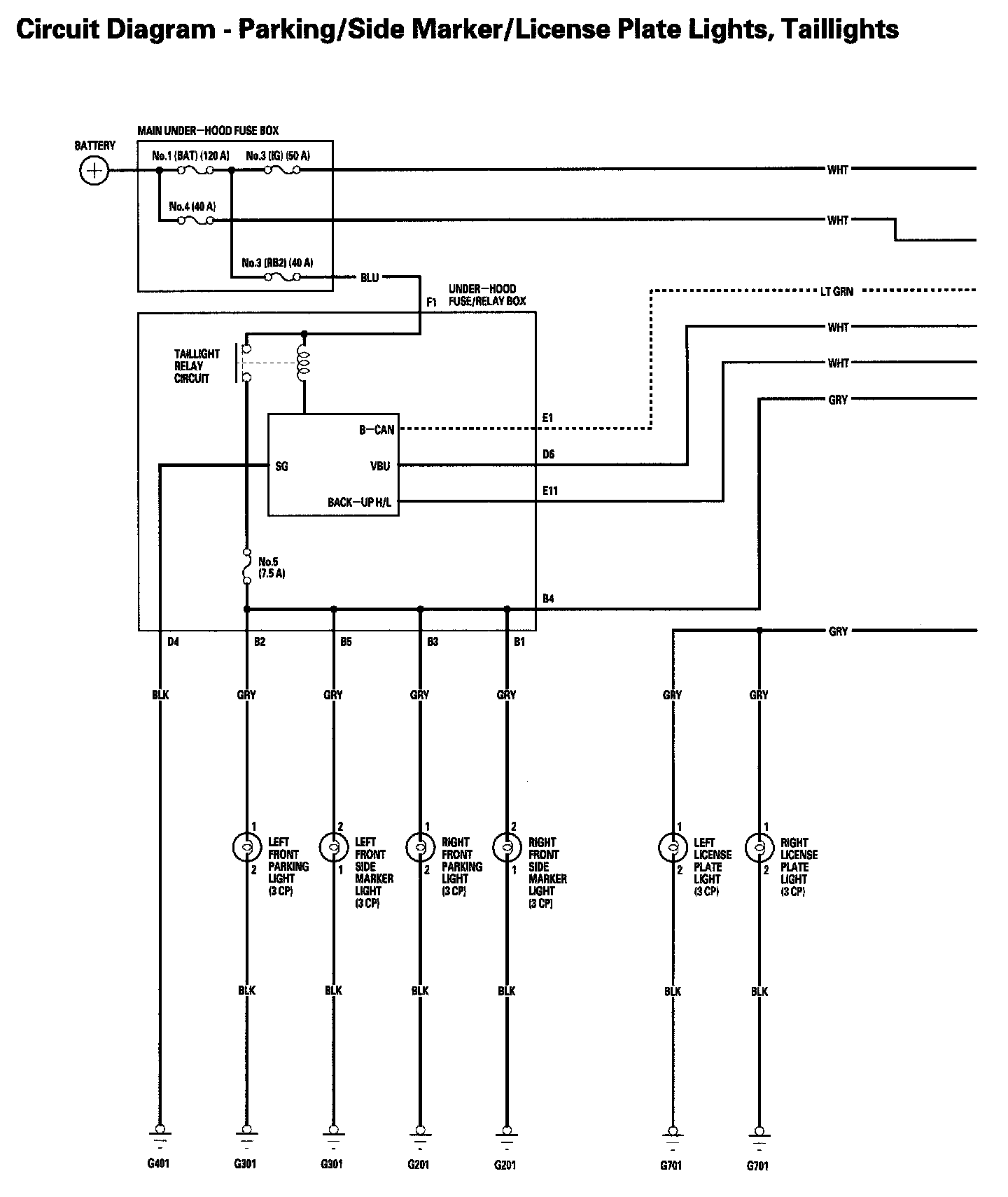

Exterior Lights Circuit Diagram - Parking/Side Marker/License Plate Lights, Taillights Part 1:

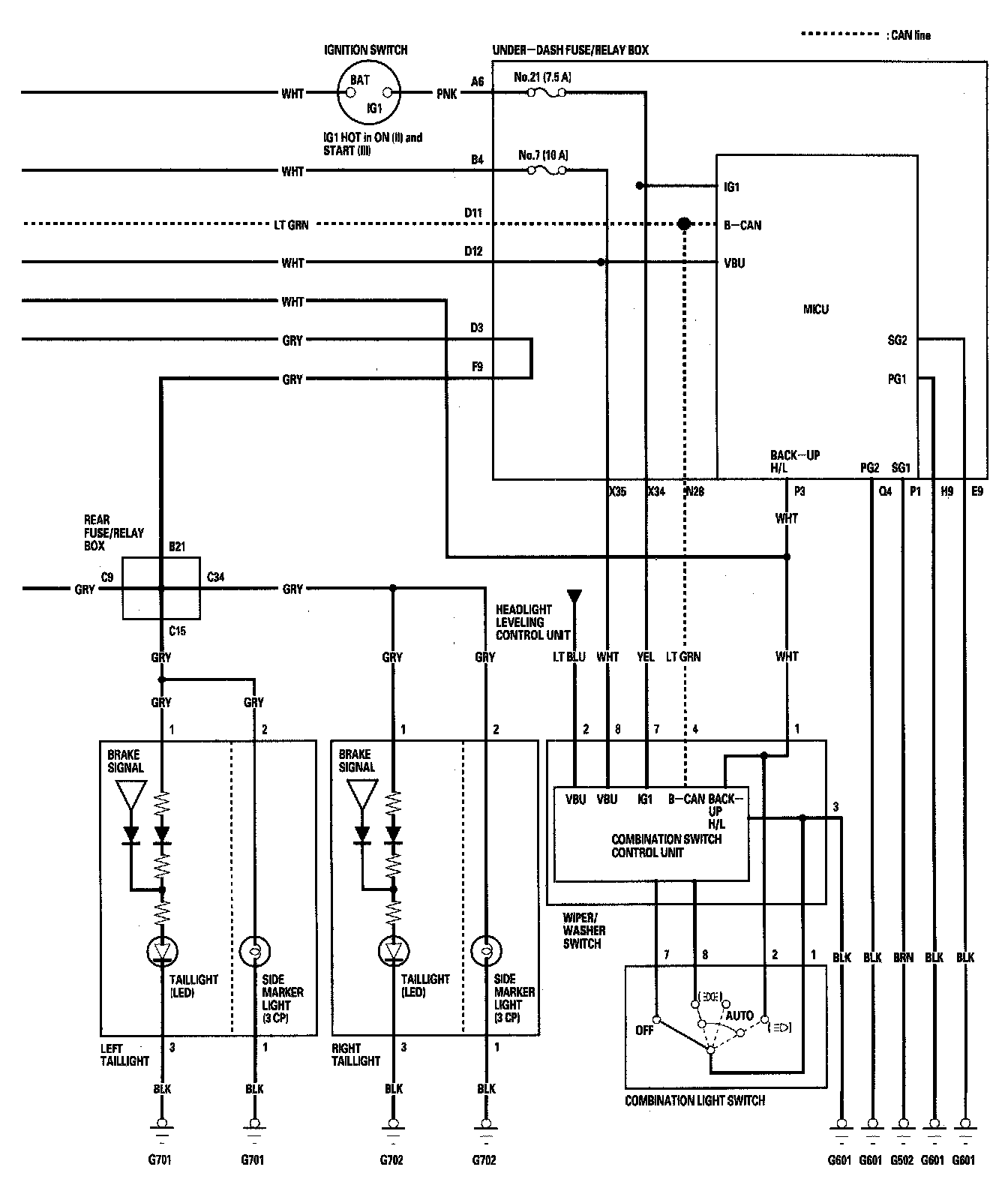

Exterior Lights Circuit Diagram - Parking/Side Marker/License Plate Lights, Taillights Part 2:

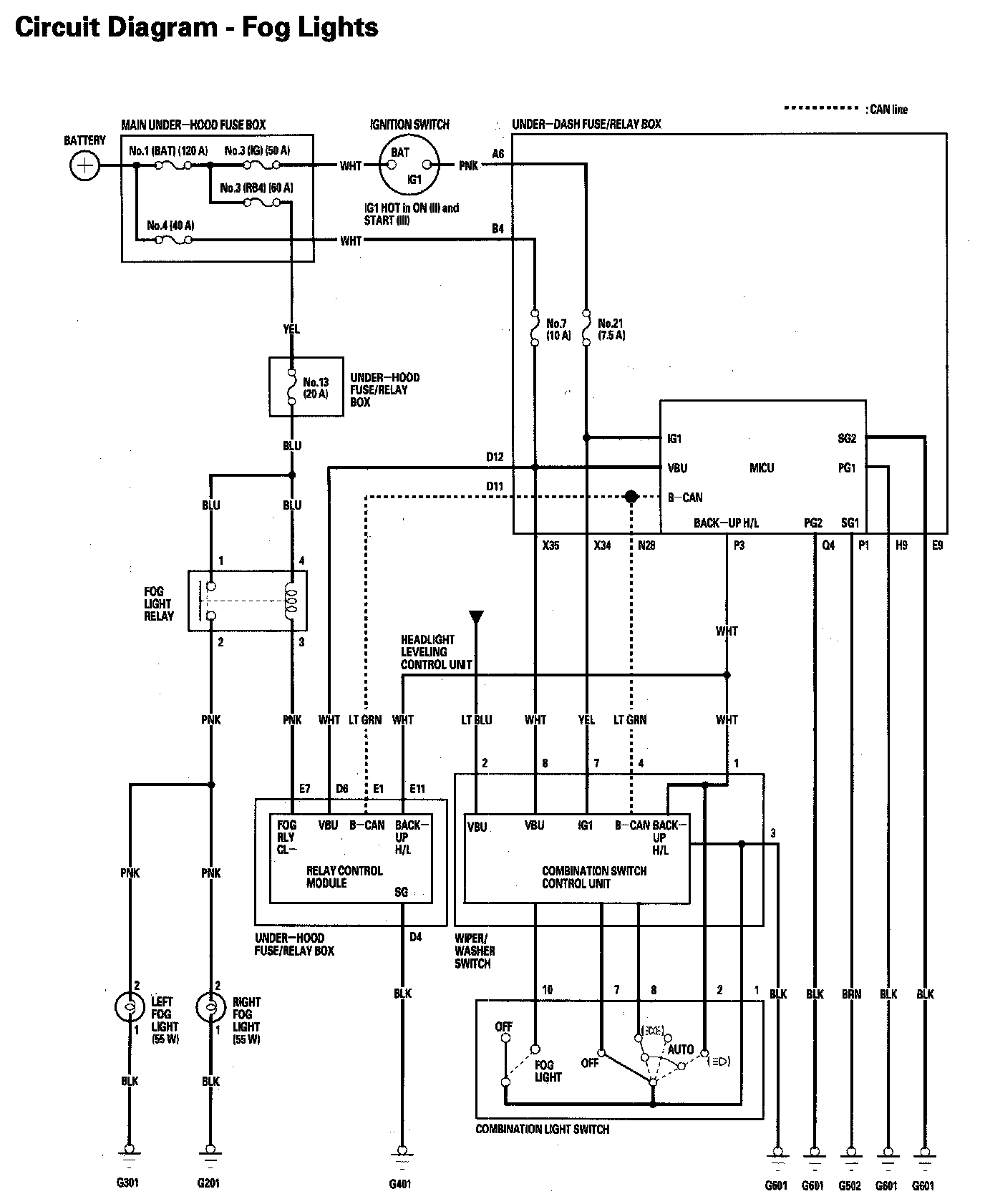

Exterior Lights Circuit Diagram - Fog Lights:

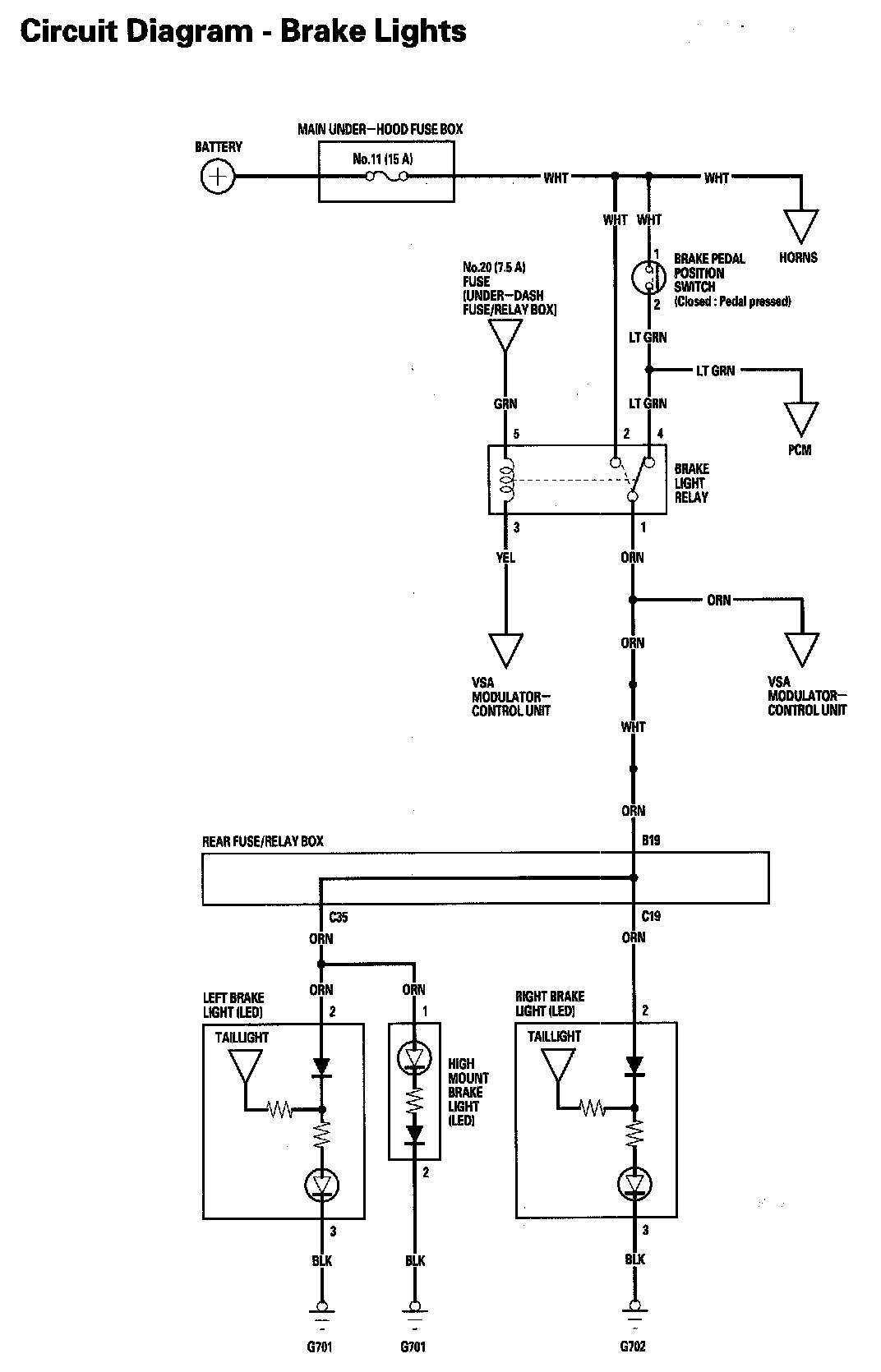

Exterior Lights Circuit Diagram - Brake Lights:

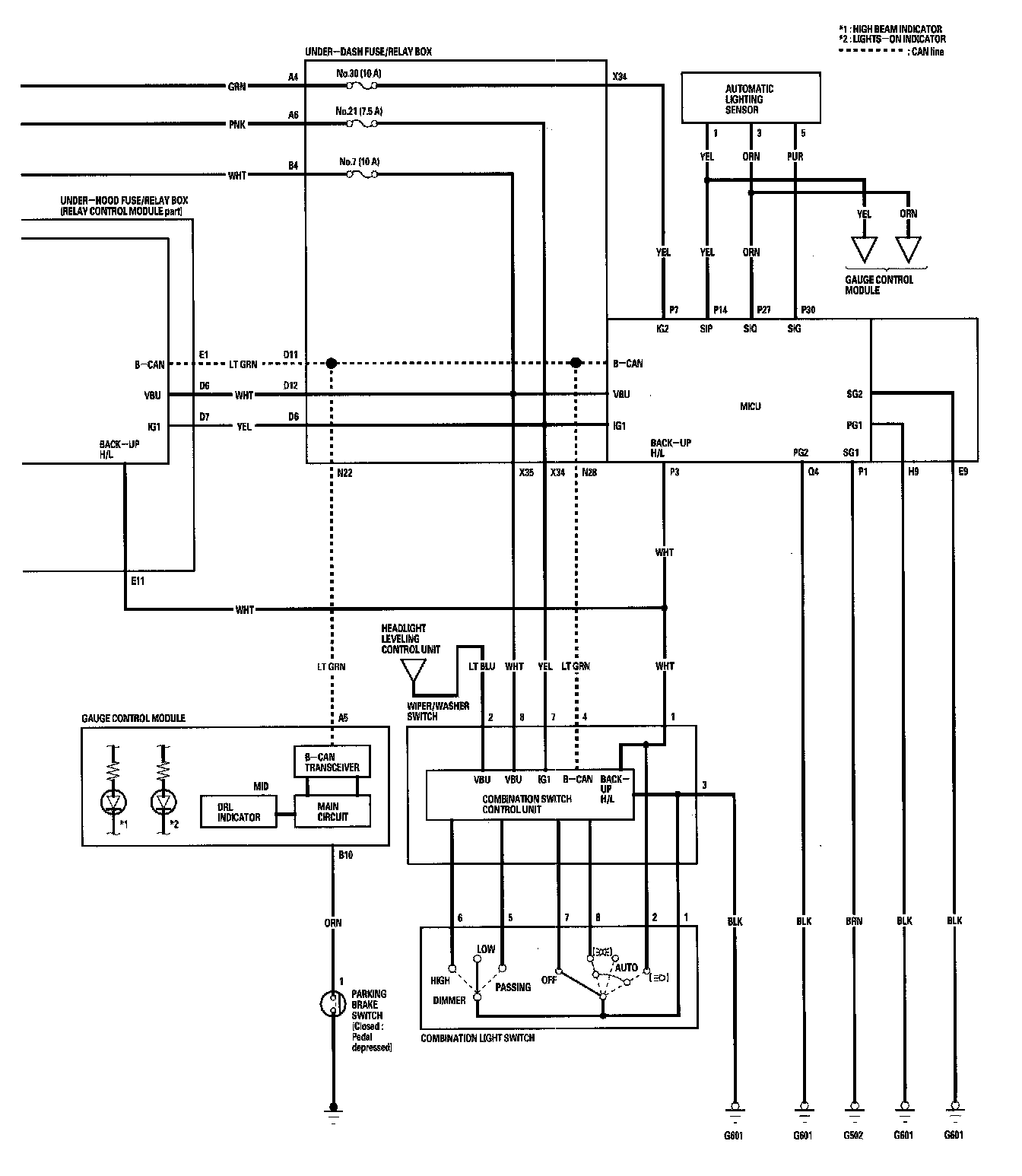

Exterior Lights Circuit Diagram - Back-up Lights:
