Tire Pressure Monitoring System Circuit Diagram

Circuit Diagram

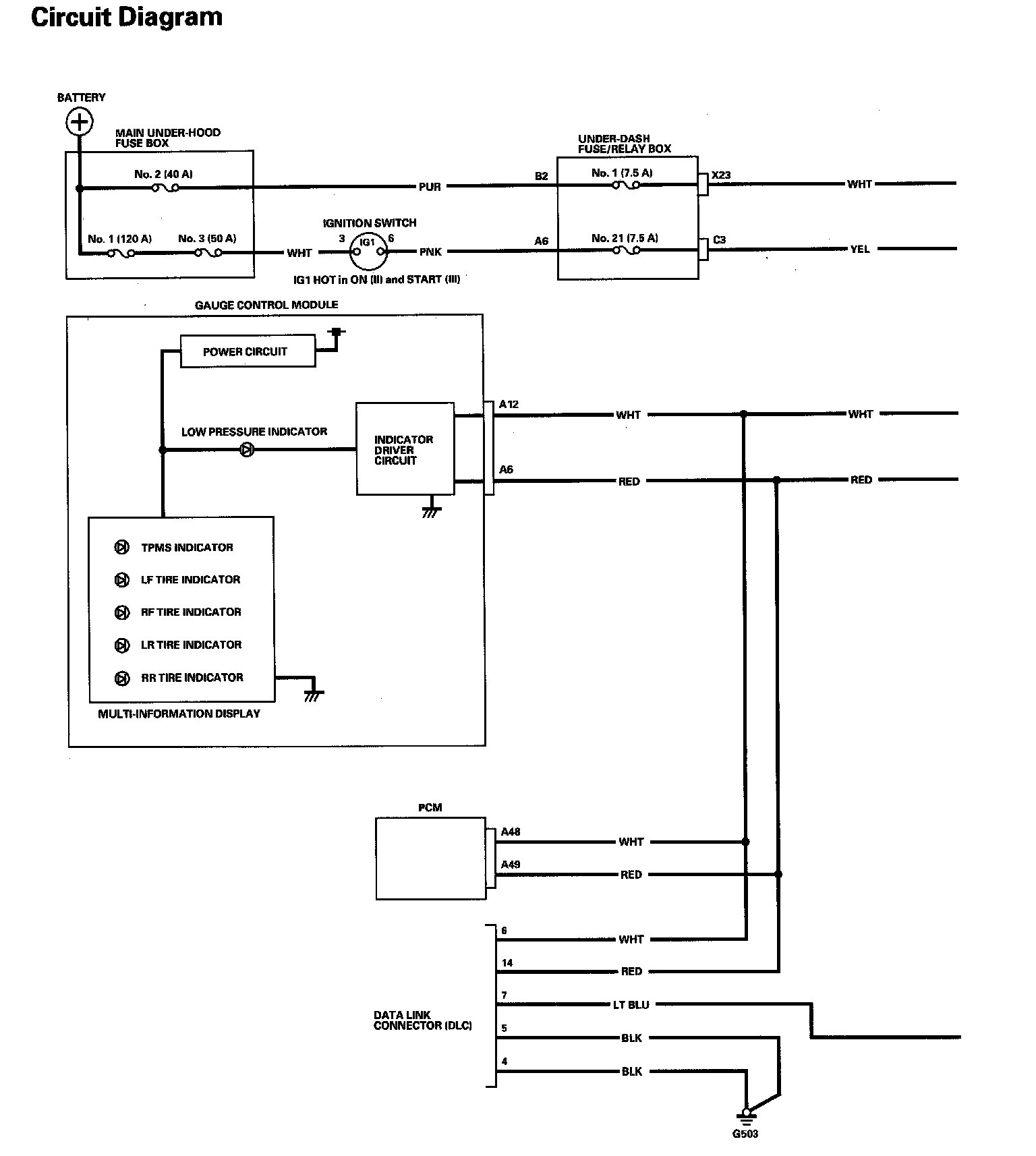

Tire Pressure Monitoring System Circuit Diagram (Part 1):

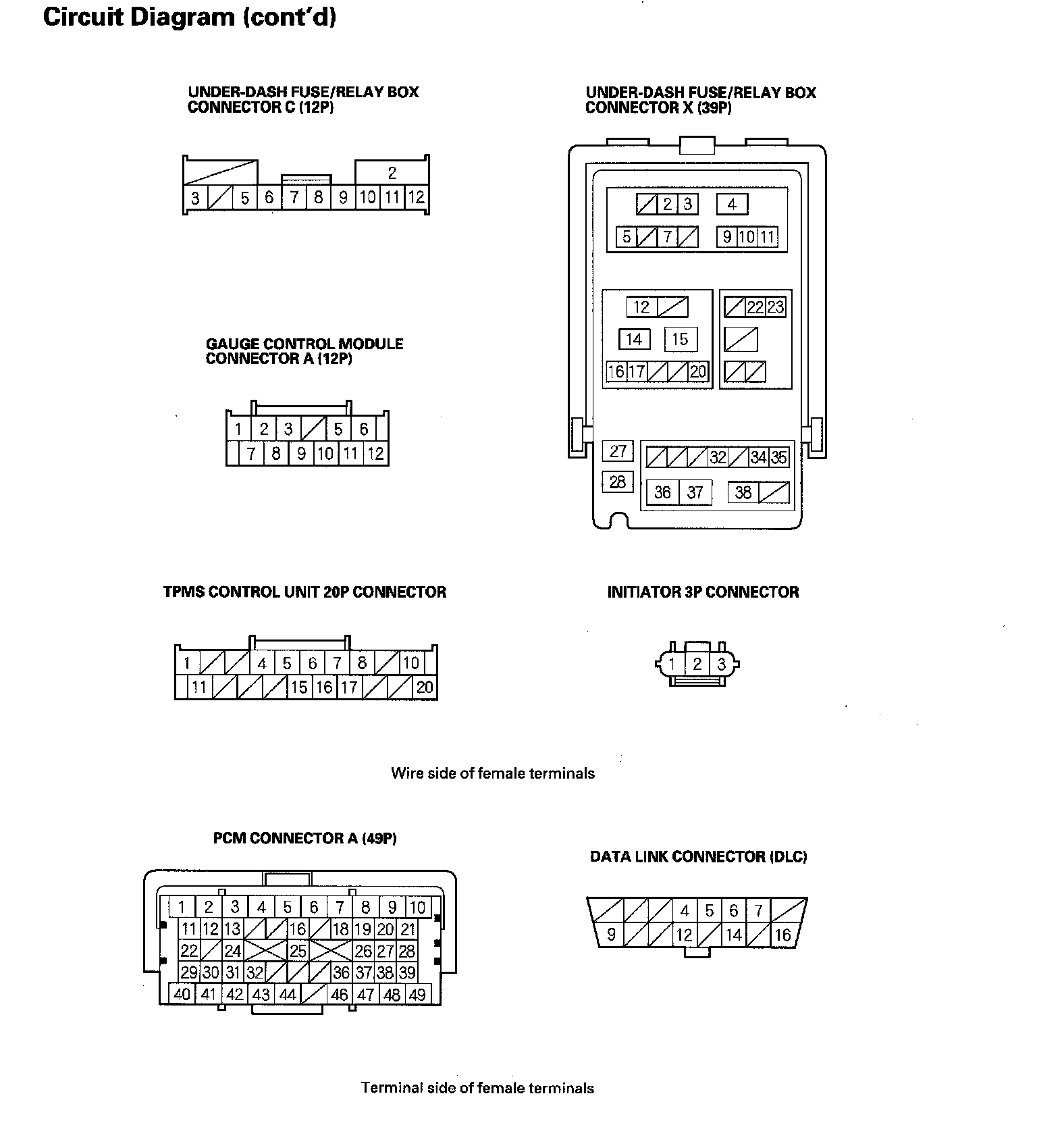

Tire Pressure Monitoring System Circuit Diagram (Part 2):

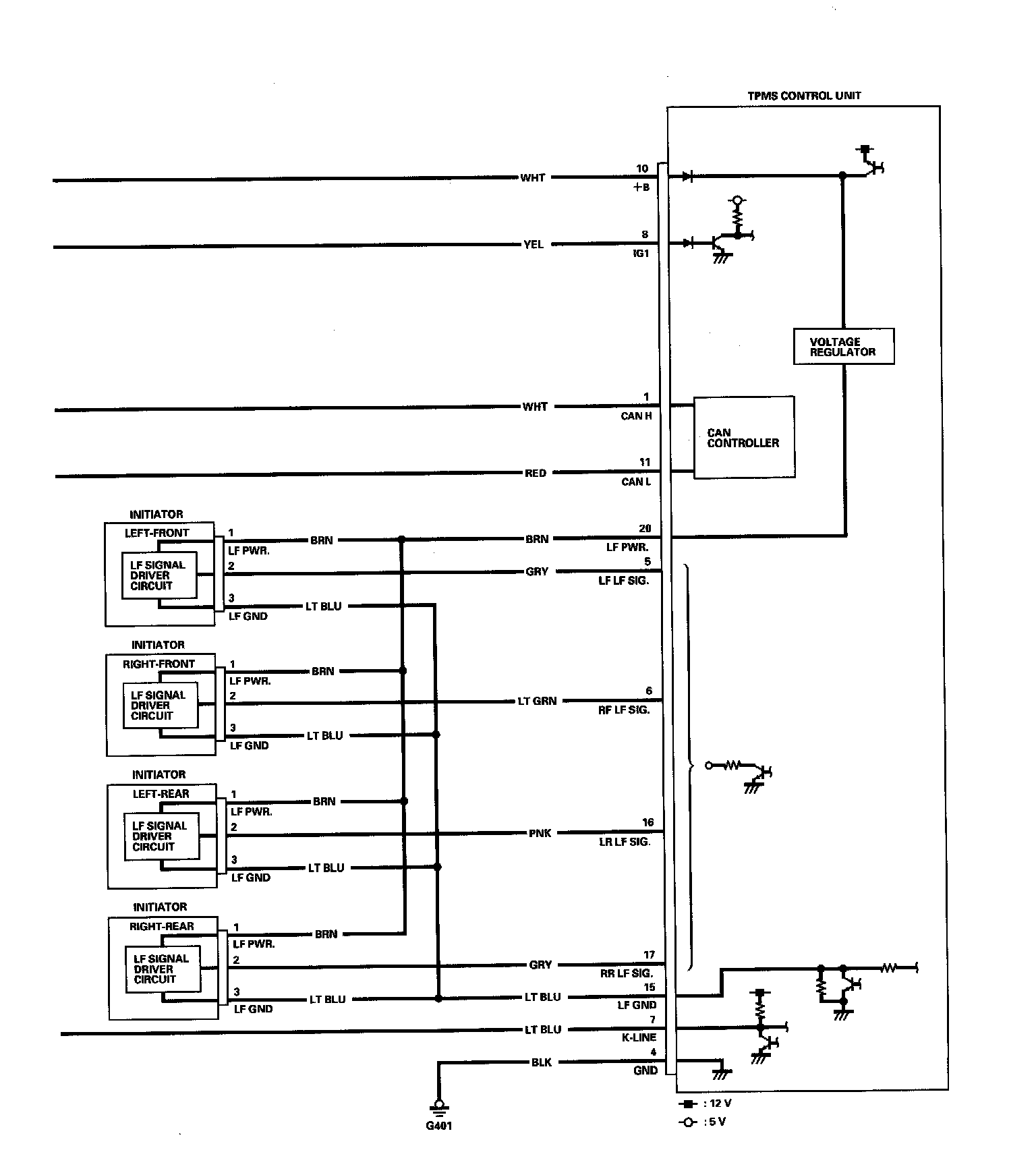

Tire Pressure Monitoring System Circuit Diagram (Part 3):
