Pinout Values and Diagnostic Parameters

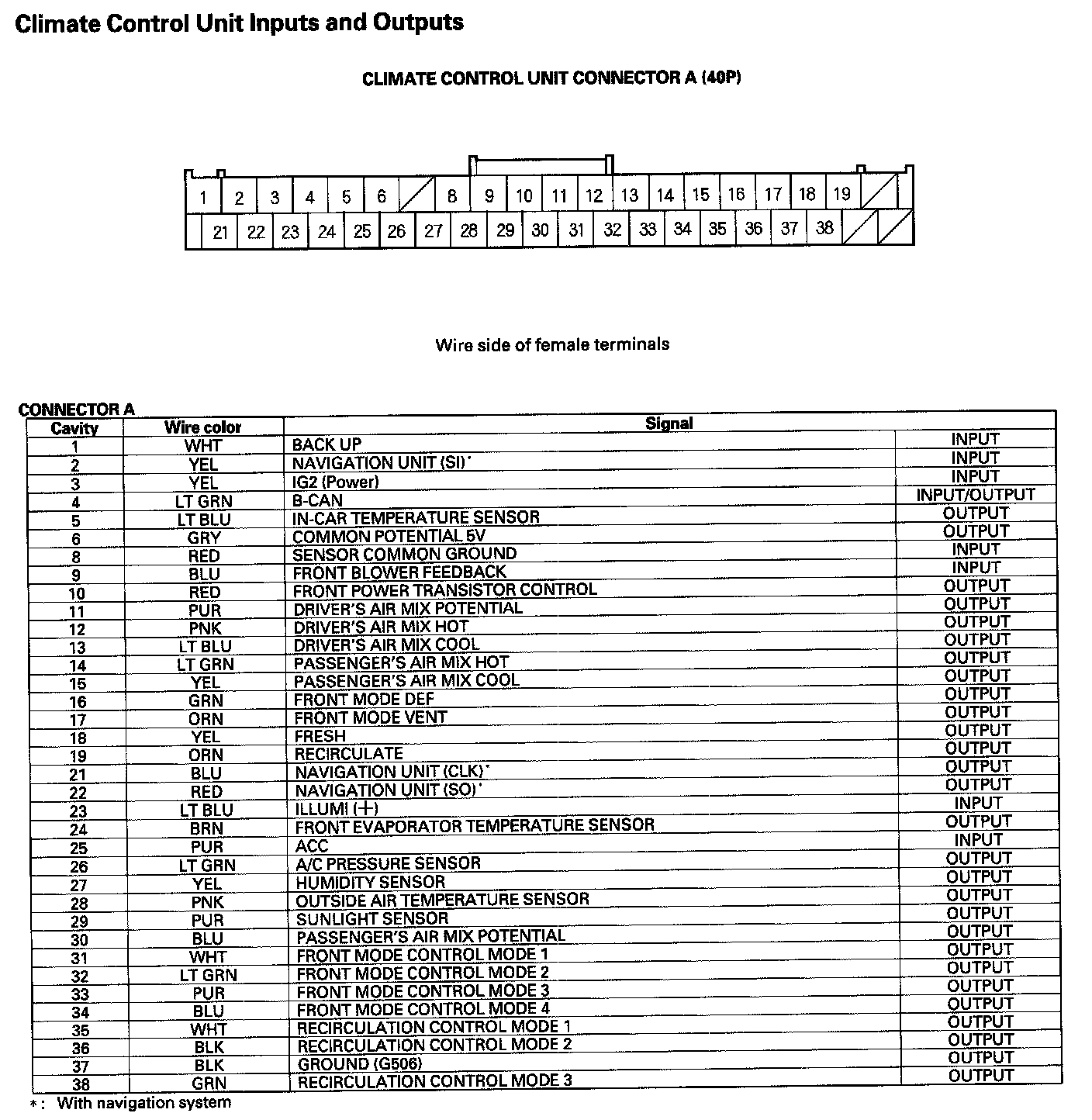

Climate Control Unit Inputs And Outputs Part 1:

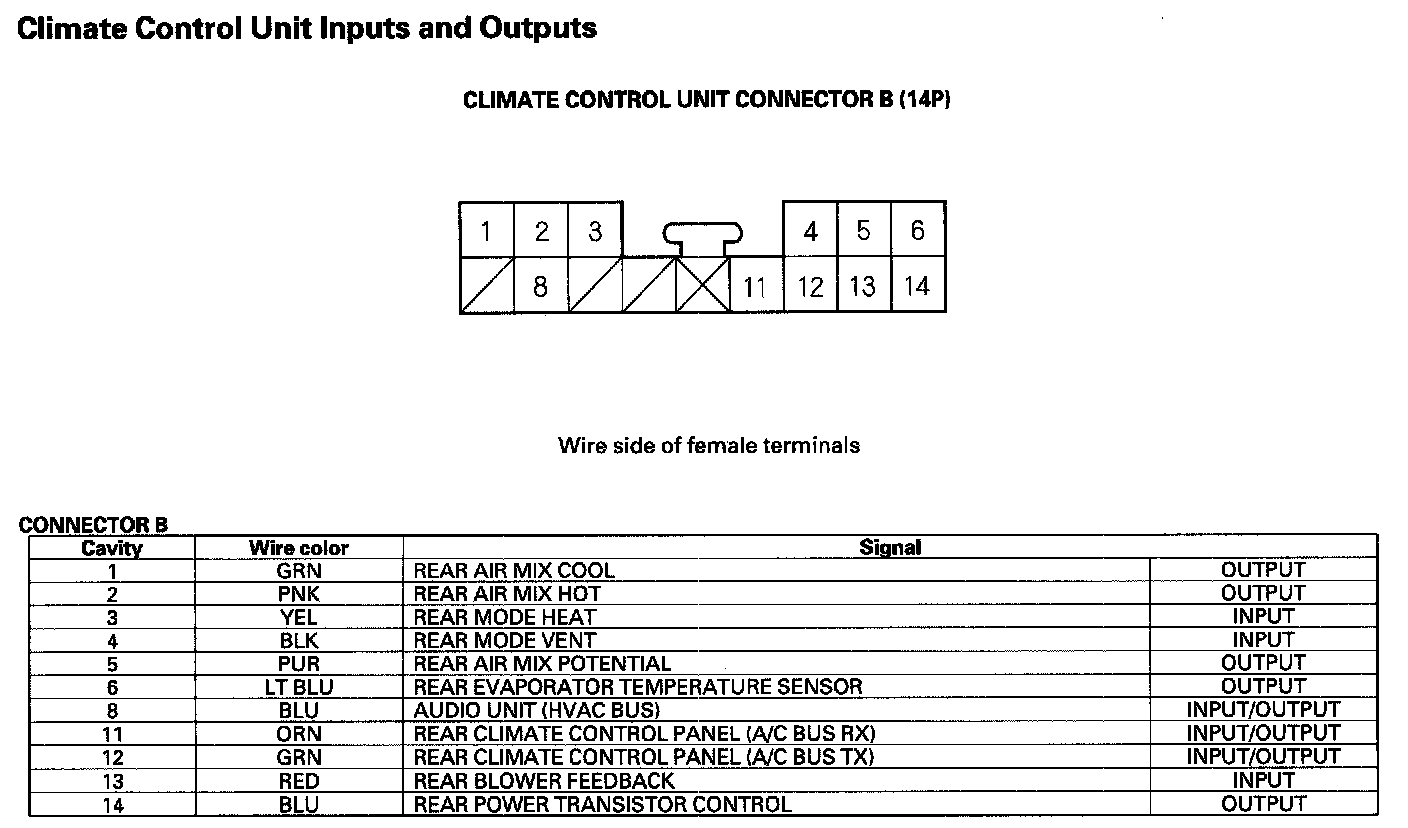

Climate Control Unit Inputs And Outputs Part 2:



Rear Climate Control Unit Inputs And Outputs:
