Auto-tensioner Replacement

Drive Belt Auto-tensioner Replacement

1. Remove the drive belt
2. Remove the splash shield

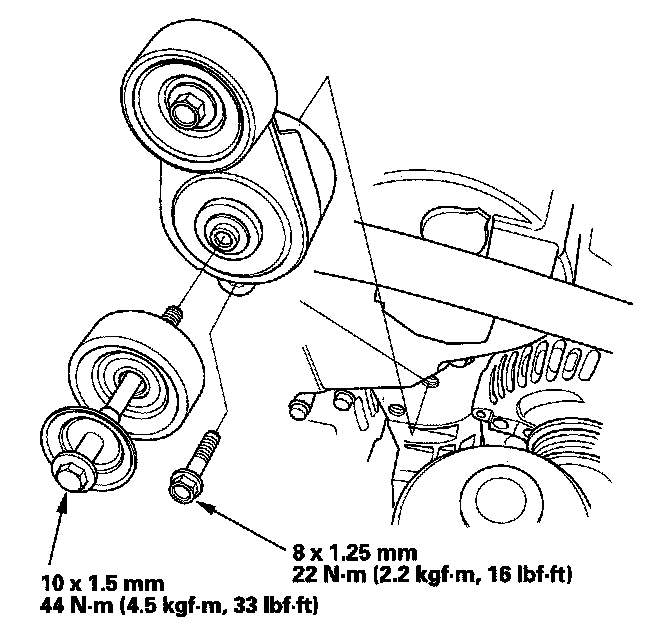

3. Remove the auto-tensioner.
4. Install the auto-tensioner in the reverse order of removal.
