Cylinder Block Assembly: Diagrams

Component Location Index

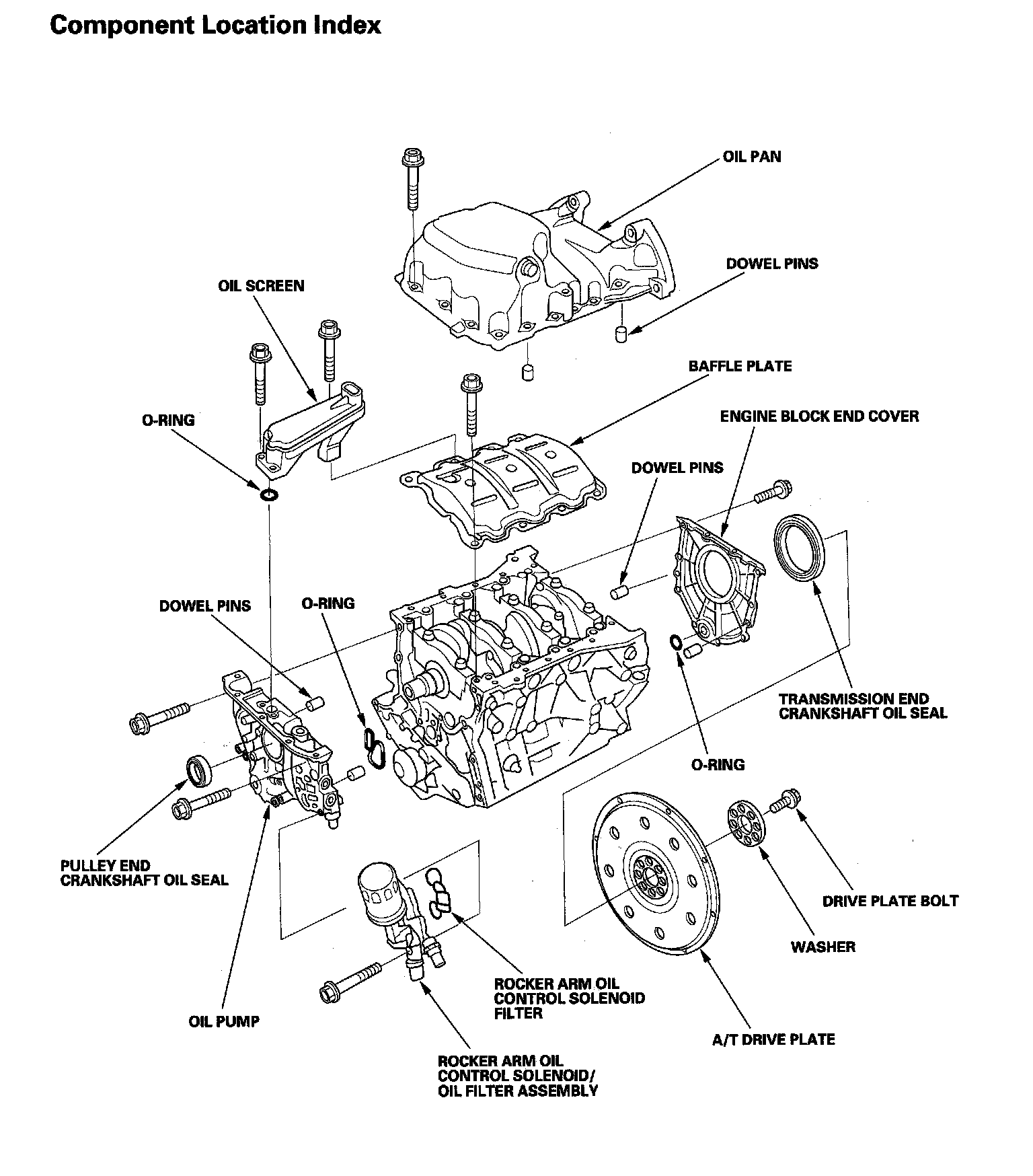

Engine Block Component Location Index (Part 1):

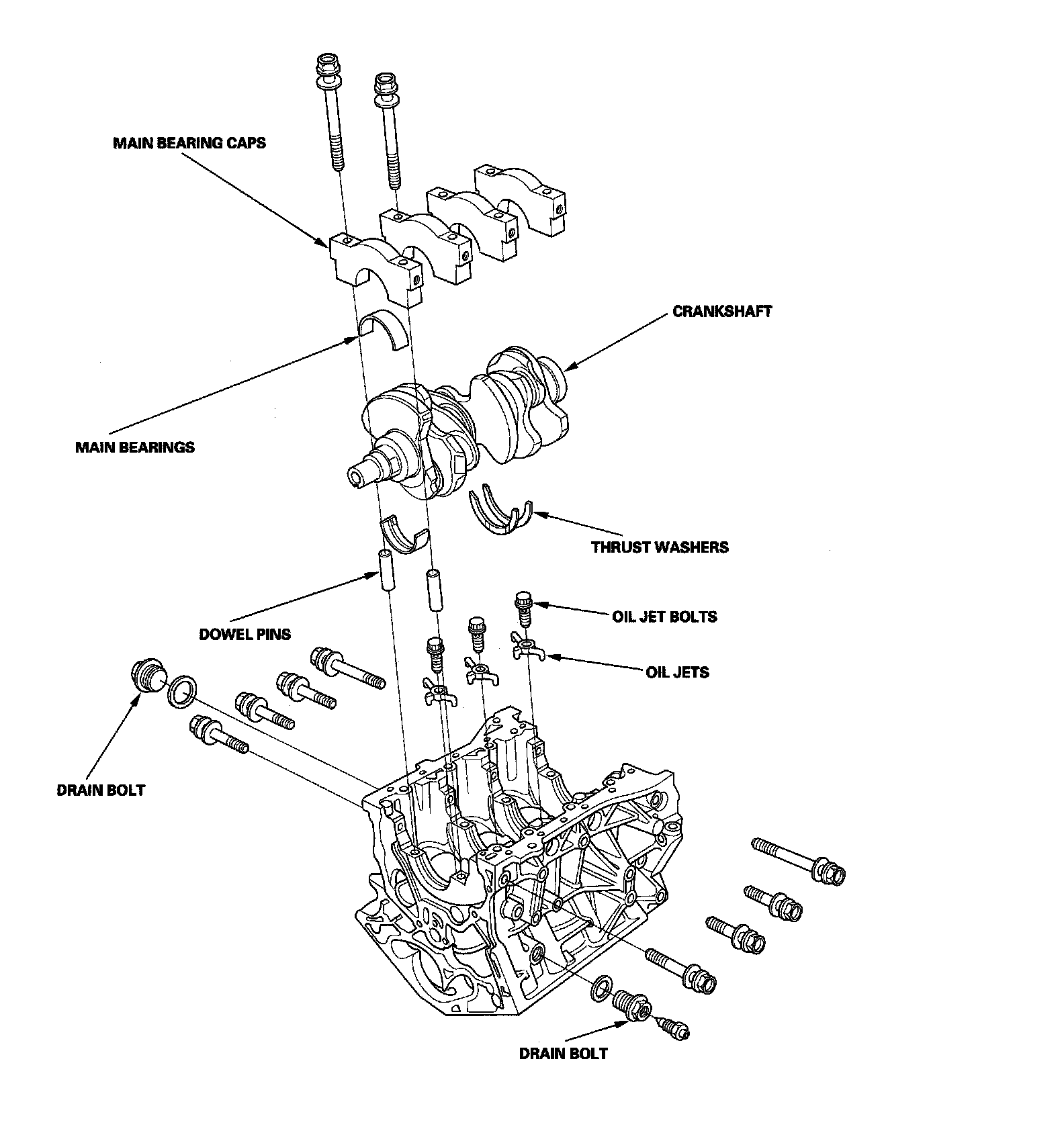

Engine Block Component Location Index (Part 2):

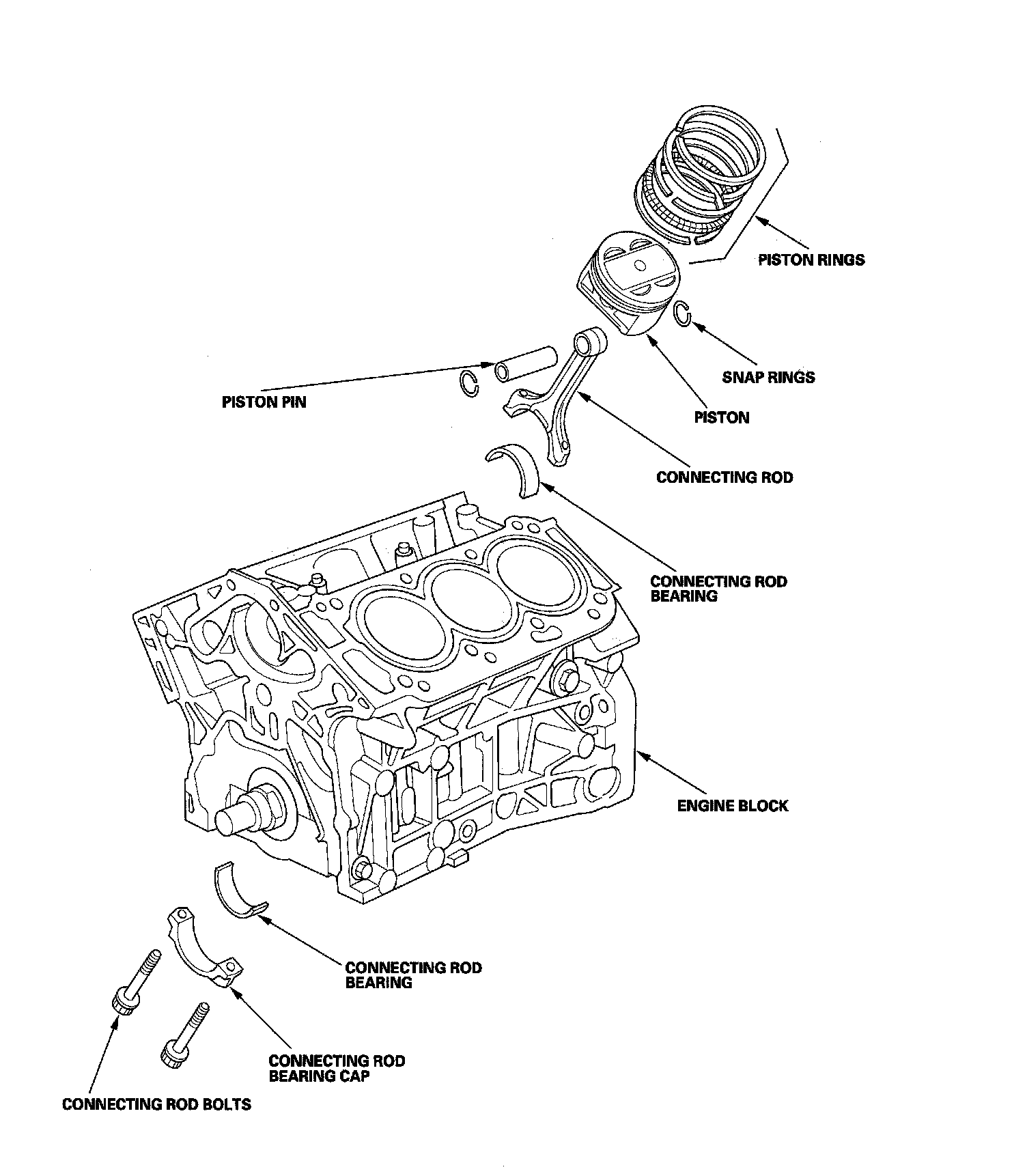

Engine Block Component Location Index (Part 3):
