Part 1 of 2

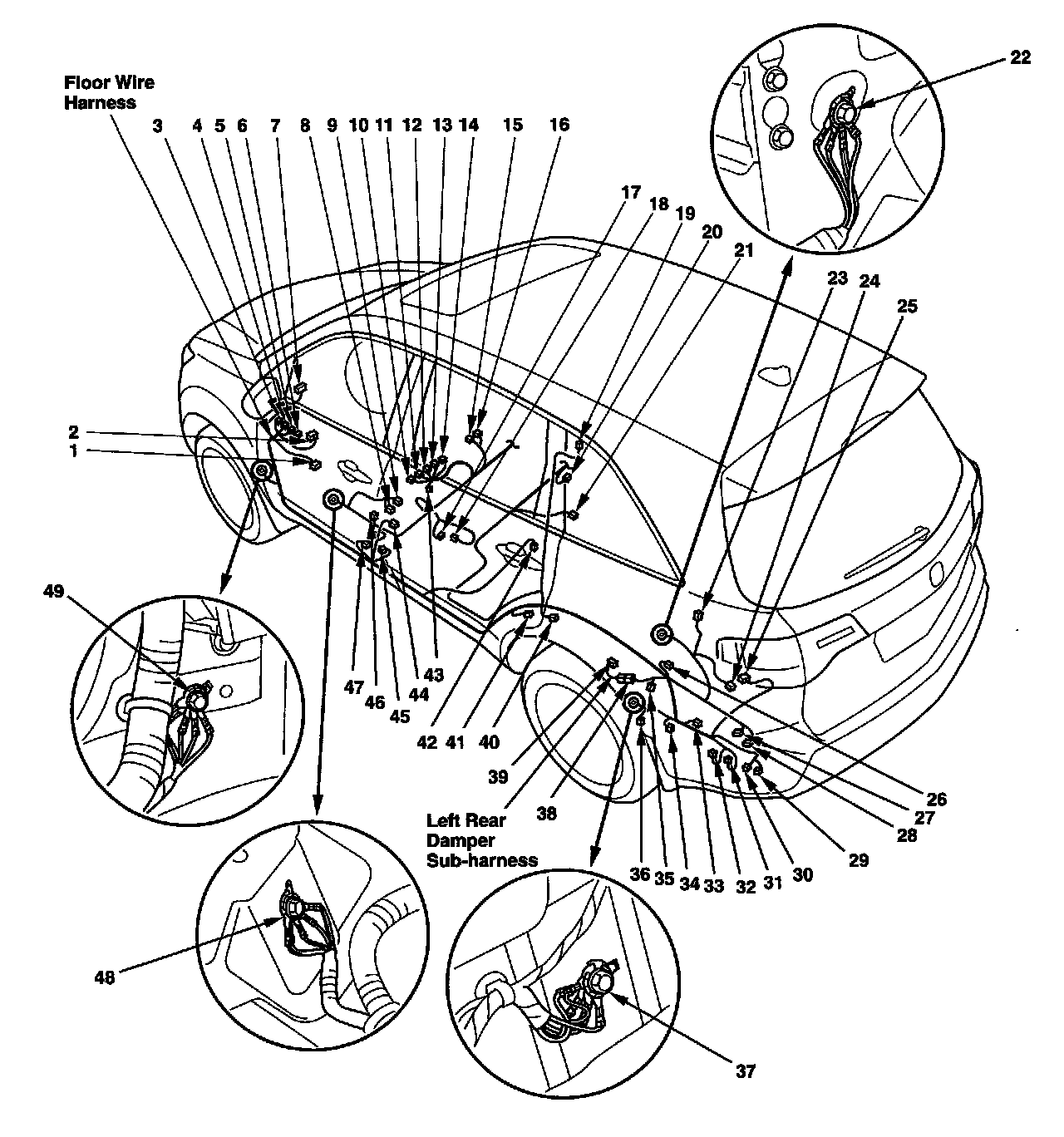

Harness Location View:

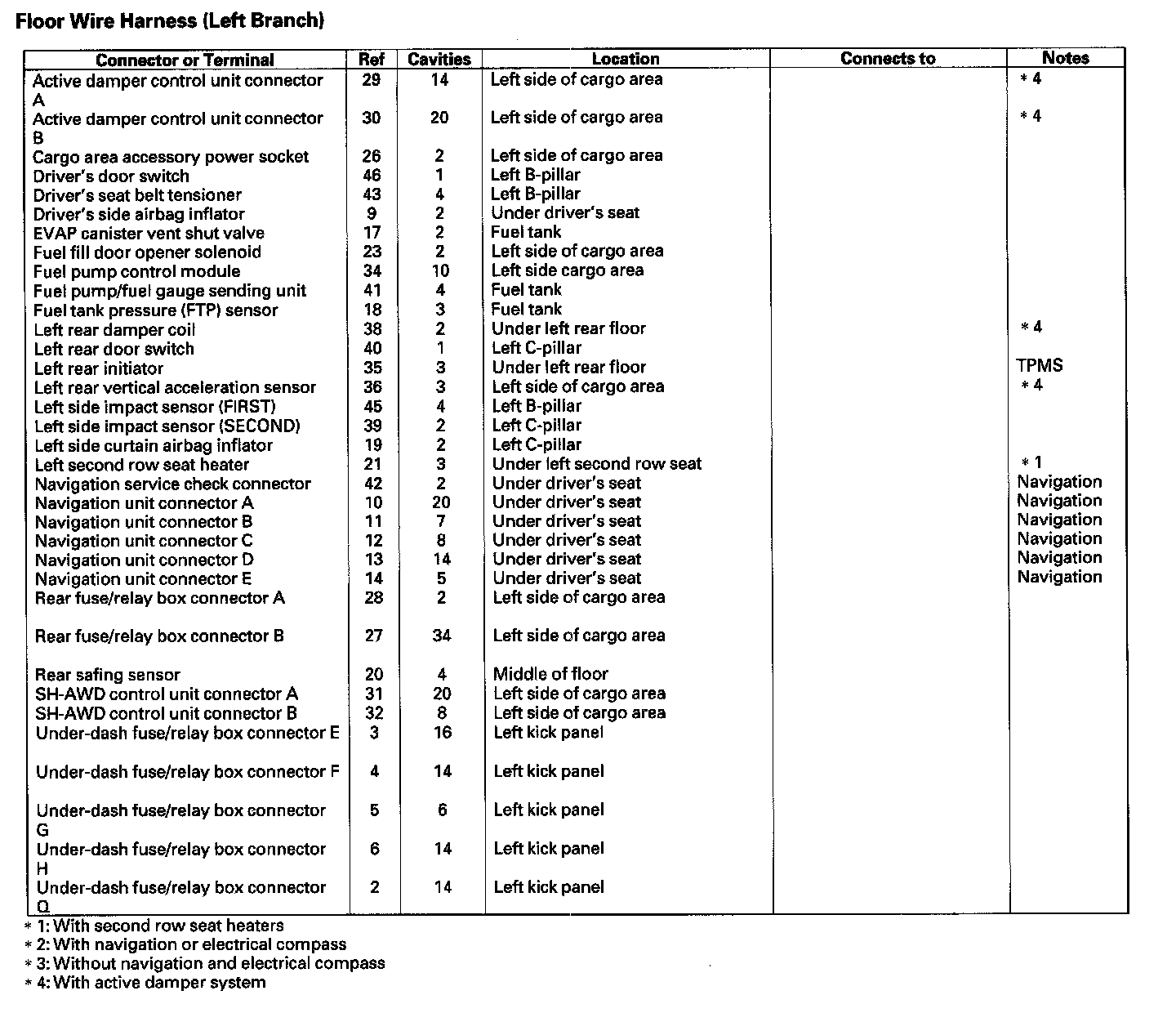

Floor Wire Harness (Left Branch):

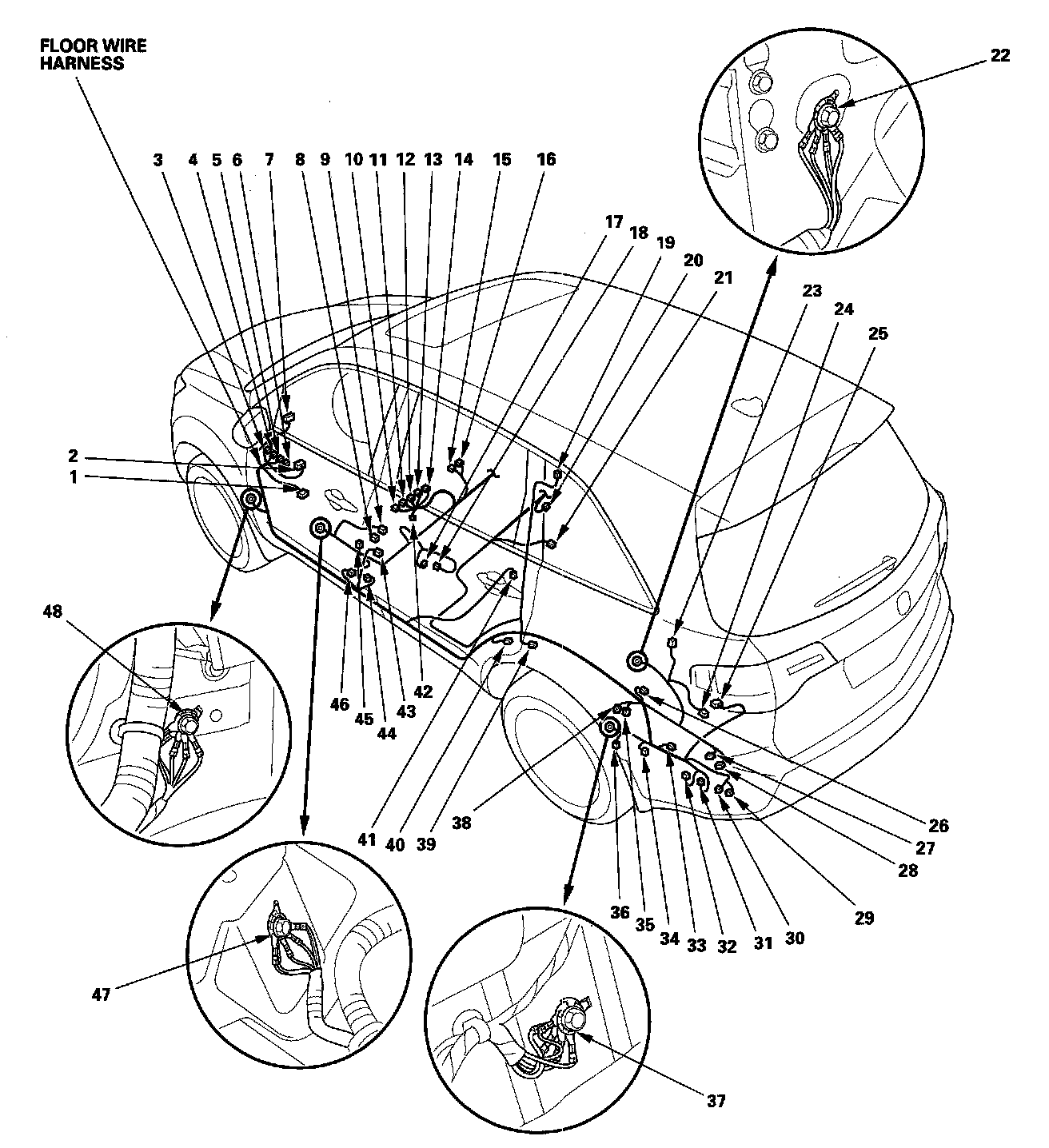

Harness Location View:

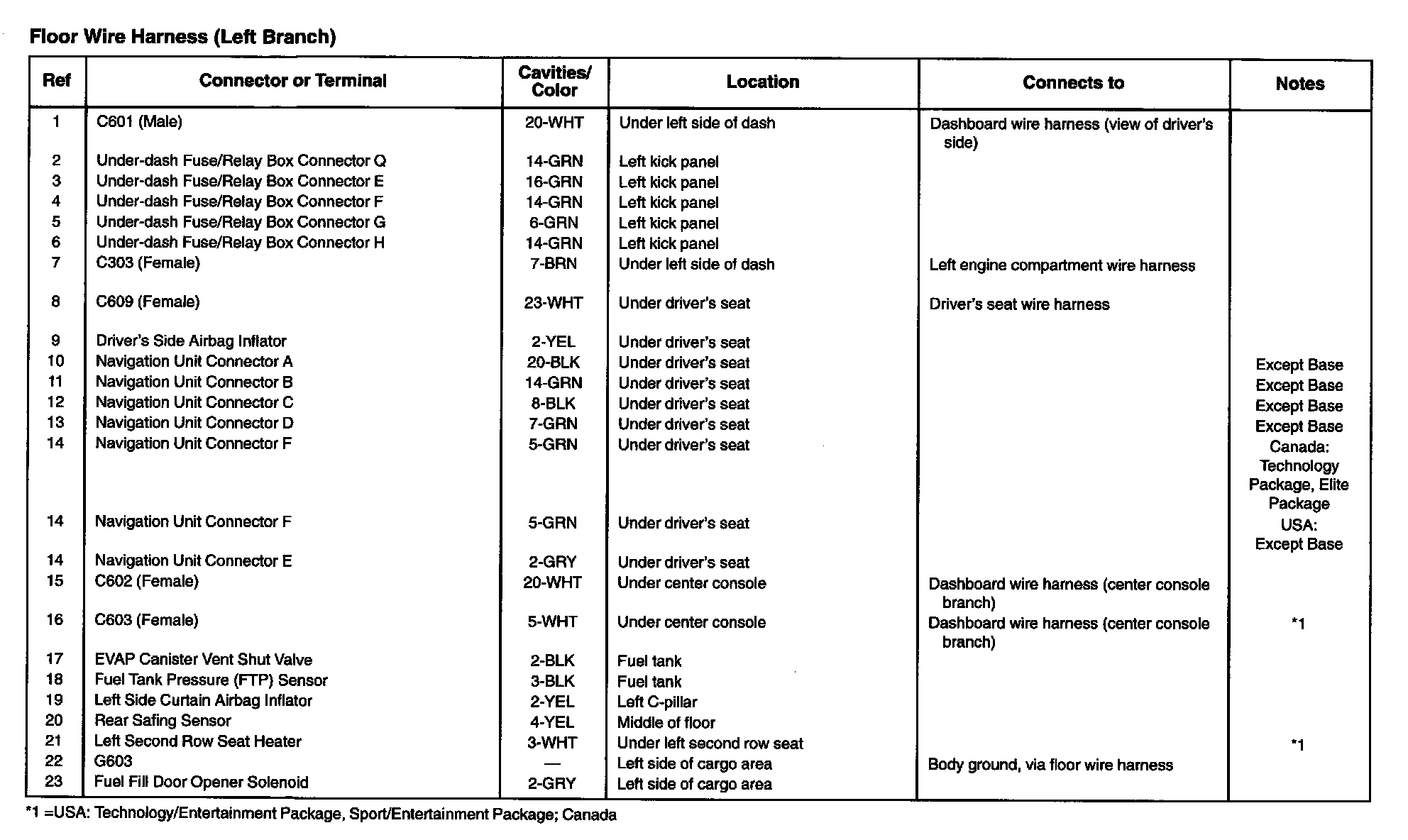

Floor Wire Harness (Left Branch):
