Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Wipers/Washers Circuit Diagram

Wipers/Washers Circuit Diagram

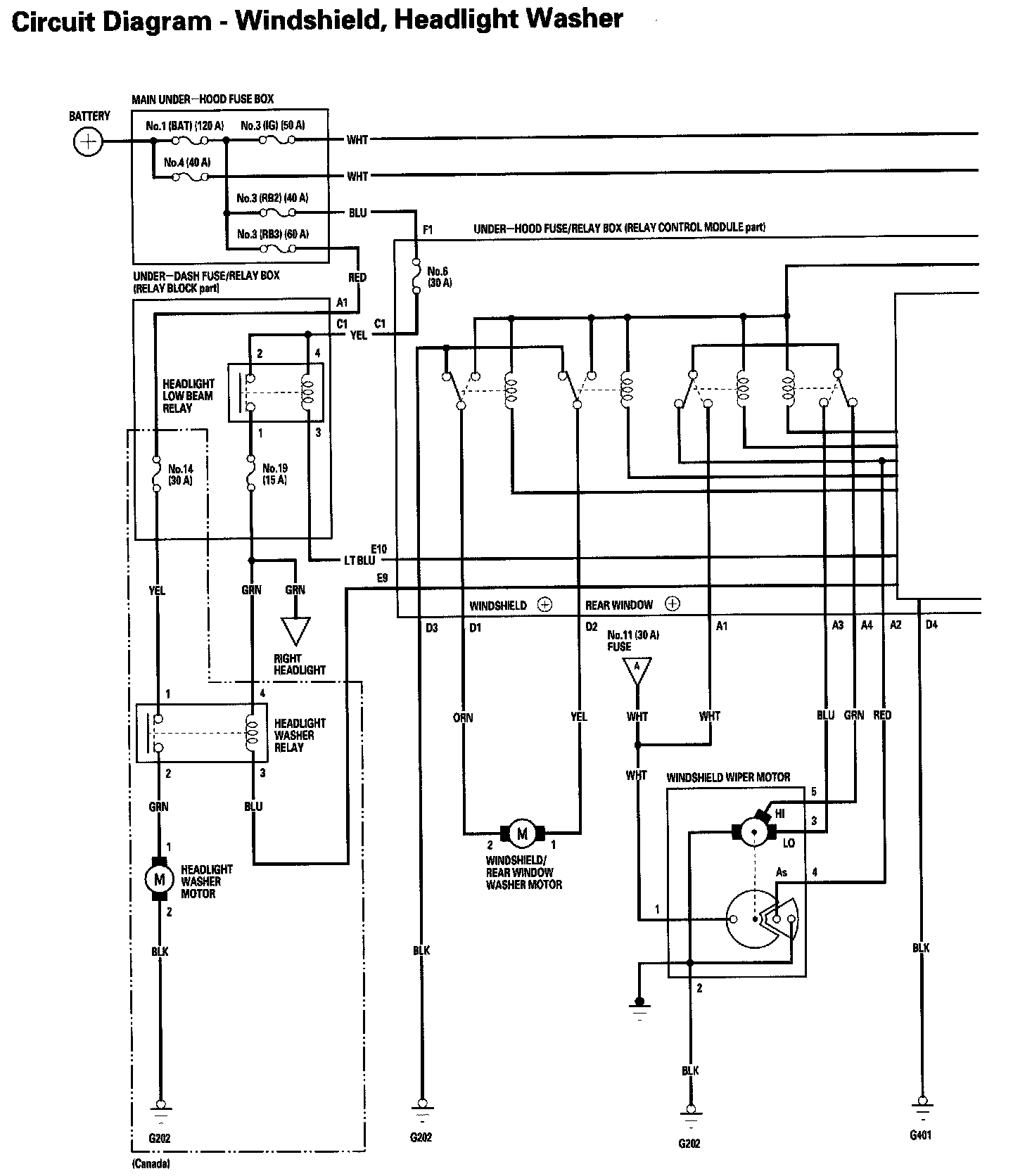

Wipers/Washers Circuit Diagram - Windshield, Headlight Washer Part 1:

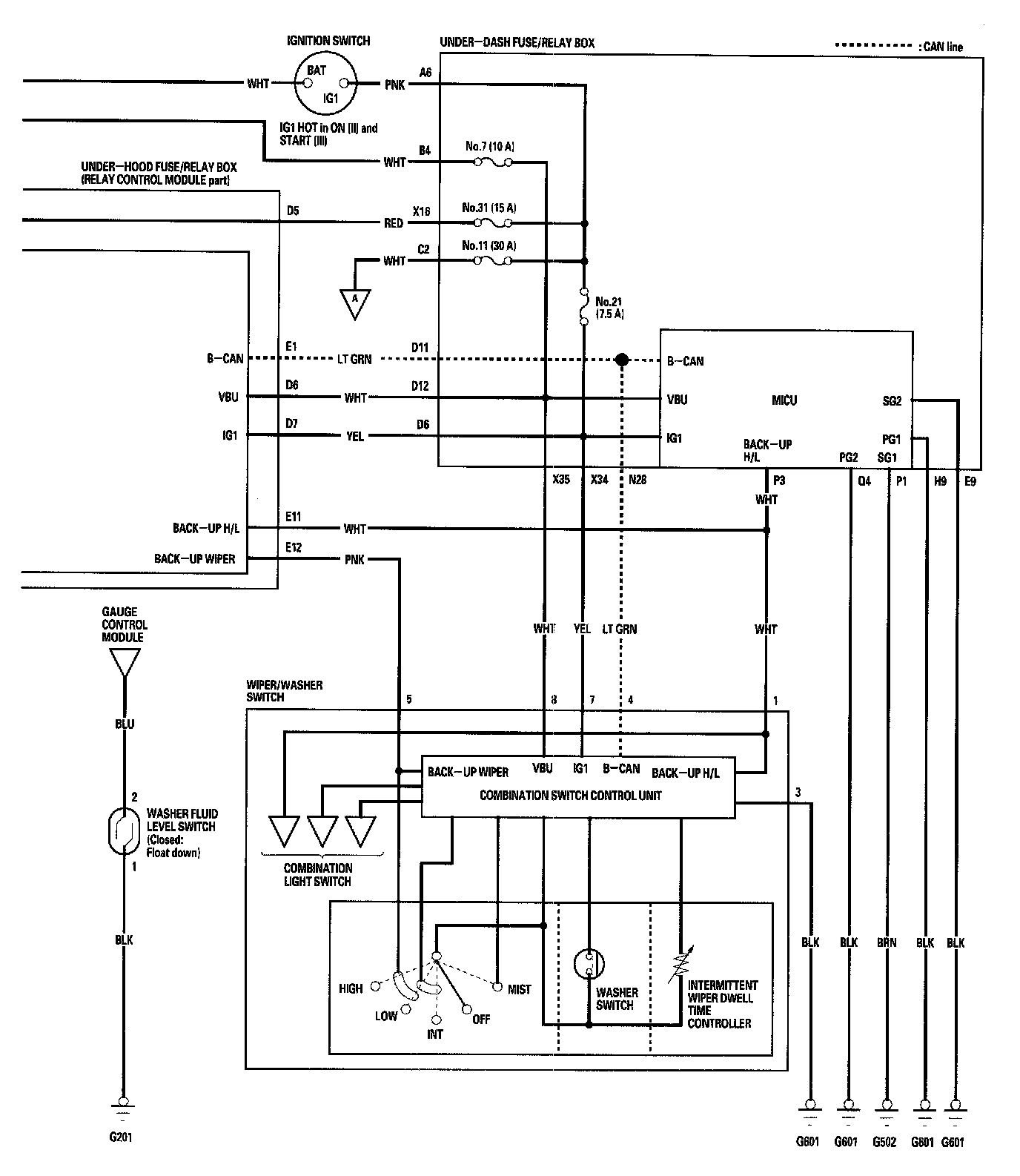

Wipers/Washers Circuit Diagram - Windshield, Headlight Washer Part 2:

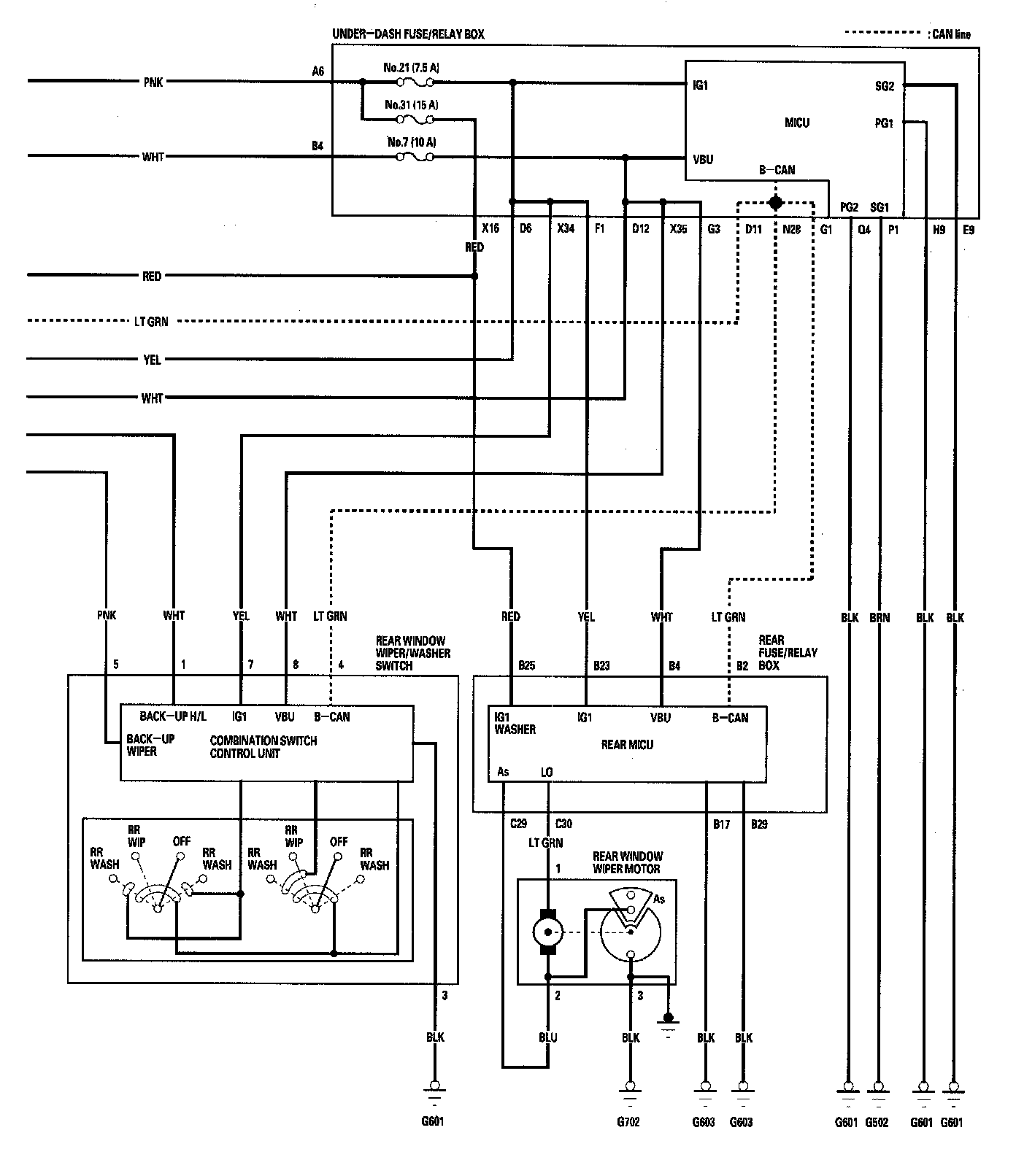

Wipers/Washers Circuit Diagram - Rear Window Part 1:



Wipers/Washers Circuit Diagram - Rear Window Part 2:
