Power Windows Circuit Diagram
Power Windows Circuit Diagram

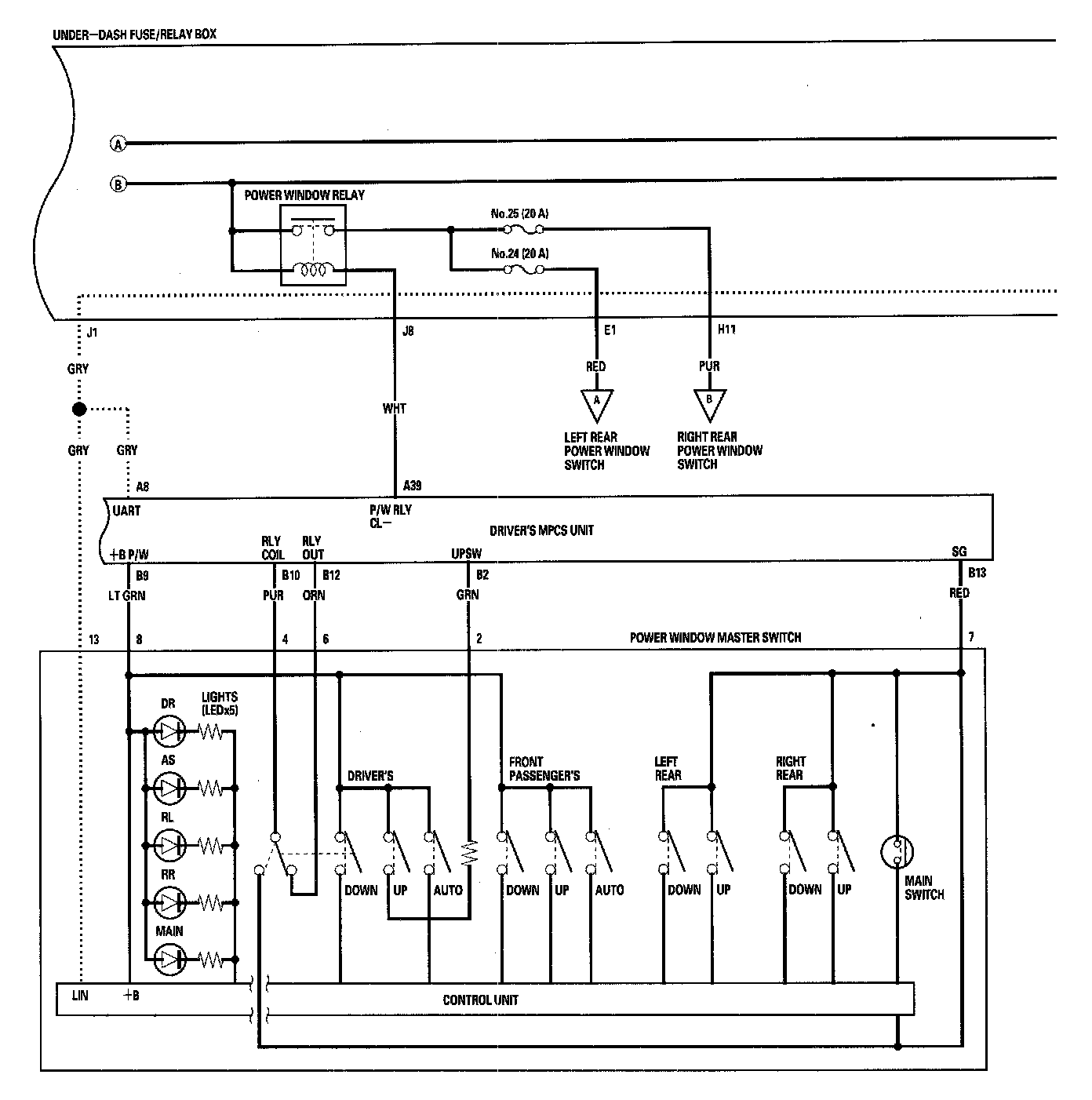

Power Windows Circuit Diagram Part 1:

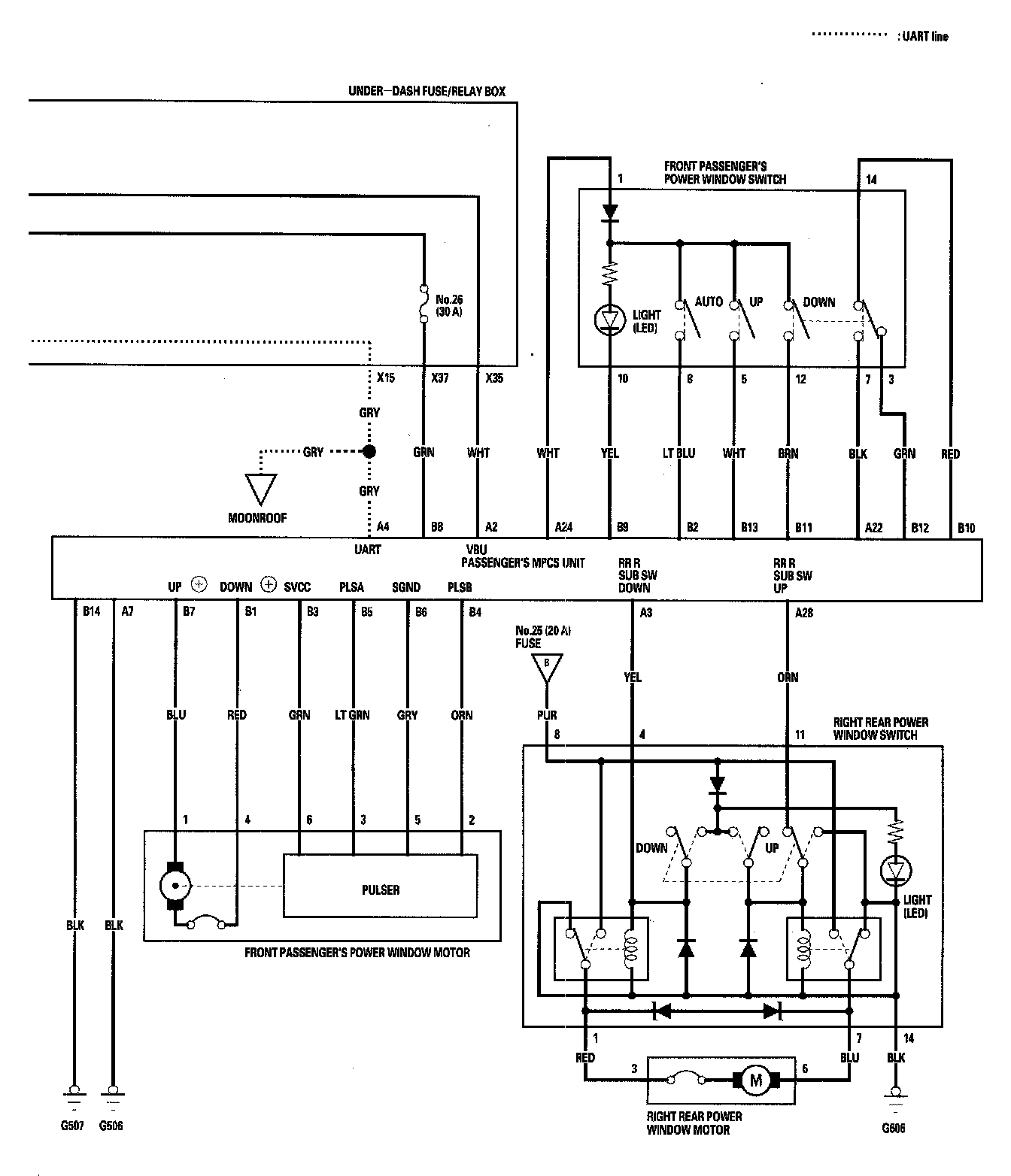

Power Windows Circuit Diagram Part 2:

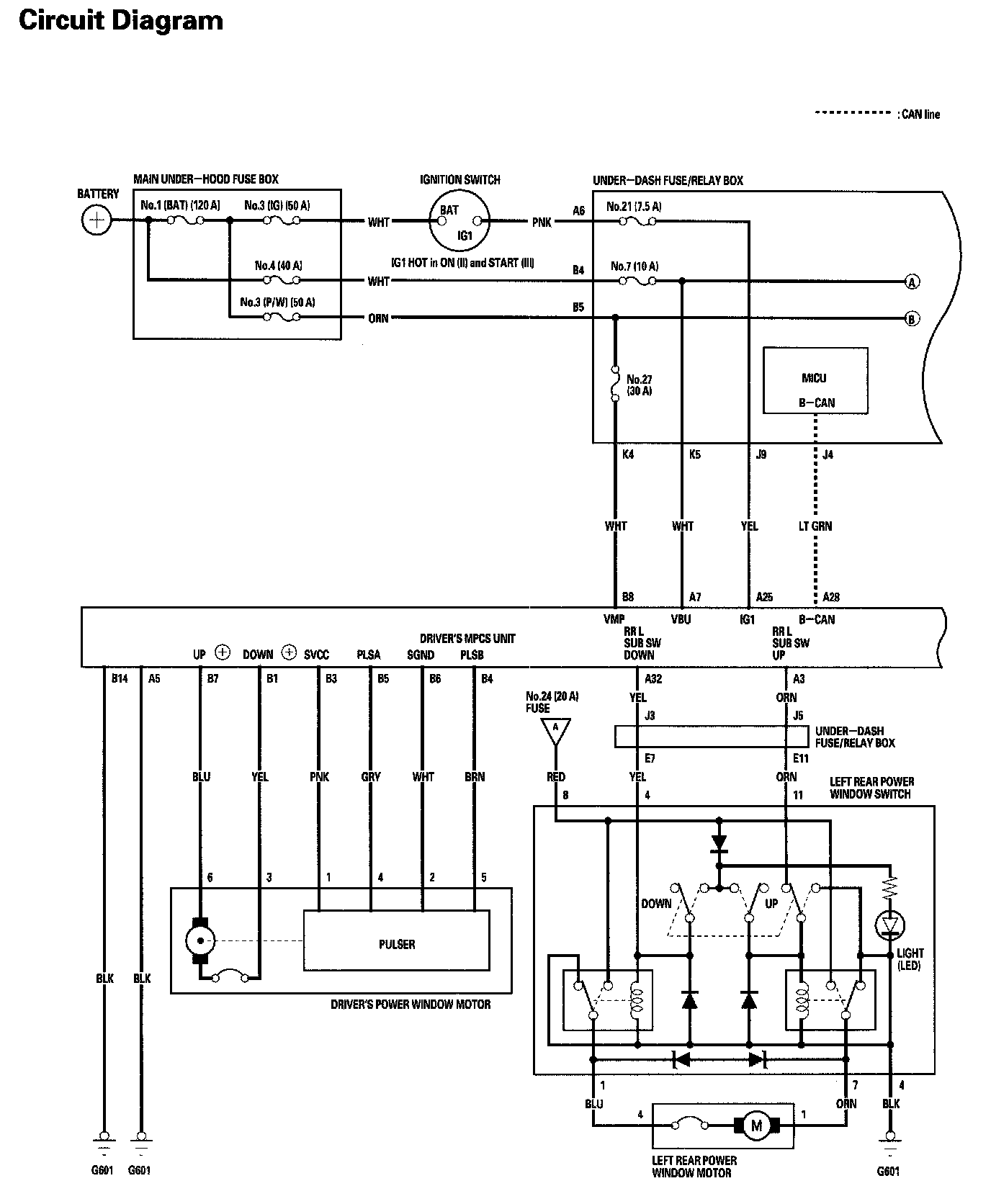

Power Windows Circuit Diagram Part 3:
