Automatic Transmission Circuit Diagram

Circuit Diagram - PCM A/T Control System

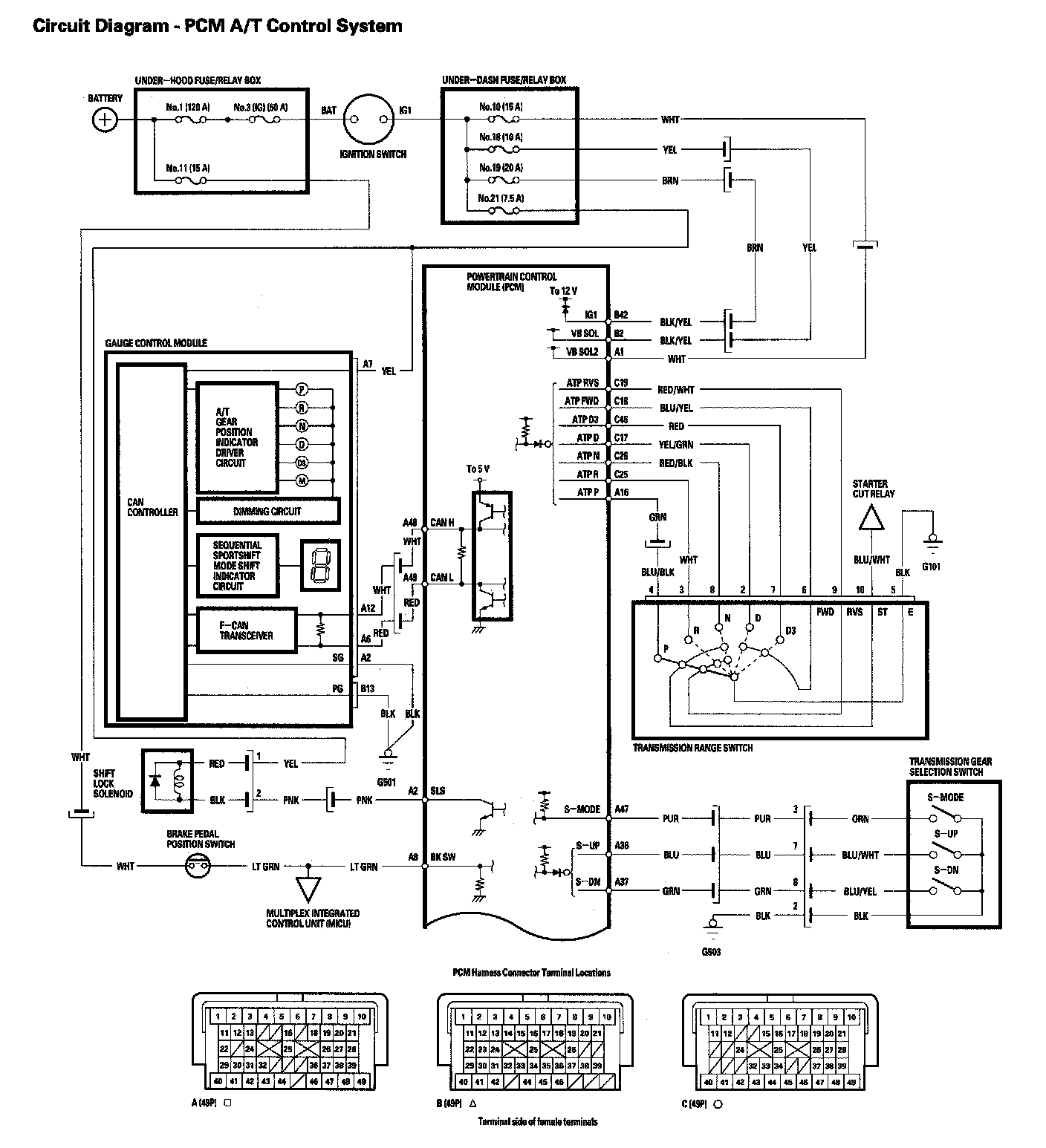

Automatic Transmission Circuit Diagram - PCM A/T Control System (Part 1):

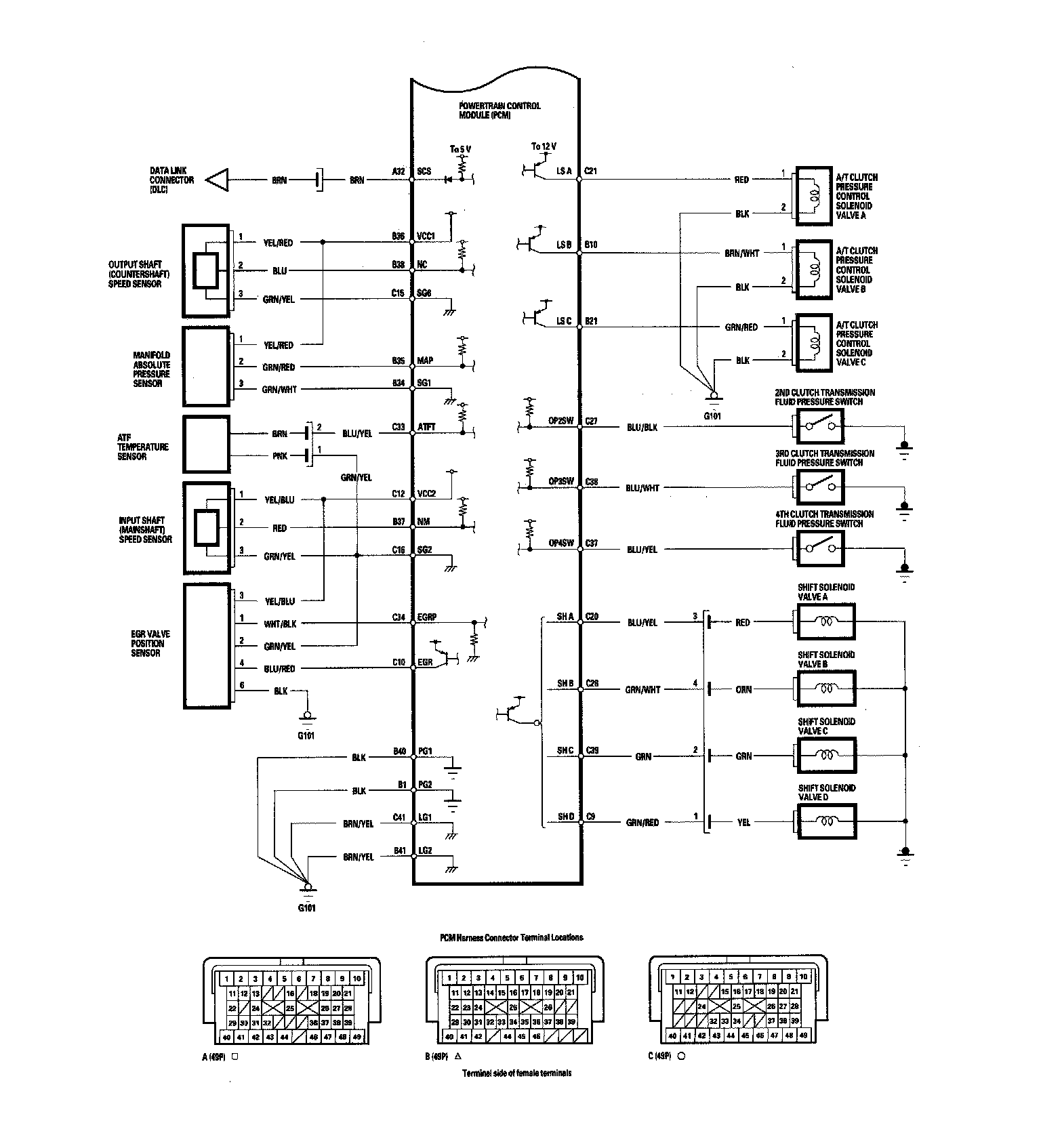

Automatic Transmission Circuit Diagram - PCM A/T Control System (Part 2):
