Active Damper System Circuit Diagram

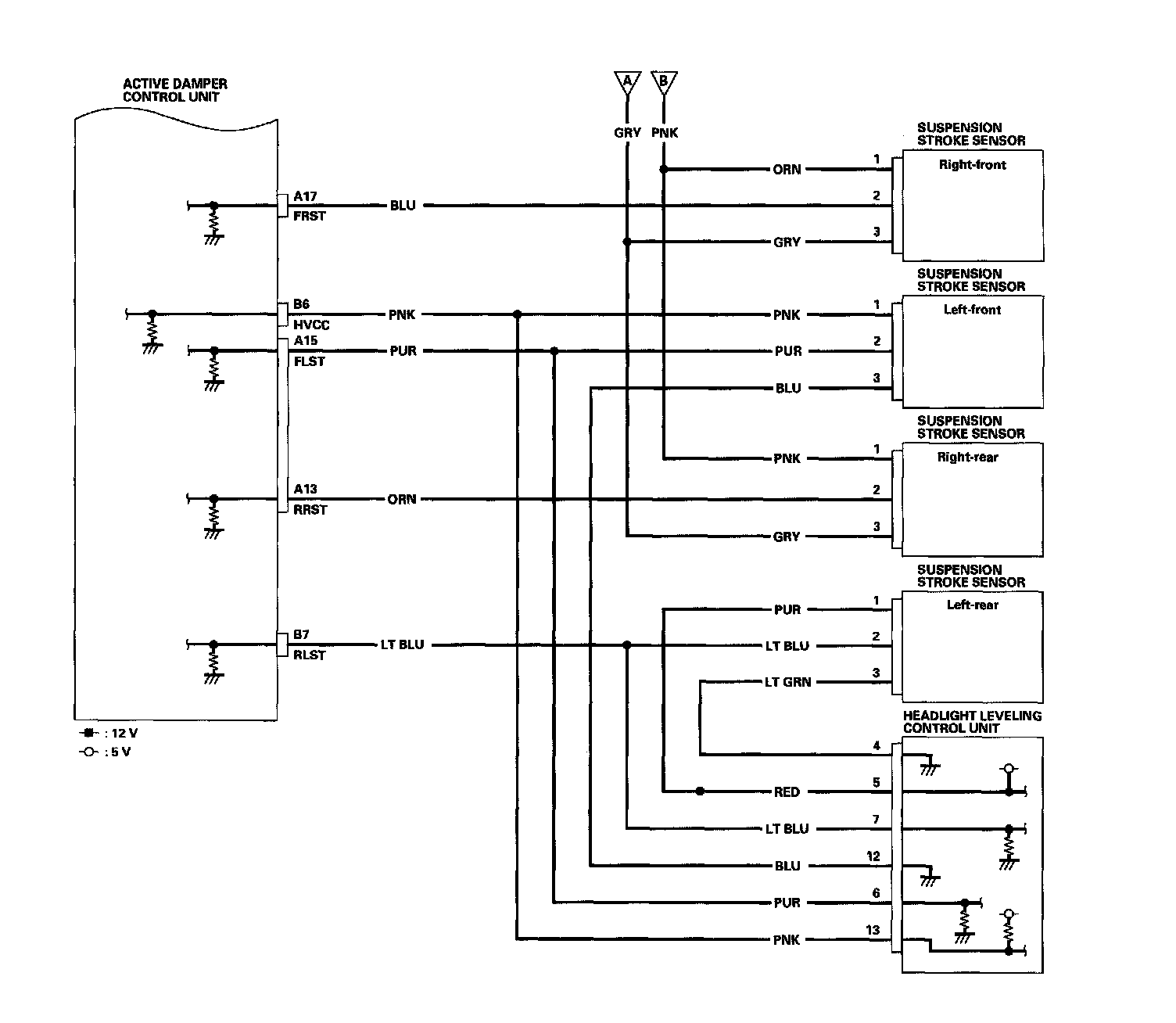

Circuit DiagramActive Damper System Circuit Diagram (Part 1):

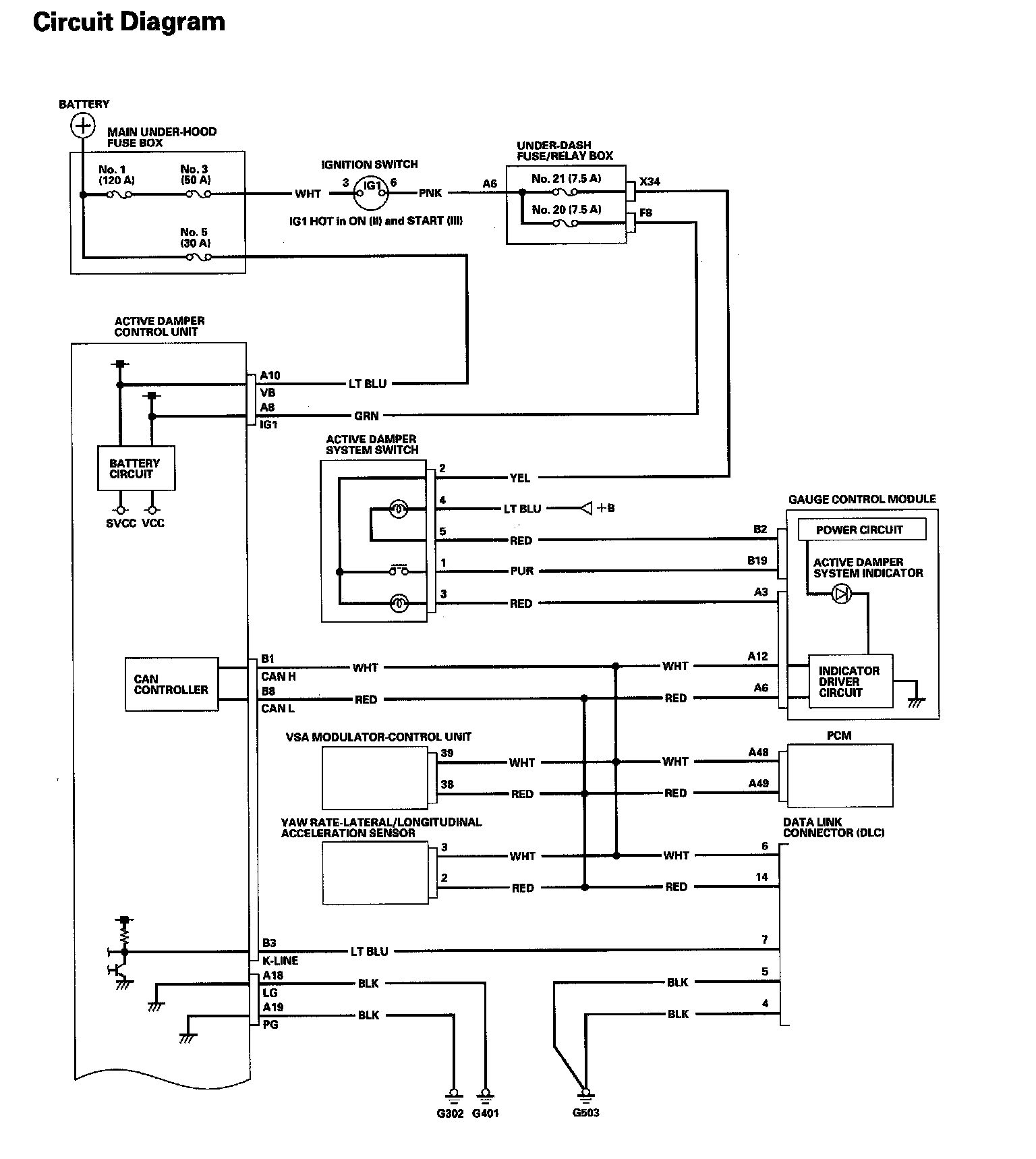

Active Damper System Circuit Diagram (Part 2):

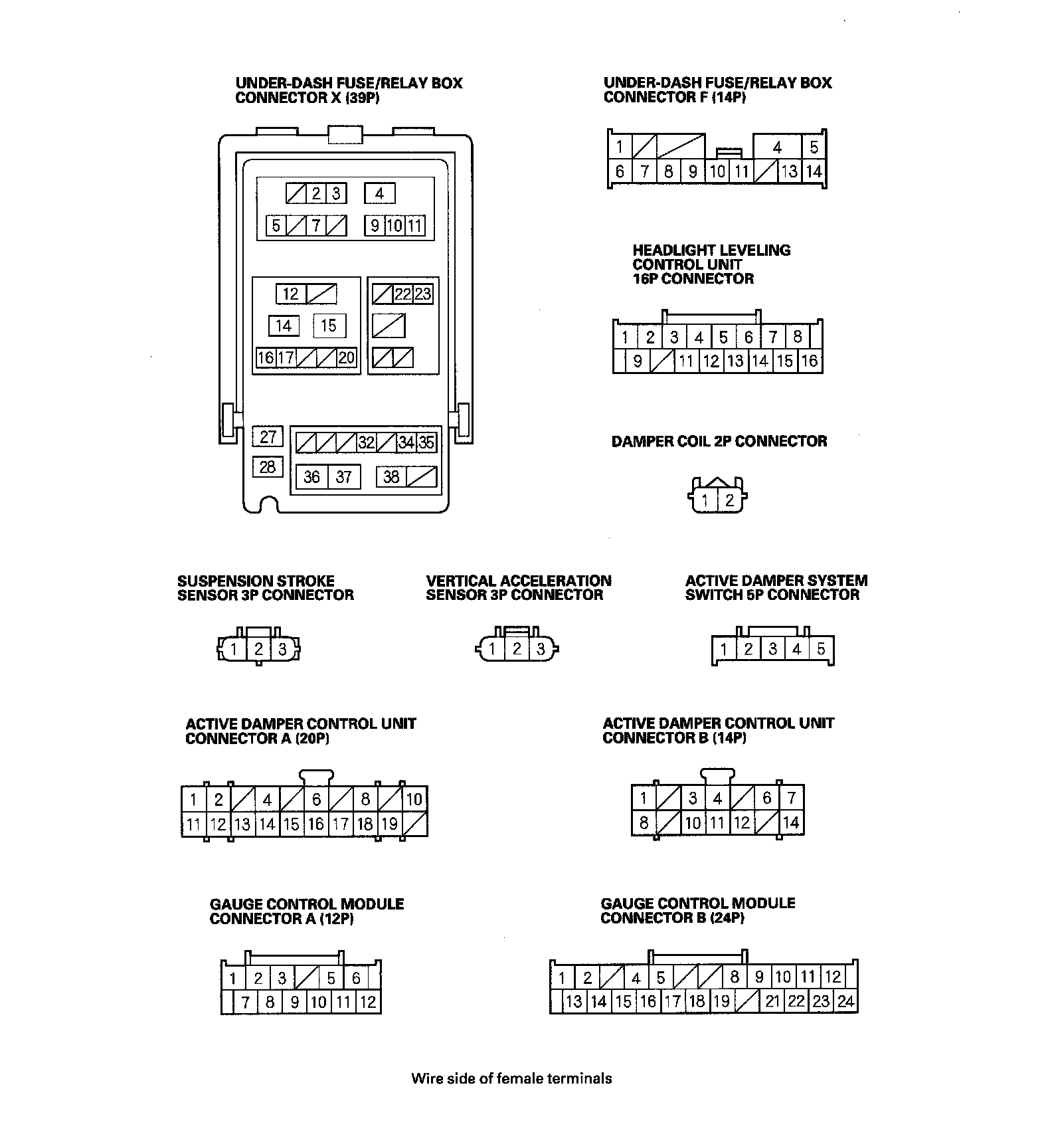

Active Damper System Circuit Diagram (Part 3):

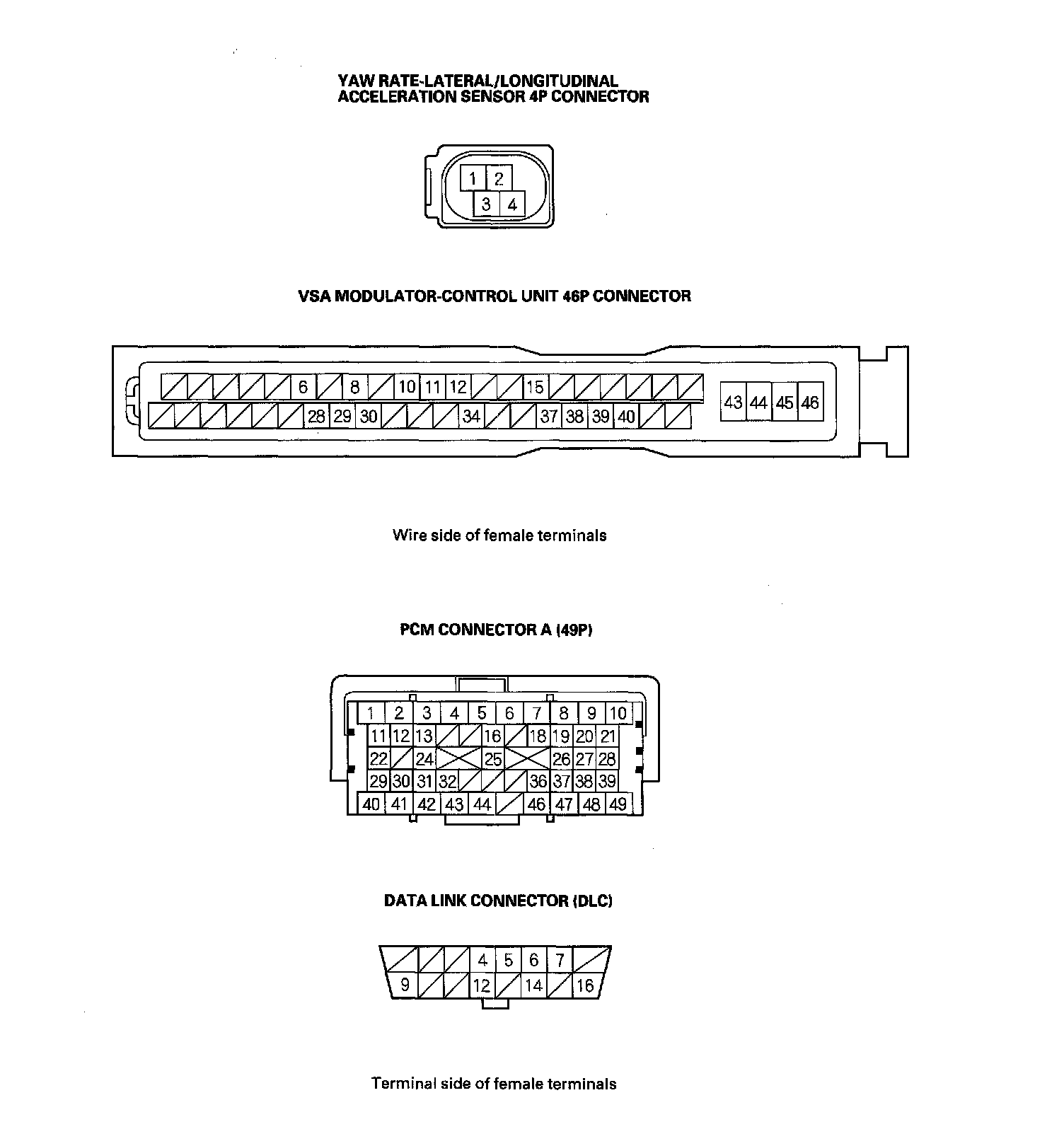

Active Damper System Circuit Diagram (Part 4):

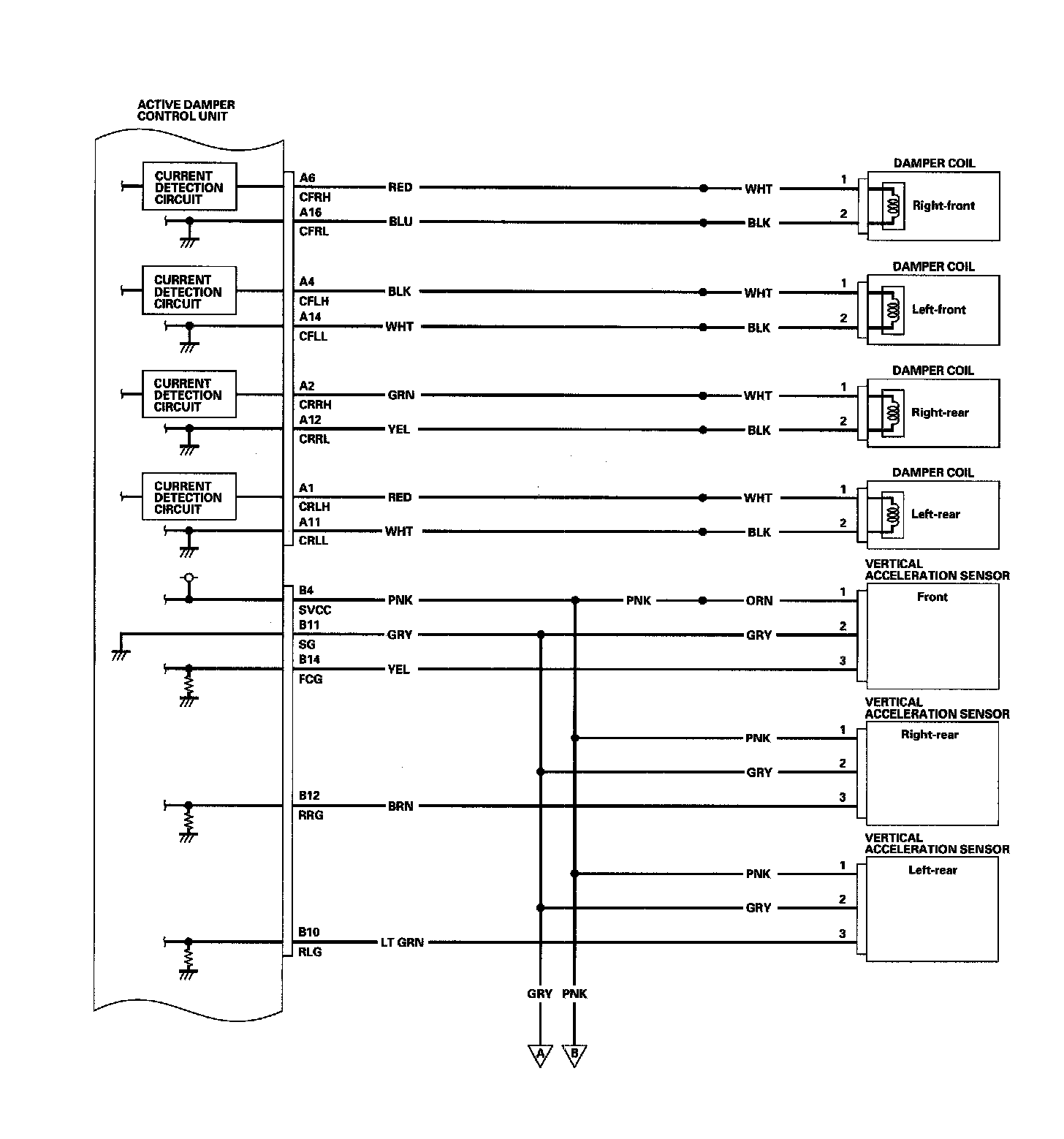

Active Damper System Circuit Diagram (Part 5):
