Seat Heaters Circuit Diagram

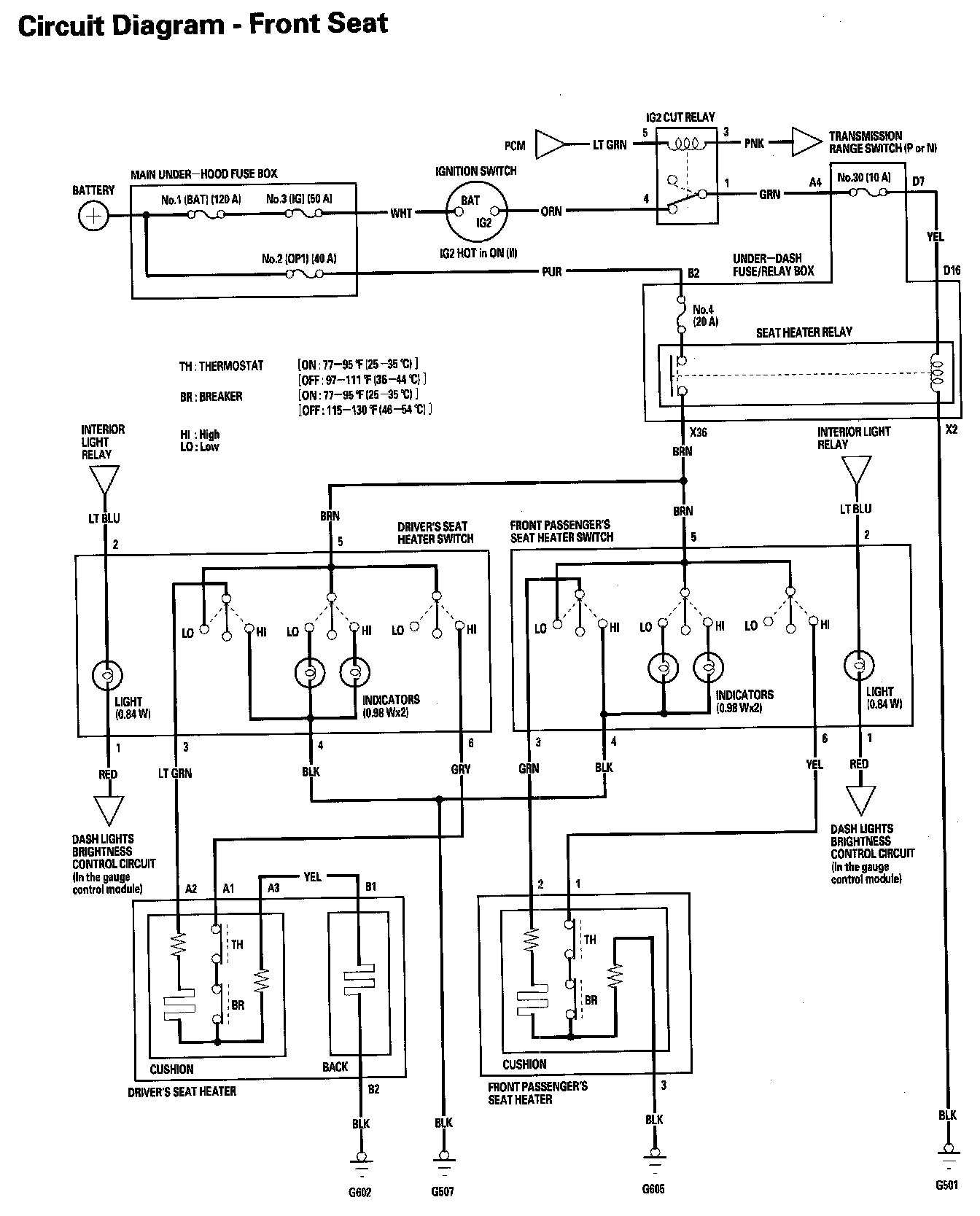

Seat Heaters Circuit Diagram - Front Seat:

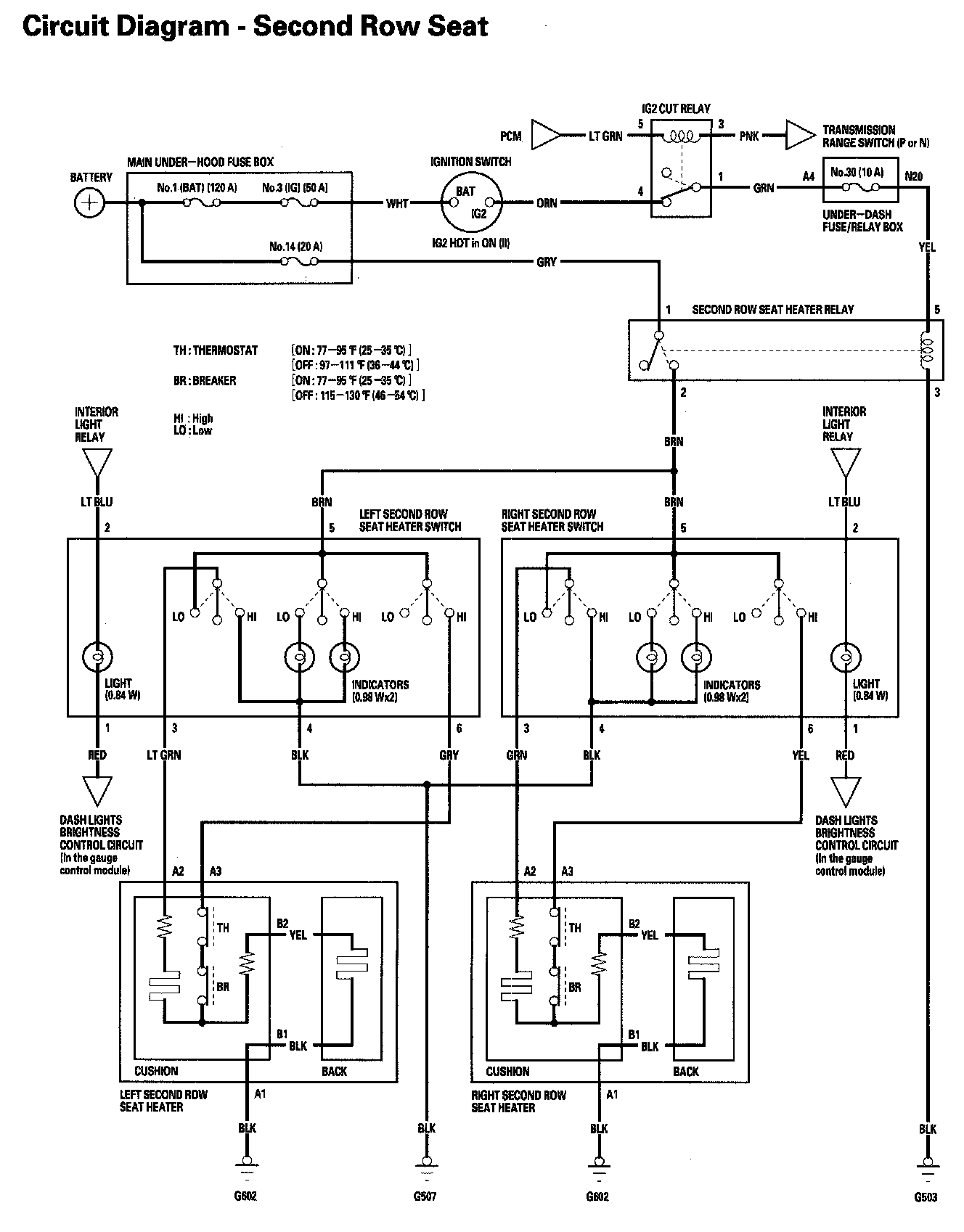

Seat Heaters Circuit Diagram - Second Row Seat:
