SRS Circuit Diagram

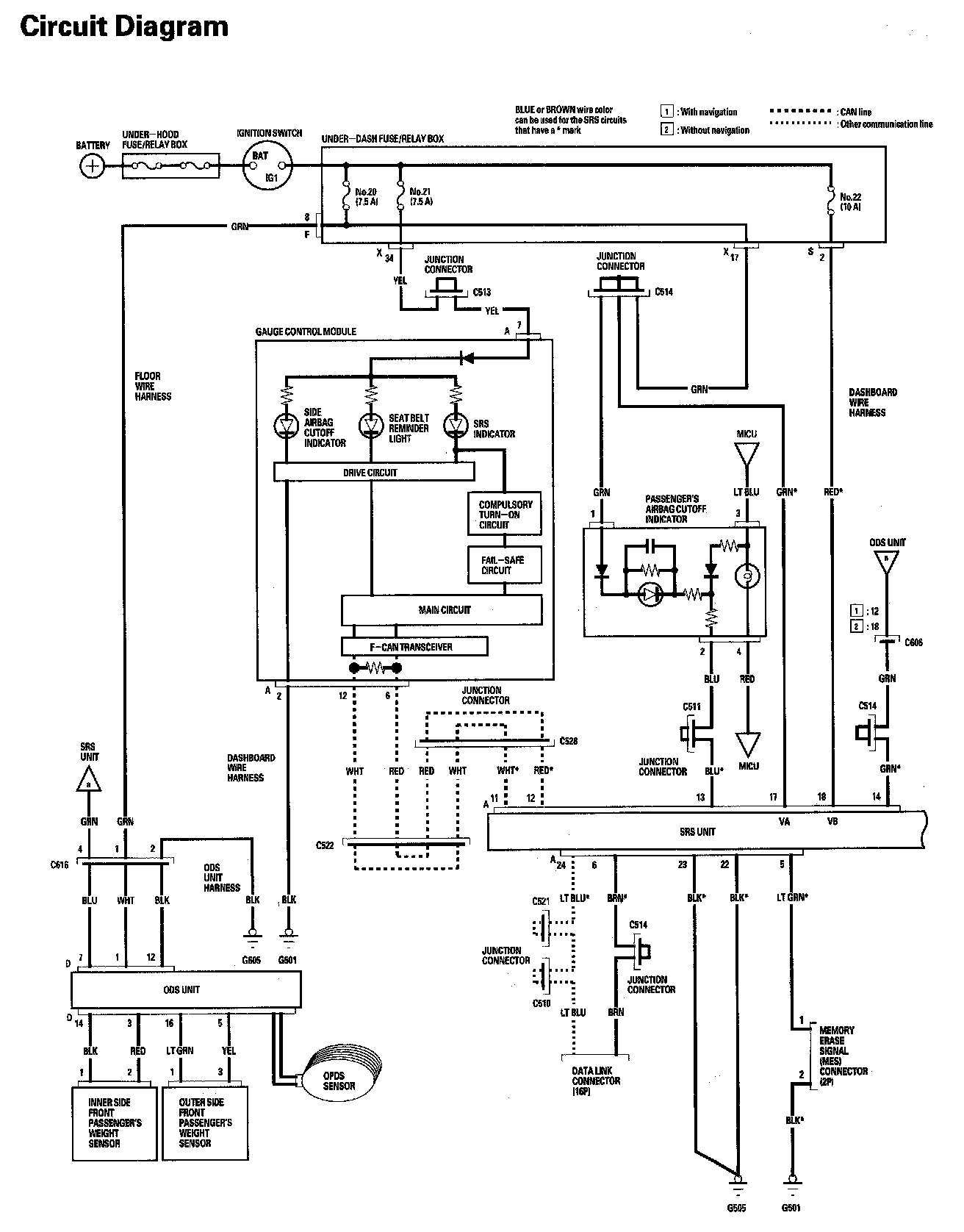

SRS Circuit Diagram Part 1:

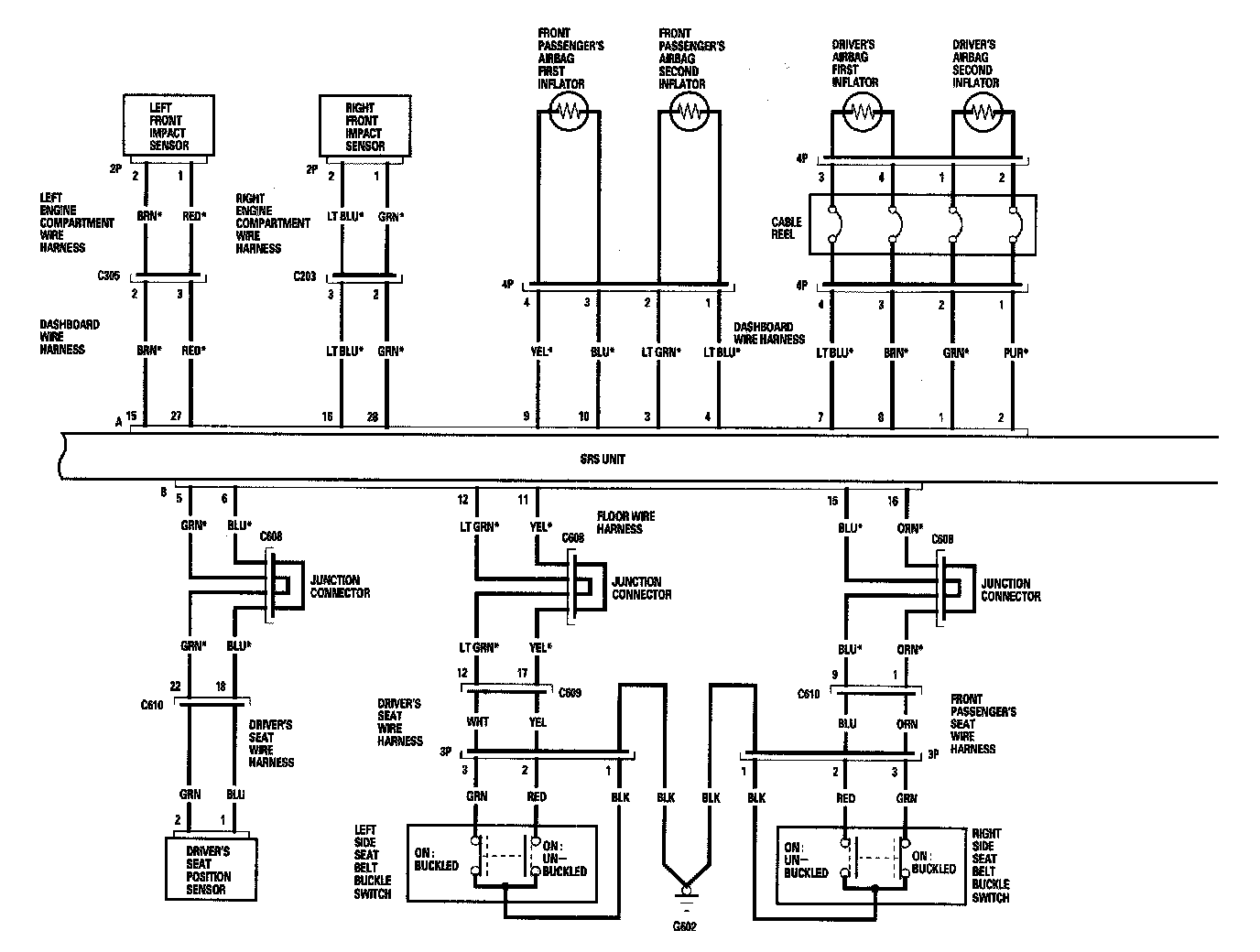

SRS Circuit Diagram Part 2:



SRS Circuit Diagram Part 3:



SRS Circuit Diagram Part 4:
