Audio System Circuit Diagram

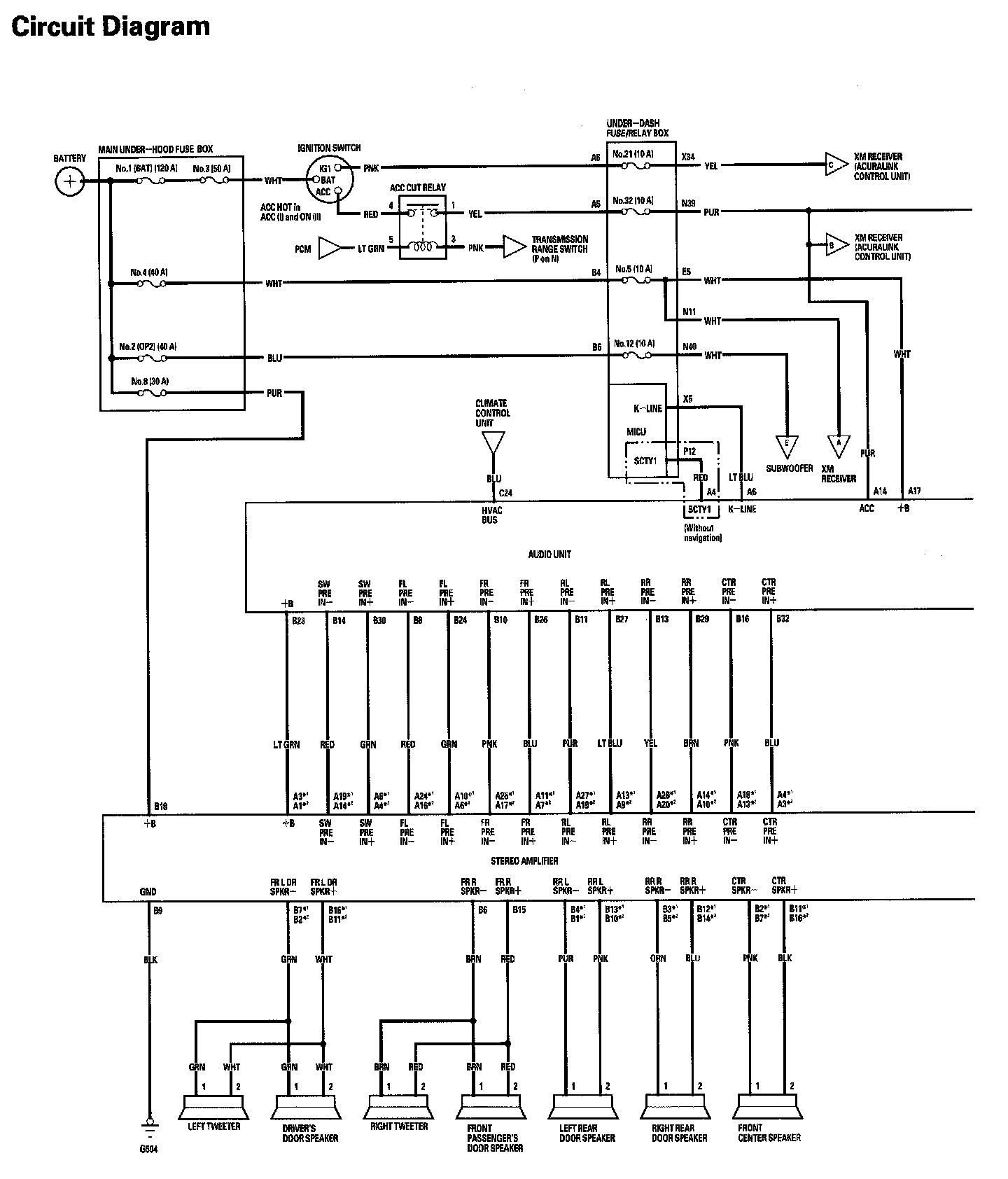

Audio System Circuit Diagram Part 1:

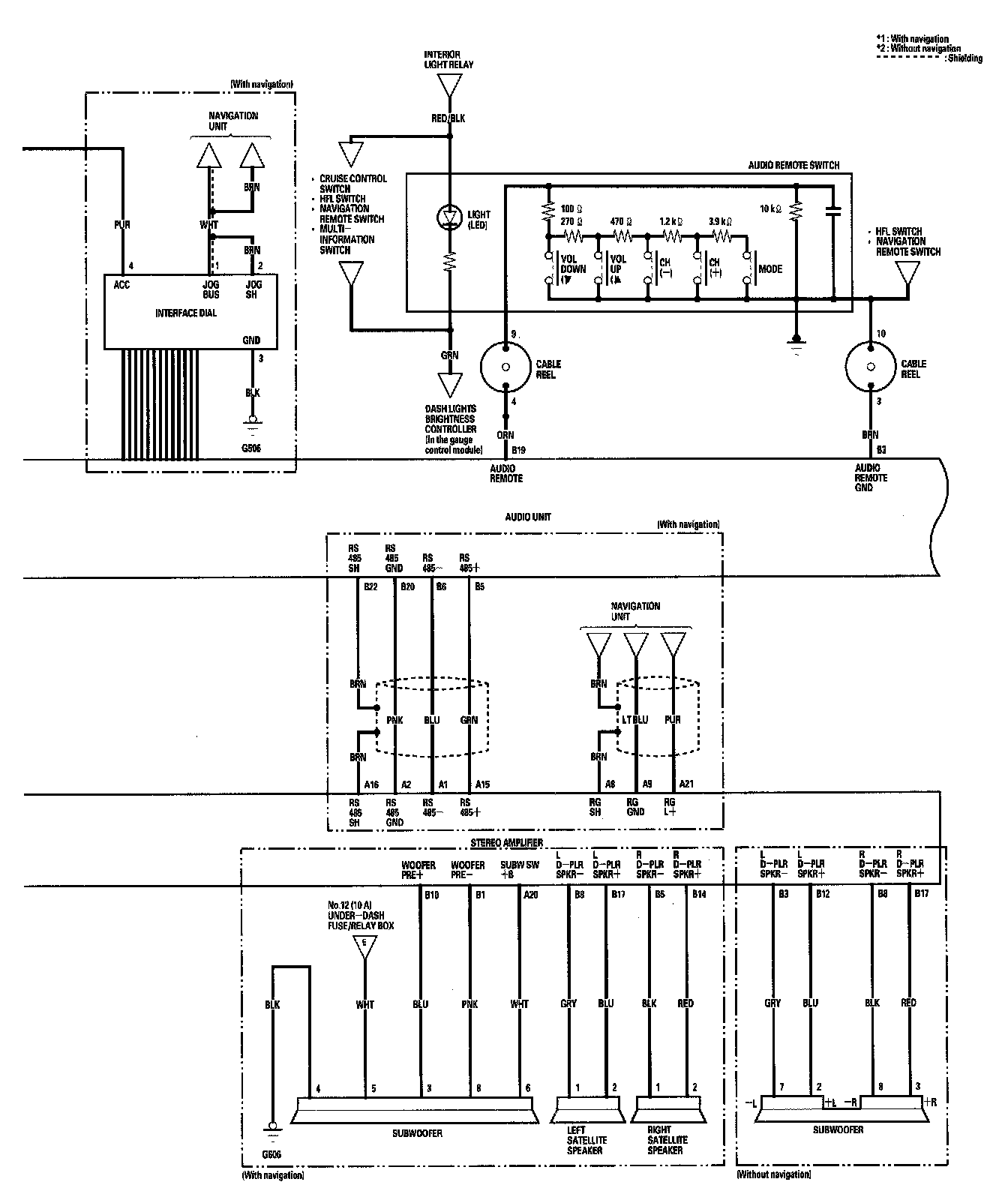

Audio System Circuit Diagram Part 2:

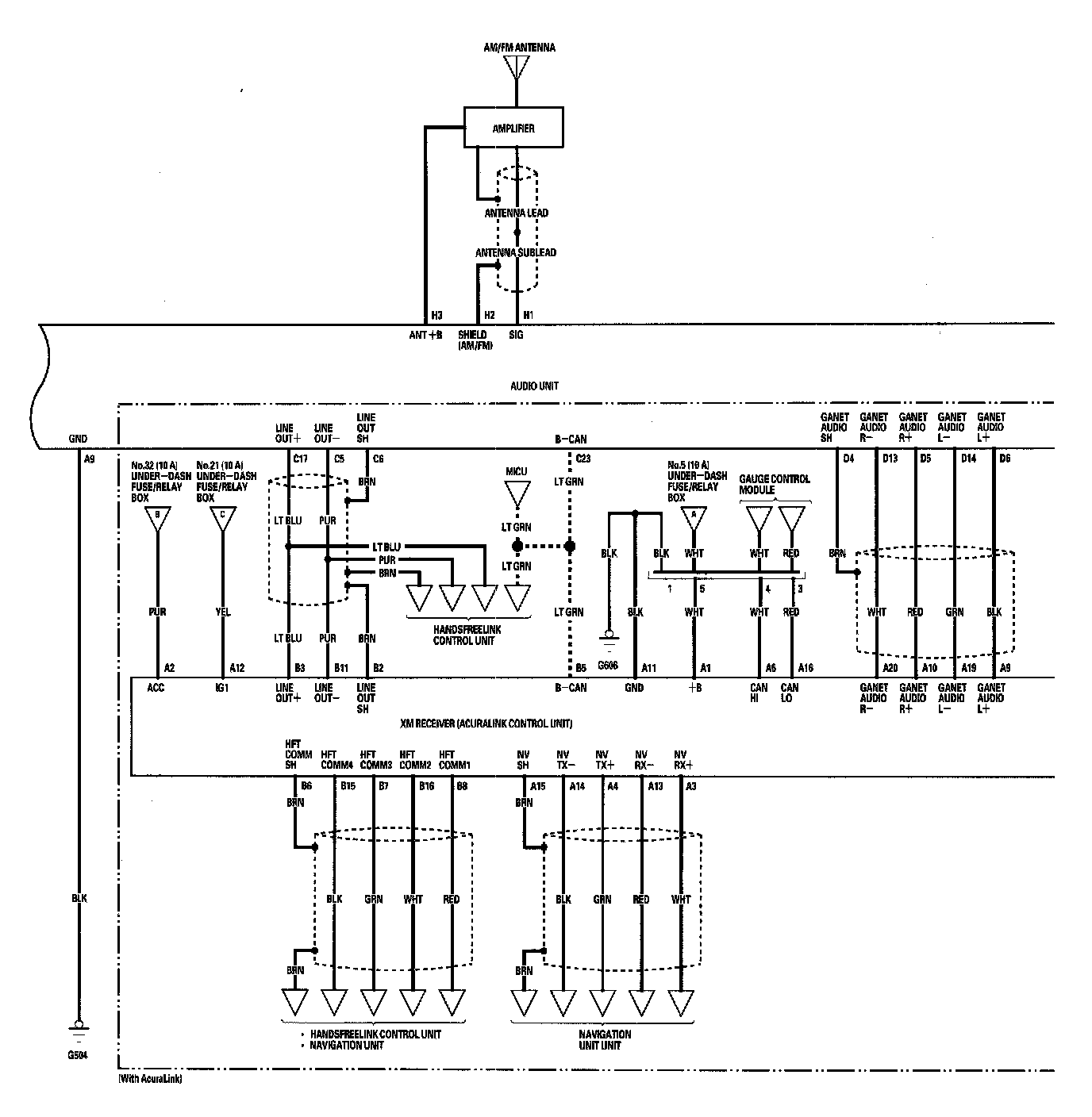

Audio System Circuit Diagram Part 3:

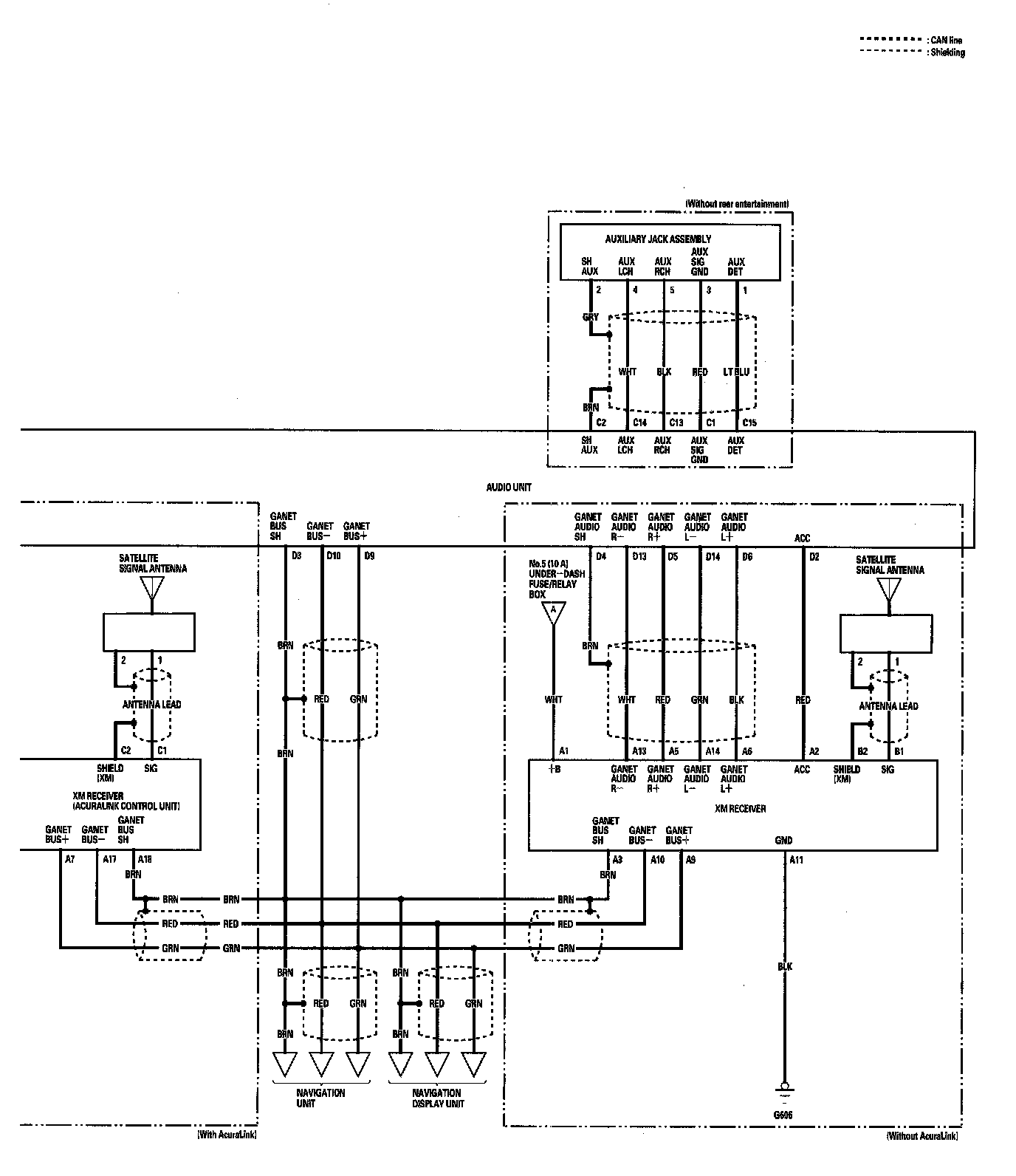

Audio System Circuit Diagram Part 4:
